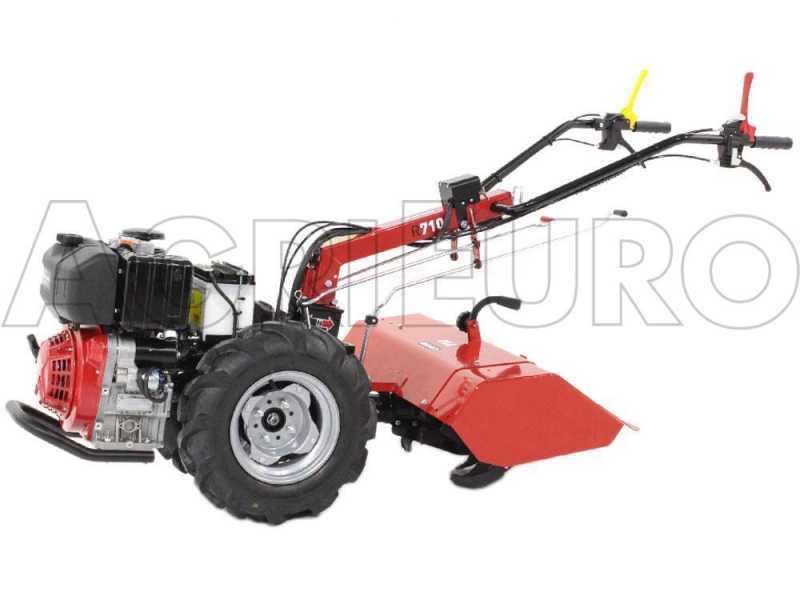

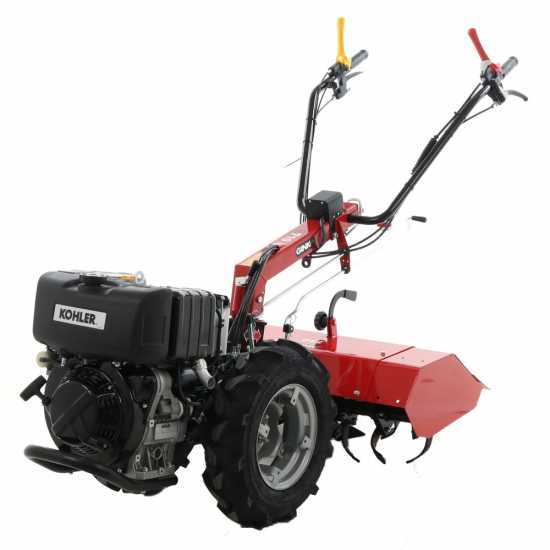

Ginko R710 EKO - Diesel Two-wheel Tractor - Kohler KD15-440 - Electric Start

Heavy-duty two-wheel tractor fitted with a Kohler KD15-440 441 cc engine with electric start, suitable for demanding work in difficult or sloping terrain.

This model is definitely the best two-wheel tractor on the market.

Highly professional and SUPER-POWERFUL machine, suitable for demanding work on hard-to-reach or sloping areas.

The manufacturer pre-tests each two-wheel tractor one by one, providing a ready-to-use machine. The oils are all at level and assembly is limited to the wheels (4+4 screws) and the tiller.

The GINKO two-wheel tractors are Made in Italy, which guarantees reliability, construction and material quality.

This model in particular is reversible, i.e. it allows for the attachment of compatible accessories (not the tiller). It features a ductile cast iron sturdy gearbox with exceptionally hardened steel gears in oil bath.

The gearbox features 7 gears: 4 forward + 3 reverse gears with reverser, allowing both rear and front-mounted implements to be used at the appropriate operating speed.

The gearbox is lever-operated; the steering handles are height- and side-adjustable.

Multi-plate dry clutch with 4 plates.

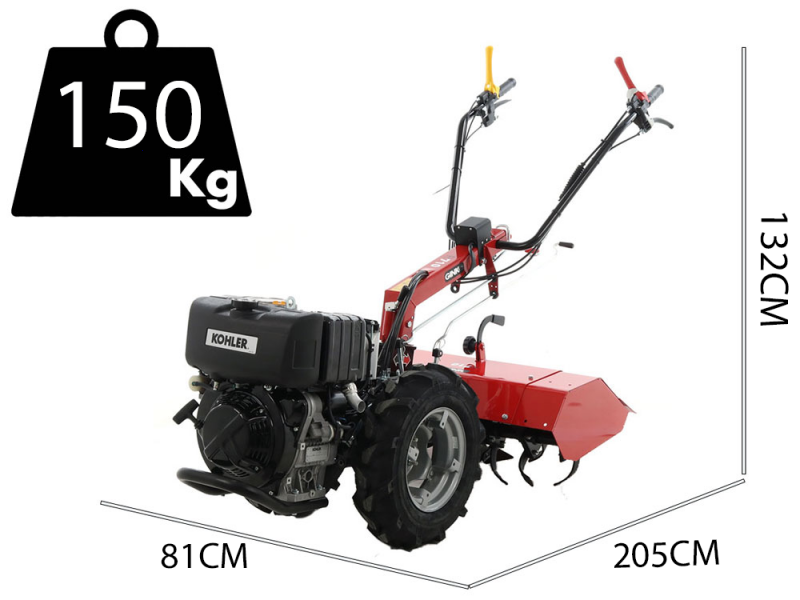

Weight: 150 Kg

The two-wheel tractor is supplied half assembled and with full engine oil. The tiller, wheels and a few other parts still need to be assembled.

The assembly is quite simple and is clearly explained in the instructions manual.

PTO shaft FEATURES:
-10 teeth (or 10 splines)
-teeth external diameter: 18 mm
-teeth internal diameter: 15 mm

Warning: these machines are tested by the manufacturer before being shipped. Therefore, the engine is already filled with oil at level and there is a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

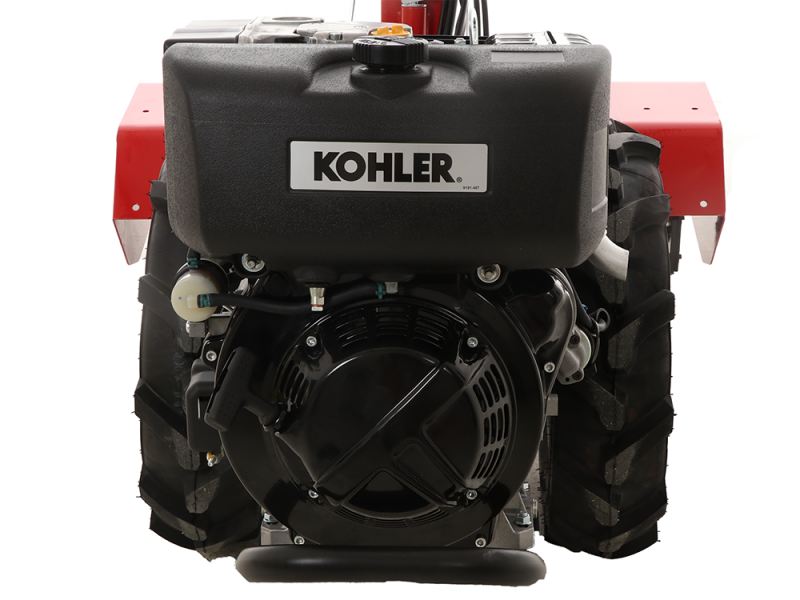

The Kohler KD15-440 441 cc engine is the best diesel engine on the world market today.

Due to its exceptional performance, it is the benchmark for agricultural machinery engines.

Its exceptional power of 10 Hp makes it the best engine in terms of reliability and performance.

Its main features are:

• ignition without kickback (it is the first diesel engine to have this innovation)
• Recoil start
• Ignition with automatic decompression system
• lower noise emissions than other traditional diesel engines
• extremely low consumption
• great steadiness, low vibration level

Main features:

Quiet, smooth and with very low fuel consumption, the Kohler engine is a guarantee of reliability and durability.

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with unbranded (or with unknown brand) engines made in China.

Focus on the air filter

Focus on the battery GEL

Oil level dipstick

Oil tank plug


Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level
Please carefully read the instructions manual before starting the unit.

Nominal Power: 11 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 10 Hp

*It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

The reversible feature allows this two-wheel tractor to be used with different functions.

Here are some examples of the accessories that can be fitted to the machine:

• Power sweeper brush unit
• Iron cage wheels
• Furrower
• Adjustable tiller
• Snow plough
• Snow blower auger
• Mulcher with knives
• Three-toothed harrow
• Wheelbarrow
• Adjustable furrower
• Potato digger
• Rough cut mower
• Two iron wheels
• Plough
• Double furrow turnrest plough
• Sickle bar

WARNING: THE PHOTOS ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED FOR THIS PRODUCT MAY DIFFER IN TERMS OF SHAPE AND COLOUR FROM THE PHOTOS DISPLAYED HERE.
THE PICTURES OF THE ACCESSORIES IN THE "ACCESSORIES" SECTION ARE THE AUTHENTIC ONES.

This two-wheel tractor is equipped with electric start with keys.

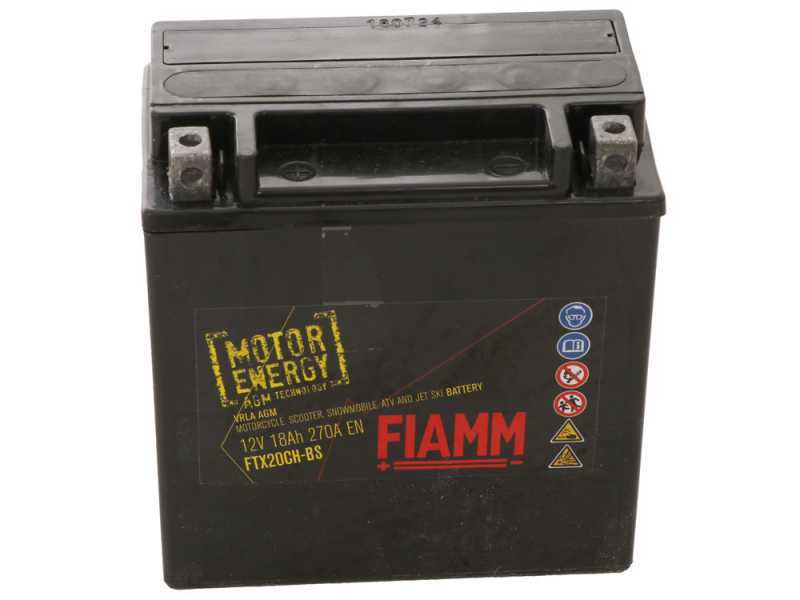

The gel battery is supplied as standard with the machine.
Built-in starter motor in the engine.

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market. Exceptional durability.

Specifically, this two-wheel tractor mounts the largest (in terms of size) and sturdiest transmission on the two-wheel tractors market today, made of robust ductile cast iron,

Suitable for heavy-duty, continuous work and intended for professionals in the sector looking for the best in sturdiness and reliability over the years.

The internal mechanical components are oversized, entirely made with gears in oil bath for outstanding robustness and long service life.

PTO SHAFT QUICK HITCH:

PTO shaft FEATURES:
-10 teeth (or 10 splines)
-teeth external diameter: 18 mm
-teeth internal diameter: 15 mm

7 gears: 4 forward + 3 reverse gears with reverser.

The two-wheel tractor features 7 gears in total: 4 forward gears in milling mode (i.e. with tiller attachment or plough, furrower, etc. fitted) 4 forward gears + 3 reverse gears (with reverser) with the machine in reversed position for front attachments (i.e. with sickle bar attachment, rough cut mower, snow plough, etc...)

The good number of gears allows both rear and front attachments to be used with the appropriate operating speed and with extreme versatility.

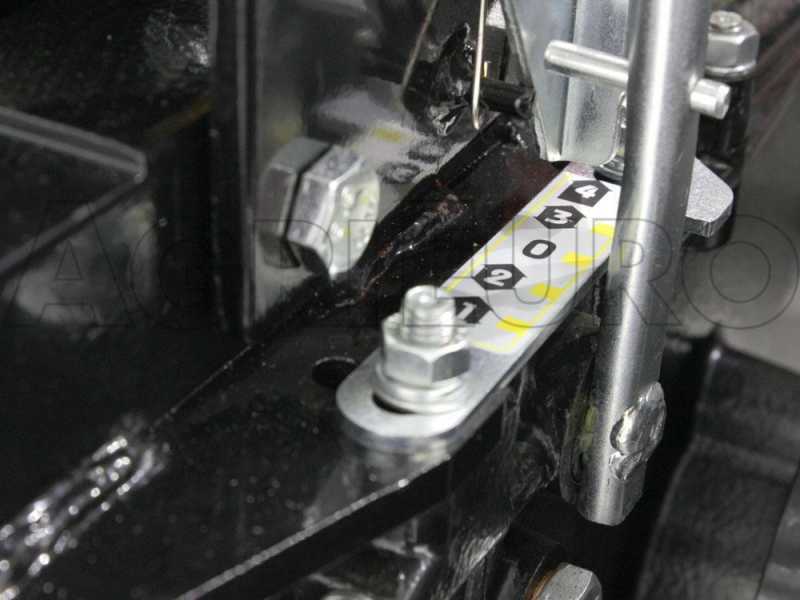

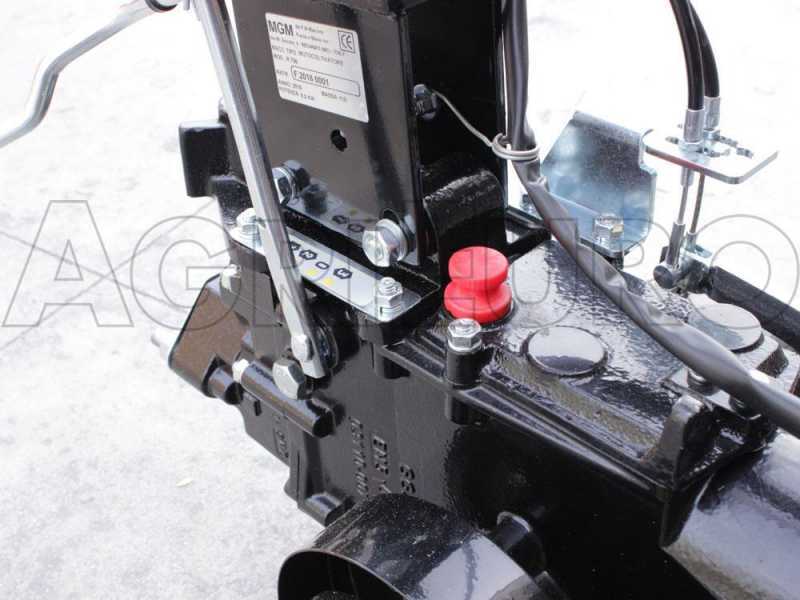

Gear shift lever control

Multi-plate dry clutch with 4 plates., equipped with manual control on the steering handles.

Warning: Gearbox oil already at level.

The steering handles are cushioned and 180° reversible.

Height-adjustable:

different height positions which can be set by means of a lever located between the steering handles.

Focus on the adjusting system.

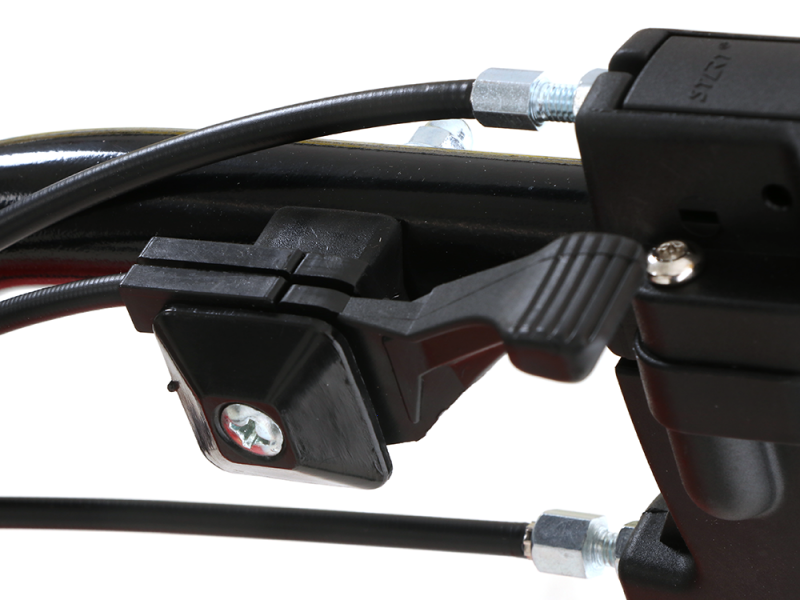

Side-adjusting system:

The steering handles can be set in three positions sideways, thanks to the locking lever. This allows the operator to easily move the machine forward on firm ground.

One of the most peculiar aspect is that they are mounted on a sturdy anti-vibration system which dampens the vibrations generated by the engine and the transmission in operation, increasing working comfort especially when operating the machine for several hours.
Few two-wheel tractors on the market today are equipped with an anti-vibration system.

Soft rubber-coated handles.

The reversible steering handles allows several other implements to be attached (sickle bar, rough cut mower, etc.)

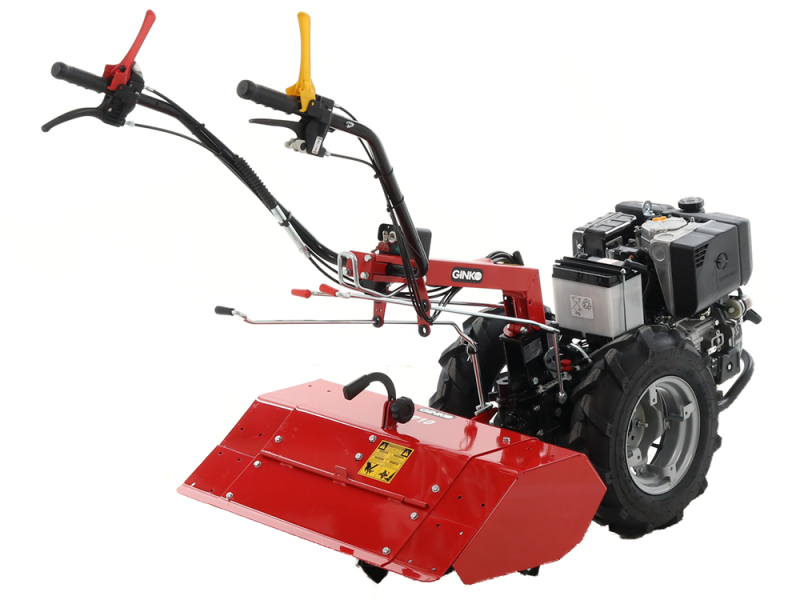

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

Hold-to-run dual clutch controls

• Red lever: hold-to-run clutch lever to move the machine forward
• Black lever: clutch lever.

The diesel engine on/off lever (lower black lever) and the differential gearbox unlocking lever (upper yellow lever) are located on the right side.

The gear lever is located to the right of the operator (lever with red knob on the bottom right). PTO engagement is activated and deactivated by the lever on the left (lever with the black knob).

The lever on the left with the red knob is the reverser.

Ignition keys

Throttle lever

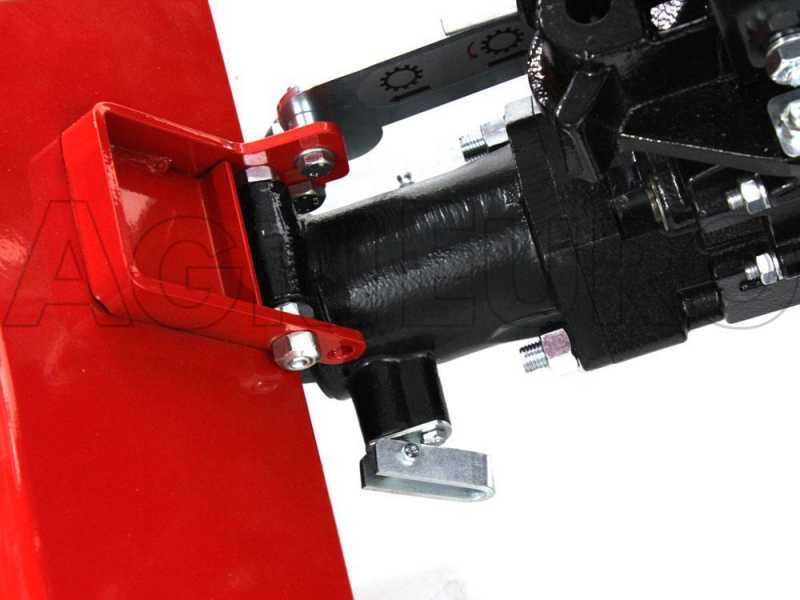

The tiller features a quick hitch which allows the implement to be quickly removed to replace it with another attachment or simply to speed up storage of the machine.

Working depth adjustment.

Hoe tillers are equipped with a special system for adjusting the working depth. The adjustment is made by means of the specific lever placed over the tiller.

Tiller: 80 cm adjustable with quick hitch (hoes width 72 cm, can be narrowed to a minimum of 50 cm)

Focus on the independent single-speed PTO (943 rpm) with quick hitch for accessories attachment.

Safety systems:
- impossibility to engage the tiller attachment in reverse gear when the operator is working on the tiller side (by means of the lever with the black knob)
- the machine drive stops when the steering handles are released in compliance with the Machinery Directive 2006/42/CE

There are two main aspects that make this machine extremely easy, comfortable and effortless to use, even for the less experienced operators.

The standard wheels DIFFERENTIAL gearbox, with locking device on the steering handles.

This mechanical system for distributing the engine torque gives the two-wheel tractor truly extraordinary maneuverability, allowing very simple and light steering.

The excellent overall balance of this two-wheel tractor: one of the few on the market to have the weight perfectly distributed between front and rear. This allows for manoeuvrability with truly minimal effort.

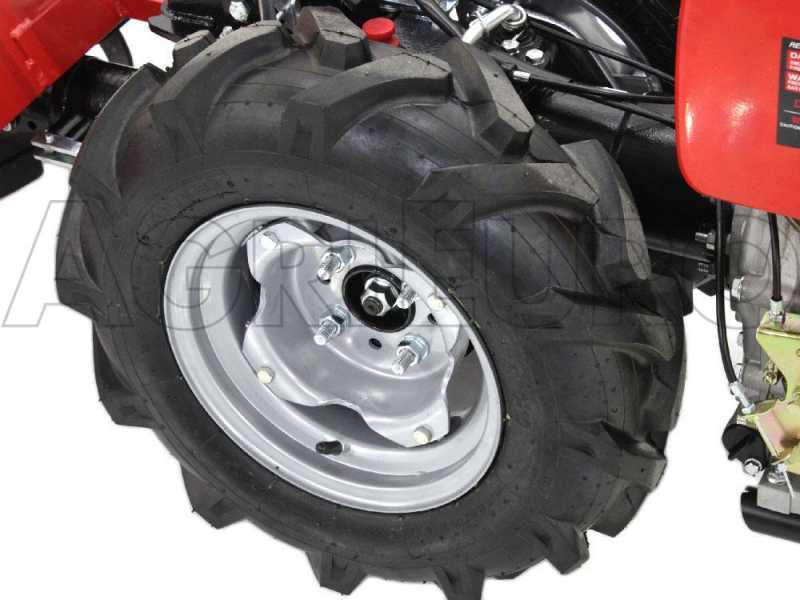

The two-wheel tractor mounts large pneumatic wheels with adjustable rim that allow the track width to be widened as required, ensuring a safe and uniform movement.

Large treaded wheels Tractor model size 5.00 - 10

Rigid wheel axle with wheel spacers.

The manufacturer pre-tests each two-wheel tractor one by one, allowing the machine to be delivered ready for use. The oils are all at level and assembly is limited to the wheels (4+4 screws) and the tiller.
