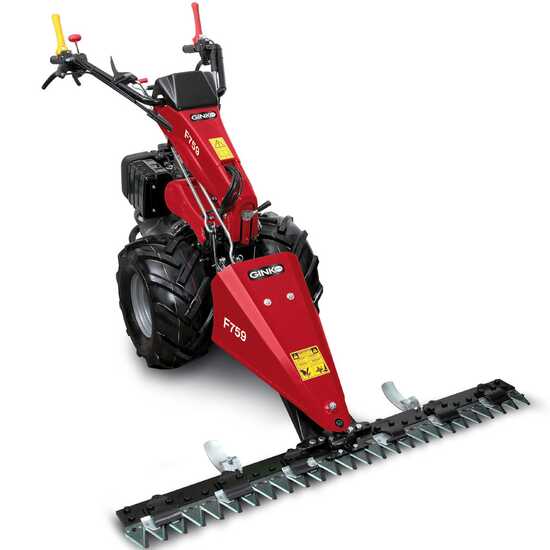

Ginko MGM FC 759 - Multifunctional motor mower - Honda GX390

Ginko MGM FC 759 self-propelled scythe mower is provided with a 7-speed gearbox, 3 forward + 3 reverse + 1 fast transfer with reverse shuttle, easily activated by the lever just below the handlebars. Furthermore, it is equipped with two large tractor wheels 18x9.50- 8, mounted on a rigid axe with adjustable hubs.

It is equipped with a powerful 389cc 4-strokes Honda GX390 engine, with a 13 HP nominal power.

It is perfect for mowing even very tall grass, or grass to be recovered and used for livestock feed. In fact, the scythe mower special feature is to preserve, after cutting, the complete integrity of the cut grass, making a single cut of it near the root.

The 130 cm cutter bar (supplied as standard in the insertion price) is connected to the machine by means of a quick hitch, allowing the operator to easily remove it and, thanks also to the reversible handlebars, connect any other compatible attachment to it, making the two wheel tractor a versatile and practical tool for a variety of uses. Furthermore, the bar is provided with two practical slides that allow the operator to quickly adjust the cutting height.

This self-propelled, petrol scythe mower can work on all kinds of surfaces, even those with a little slope and not perfectly flat.

By doing this, it preserves the integrity and the possibility to collect it for feeding farm animals.

This reversible scythe mower allows using several different attachments for various applications.

Here below some examples of the accessories that can be fitted to the scythe mower:

• Power sweeper brush unit
• Iron cage wheels
• Furrower
• Adjustable cutter
• Snow plough
• Snowplough cutter
• Knife-typed cut mower
• Three-toothed harrow

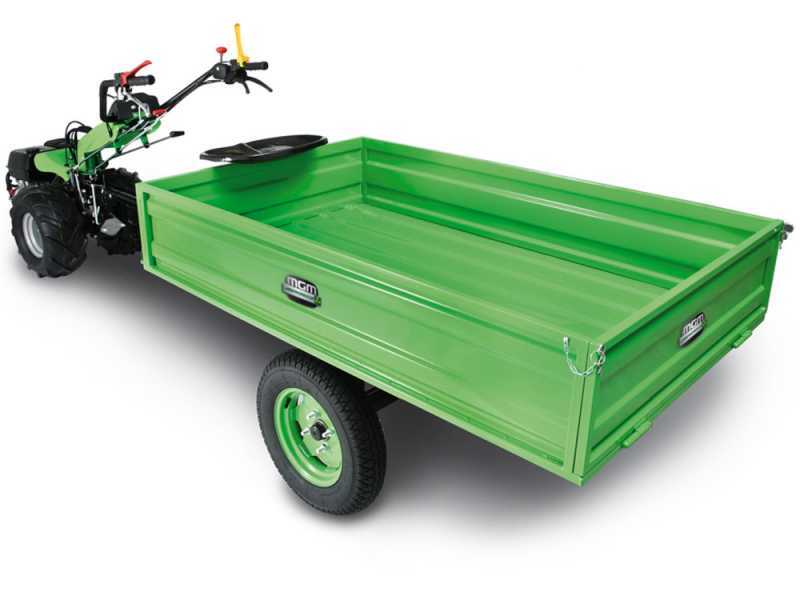

• Wheelbarrow
• Potato digger
• Rough cut mower
• Plough
• Two furrow ploughs

WARNING: THE PICTURES ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED SEPARATELY FOR THIS PRODUCT MAY DIFFER IN SHAPE AND COLOUR FROM THE IMAGES SHOWN ON THE DESCRIPTION OF THE UNIT.
THE IMAGES OF THE ACCESSORY PRODUCT IN THE "ACCESSORIES" TAB ARE AUTHENTIC.

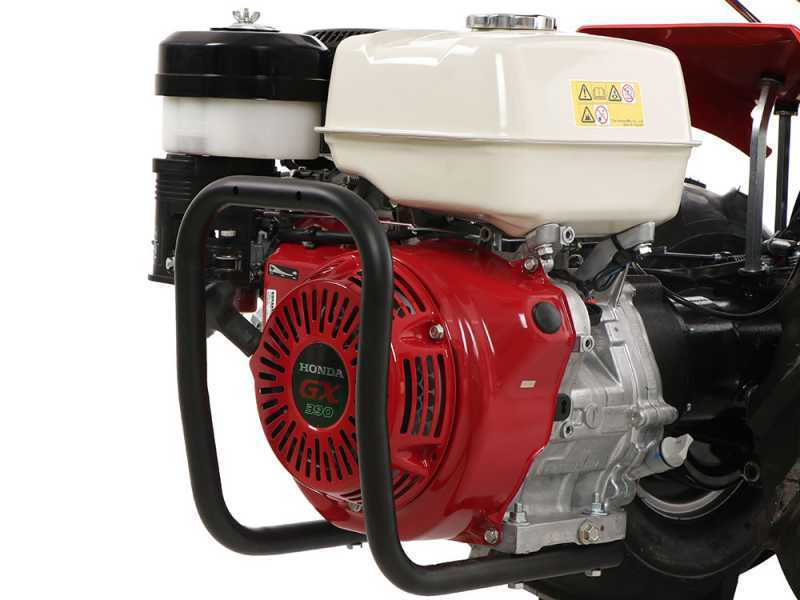

Honda GX 390 engine is a highly-duty,
powerful and state-of-the-art engine, with a overhead valve technology (OHV).

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Focus on the air filter in oil bath. It guarantees the best possible filtering.

The HONDA engines belonging to the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING!

The engine is SUPPLIED WITH OIL, CHECK THE LEVEL WITH THE MACHINE ON FLAT SURFACE.
Please carefully read the instructions manual before starting the unit.

Nominal Power: 13 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 HP

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

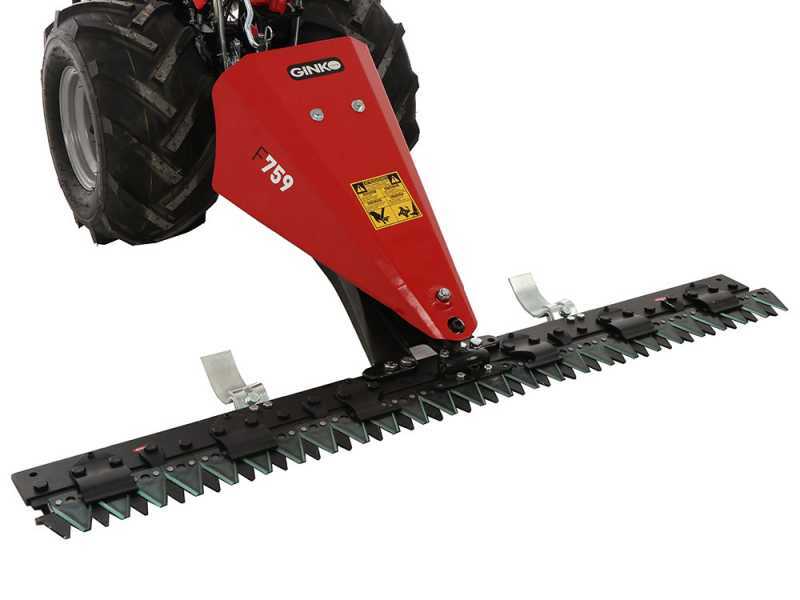

Sickle bar cutting width: 130 cm

The cutter bar of this scythe mower is of the tilting type. In fact, it rotates around its own axis of connection to the machine body. The bar is attached to the machine's PTO through a quick hitch and is equipped with an oil-bath transmission.

This allows it to work on all types of soil, even quite uneven ones, as it is better able to adapt to its roughness.

Mulching cutting system: the bar is made up of a lower and an upper blade, which moves by oscillating motion in contact with the lower blade, which is static and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades.The sickle bar is provided with upper blade guides.

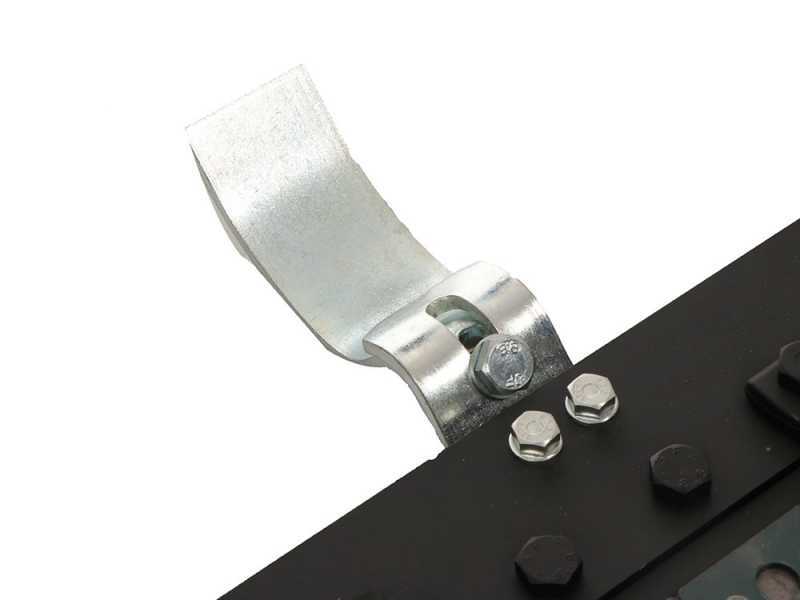

Focus on the slides for the cutting adjustment.

Front casing for grass protection.

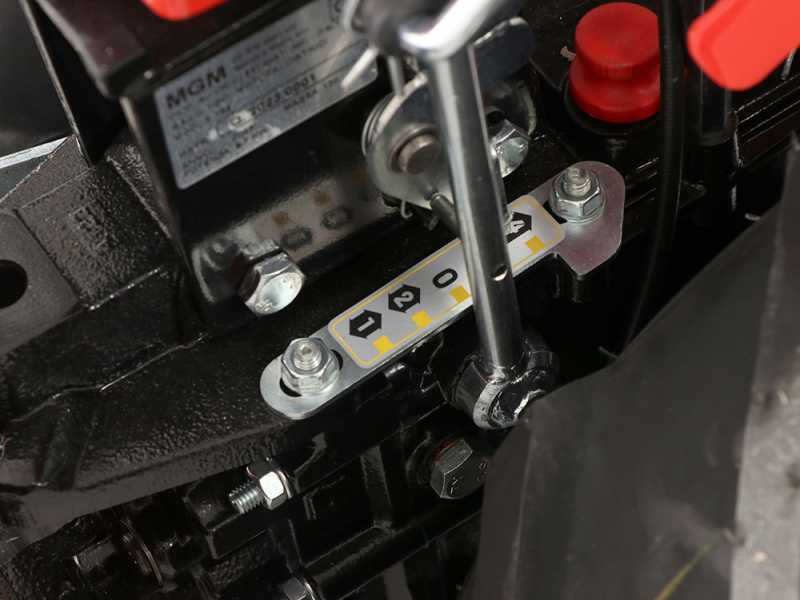

The machine is equipped with a 7-speed gearbox with reverse shuttle divided into:

-3 forward speed gear

-3 forward speed levels

-1 fast transfer, a gear that can only be used for driving the machine forward and not for working.

They can be selected by means of the lever located under the handlebars on the left.

The other black lever on the right, under the handlebars, is used to engage the PTO

. Central gearbox with oil-bath gears. Very sturdy and reliable.

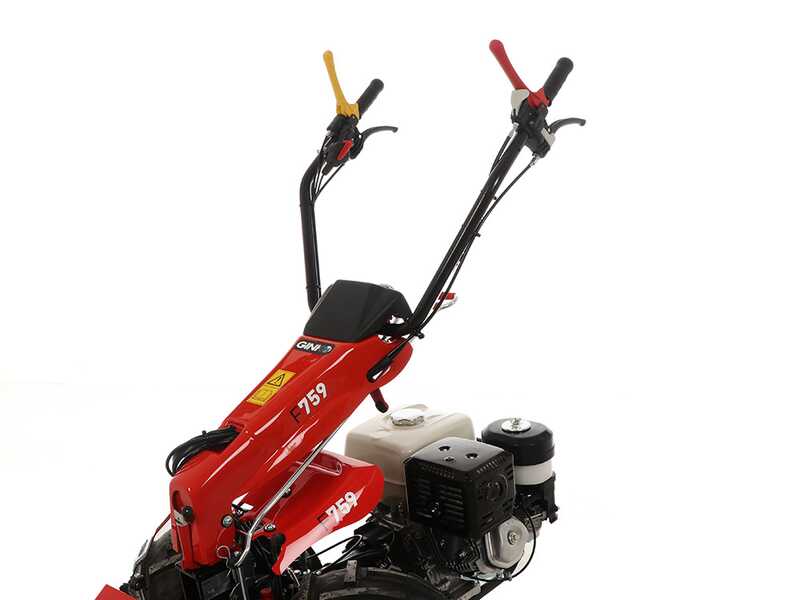

Easy and user-friendly controls placed on the handlebar.

Focus on the clutch unit (left-hand lever)

Tractor wheels 18x9.50-8

Focus on the brakes (left and right wheel)

Differential lock

Focus on the handlebar height adjustment (7 different heights, 1-2-3-)

Reversible handlebars can also be adjusted laterally through a special lever (1-2)

Focus on the handlebars placed in reverse (fully rotated) for the connection of other types of accessories.

Focus on the protection located behind the wheel. This special protection avoid prevents freshly cut grass from getting stuck and ruining the machine.

Power switch

Focus on the engine protection
