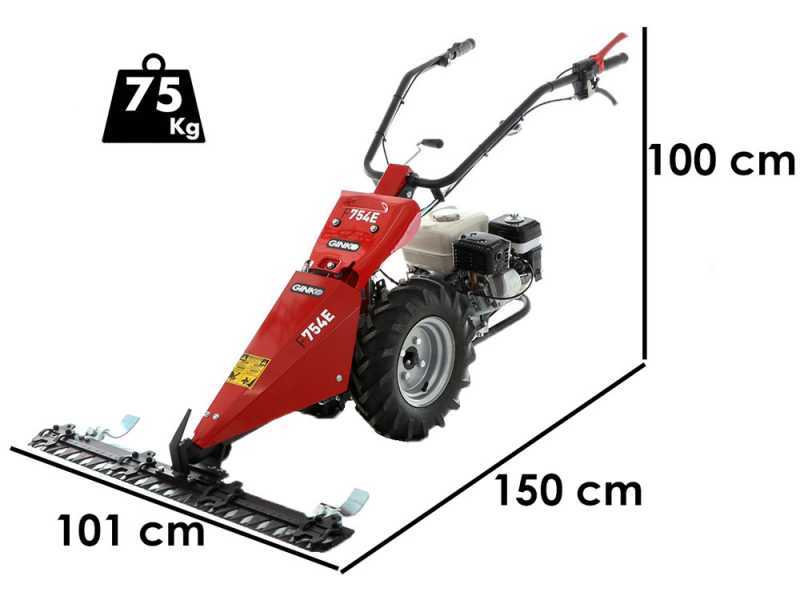

Ginko MGM FC 754 E Scythe Mower

The self-propelled Ginko MGM FC 754 E scythe mower features a 100 cm cutter bar (supplied as standard in the listed price) and is connected to the machine via a quick coupling, allowing the operator to easily remove it and connect any other compatible attachment, making the scythe mower a versatile and practical tool for a variety of uses.

The bar is also equipped with two practical slides that allow the operator to quickly adjust the cutting height.

The gearbox has 4 speeds (2 forward and 2 reverse) that are easily engaged through a lever just below the handlebars. Moreover, it is provided with two large tractor wheels 4.00-8, mounted on a rigid axe with adjustable hubs.

It is perfect for mowing uncultivated and wild grass, even very tall one, or grass to be recovered and used for livestock feed. In fact, the scythe mower special feature is to preserve, after cutting, the complete integrity of the cut grass, making a single cut of it near the root.

By doing this, it preserves the integrity and the possibility to collect it for feeding farm animals.

It is equipped with a powerful 163 cc 4-strokes Honda GX160 engine, with a 5.5 HP nominal power.

This self-propelled, petrol scythe mower can work on all kinds of surfaces, even those with a little slope and not perfectly flat.

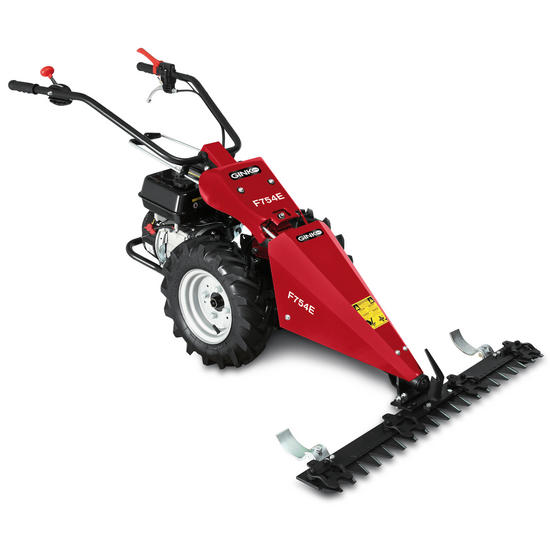

Ginko MGM FC 754 E - Multi-purpose Scythe Mower - Honda GX160

Accessories that can be Purchased Separately for the Scythe Mower

This scythe mower allows using several different attachments for various applications.

Here below some examples of the accessories that can be fitted to the scythe mower:

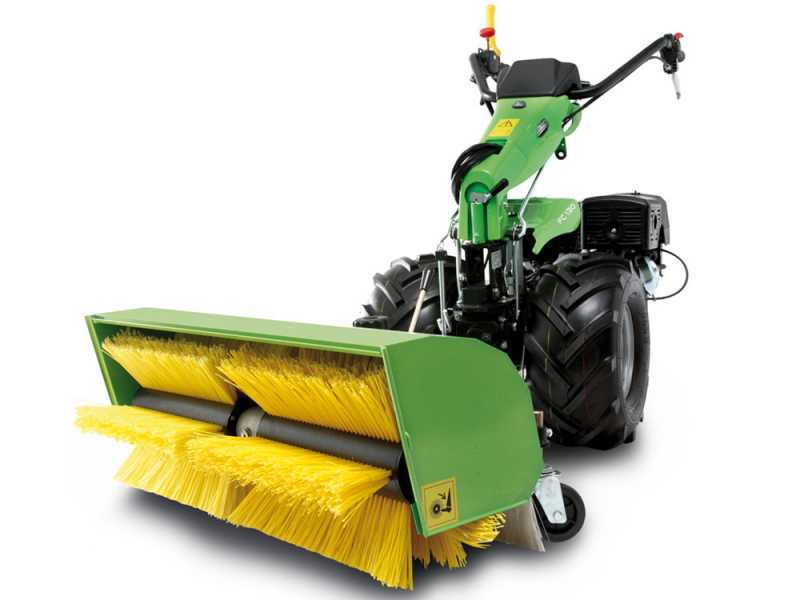

Power sweeper brush unit
Iron cage wheels
Snow plough
Rough cut mower

WARNING: THE PICTURES ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED SEPARATELY FOR THIS PRODUCT MAY DIFFER IN SHAPE AND COLOUR FROM THE IMAGES SHOWN ON THE DESCRIPTION OF THE UNIT. THE IMAGES OF THE ACCESSORY PRODUCT IN THE "ACCESSORIES" TAB ARE AUTHENTIC.

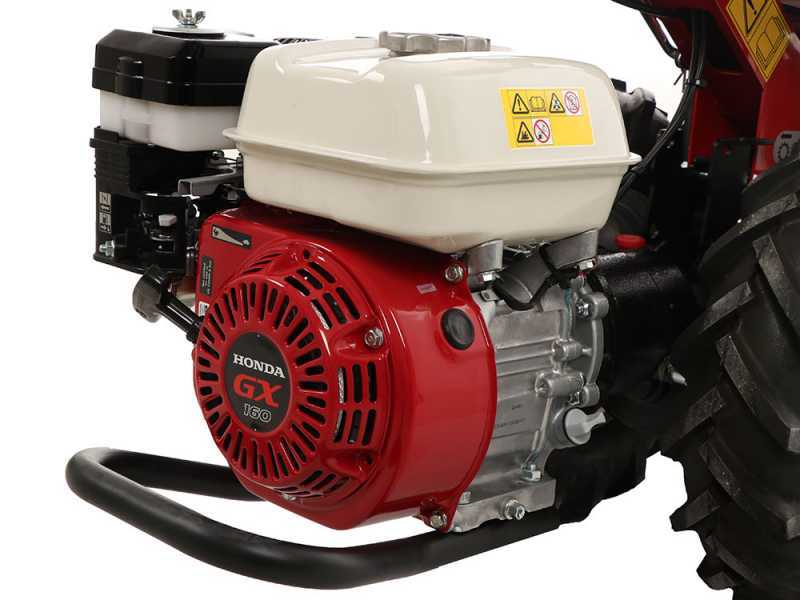

Honda GX 160 Engine

Honda GX 160 is a
super-professional, SUPER-POWERFUL and cutting-edge engine, which belongs to the latest overhead valve technology (OHV).

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type:

Aluminium

Cubic capacity

163 cm³

Compression ratio:

9.0 : 1

Max. rpm:

3600 rpm

Torque value

10.3 Nm / 1.05 kgfm / 2500 rpm

Fuel tank capacity:

3.1 L

Consumption:

1.4 L/h at 3000 rpm

Dry weight

15.1 kg

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

WARNING!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal Power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

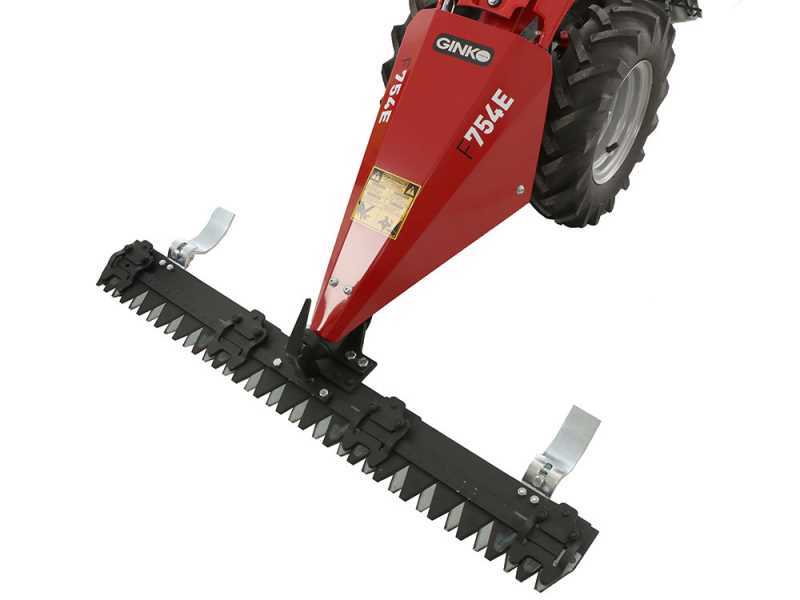

Pivoting Sickle Bar

Sickle bar cutting width: 100 cm

The cutter bar of this scythe mower is of the tilting type. In fact, it rotates around its own axis of connection to the machine body.

This allows it to work on all types of soil, even quite uneven ones, as it is better able to adapt to its roughness.

Mulching cutting system: the bar is made up of a lower and an upper blade, which moves by oscillating motion in contact with the lower blade, which is static and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear-cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades. The sickle bar is provided with upper blade guides.

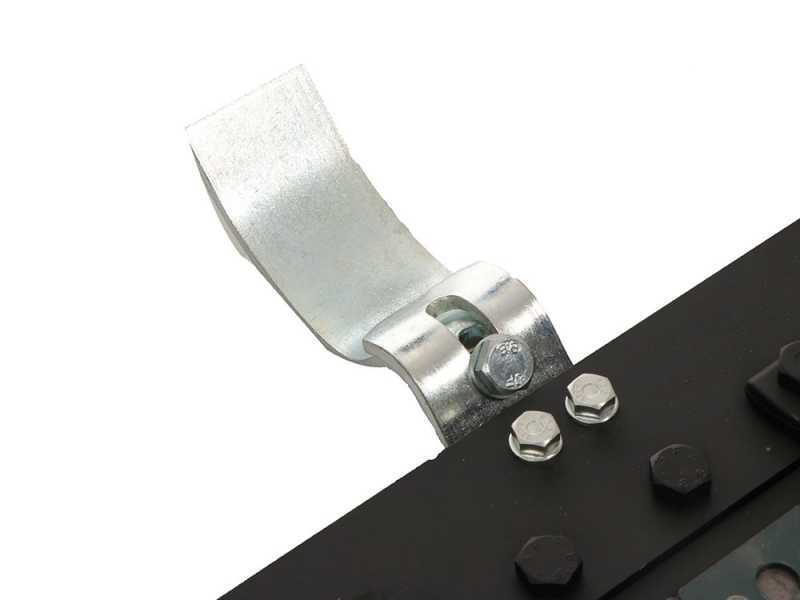

Focus on the slides for the cutting adjustment.

Front casing for grass protection.

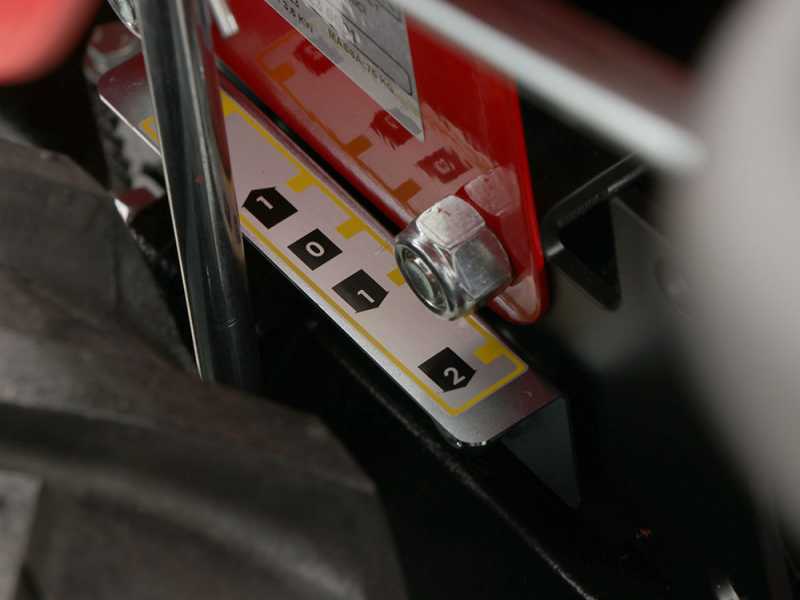

4-speed Gearbox (2+2)

The machine is equipped with 4-gear shifting system divided into:
- 2 forward gear
- 2 reverse gear

The speed gears are selectable by means of the specific lever.

The other lever on the right side under the handlebars is used to engage the PTO

Central transmission with oil-bath gears. Very sturdy and reliable.

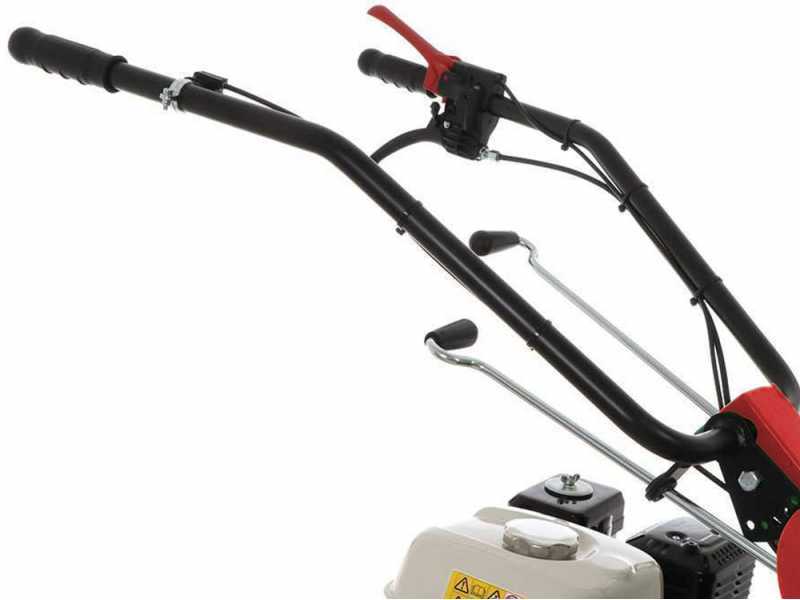

Handlebars and Controls

Focus on the steering handles (handlebars) where all the main controls are placed.

Levers below the handlebars to select the gear and the rotation direction.

Red lever: Engine STOP lever: when released, switches the engine off, stopping the machine immediately

Black lever: Clutch lever

Tractor wheels 4.00-8

Front protection bar under the engine.

Focus on the handlebar height adjustment.

Throttle lever

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
