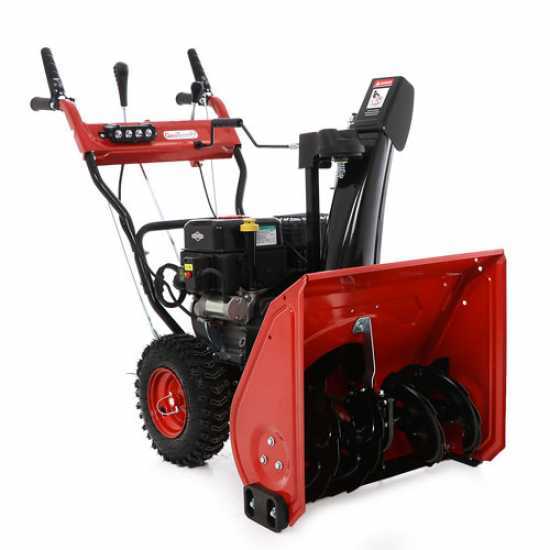

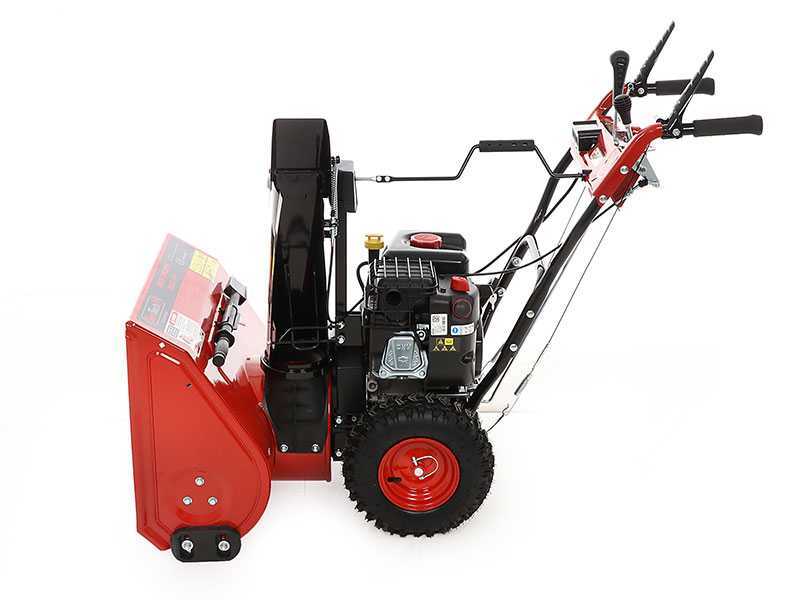

GeoTech ST 662 WEBS - Petrol Snowplough - B&S 950 OHV

GeoTech ST662 WEBS in short:

ST: Snow Thrower.
6: 6 HP rated output
62: 62 cm standard auger width.
W: means that the machine is equipped with Wheels.
BS: stands for Briggs&Stratton, the motor's brand

GeoTech ST662 WEBS snow blower is a heavy-duty product best suited to work on medium areas even with bad weather that would affect the adherence.

It is equipped with Traktor wheels for optimum traction and adherence.

As the snow blower has an electric start, is possible to connect it to your home electric line in order to start the machine even when it is very cold. It is not equipped with battery since low temperatures could ruin it within few time. In fact, batteries do not bear rapid temperature changes.

The high-quality and big front auger, with 62 x 51 cm housing, has and advanced and toothed steel auger unit. It churns up the snow and discharges it many metres away through the discharge chute. You can reverse and adjust it by means of the dedicated controls. Follow other features and characteristics of GeoTech ST 662 WEBS:

• LED headlights;
• 4+1 speeds gearshift;
• Upper deflector;
• Clean-out tool.

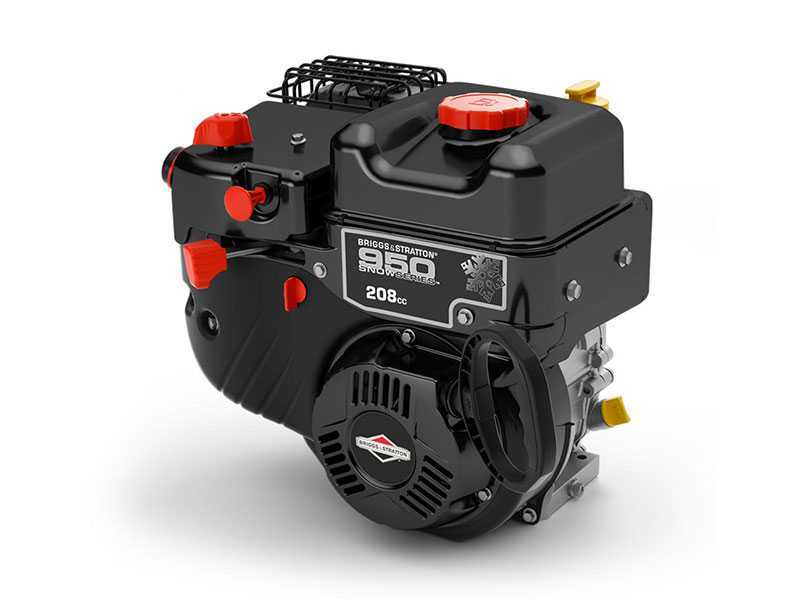

GeoTech ST 662 WEBS snow blower is powered by a B&S Series 950 4-stroke engine. This 208 cc engine is supplied with air-cooling system, overhead valve and aluminum cylinder.

This engine achieves max. 6 Hp power at 3600 RPM.

The engine is winterized, which means that it is equipped with a special cover in order to protect the most breakable component parts subjected to cold weather and to protect the engine in case of sudden drop in temperatures. Therefore, the engine is adapted for work in low temperatures.

Technical features:

As the snow blower has an electric start. This system is not supplied with batteries and, therefore, is possible to connect it to your home electric line. Batteries suffer jumps in temperature reducing their charge or their lifetime. Moreover, they suffer a sporadic use.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using.

Gross Power: 6 HP
The appropriate wording is actually “Power Rating” as it is the classic standard terminology for power. All of the largest engine manufacturers have officially used this definition up until a few years ago.

* For the most part, this is still the information that all the main commercial and sales channels provide, even though it is higher than the net power output.

Net Power: 5.83 HP (at a 3600 rpm rate)
This is the actual power transferred to the drive shaft. Engine manufacturers disclose this power information in instructions manuals or technical data sheets as official.

* This information may vary for the same engine model because the equipment manufacturer establishes the rpm rate of the engine that is mounted on said equipment.

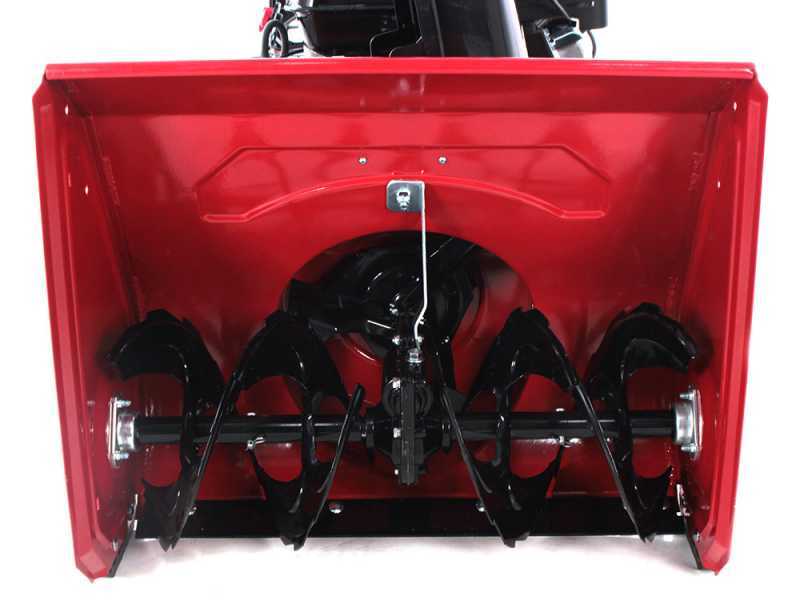

Auger screw housing width of 62 cm and height of 51 cm.

The high-quality auger unit provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox. Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

Adjustable plastic skid shoes. They allow working on any surface, from smooth to rough surfaces (adjust the working height by means of the skid shoes). It can also work over gravel surfaces. The advantage of the plastic skid shoes is that they do not scratch the ground surface.

Two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a high-speed reinforced fan impeller.

The discharge chute is adjustable by means of a lever. The chute deflector is controlled with a remote lever positioned on the panel as well.

The angle of rotation of discharge chute is 190 °: from the centre is 95° on each side.

Discharge chute totally oriented to the left.

Discharge chute totally oriented to the right.

Deflector totally up-oriented (maximum throwing distance).

Deflector totally down-oriented.

The chute is provided with a chute guard as safety measure against debris.

Panel is well-provided and easy to use. It includes the main functions of the machine.

Drive speed control lever:
4 forward speed and 1 reverse speed and switch that engages the headlight.

Upper lever on the right side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Upper lever on the left side: it controls the auger screw and the impeller fan (it controls both simultaneously).

Discharge chute is adjustable by means of the controls on the panel.

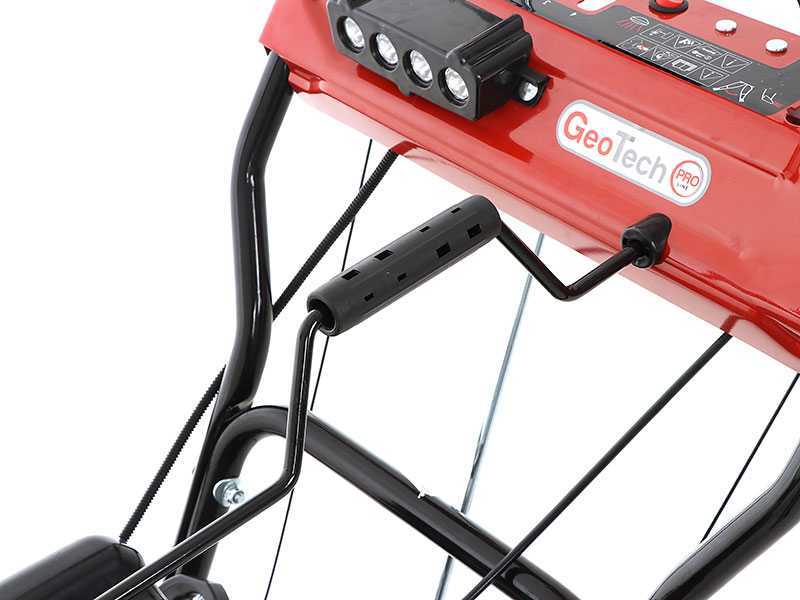

Focus on the lever to adjust the discharge chute deflector.

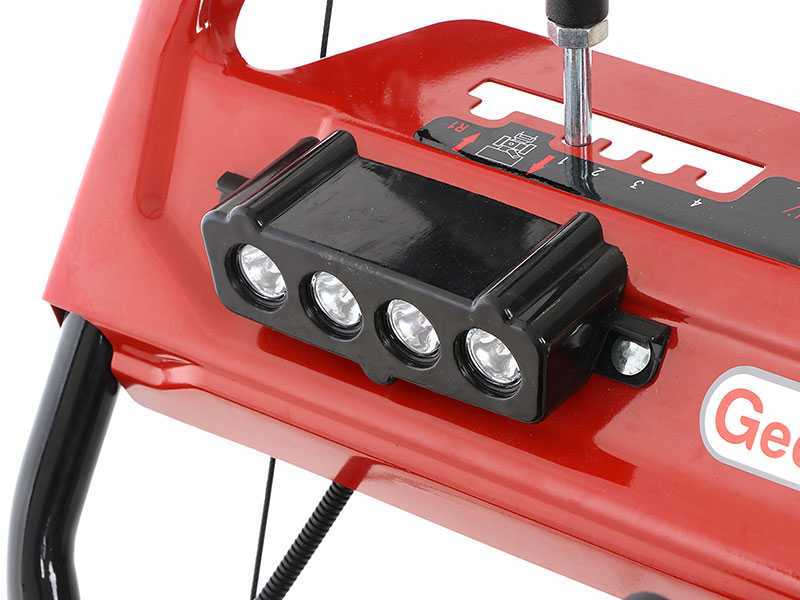

Powerful artificial LED headlights positioned on the panel.

Clean-out tool: if the discharge chute is clogged, use the clean-out tool.

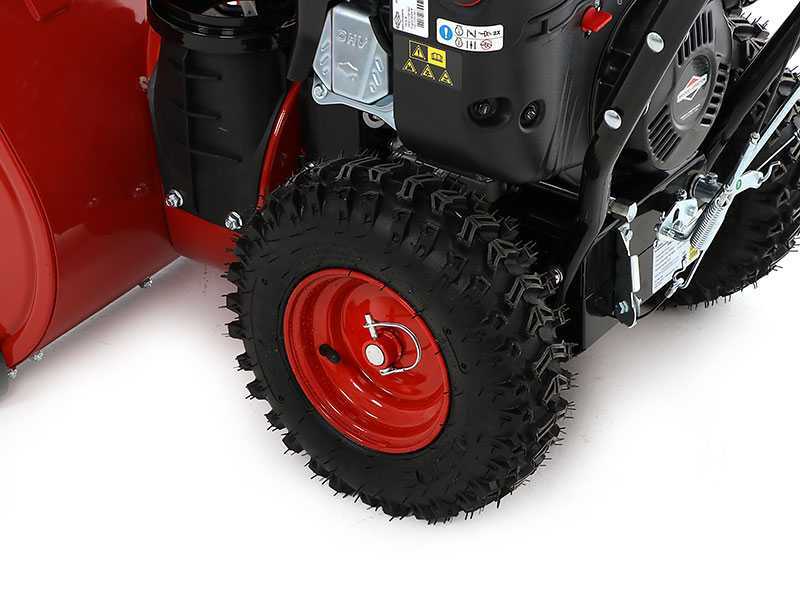

Traktor wheels (13 x 4.10 - 6) for good traction using engine's horsepower.
