GeoTech ST-V 523 - Electric Snowplough - 2300 W

Add a question
ID: 112393

EAN: 8053435096041

GeoTech ST-V 523 - Electric Snowplough - 2300 W
Blower type
Single-stage
Power supply
Electric
Nominal power (W)
2300 W
Self-propelling
Hand push
Standard milling cutter width
50 cm
Discharge chute rotation
Crank handle
Upper chute deflector tilt
Manual
Product Features
Model:
ST-V 523
Power supply:
Electric
Type:
220 V electric
230 V Electric:
Self-propelling:
Hand push
Assisted steering system (power steering):
No
Heated handles:
No
Manufacturing country:
China
Motor data
Nominal power (W):
2300 W
Power supply:
220 V electric
Manufacturing country:
China
Cutting data
Body material:
Plastic
Standard milling cutter width:
50 cm
Turbine housing height:
25 cm
Milling cutter diameter:
17 cm
Blower type:
Single-stage
Discharge chute material:
Plastic
Chute rotation angle:
180 °
Discharged snow distance:
Up to 9 m
Equipment
Discharge chute rotation:
Crank handle
Upper chute deflector tilt:
Manual
Wheel Type:
Plastic
Folding/removable handle/s:
Yes
Headlight:
Led
Free gifts/extra features
Instructions manual:
Yes

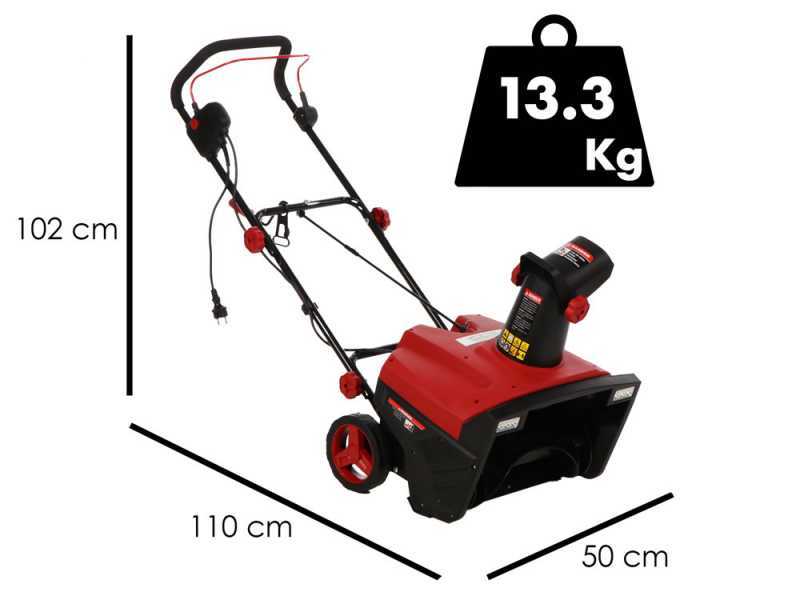

Dimensions and logistics
Product dimensions in cm (L x W x H):
110X50X102
Net weight:
13.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
57X56X50
Gross weight (packaging included) :
16.2 Kg
Assembly time:
15 minutes
Prompt Delivery
150 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 229,71
VAT Included

You're viewing:
Customers also viewed:
Description

Snowplough GeoTech ST-V 523

The GeoTech ST-V 523 is a snowplough designed for efficient snow removal from outdoor spaces such as driveways, gardens and footpaths.

This model features a working width of 50 cm and a depth of 250 mm, enabling effective operation.

The distinguishing feature of this snowplough is its revolving chimney, which can rotate 180° horizontally.

In addition, the upper chimney deflector is vertically adjustable between 15° and 60°, thus offering precise control over the trajectory and snow throw distance.

Equipped with a 2300W copper motor, the GeoTech ST-V 523 achieves a no-load speed of 3000 rpm, providing a snow throwing capacity of up to 9 meters.

The adjustable handle design allows the snowplough to be easily folded for compact storage when not in use.

Operating at a voltage/frequency of 230V 50Hz, the GeoTech ST-V 523 stands out for its combination of power, versatility and ease of use.

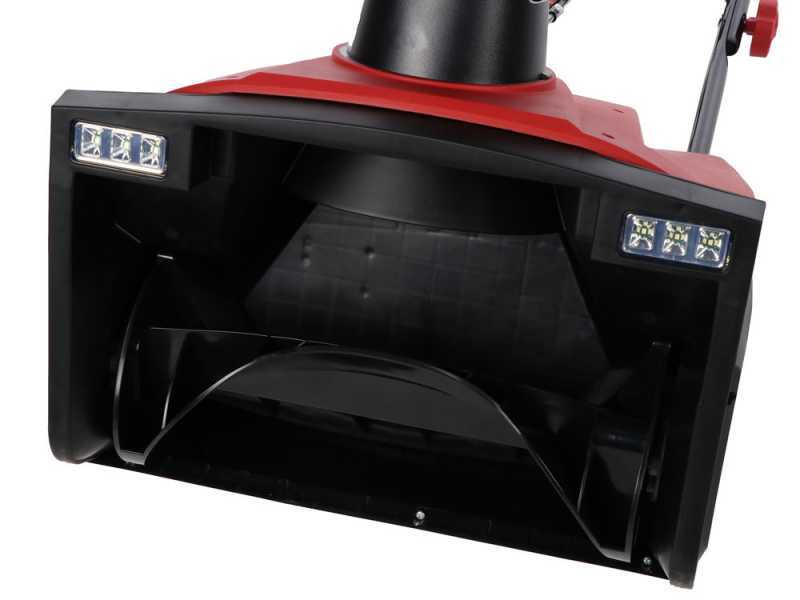

Auger Housing

The GeoTech ST-V 523 Snowplough, with its working width of 50 cm, is particularly well suited for efficiently handling small spaces, making it an ideal option for home use.

The snowplough's compact size makes it easy to manoeuvre in narrow areas and hard-to-reach corners, ensuring thorough cleaning even in tight spaces.

The blade diameter of 172 mm is designed to optimize snow collection and displacement, while its maximum jet capacity of 9 meters allows snow to be efficiently moved away from the work area.

The startup of the snowplough is via a convenient electric switch, which ensures quick and effortless startup, eliminating the need for manual starts that can be tiring, especially in cold conditions.

In addition, the GeoTech ST-V 523's monostatic snow processing system is a distinguishing feature: the collected snow is immediately conveyed to the compartment leading directly to the discharge port, simplifying the snow removal process and increasing the snowplough's operational efficiency.

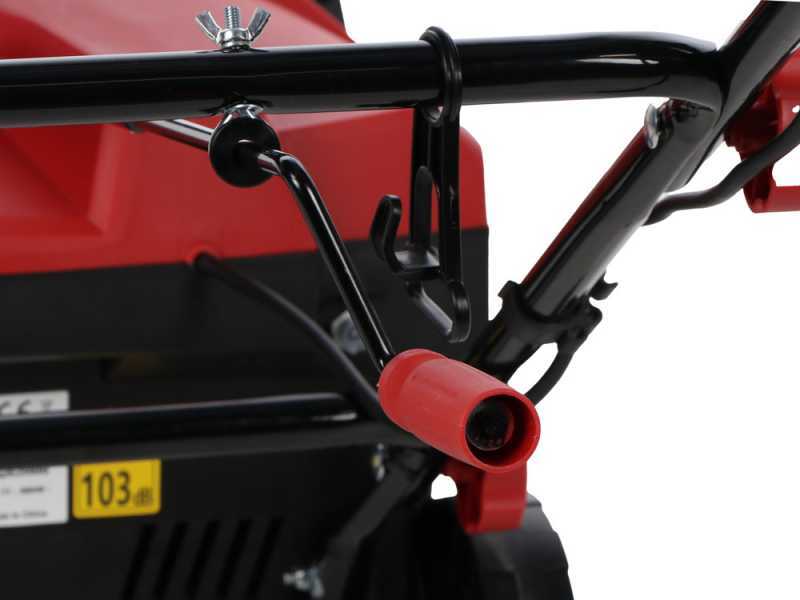

Adjustable Discharge Chute

The GeoTech ST-V 523 Snowplough features a fantastic adjustable discharge port.

Changing the ejection angle is quick and easy.

To adjust the orientation of the exhaust chimney, simply use the appropriate handle.

The maximum rotation of the discharge port is 180°, while the vertical deflector tilt 15-60°, with a maximum snow discharge up to 9m.

Examples, rotation of the discharge port is 180°:

Example 1
Example 2
Example 3
Example 4
Example 5

Examples of the inclination of the deflector vertically 15-60°

Example 1
Example 2
Example 3
Example 4

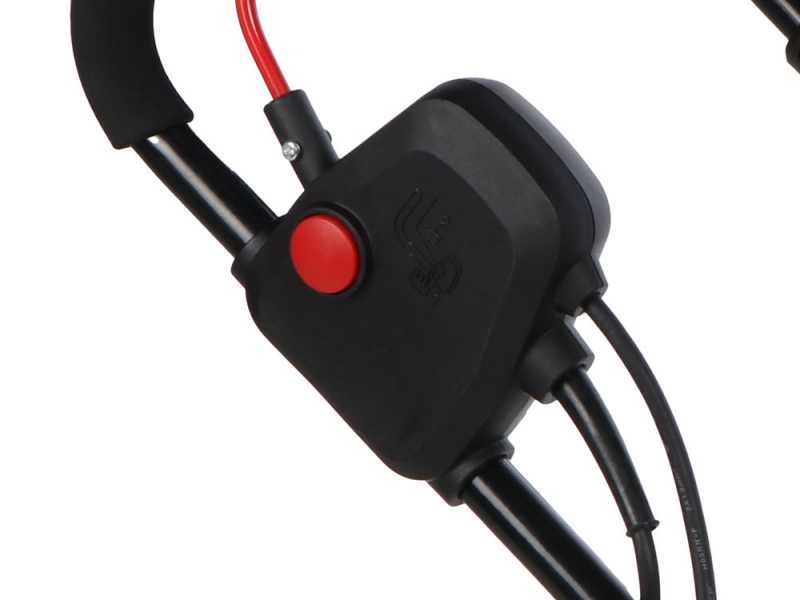

Other Features

Other features of this model include:

2 LED lights: 100Lm

Power button

Shucko socket

Wheels for movement: 180 mm

Handlebar attachment hooks, conveniently, allow for machine storage.

Overload Protection

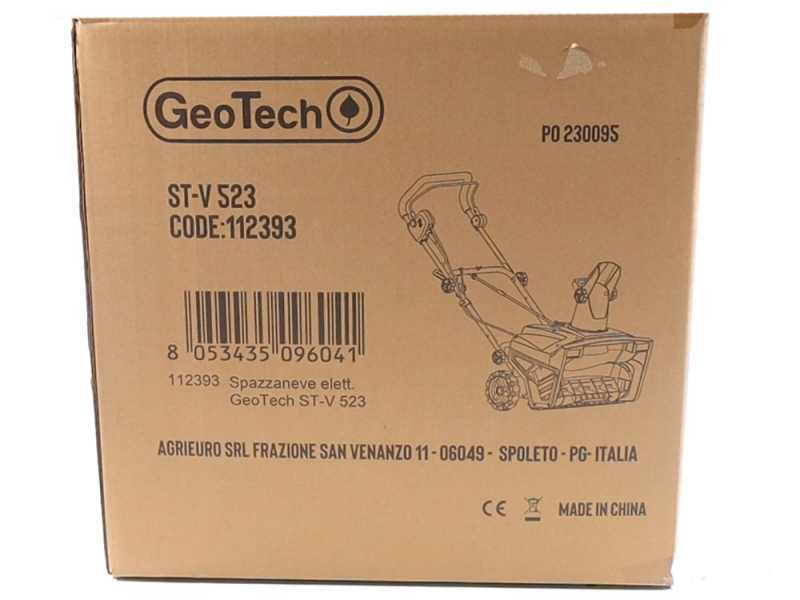

Free items & Standard equipment

Free Items Included

The snowplough come into its original packaging.

Instruction manual included in the package.
