GeoTech SPVE 7-55 Vertical Log Splitter with Single-Phase Electric Motor - 7 Ttons

Questions & Answers (16)
ID: 103312

EAN: 8054141547803

8,9/10
After-sales assistance & Spare parts
GeoTech SPVE 7-55 Vertical Log Splitter with Single-Phase Electric Motor - 7 Ttons
+1000 sold
Max. trunk diameter
30 cm
Piston stroke
50 cm
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
7 t
Product Features
Model:
SPVE 7-55
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
7 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Nominal power :
3000 W
Power supply:
220 V electric
Oil tank capacity:
3.5 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
55 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
91,5x84x149,5 cm
Net weight:
98.2 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
35x55x113 cm
Gross weight (packaging included) :
110 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
409 items in stock
Free Shipping
Estimated delivery: 31/10/2024 - 04/11/2024
€ 548,01
VAT Included
You're viewing:
Customers also viewed:
Description

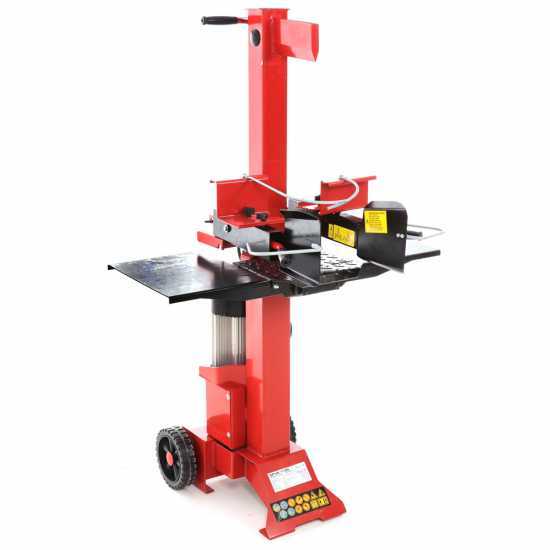

SPVE 7-55 log splitter - 7 tons

The Geotech SPVE 7-55 - 7T is a compact and powerful vertical log splitter.

The splitting system is placed on a metal, long lasting and foldable cutting plate.

The 50 cm piston stroke allows splitting trunks of max. 55 cm height.

This log splitter operation is user-friendly and intuitive and the machine levers are equipped with safe hand guards for a complete safe while working.

It meets the needs of different users thanks to its high-quality price ratio.

It is equipped with wheels and a sturdy and safe handle for transport, essential and very important features for all private users.


Splitting force: 7 tons
Electric motor: 3000 W

Retractable wedge for reduced space requirements

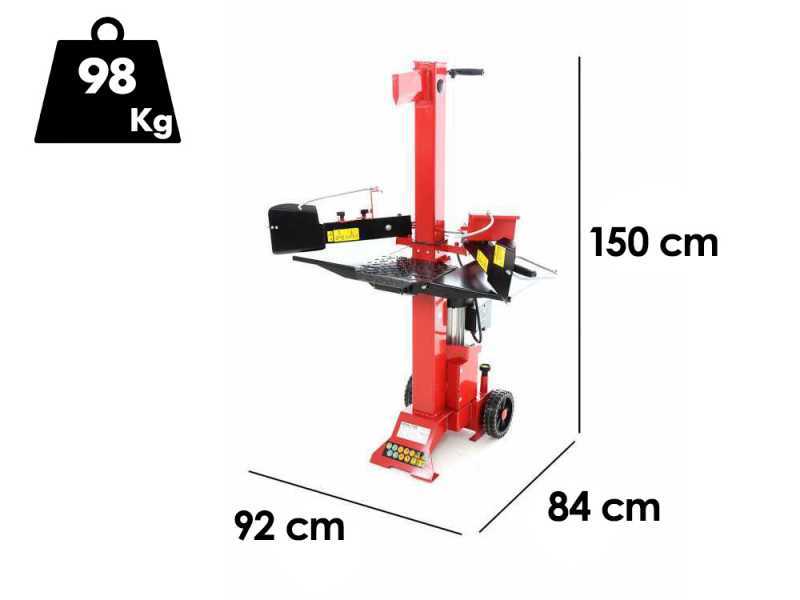

Overall dimensions with the wedge lifted up: 91,5x84x150 cm

Overall dimensions with the wedge lowered down: 91,5x84x115 cm

Weight: 98.2 kg


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter logs and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

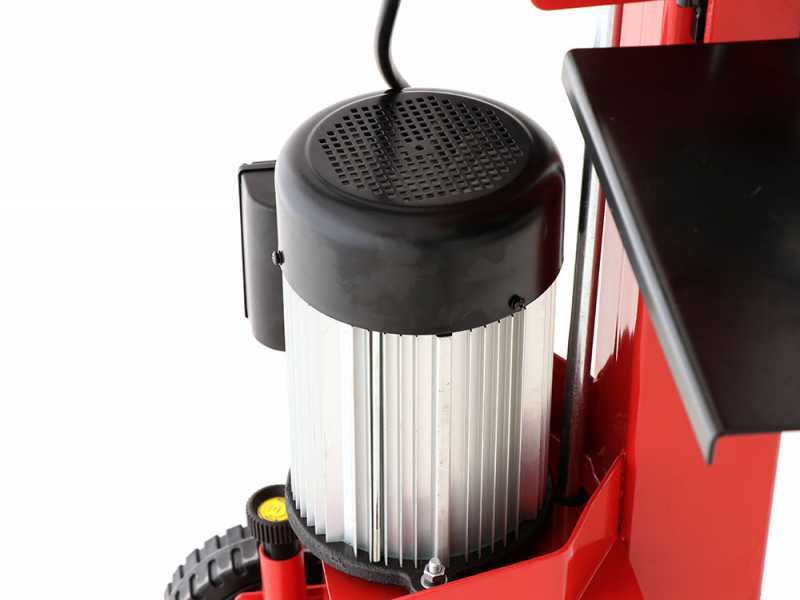

Electric motor and hydraulic pump

230V 3000Welectric motor that ensures 7 tons splitting force.

The oil tank is places at the base of the machine. Focus on the oil tank cap that also acts as oil tank.

It is necessary to unscrew the cap to ensure that excess air escapes during use.

Oil tank capacity: 3.5 L.

Distinctive features

Oil tank mounted on the frame base of the log splitter.

CE-compliant On/Off switch.
Focus on the adjustable operating handles with proper hand guards in compliance with the CE standards.

Log side support integrated in the handle arms.

Focus on the wedge and rear handle for tilting and transporting the log splitter, thanks to the lower wheels

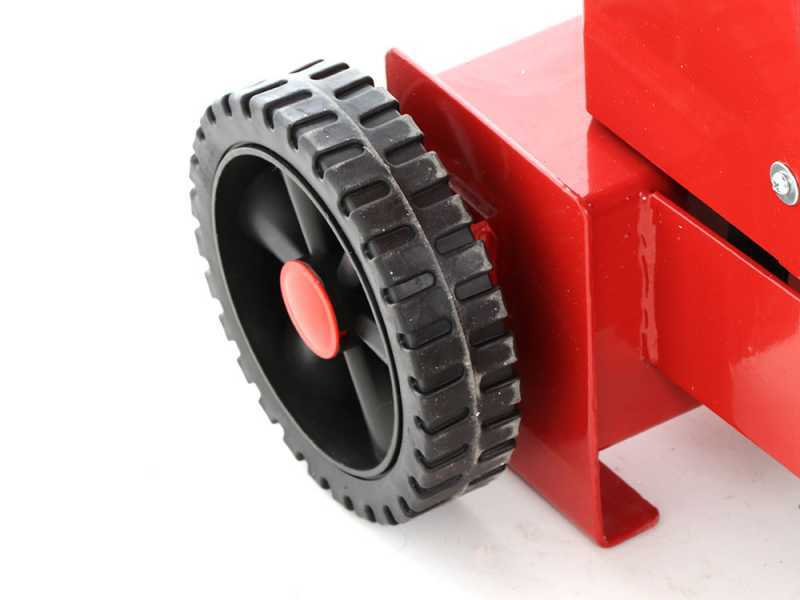

Focus on the wheels mounted at the base of the log splitter. The wheels can be easily removed when not needed.

Schuko plug integrated in the proper switch box.

Free items & Standard equipment

Standard equipment

The log splitter is shipped in its original packaging.

Instructions manual included in the package.
