Name: GeoTech SPHE 7 2 in 1 Horizontal Log Splitter with Electric Motor - 7 T splitting force
Brand: GeoTech
SKU: K502964
Price: 379.02 EUR
Availability: InStock
Rating: 4.51 (189 reviews)

Description

GeoTech SPHE 7 2 in 1 log splitter

GeoTech SPHE 7 electric log splitter, 7 ton, 230 V single-phase

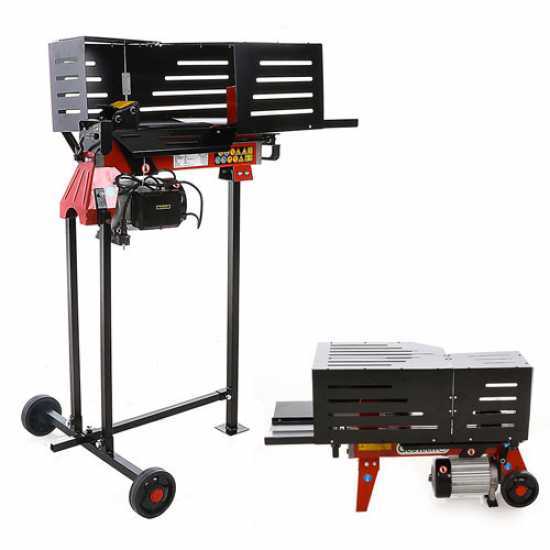

This horizontal log splitter comes with a stand so it can be used both in a low position and in a raised position.

This small electric log splitter is suitable for hobby and domestic use.

Perfect for splitting timber effectively, effortlessly and in full safety in compliance with CE regulation.

HORIZONTAL STRUCTURE: to split logs with almost no need to lift them

Fitted with a 230V/50Hz 2300 W single-phase electric motor

Splitting force: 7 tonnes

Log diameter: between 5 and 25 cm

Log length: between 20 and 52 cm

Equipped with a handle and wheels for easy transport.

Overall dimensions (low position):
140 x 42 x 65 cm.
Overall dimensions (raised position):
120 x 42 x 65 cm

Weight: 60 kg

Compliant with CE safety standards

WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as pine, large diameters and in any case types of wood with frequent wood knots. In this case professional models are recommended. Furthermore, the logs should only be split once dried, and not when they are still green; when the wood is green, it has less tendency to split and open and is therefore less suitable for use with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc..

GeoTech SPHE 7 2 in 1 Horizontal Log Splitter with Electric Motor - 7 T splitting force

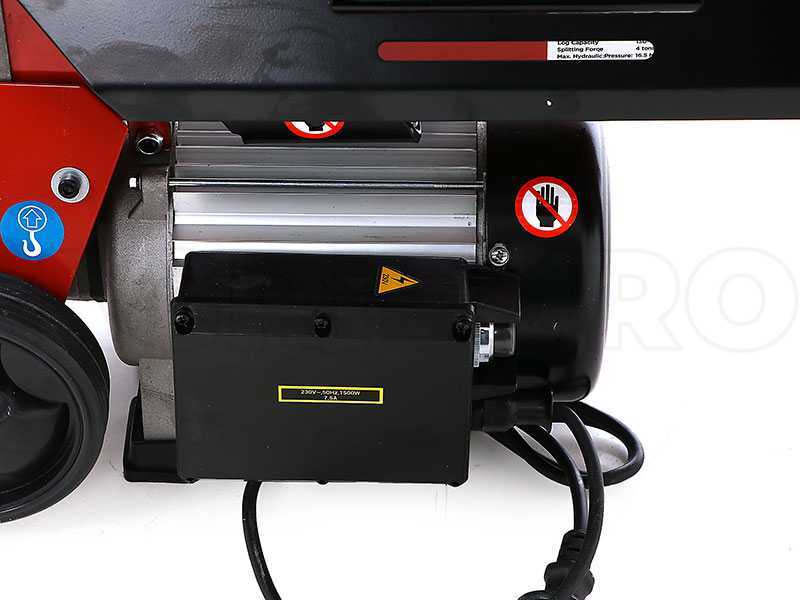

Electric motor

This log splitter comes with a single-phase electric motor.

Consumption: 2300 w.

Power supply: 230 V - 50 Hz

Focus on the start switch

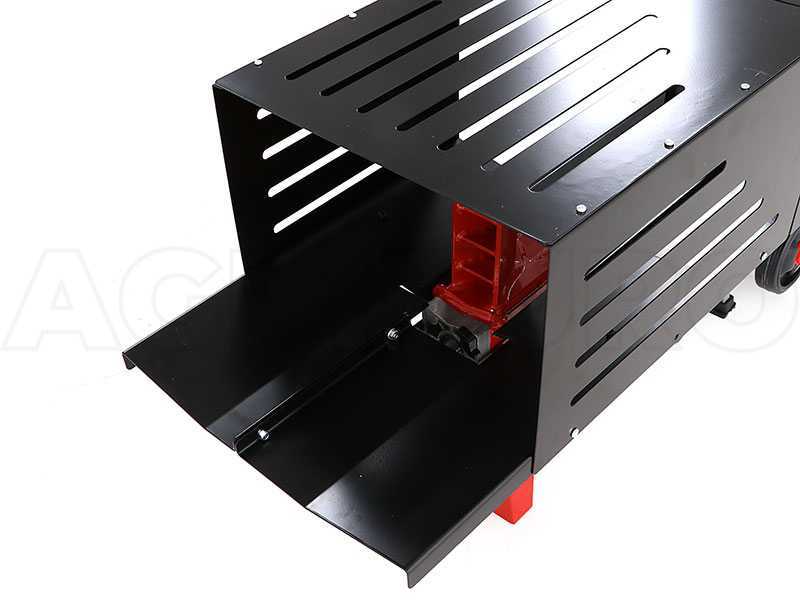

Controls and other features

Two hands activation:

1) One hand is necessary to press the electric motor start up button (for the pump activation);

2) The other hand is necessary to pull the cylinder activation lever (intended for cutting).

Oil tank capacity: 3.5 L.

Piston’s head made of cast aluminium.

Focus on the cutting wedge.

The sturdy melted cutting wedge is guarantee of the best performances and wear resistance. It can effortlessly split even strong logs.

Ease of transport thanks to its handle and wheels next to the engine.

Wheel diameter: 14 cm

Focus on the protections in compliance with CE regulation.

Recommendations for Use - Electric Log Splitters

To use an electric log splitter correctly, you must follow the instructions in the manual and always operate within the limits specified by the manufacturer. Using the machine correctly ensures smoother operation and reduces the strain on the machine.

Before starting operation, it is important to assess the characteristics of the wood. Knotty, twisted, irregular logs or logs with interlocked grain may be more difficult to split and require greater splitting force. The species of wood, moisture content and degree of seasoning can also affect the log’s resistance.

The dimensions of the logs must fall within the minimum and maximum values specified by the manufacturer. The log with a maximum diameter represents a dimensional limit, but the actual splitting capacity also depends on the shape and condition of the wood. If the splitting wedge encounters excessive resistance, it is advisable to stop the operation and reposition the log, avoiding subjecting the machine to prolonged strain.

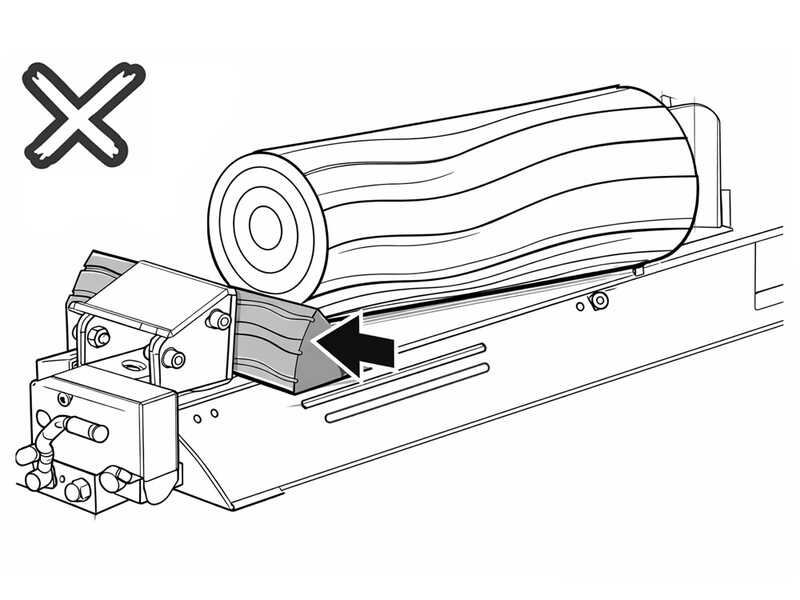

The log must be positioned securely and correctly centred on the support surface. The wood fibres should be aligned as closely as possible with the splitting direction. Avoid splitting logs that are positioned crosswise, at an angle or unstably, as these may shift during the splitting cycle.

Process only one log at a time. Do not stack multiple logs or use other pieces of wood to compensate for an uneven support surface. The work area must also be kept clear of debris and obstacles that could interfere with the operator or the movement of the machine.

The log splitter must be used exclusively for splitting logs and pieces of wood that are compatible with the machine’s specifications. It must not be used to process stones, metals, building materials or other unsuitable items.

Before starting the log splitter, check that the machine, safety devices and power cable are in good condition. During operation, keep hands and other parts of the body well clear of the splitting wedge, the piston and areas where crushing may occur. It is also recommended that suitable protective equipment be worn, such as gloves, safety footwear and eye protection.

Before carrying out any cleaning, inspection or maintenance, the log splitter must be switched off and disconnected from the mains supply. Regular checks and adherence to the manufacturer’s instructions help to keep the machine efficient and safe over time.

Free items & Standard equipment

Free gifts and extra features

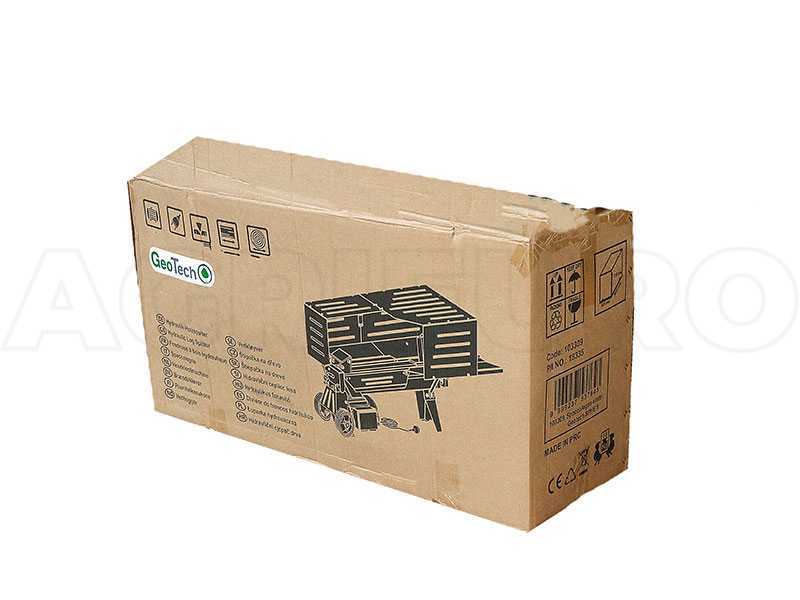

The log splitter is supplied in its original package.

You just need to assemble legs-support.

Instructions and Maintenance Manual included on package.
