GeoTech SPHE 6 Horizontal Log Splitter with Electric Motor - 6 Tons Splitting Force

Questions & Answers (10)
ID: 103310

EAN: 9999237537650

8,9/10
After-sales assistance & Spare parts
GeoTech SPHE 6 Horizontal Log Splitter with Electric Motor - 6 Tons Splitting Force
+600 sold
Max. trunk diameter
25 cm
Piston stroke
52 cm
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
6 t
Product Features
Model:
SPHE 6
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
6 t
Piston stroke:
52 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Nominal power :
2200 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
14 cm
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x42x65
Net weight:
59 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
95x32x51
Gross weight (packaging included) :
70 Kg
Unloading with hydraulic tail lift:
No
Assembly time:
60 minutes
Prompt Delivery
44 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 313,22
VAT Included

You're viewing:
Customers also viewed:
Description

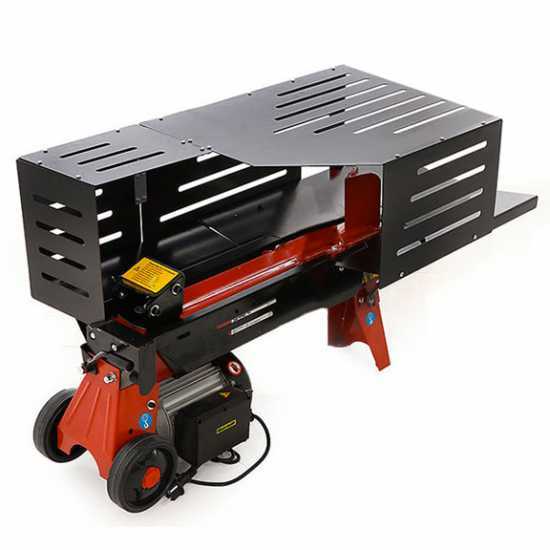

GeoTech SPHE 6 log splitter

The GeoTech SPHE 6 is a small-sized electric log splitter powered by a 230V single-phase motor that can develop a splitting force of 6 tons, intended for a hobby, domestic use.

This machine allows you to split logs efficiently, effortlessly and safely, thanks to the protections in compliance with the CE standards.

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the cutting plate without any effort, given the low height of the support leg)

It is powered by a powerful 230V/50Hz, 2200W single-phase electric motor

Splitting force: 6 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 20 to 52 cm

Equipped with a handle and wheels for easy transport.

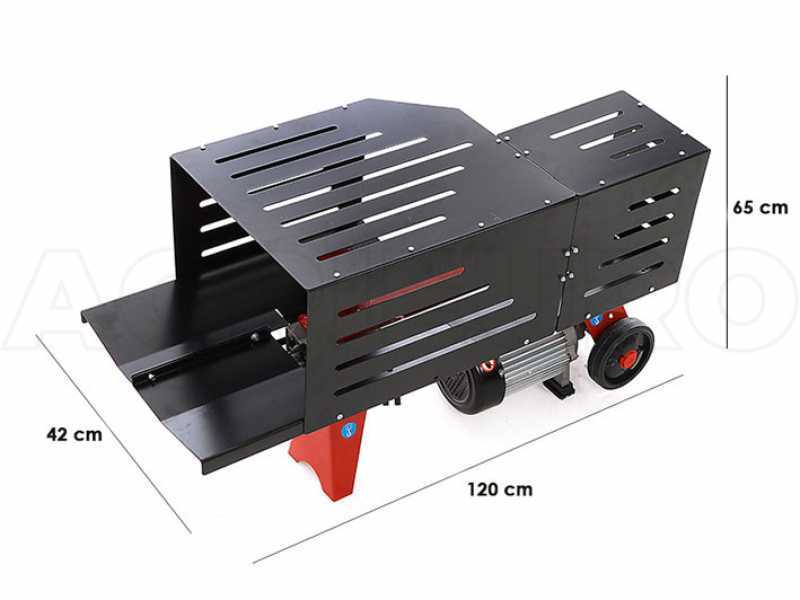

Overall dimensions: 120x42x65

Weight: 59 kg

It is in compliance with the CE safety standards.


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

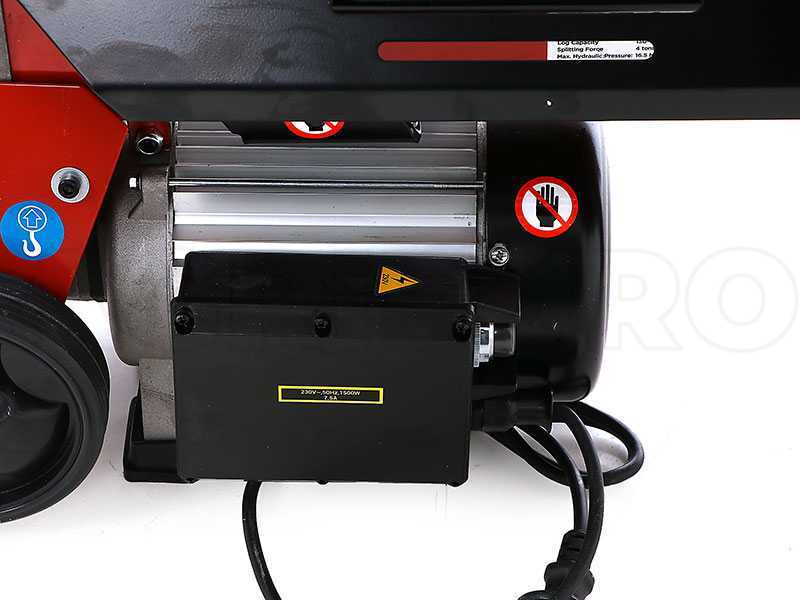

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2200 W

Power supply: 220-240V 50Hz

Focus on the on/off switch

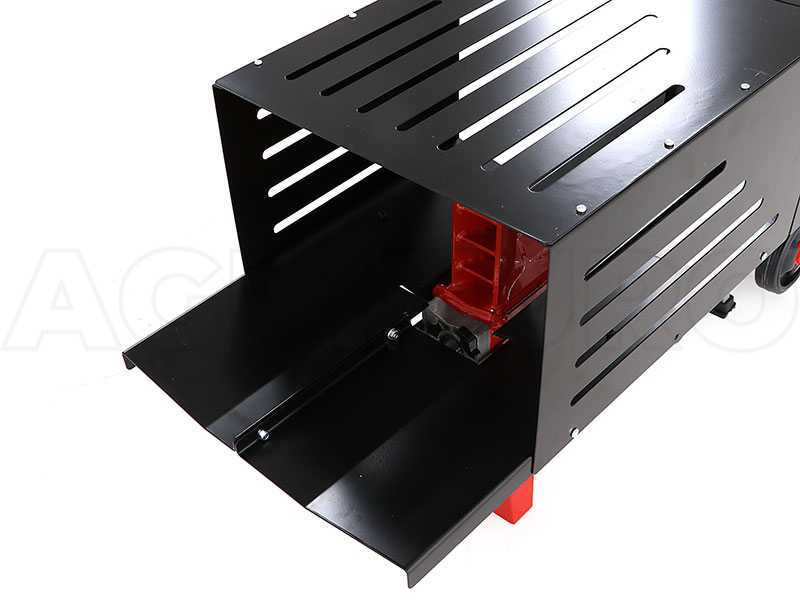

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 3.5 L

Piston head made of cast aluminium

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

The handle and transport wheels near the motor guarantee high ease of transport.

Wheels diameter: 14 cm

Focus on the guards in compliance with the CE standards.

Free items & Standard equipment

Standard equipment

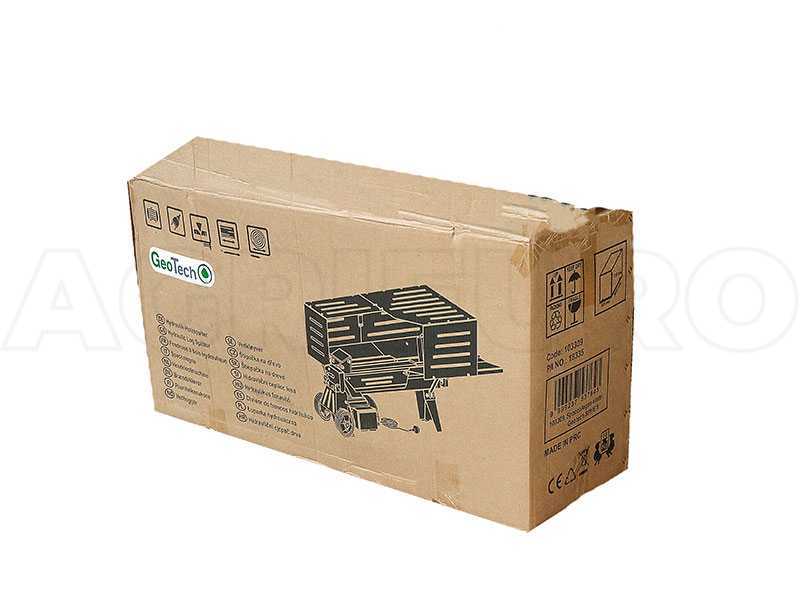

The machine is shipped in its original packaging.

You’ll only have to assemble the guards provided on standard equipment.

The maintenance and instructions manual is included in the package.
