Name: GeoTech SPHE 4 - Electric Log Splitter - Horizontal - 230V
Brand: GeoTech
SKU: 103308
Price: 267.3 EUR
Availability: InStock
Rating: 4.67 (106 reviews)

Description

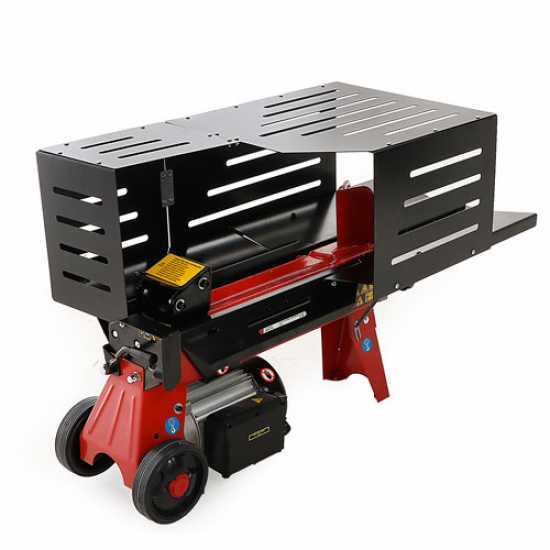

GeoTech SPHE 4 log splitter

The GeoTech SPHE 4 is a small-sized electric log splitter powered by a 230V single-phase motor that can develop a splitting force of 4 tons, intended for a hobby, domestic use.

This machine allows you to split logs efficiently, effortlessly and safely, thanks to the protections in compliance with the CE standards.

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the cutting plate without any effort, given the low height of the support leg)

It is powered by a powerful 230V/50Hz 1500W single-phase electric motor

Splitting force: 4 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 13 to 37 cm

Equipped with a handle and wheels for easy transport.

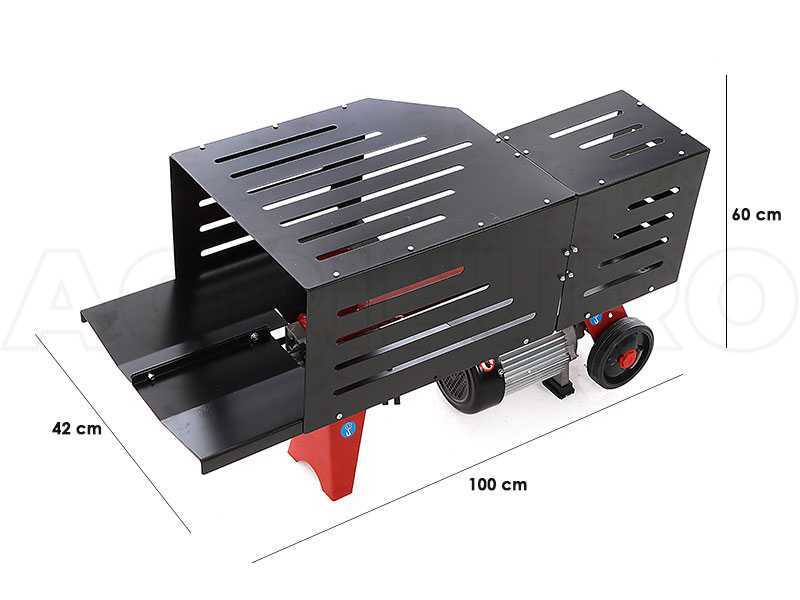

Overall dimensions: 100 x 42 x 60 cm

Weight: 49 kg

It is in compliance with the CE safety standards.

WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

GeoTech SPHE 4 - Electric Log Splitter - Horizontal - 230V

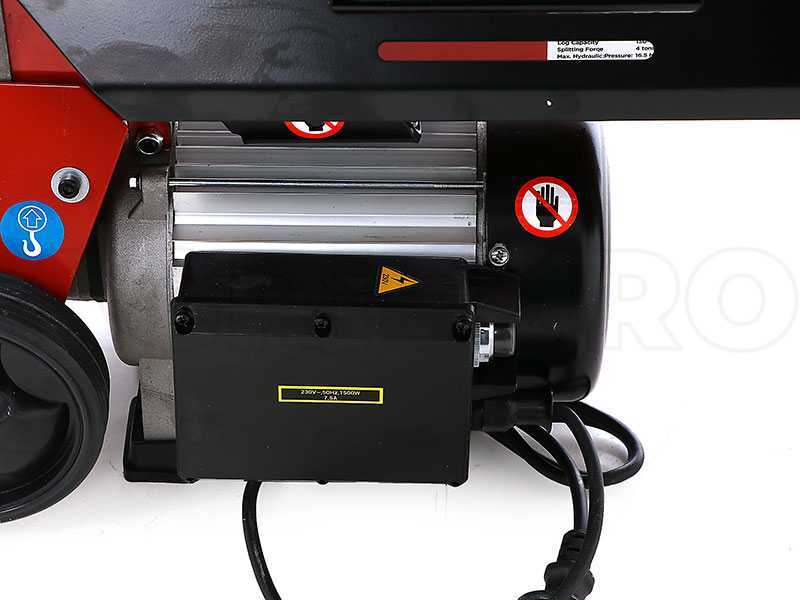

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 1500 W

Power supply: 230 V 50 Hz

Focus on the on/off switch

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 2.4 L

Piston head made of cast aluminium

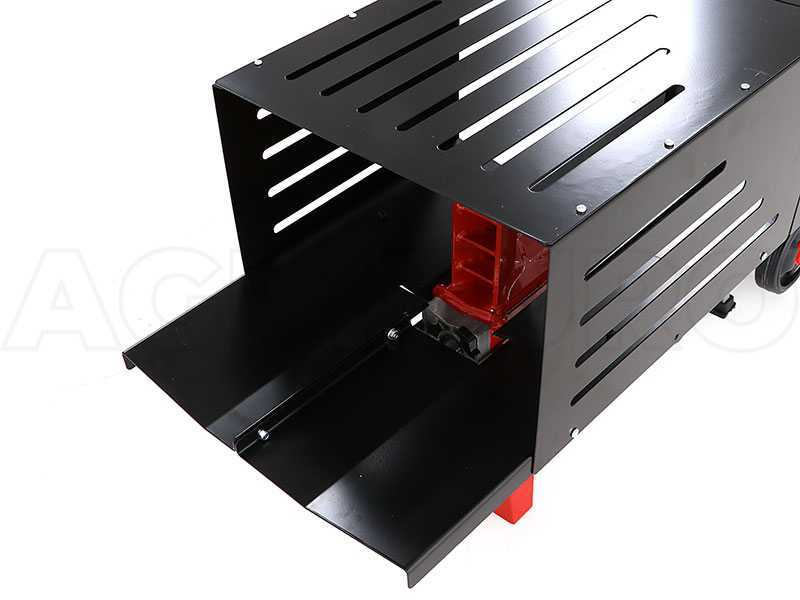

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

The handle and transport wheels near the motor guarantee high ease of transport.

Wheels diameter: 14 cm

Focus on the guards in compliance with the CE standards.

Recommendations for Use - Electric Log Splitters

To use an electric log splitter correctly, you must follow the instructions in the manual and always operate within the limits specified by the manufacturer. Using the machine correctly ensures smoother operation and reduces the strain on the machine.

Before starting operation, it is important to assess the characteristics of the wood. Knotty, twisted, irregular logs or logs with interlocked grain may be more difficult to split and require greater splitting force. The species of wood, moisture content and degree of seasoning can also affect the log’s resistance.

The dimensions of the logs must fall within the minimum and maximum values specified by the manufacturer. The log with a maximum diameter represents a dimensional limit, but the actual splitting capacity also depends on the shape and condition of the wood. If the splitting wedge encounters excessive resistance, it is advisable to stop the operation and reposition the log, avoiding subjecting the machine to prolonged strain.

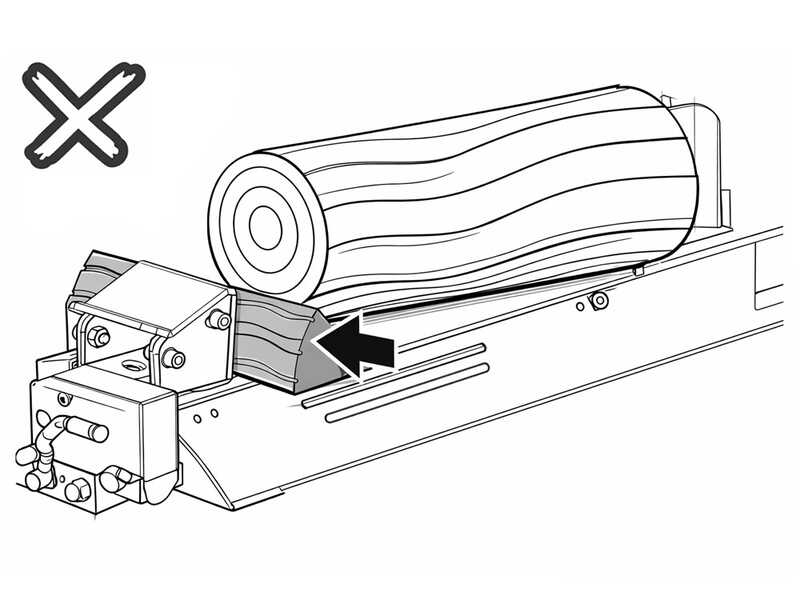

The log must be positioned securely and correctly centred on the support surface. The wood fibres should be aligned as closely as possible with the splitting direction. Avoid splitting logs that are positioned crosswise, at an angle or unstably, as these may shift during the splitting cycle.

Process only one log at a time. Do not stack multiple logs or use other pieces of wood to compensate for an uneven support surface. The work area must also be kept clear of debris and obstacles that could interfere with the operator or the movement of the machine.

The log splitter must be used exclusively for splitting logs and pieces of wood that are compatible with the machine’s specifications. It must not be used to process stones, metals, building materials or other unsuitable items.

Before starting the log splitter, check that the machine, safety devices and power cable are in good condition. During operation, keep hands and other parts of the body well clear of the splitting wedge, the piston and areas where crushing may occur. It is also recommended that suitable protective equipment be worn, such as gloves, safety footwear and eye protection.

Before carrying out any cleaning, inspection or maintenance, the log splitter must be switched off and disconnected from the mains supply. Regular checks and adherence to the manufacturer’s instructions help to keep the machine efficient and safe over time.

Free items & Standard equipment

Standard equipment

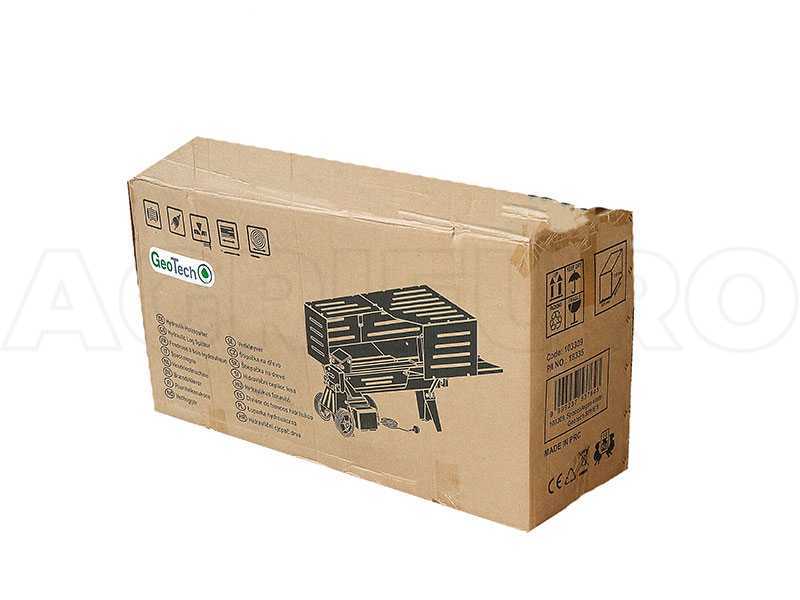

The machine is shipped in its original packaging.

You’ll only have to assemble the guards provided on standard equipment.

The maintenance and instructions manual is included in the package.
