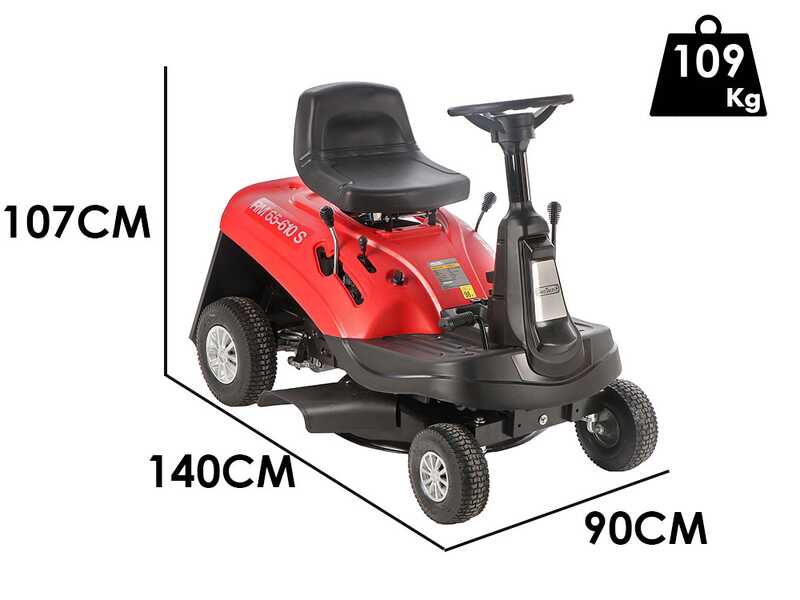

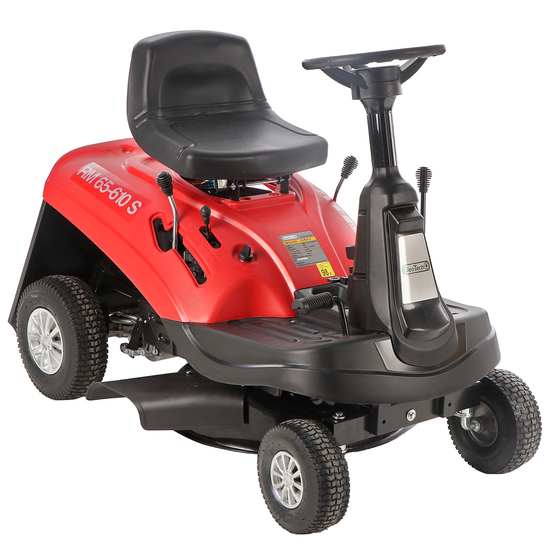

GeoTech RM 65-610 S - mini-riding-on mower - 196cc engine

The GeoTech RM 65-610 S side discharge riding-on mower is an excellent choice for those looking for a powerful and reliable machine for maintaining green areas.

Equipped with a 196cc Loncin OHV LC1P70FC engine, this riding-on mower offers 6.5HP of power, ensuring good performance even in the most difficult conditions.

The GeoTech RM 65-610 S is equipped with a 61 cm single-blade cutting deck, which allows for good cutting coverage with every pass. The side discharge system allows for efficient management of grass clipping, reducing maintenance time.

Thanks to its mechanical gearbox, the GeoTech RM 65-610 S mini-riding-on mower features:

• 4 forward gears
• Neutral (N)
• Reverse gear (R)

Centralised cutting adjustment , allowing you to easily set the cutting height to 5 different positions, from a minimum of 35 mm to a maximum of 75 mm.

Riding-on mower equipped with a blade control lever, making cutting activation and deactivation simple and precise.

Distinctive features:

• Loncin 196cc engine: 6.5HP power, reliable and durable engine.
• 61 cm cutting deck: Good cutting coverage to reduce working time.
• Side discharge: Efficient management of grass clipping.
• 4-speed mechanical gearbox: Adaptability to different terrain and working conditions.
• Ergonomic design: Padded seat and intuitive controls for comfortable use.

The GeoTech RM 65-610 S riding-on mower is an excellent machine for cutting and collecting grass in green areas, such as gardens and lawns, making it easy to cut grass near trees and flower beds.

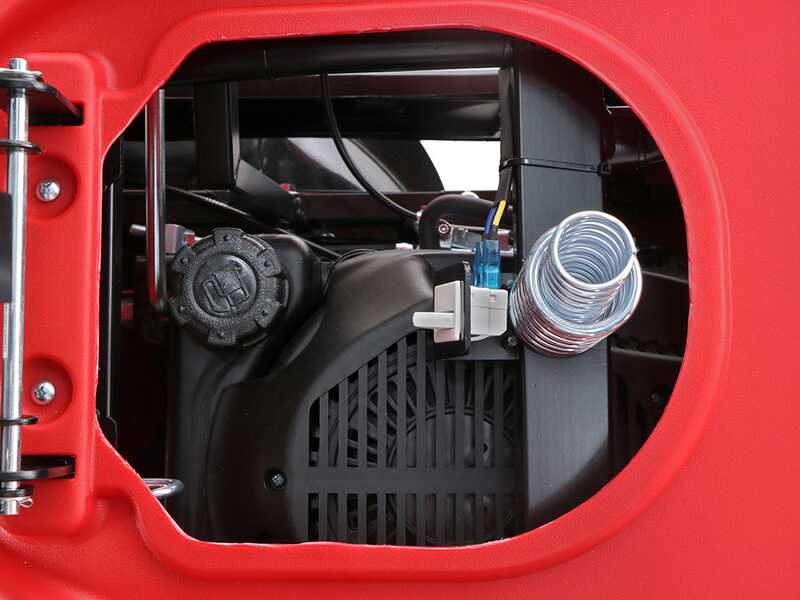

The Loncin LC1P70FC engine is a 4-stroke, air-cooled petrol engine with an aluminium cylinder.

It has a displacement of 196cc and develops good power.

The machine is equipped with electric start (battery and battery charger supplied) and manual start with rope

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Nominal power: 6 .5 HP
The most correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most well-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 6.43 HP (at 3000 rpm)
This corresponds to the actual power expressed at the crankshaft. It is the figure indicated as official in the manual or in the technical data provided by the engine manufacturer.

* This figure may vary for the same engine model, depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

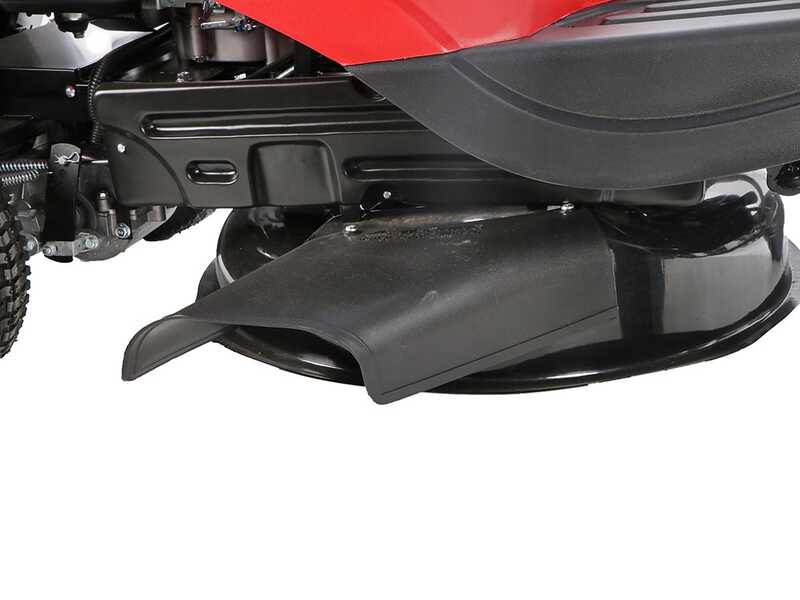

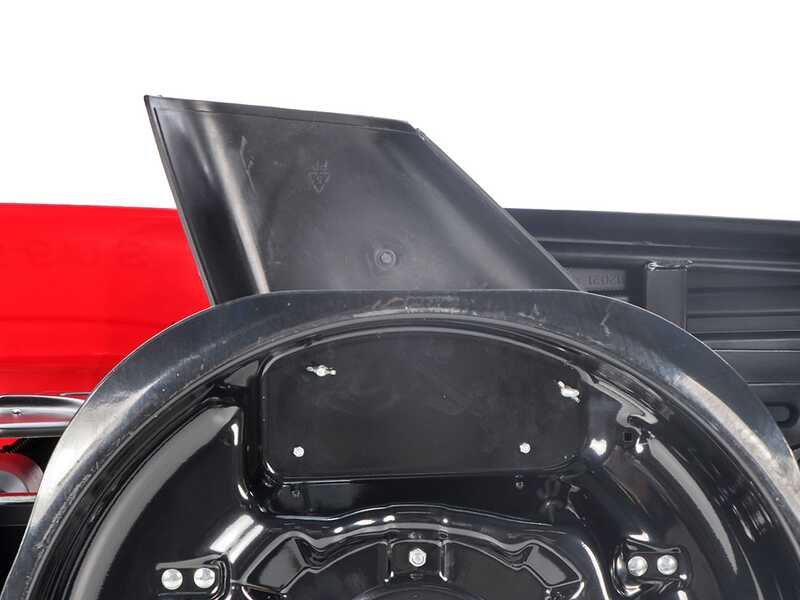

SIDE DISCHARGE (standard):

Side discharge, for cutting grass without collecting it (suitable for maximising cutting performance in the shortest time; with this system, it is possible to cut grass that is slightly taller than normal), simply fit the deflector supplied with the machine.

Detail of the red connector for washing the deck

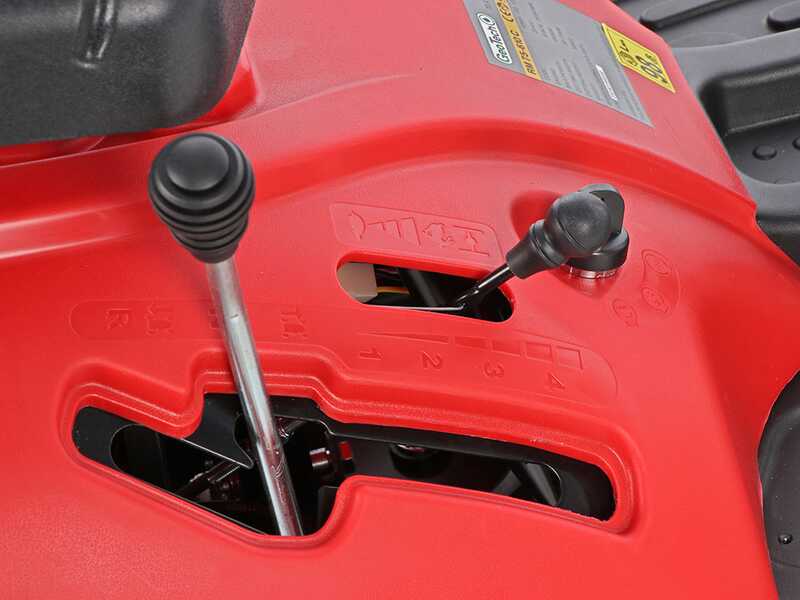

The GeoTech RM 65-610 S mini riding-on mower is equipped with a selector switch that allows you to choose between:

• forward motion with 4 different driving speeds
• neutral (N)
• reverse gear (R)

Detail of the lever for adjusting engine speed

Once one of the 4 gears has been selected, it is also possible to adjust the speed (reducing it) simply by applying pressure to the brake pedal (decelerating).

When the pedal is released, the riding-on mower automatically returns to the speed of the gear selected.

Detail of the mechanical transmission

Features of the cutting mechanism of the GeoTech RM 65-610 S mini riding-on mower

The riding-on mower is equipped with a universal blade as standard.

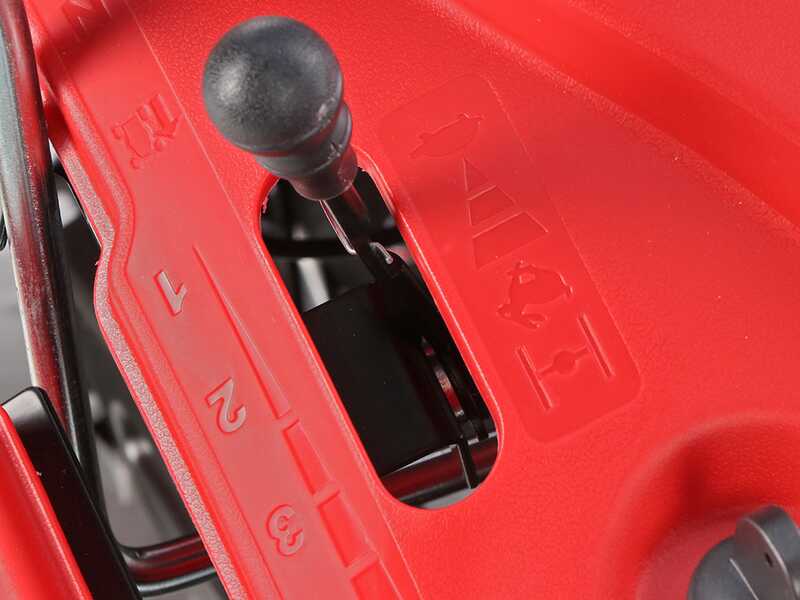

The cutting height can be adjusted to 5 different settings between 35 and 75 mm using the appropriate lever.

The rotation of the mower blade of the riding-on mower is controlled by a lever.

The blade has a PX3 profile , designed to offer excellent performance in terms of cutting and durability.

Special cutting deck washing joint

Very simple and intuitive controls and adjustments.

After starting the engine, from the Operator's seat you can select the start mark, engage reverse, adjust the revs, change the different cutting heights, engage the parking brake and more.

Key-activated ignition switch: electric motor start (batteries and battery charger supplied)

Blade engagement lever

Pedal brake

Engine speed adjustment lever

Cutting height adjustment lever with 5 different heights between 35 and 75 mm

Parking brake engagement

Forward, reverse and neutral gear engagement.

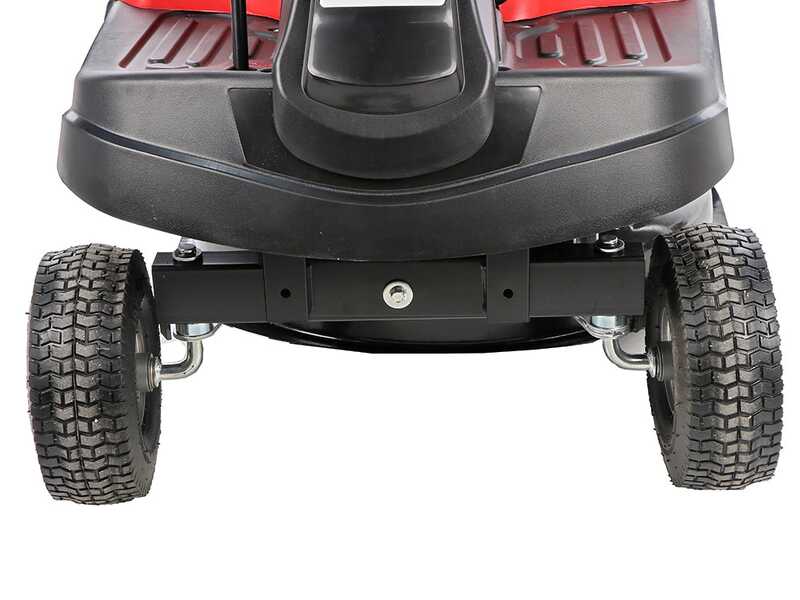

Other features of the GeoTech RM 65-610 S riding-on mower

• Pneumatic tyres: Guarantee greater respect for the turf and the best possible traction on a riding-on mower.
• Comfort seat with steel springs to cushion any unevenness in the ground
• Ergonomic steering wheel
• Towing hook
• Electric start with 12V/7Ah battery-powered
• Manual start with rope
• cupholder
• Special socket for recharging the battery. Once seated on the chair, the socket is located on the left, near the cutting deck.

The RIDING-ON MOWER is designed and intended for cutting grass exclusively in gardens and parks (and not on other types of terrain), characterised by level surfaces without irregularities, free of stones or other solid objects, and with grass kept as a "lawn" (i.e. no uncultivated/wild grass), which should be cut regularly, avoiding letting it grow beyond 25/30 cm (which most riding-on mowers are unable to cut). Also avoid slopes greater than 15% (=9°), except for 4x4 models.

For more demanding jobs, characterised by wild grass or grass taller than indicated, or surfaces that are rougher than a garden, consider the alternative product categories "Petrol Grass Shredders" or "Riding-on Mowers with Grass Shredders" (suitable for tall and uncultivated grass).

Please also note that grass should only be cut when both the lawn and the ground underneath are completely dry. Only cut the grass in dry weather, well away from rain or irrigation, and preferably in the afternoon when it is not saturated with morning moisture. Wet grass tends to bend under the weight of the blades, reducing the effectiveness of the cut, increasing the risk of clogging in the deck and placing excessive strain on both the engine and the drive belt, which can damage them.
