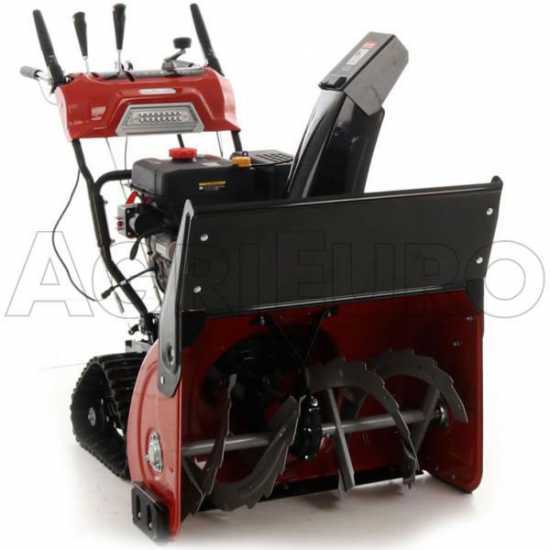

GeoTech-Pro STP1587 TEL - Petrol Snowplough - Tracked - Loncin LC190FDS

GeoTech STP1587 TEL in short:

ST: Snow Thrower.
P: stands for GeoTech Pro
15: 15 Hp rated output.
85: 85 cm auger width.
T: means that the machine is equipped with Tracks.
E: stands for Electric.
L: stands for Loncin, which is the motor's brand.

GeoTech STP1587 TEL snow thrower is suited to work on irregular surfaces where traction and adherence are essential in order to guarantee good performance.

Compared with standard snow throwers, this model is equipped with triangular track drive which is an innovative and efficient system.

The machine is powered by a powerful engine (15 HP).

As the snow blower has an electric start, is possible to connect it to your home electric line. It is not supplied with batteries as the low temperatures can quickly damage them. Batteries suffer jumps in temperature.

Specifications:

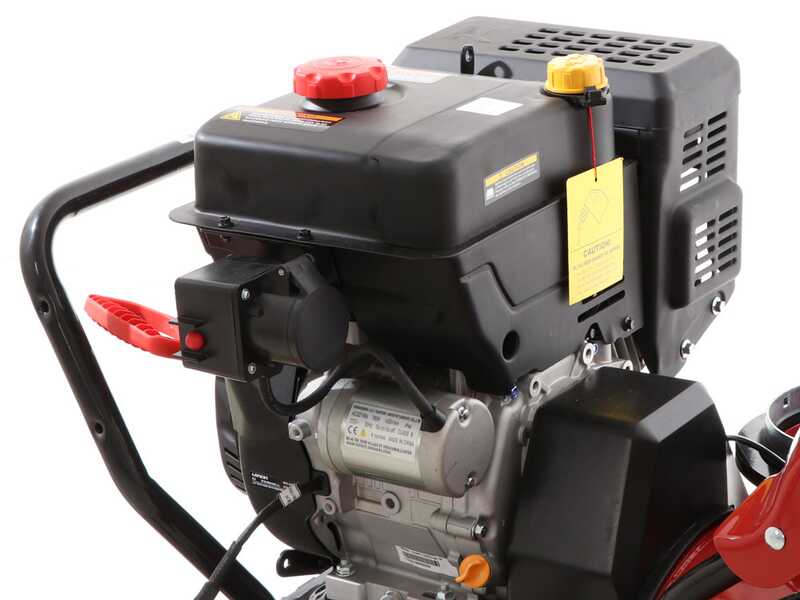

The engine is winterized, which means that it is equipped with a special cover in order to protect the most breakable component parts subject to cold weather and to protect the engine in case of sudden drop in temperatures. Therefore, the engine is adapted for work in low temperatures.

Moreover, the motor has an Err electric start.
This system is not supplied with batteries and, therefore, is possible to connect it to your home electric line. Batteries suffer jumps in temperature reducing their charge or their lifetime. Moreover, they suffer a sporadic use.

Winterized engines like this one aren't provided with air filter as, working in environments with low temperatures and snow, this last can create humidity that could freeze damaging the air filter and causing problems to the machine.

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

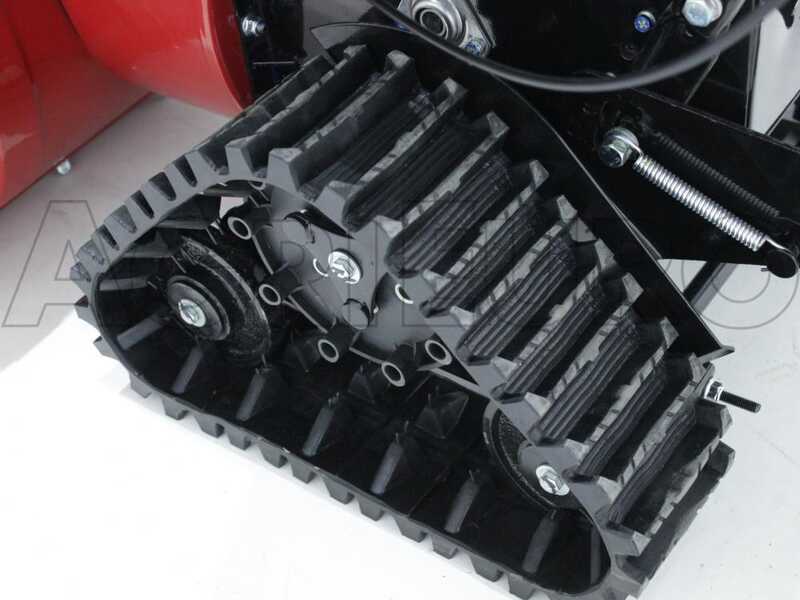

Track drive with 3 rollers offers an advanced system to run on unmade or earth roads or on steep slopes and provide you with the ability to handle all manner of surfaces.

The two steel track rollers positioned on the bottom guarantee added grip on the surface.

In standard track drives, with only two rollers, the track system is very rigid because the rollers are very close.

This special system can grip very easily on any surface.

Moreover, is very easy to attempt maintenance to this track drive with 3 rollers. You can easily adjust the tensioning by means of the outer tensioning system on the rear steel wheel.

Focus on the 2 threaded rods placed inside the track, one on the right and one on the left side.

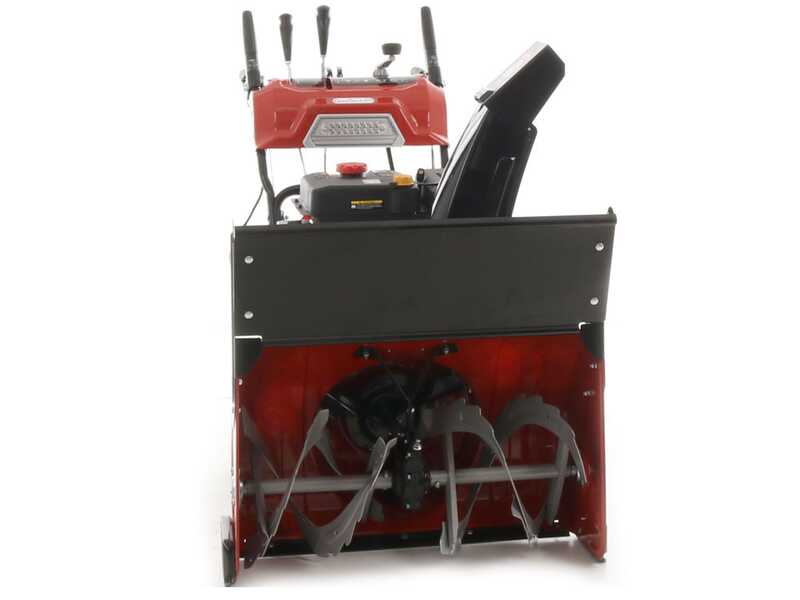

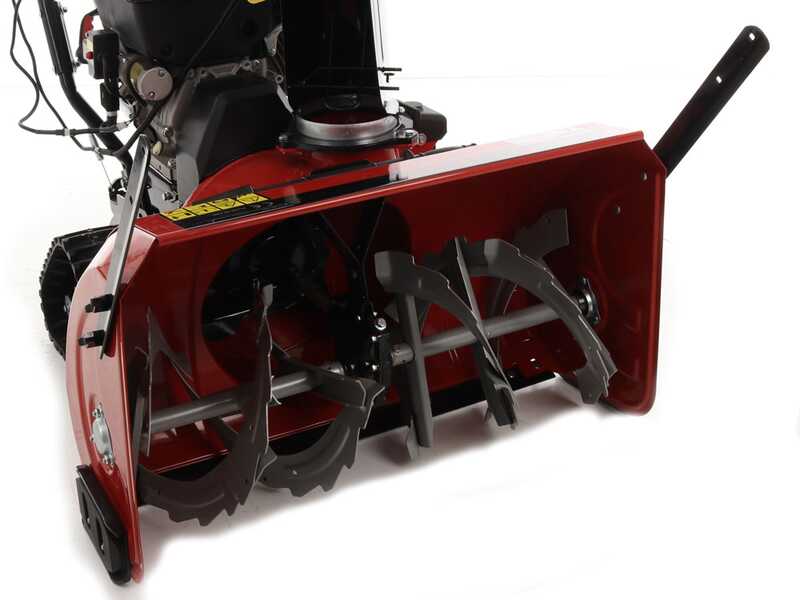

Auger screw housing width of 85 cm and height of 51 cm.

The Err professional auger unit provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox.

Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

Two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a reinforced high-speed fan impeller.

Aluminum reducer with steel auger gearbox in grease bath.

Err Adjustable plastic skid shoes
They allow working on any surface, from smooth to rough surfaces (adjust the working height by means of the skid shoes). It can also work over gravel surfaces. The advantage of the plastic skid shoes is that they do not scratch the ground surface.

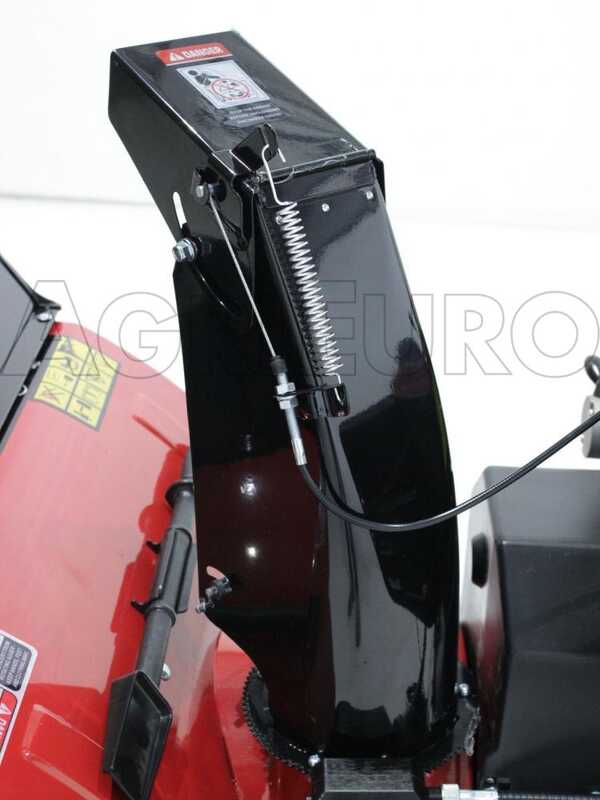

The discharge chute is adjustable by means of the lever and by means of the endless screw both positioned on the panel.

The chute deflector is controlled with a remote lever positioned on the panel as well.

Discharge chute totally oriented to the left

Discharge chute totally oriented to the right

Deflector totally up-oriented (maximum throwing distance up to 18 metres).

Deflector totally down-oriented.

The chute is provided with a chute guard as safety measure against debris.

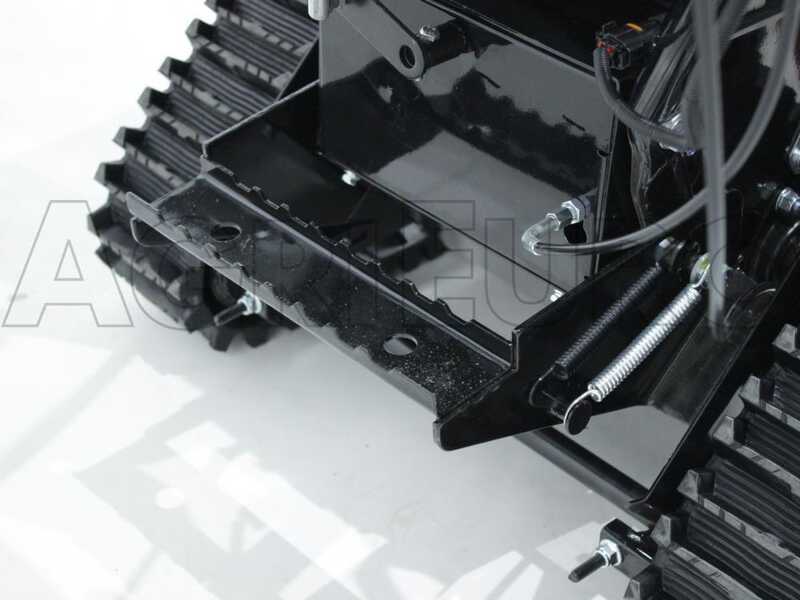

You can set 3 different working assets as necessary.

1- transport asset

2- normal asset

3- snow thrower asset with very thick snow

Adjust the working assets by means of the dedicated pedal on the bottom, just in front of your feet.

Drive speed control lever:
6 forward speed
2 reverse speed

Power-assisted steering system

It allows disconnecting the traction drive from the 2 wheels by means of its dedicated lever on the bottom.

Heated grips for more comfort while working.

Focus on the switches, with mini-LED lights, for::
- headlights
- heated grips

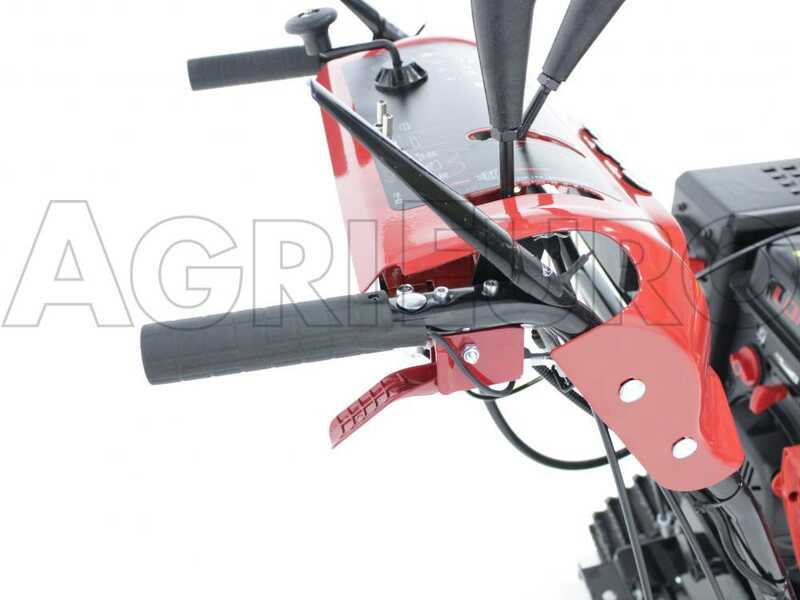

Upper lever on the right side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Upper lever on the left side: it controls the auger screw and the impeller fan (it controls both simultaneously).

Discharge chute control lever.

Powerful artificial LED headlights positioned on the panel.

Clean-out tool.
If the discharge chute is clogged, use the clean-out tool.

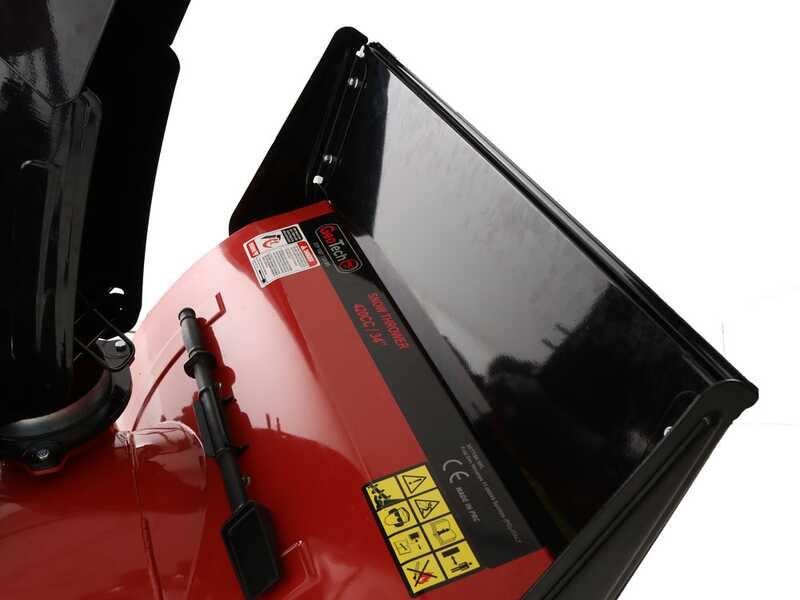

Upper deflector:
it can feed snow inside the auger housing even when snowdrifts are higher than the housing and are very thick.

Side drift cutters:
they cut through very high and deep snowdrifts avoiding the snow on the side (cut by means of these blades) may fall again where the snow has been already cleared.
