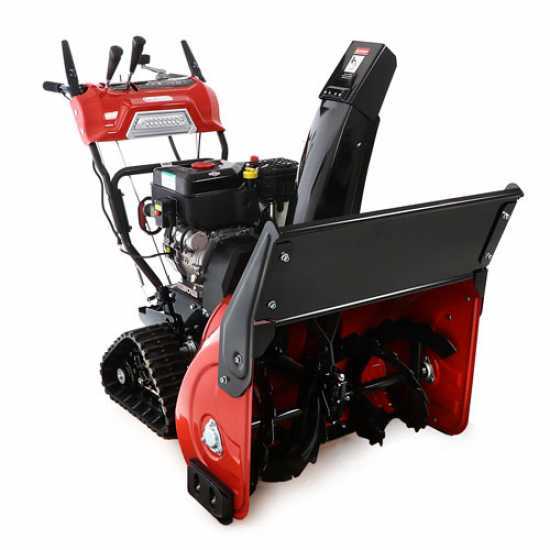

GeoTech-Pro STP1587 TEBS - Petrol Snowplough - Tracked - B&S 2100

GeoTech STP1587 TEBS in short:

ST: Snow Thrower.
P: stands for GeoTech Pro.
15: 15 Hp rated output.
85: 85 cm standard auger width.
T: means that the machine is equipped withTracks.
E: stands for Electric start.
BS: stands for Briggs&Stratton, which is the motor's brand.

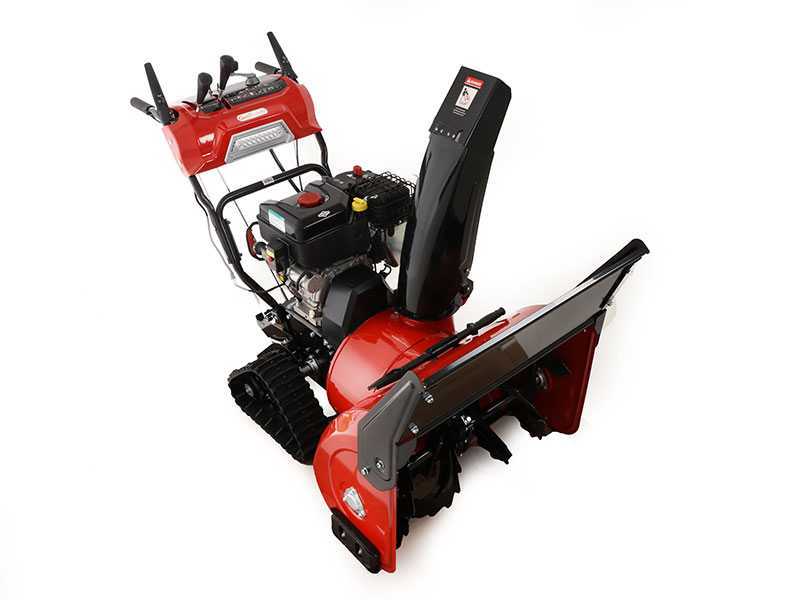

GeoTech Pro STP1587 TEBS snow thrower is a heavy-duty product powered by high-quality Briggs&Stratton 2100 Snow Series engine. This 4-stroke engine is equipped with air-cooled system and has 420 cubic capacity. It is best suited to work on big areas even with bad weather. This snow thrower is a stable and efficient product thanks to its track drive with rollers and the different working positions.

As the snow blower has an electric start, is possible to connect it to your home electric line in order to start the machine even when it is very cold.

The big high-quality rear auger, with 87 x 54 cm housing, has an advanced and toothed steel auger unit. It churns up the snow and discharges it many metres away through the discharge chute. You can reverse and adjust it by means of the electric controls. Follow other features and characteristics of GeoTech Pro STP1587 TEBS snow thrower:

• Heated grips;
• LED headlights;
• Power-assisted steering system;
• 6+2 speeds gearshift;
• Upper deflector;
• Side drift cutter;
• Clean-out tool;

GeoTech STP1587 TEBS snow thrower is powered by the biggest and the most powerful engine compared to the other GeoTech Pro snow throwers.

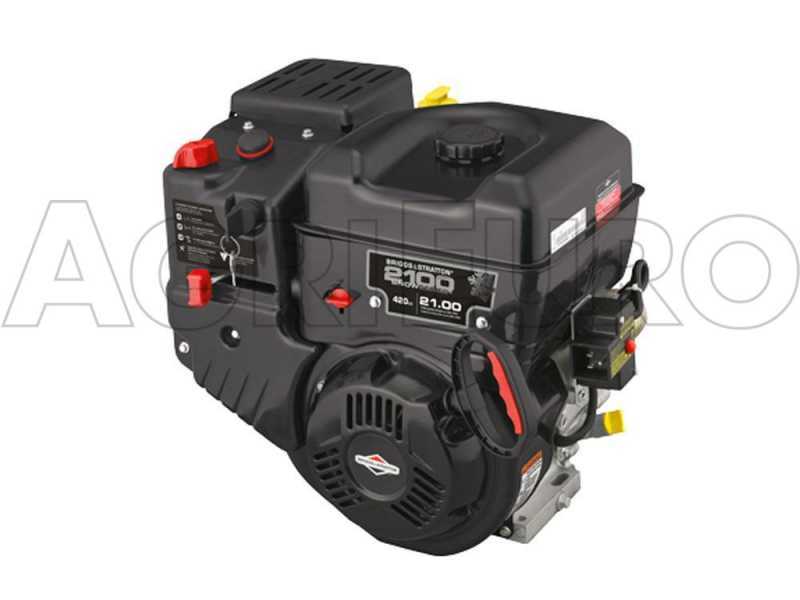

This product is powered by high-quality Briggs&Stratton 2100 Snow Series 4 stroke engine. This 420 cc engine is equipped with an air-cooled system, overhead valve and aluminium cylinder.

The engine is winterized, which means that it is equipped with a special cover in order to protect the most breakable component parts subjected to cold weather and to protect the engine in case of sudden drop in temperatures. Therefore, the engine is adapted for work in low temperatures.

Technical features:

As the snow blower has an electric start, is possible to connect it to your home electric line. It is not supplied with batteries as the low temperatures can quickly damage them. Batteries suffer jumps in temperature. Winterized engines like this one aren't provided with air filter as, working in environments with low temperatures and snow, this last can create humidity that could freeze damaging the air filter and causing problems to the machine.

Focus on the oil drain plug.

Focus on the ignition key.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using.

Nominal Power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11 HP (a rotation speed of 2800 rpm)
It corresponds to the real power of the crankshaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

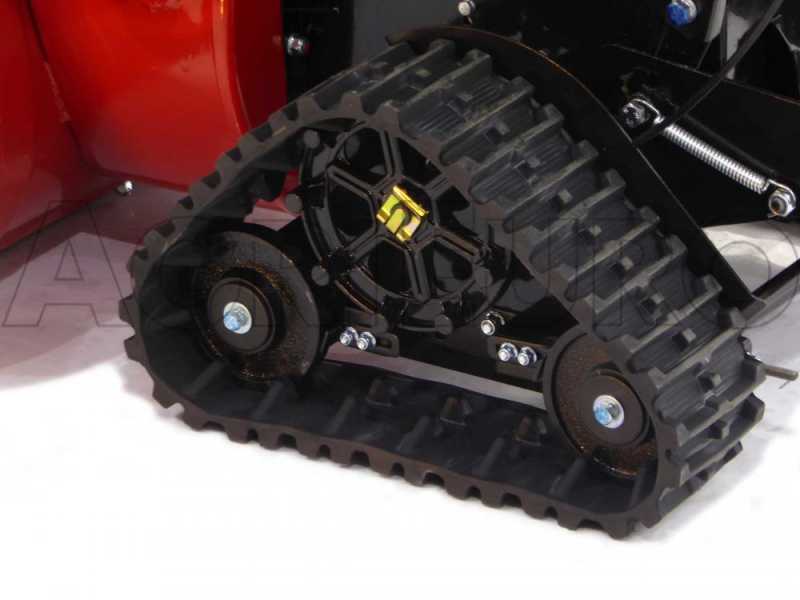

Compared to standard track drives with 2 rollers, this track drive with 3 rollers offers an advanced system to run on unmade or earth roads or on steep slopes and provide you with the ability to handle all manner of surfaces.

The steel track rollers positioned on the bottom guarantee added grip on the surface.

In standard track drives, with only two rollers, the track system is very rigid because the rollers are very close.

This special system can grip very easily on any surface.

Moreover, is very easy to attempt maintenance. You can easily adjust the tensioning by means of the outer tensioning system on the rear steel wheel.

Focus on the 2 threaded rods placed inside the track, one on the right and one on the left side.

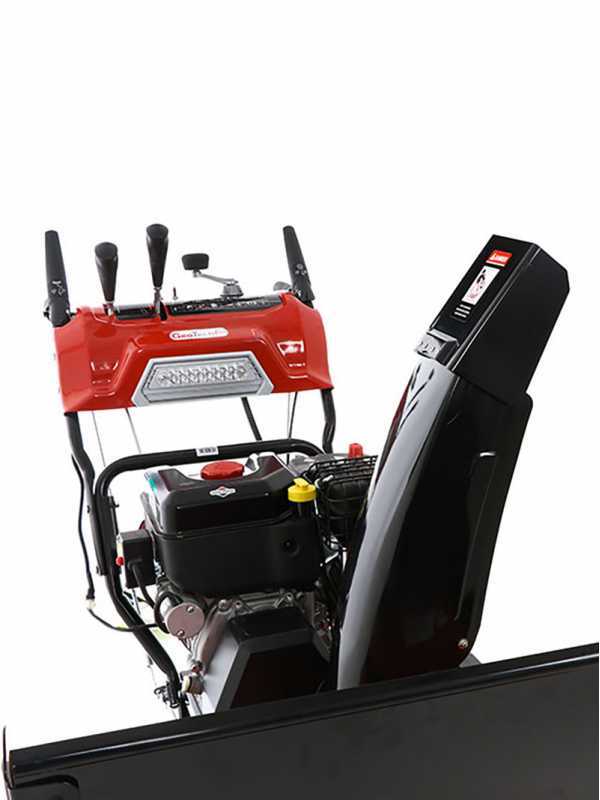

The discharge chute of this GeoTech tracked snow thrower is made of enamelled steel and is adjustable by means of a knob located on the panel.

The angle of rotation of discharge chute is 190 °: from the centre is 95° on each side.

Discharge chute totally oriented to the left.

Discharge chute totally oriented to the right.

Deflector totally up-oriented (maximum throwing distance).

Deflector totally down-oriented.

The chute is provided with a chute guard as safety measure against debris.

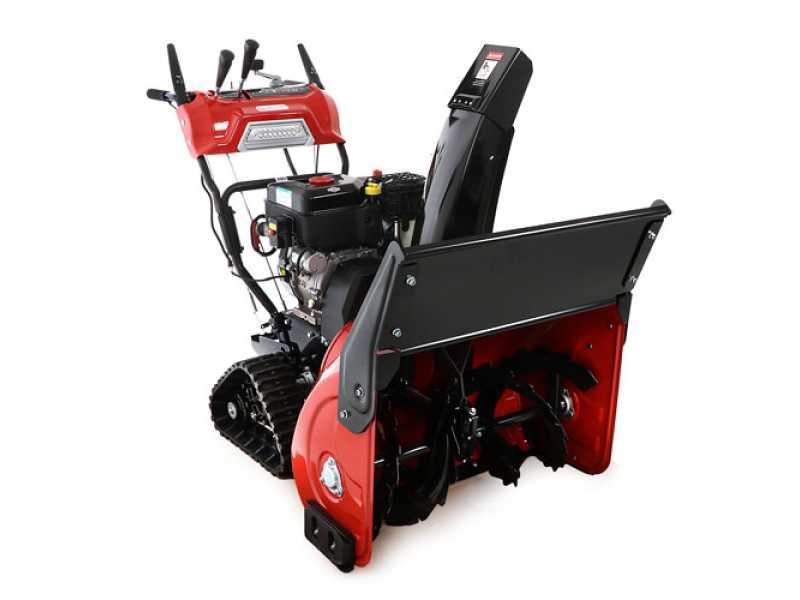

Auger screw housing width of 85 cm and height of 54 cm.

The high-quality auger unit provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox. Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

Two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a high-speed reinforced fan impeller.

Aluminum reducer with steel auger gearbox in grease bath.

Adjustable plastic skid shoes
They allow working on any surface, from smooth to rough surfaces (adjust the working height by means of the skid shoes). It can also work over gravel surfaces. The advantage of the plastic skid shoes is that they do not scratch the ground surface.

You can set 3 different working assets as necessary on GeoTech Pro tracked snow throwers.

Transport asset: it lifts the auger in order to make transport easier.

Normal asset: the auger housing touches the ground.

Snow thrower asset with very thick snow: the auger faces downwards. In this way the auger will dig snow out.

Adjust the working assets by means of the dedicated pedal on the bottom, just in front of your feet.

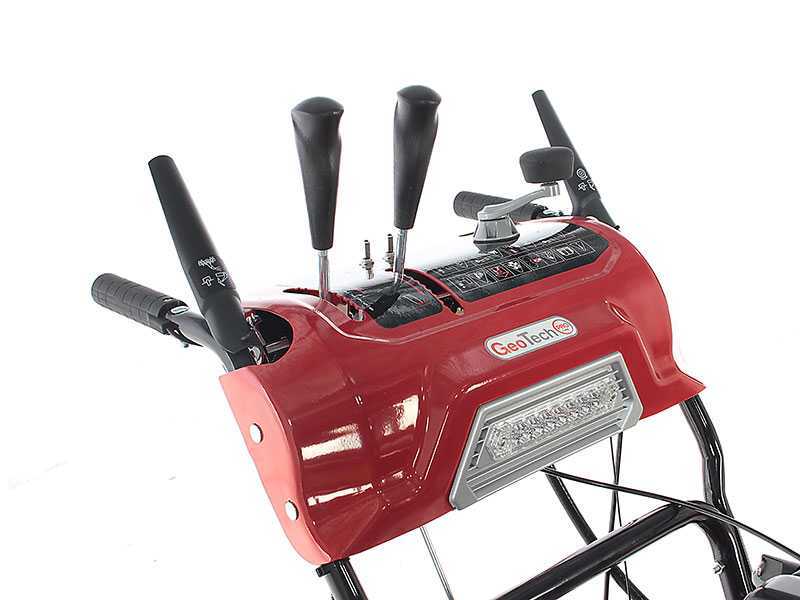

Panel is well-provided and easy to use. It is equipped with electric controls on the panel.

Drive speed control lever:
6 forward speed and 2 reverse speed.

Power-assisted steering system: it allows disconnecting the traction drive from the wheels by means of the red lever. It makes your snow thrower easy to steer and maneuver.

Electric heated grips for more comfort while working.

Focus on the switches with mini-LED lights intended for the headlights and the heated grips.

Upper lever on the right side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Upper lever on the left side: it controls the auger screw and the impeller fan (it controls both simultaneously).

Focus on the pedal. It allows adjusting the working assets.

Discharge chute is adjustable by means of the knob and the lever on the left.

Powerful artificial LED headlights positioned on the panel.

Clean-out tool: if the discharge chute is clogged, use the clean-out tool.

2 POSSIBLE SETTINGS:

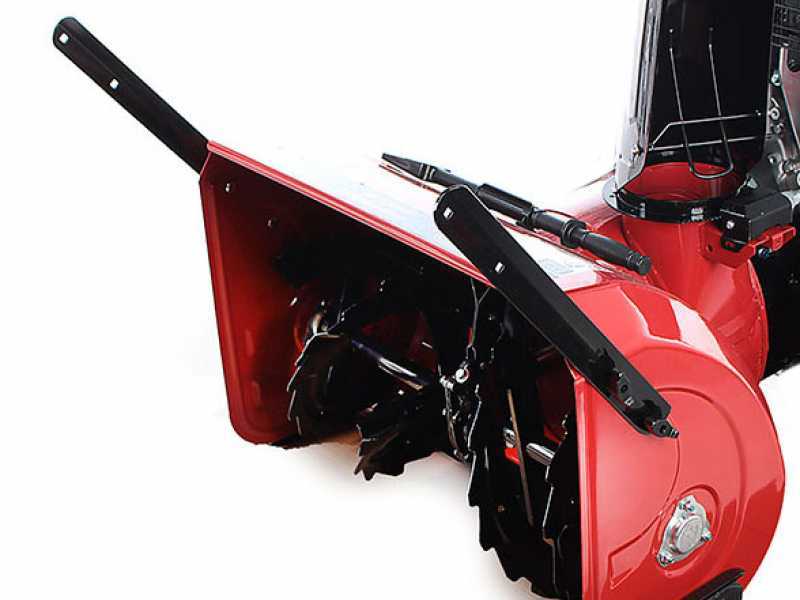

Chute upper deflector: it improves the performances. In fact, when snowdrifts are very high and deep, it can feed snow inside the auger housing even when snowdrifts are higher than the housing.

Side drift cutters: they cut through snowdrifts avoiding the snow on the side (cut by means of these blades) may fall again where the snow has already cleared.
