GeoTech Pro MFM165-H - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift

Questions & Answers (7)
ID: 100141

EAN: 8054141549159

MPN: 100141

8,9/10
After-sales assistance & Spare parts
GeoTech Pro MFM165-H - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift
+100 sold
Tractor power
From 35 to 40 HP
Sturdiness/Series
Medium
Weight
301 Kg
Cutting width
165 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Double spiral rotor
Product Features
Model:
MFM 165-H
Tractor power:
From 35 to 40 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Double spiral rotor:
Operating mode:
Fixed 3-point hitch:
No
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
165 cm
Wood diameter:
Up to 35 mm
No. of blades:
24
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
12 mm
Hammer width:
8 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
165 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

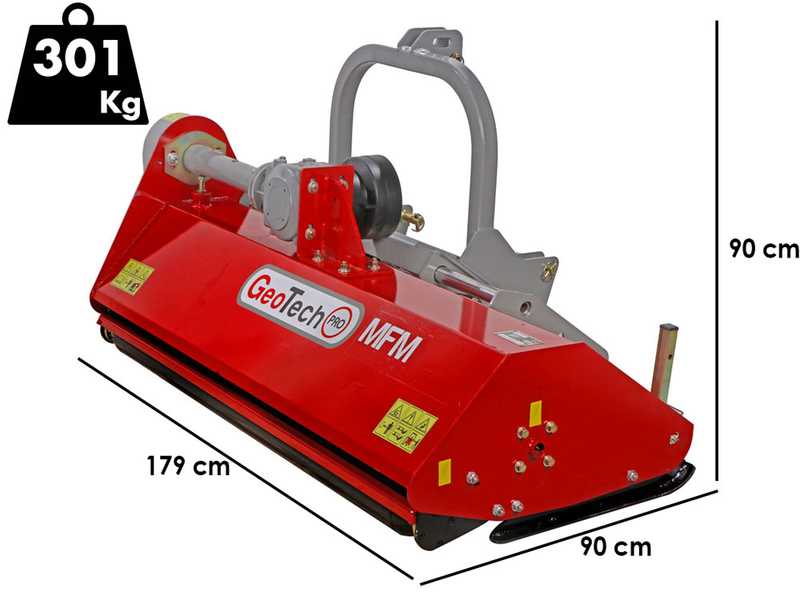

Product dimensions in cm (L x W x H):
179x96x92 cm
Net weight:
301 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
190x85x75 cm
Gross weight (packaging included) :
321 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
29 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.953,41
VAT Included
You're viewing:
Customers also viewed:
Description

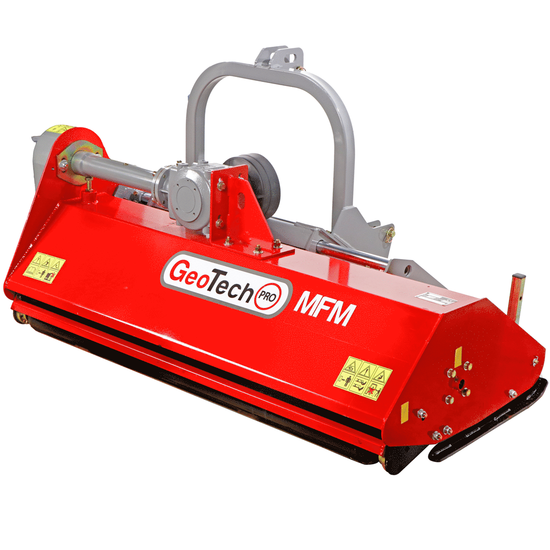

GeoTech Pro MFM 165-H tractor flail mower

The light size horizontal drum flail mower for tractor of MFM-H series is ideal for light runners, grass and small bushes.

Suggested for hobby purposes.

Fixed linkage, 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

  • Real working width: 165 cm
  • Real width occupied (with side skids assembled): 179 cm
  • Weight: 301 kg
  • Hydraulic side shift
  • 1° category 3 point linkage
  • 3 belts transmission

STANDARD EQUIPMENT (in summary):

  • Hammer flails
  • Lay rear roller
  • Adjustable skids
  • Cardan shaft


 ATTENTION!

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 24

Flails are fixed by means of a sturdy 16 mm diameter 90 mm long bolt made of hardened steel.

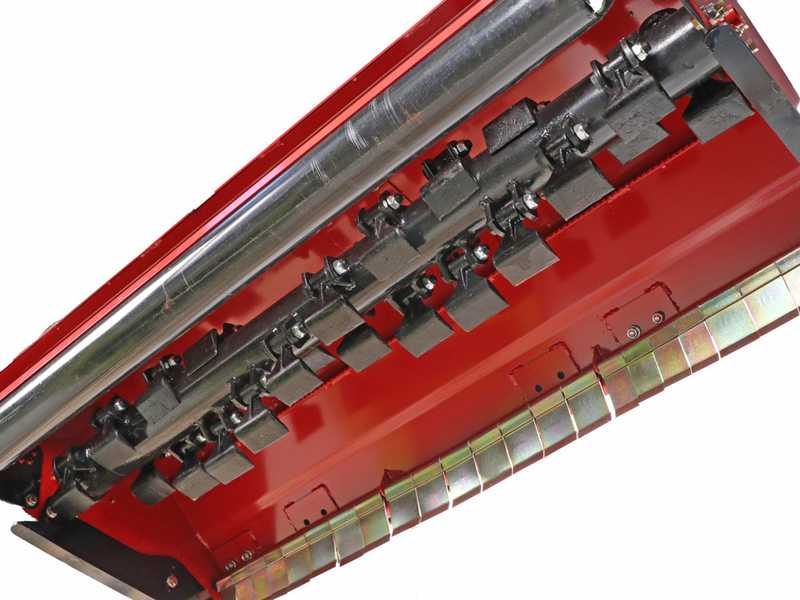

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

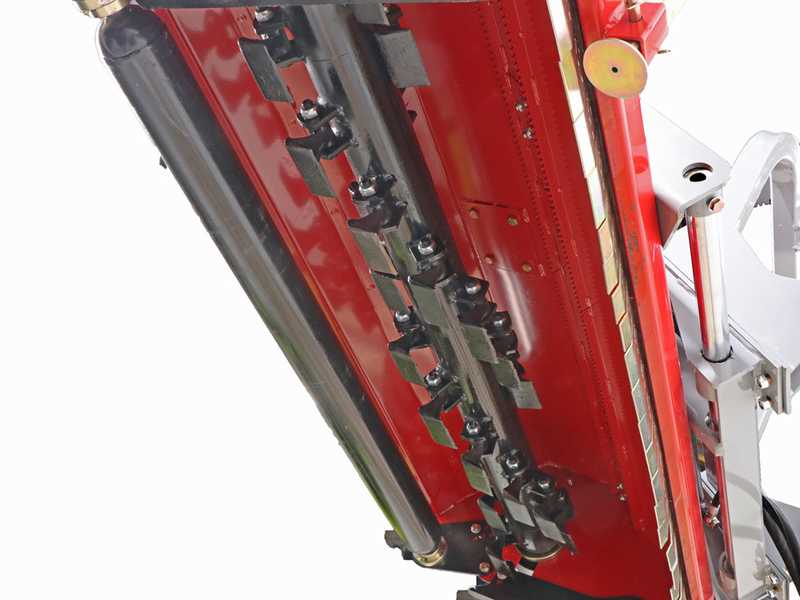

Focus on the double counter-blades bar under the shell.

Figurative image of the double-spiral rotor.

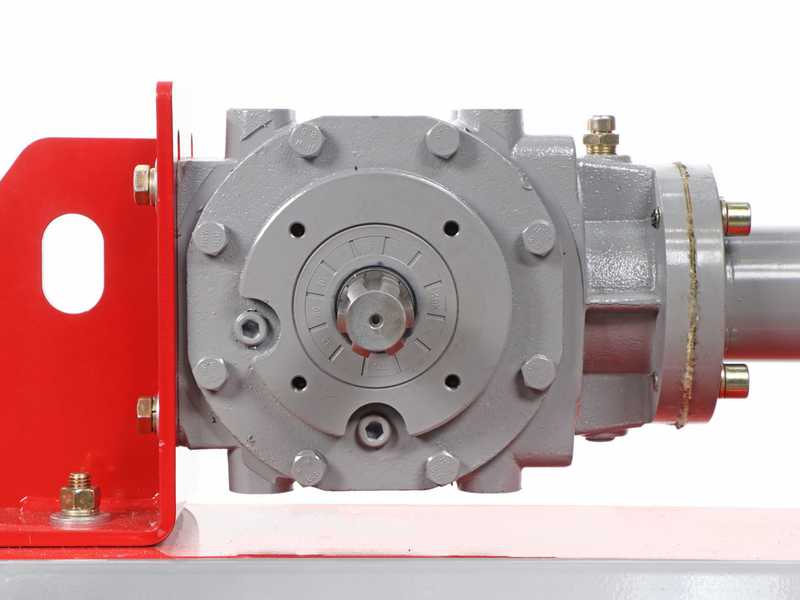

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears. Equipped with lubricated extension.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

3 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 2 belts transmission)

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

After the assembly, check for bolts loosening and fasten.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

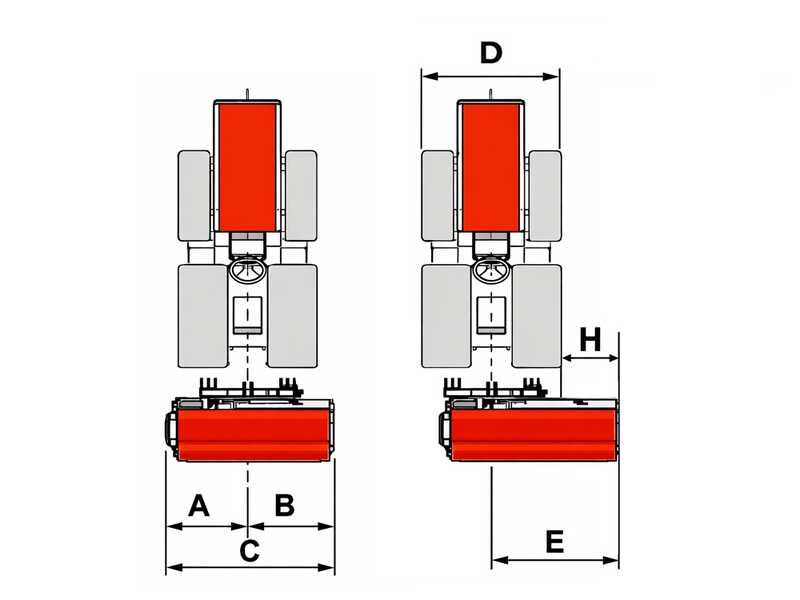

Hydraulic side shift and 3 points hitch

Equipped with hydraulic side shift.

The 3 point hitch is located on a very sturdy tubular going along the full structure.

Focus on the side shift controller hydraulic cylinder.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

Focus on the sturdy 3 points hitch.

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Stabilizing accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

Bearing at the roller fixing particular

Roller side supporting plate particular, with holes for the height adjustment. It is 6 positions adjustable.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot .

Free items & Standard equipment

Free gifts & Standard equipment

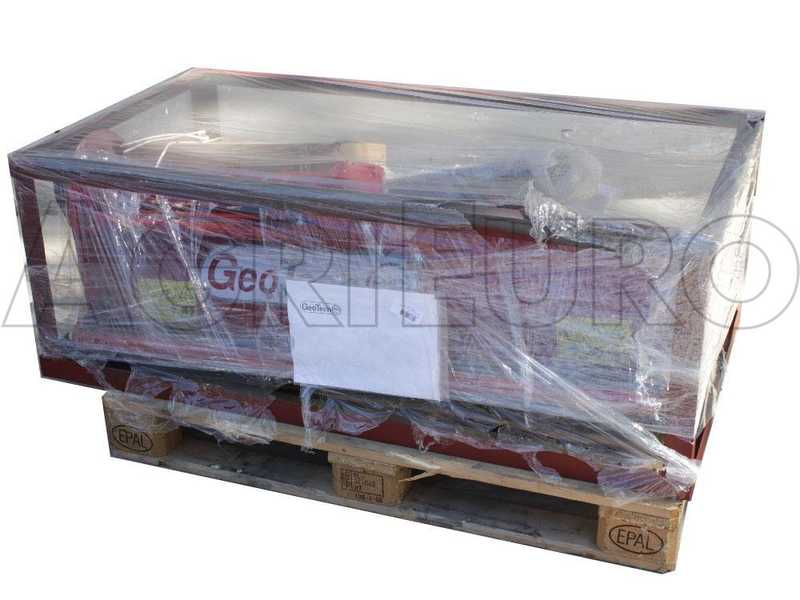

The flail mower is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
