Description

GeoTech LFM 155-H tractor flail mower

The light size horizontal drum flail mower for tractor of MFM-H series is ideal for light runners, grass and small bushes.

Suggested for hobby purposes.

Fixed linkage, 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

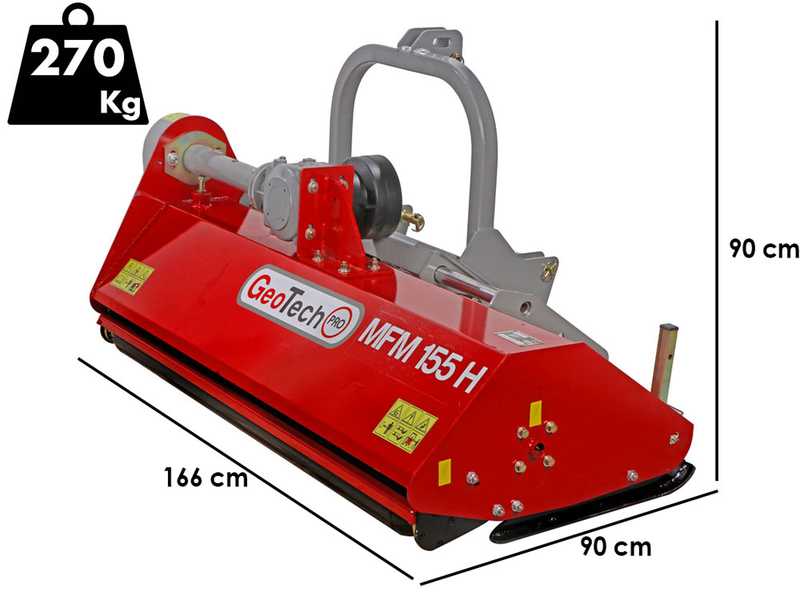

Real working width: 152 cm
Real width occupied (with side skids assembled): 166 cm
Weight: 270 kg
Hydraulic side shift
1° category 3 point linkage
3 belts transmission

STANDARD EQUIPMENT (in summary):

Hammer flails
Lay rear roller
Adjustable skids
Cardan shaft

ATTENTION!

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

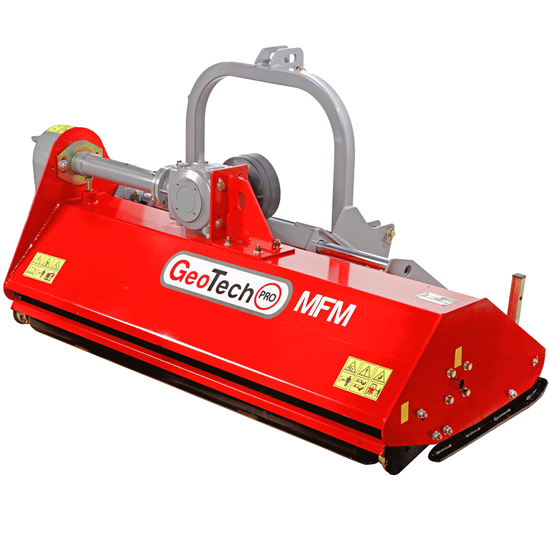

GeoTech Pro MFM155-H - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 22

Flails are fixed by means of a sturdy 16 mm diameter 90 mm long bolt made of hardened steel.

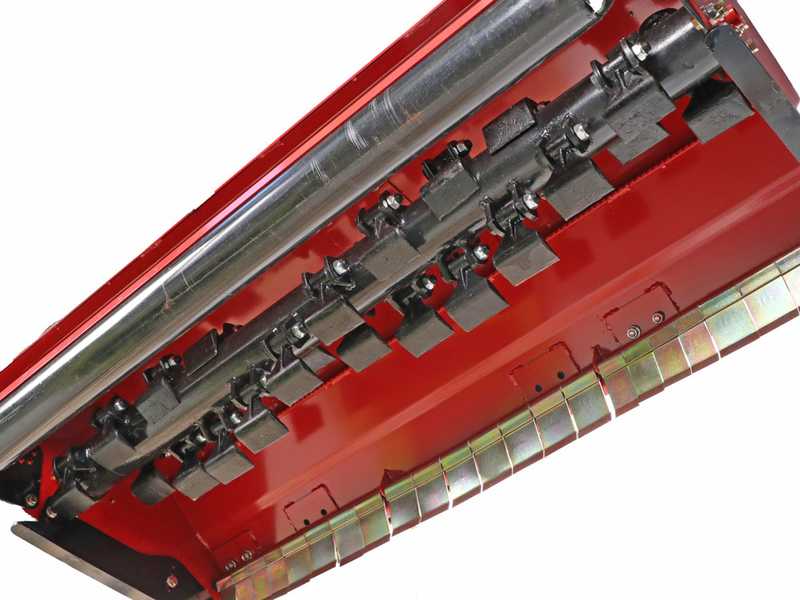

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

Focus on the double counter-blades bar under the shell.

Figurative image of the double-spiral rotor.

Side belt transmission and gearbox

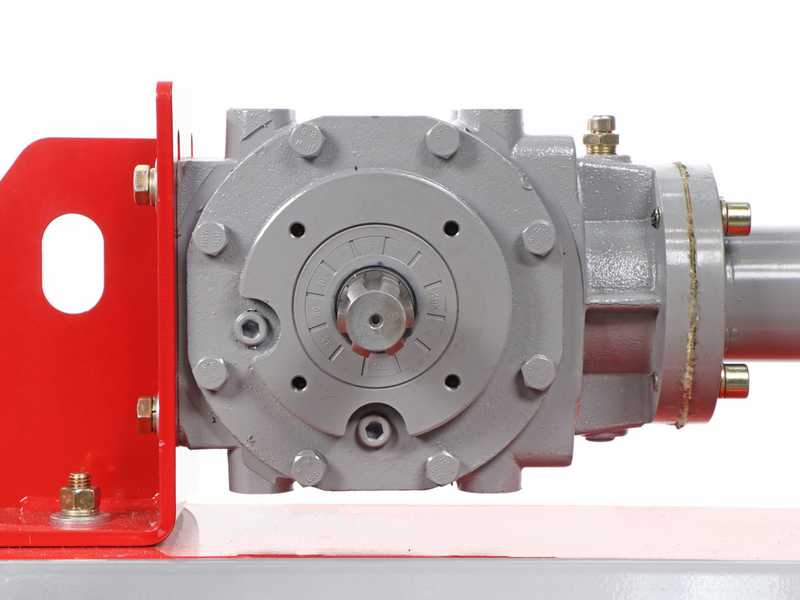

Oil-bath gearbox. Monocoque shell, hardened steel inner gears. Equipped with lubricated extension.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

3 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 2 belts transmission)

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

After the assembly, check for bolts loosening and fasten.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

Hydraulic side shift and 3 points hitch

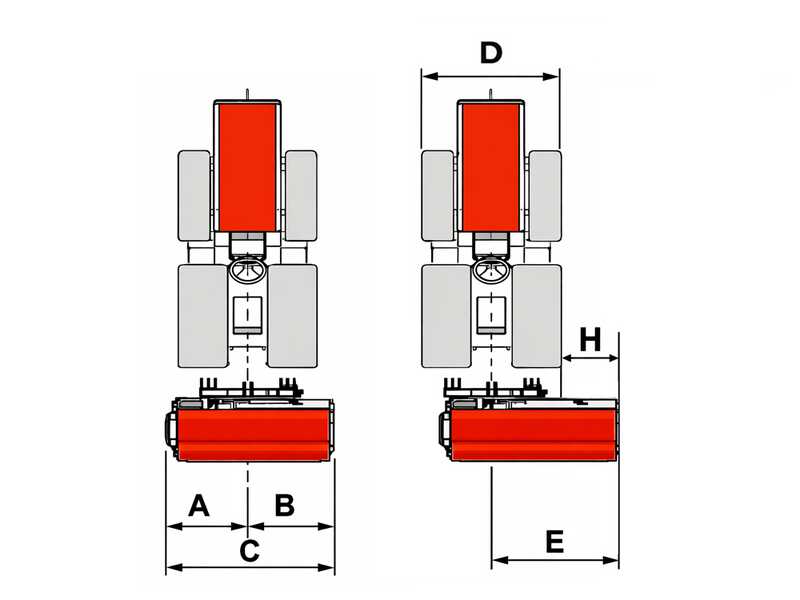

Equipped with hydraulic side shift.

The 3 point hitch is located on a very sturdy tubular going along the full structure.

Focus on the side shft controller hydraulic cylinder.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

Focus on the sturdy 3 points hitch.

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Stabilizer accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

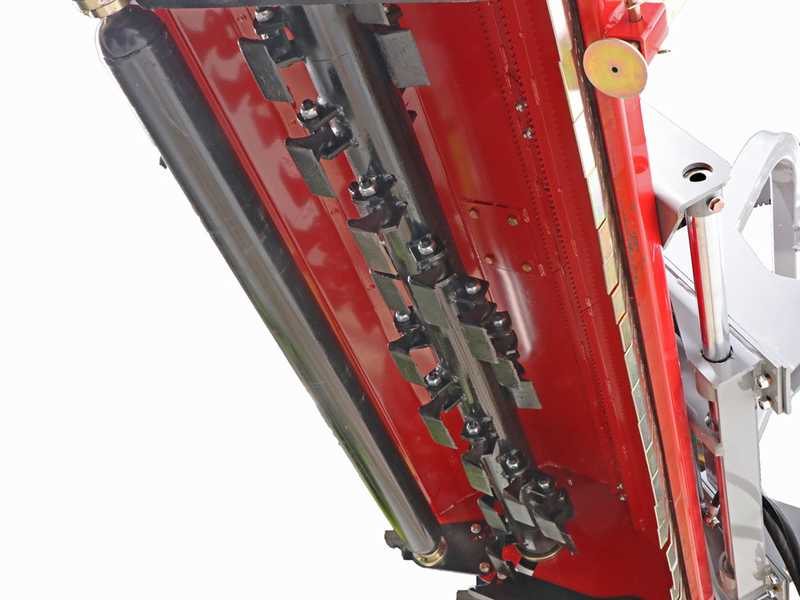

Bearing at the roller fixing particular

Roller side supporting plate particular, with holes for the height adjustment. It is 6 positions adjustable.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot .
