GeoTech Pro KFM 150M - Tractor-mounted flail mower - Medium-light Series - Manual shift

Questions & Answers (8)
ID: 100144

EAN: 8054141549180

MPN: 100144

GeoTech Pro KFM 150M - Tractor-mounted flail mower - Medium-light Series - Manual shift
+200 sold
Tractor power
from 30 to 35 HP
Sturdiness/Series
Medium-light
Weight
242 Kg
Cutting width
145 cm
Sliding motion
Shift
Manual
Standard cutting tools
Hammer flails
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Double spiral rotor
Product Features
Model:
KFM 150M
Tractor power:
from 30 to 35 HP
Sturdiness/Series:
Medium-light
Shift:
Manual
Manual shift:
Yes
Manual shift:
Hydraulic shift:
No
Sliding motion:
Double spiral rotor:
Operating mode:
Fixed 3-point hitch:
No
3-point hitch category:
First
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
145 cm
Wood diameter:
Up to 30 mm
No. of blades:
25
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Hammer flails:
Blades bolt diameter:
12 mm
Hammer width:
8 cm
Max. cutting height:
90 mm
Cutting width:
145 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
3
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

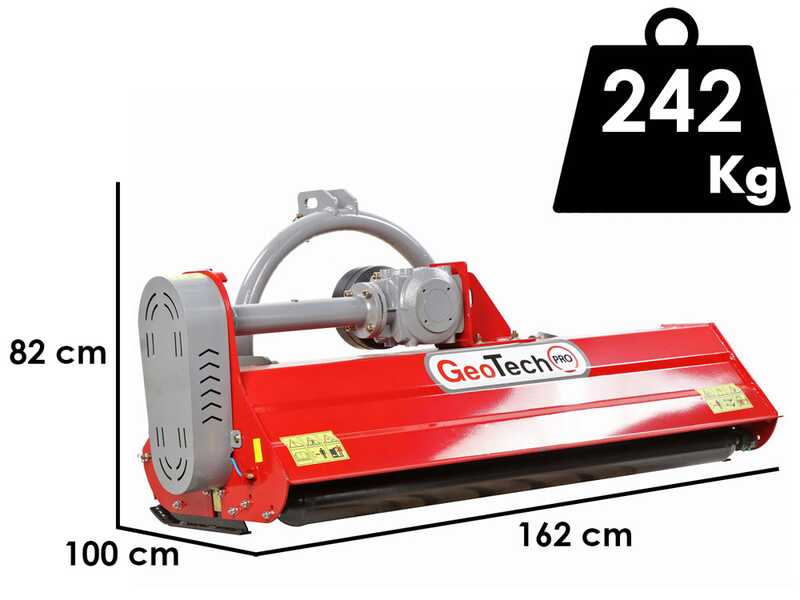

Product dimensions in cm (L x W x H):
162x100x82 cm
Net weight:
242 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
170x75x70 cm
Gross weight (packaging included) :
280 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 1.639,84
VAT Included
You're viewing:
Customers also viewed:
Description

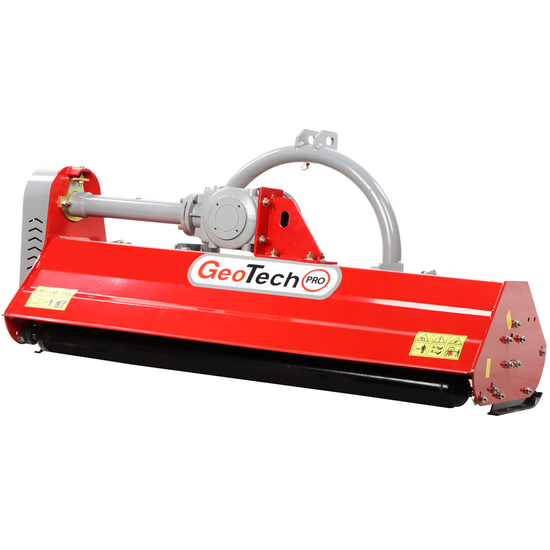

GeoTech Pro KFM 150M tractor flail mower

The light-medium size horizontal drum flail mower for tractor of KFM series is ideal for medium/light runners, grass and small bushes.

Suggested for hobby purposes.

Provided with manual side shift with 4 different positions. Also provided with 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

  • Real working width: 145 cm
  • Real width occupied (with side skids assembled): 162 cm
  • Weight: 242 kg
  • 4 positions manual side shift
  • 1° category 3 point linkage
  • 3 belts transmission

STANDARD EQUIPMENT (in summary):

  • Hammer flails
  • Lay rear roller
  • Adjustable skids
  • Cardan shaft


WARNING!

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 25

Flails are fixed by means of a sturdy, bolt made of hardened steel.

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

Focus on the double counter-blades bar under the shell.

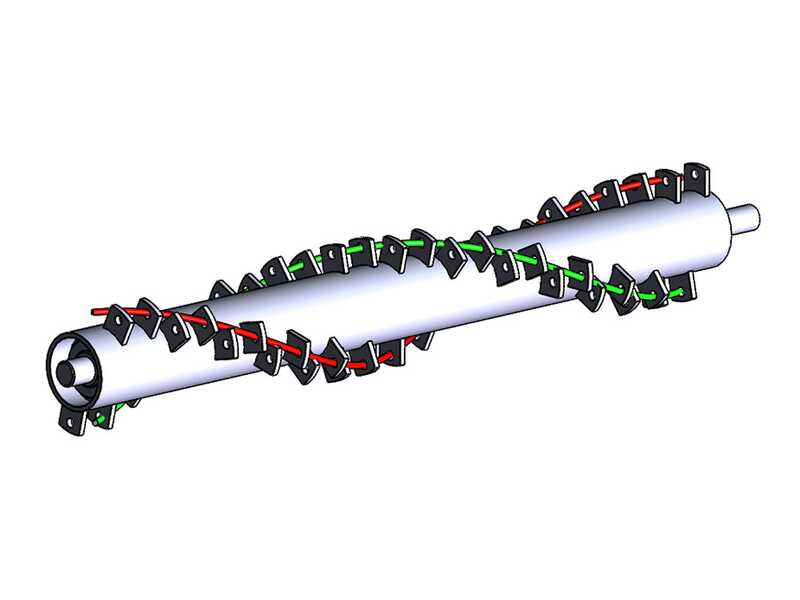

Figurative image of the double-spiral rotor.

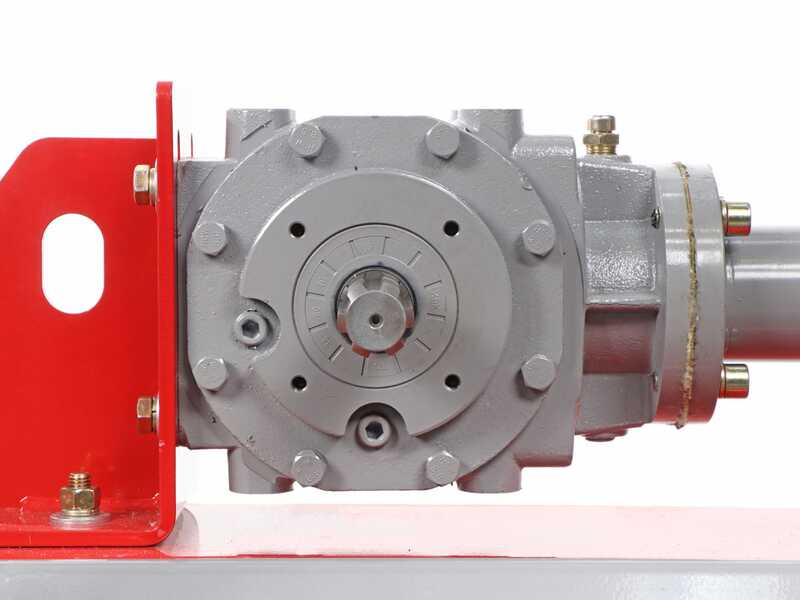

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears. Equipped with lubricated extension.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

3 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 2 belts transmission)

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

WARNING!

After the assembly, check for bolts loosening and fasten.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.

Hydraulic side shift and 3 points hitch

Equipped with manual side shift with 4 positions.

  • Position 1
  • Position 2
  • Position 3
  • Position 4

The 3 point hitch is located on a very sturdy tubular going along the full structure.

Focus on thesetting holes.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

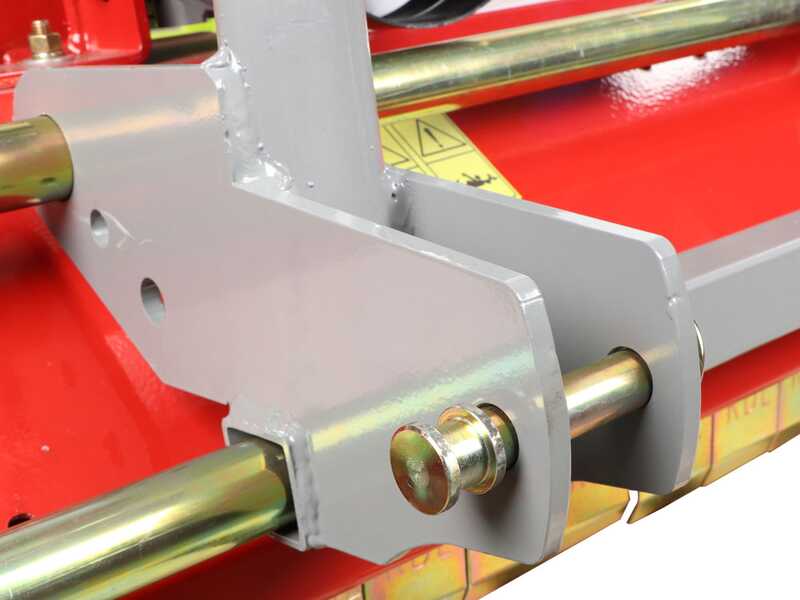

Focus on the sturdy 3 points hitch.

Rotor and side bearings

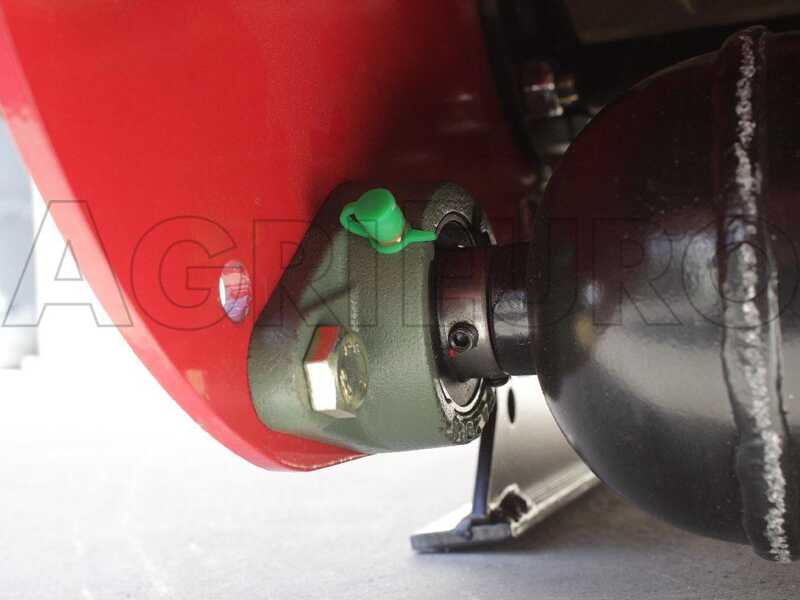

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Stabilizing accessories - rear roller and side skids

Rear support height adjustable roller with bearing at the roller fixing on standard equipment.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Free items & Standard equipment

Free gifts & Standard equipment

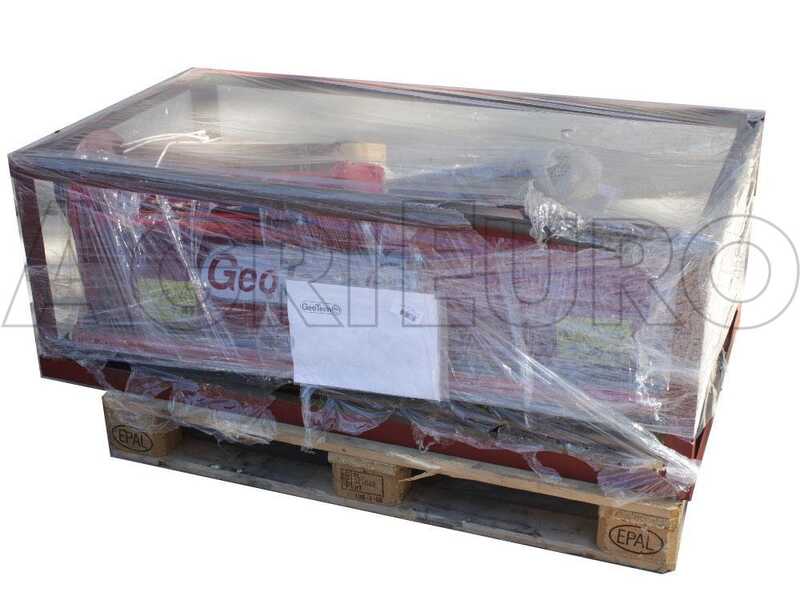

The flail mower is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
