GeoTech Pro HFM 205 - Tractor-mounted Flail Mower - Medium-heavy series

Questions & Answers (4)
ID: 100149

EAN: 8054141549234

MPN: 100149

8,9/10
After-sales assistance & Spare parts
GeoTech Pro HFM 205 - Tractor-mounted Flail Mower - Medium-heavy series
+200 sold
Tractor power
From 50 to 60 HP
Sturdiness/Series
Medium-heavy
Weight
432 Kg
Cutting width
202 cm
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Fixed hitch
Double spiral rotor
Product Features
Model:
HFM 205
Tractor power:
From 50 to 60 HP
Sturdiness/Series:
Medium-heavy
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Double spiral rotor:
Operating mode:
Fixed 3-point hitch:
Yes
3-point hitch category:
First and Second
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
202 cm
Wood diameter:
Up to 50 mm
No. of blades:
28
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
16 mm
Hammer width:
9 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
202 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
4
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
219x80x90 cm
Net weight:
432 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
220x89x70 cm
Gross weight (packaging included) :
452 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
14 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 2.205,65
VAT Included
You're viewing:
Customers also viewed:
Description

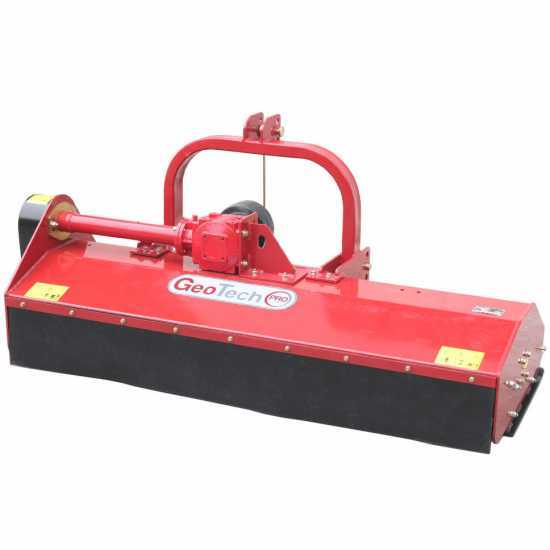

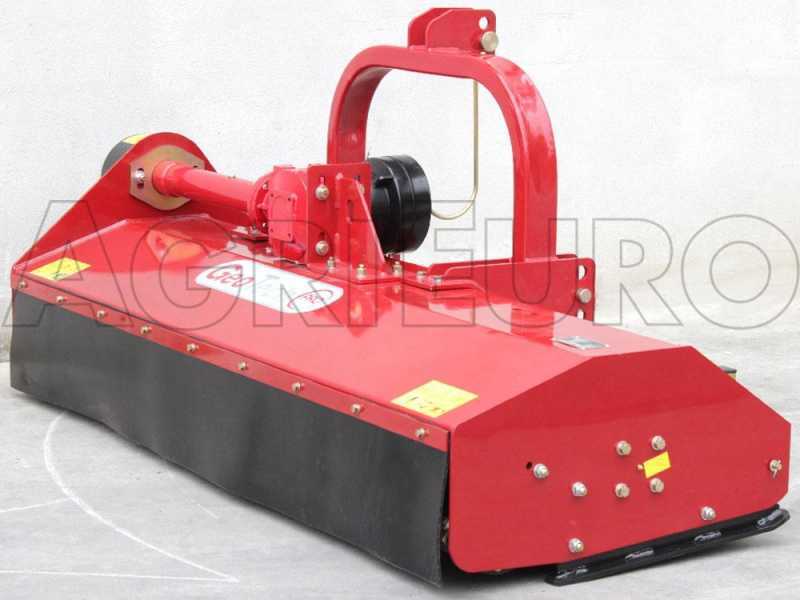

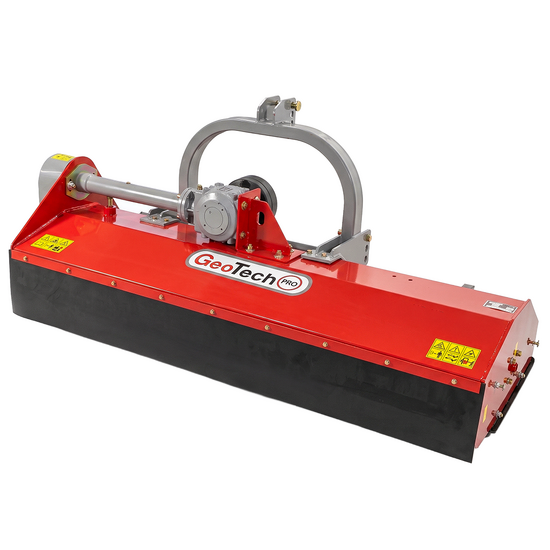

GeoTech HFM 205 tractor flail mower

The horizontal drum flail mower for tractor of HFM series has a medium-heavy structure.

Ideal for the light runners cruching, grass and small bushes of lawns, woods, orchards and uncultivated soils.

Suggested for semi-professional purposes.

Hydraulic side shift, 4 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

  • Real working width: 202 cm
  • Real width occupied (with side skids assembled): 219 cm
  • Weight: 432 kg
  • Hydraulic side shift
  • 1° category 3 point linkage
  • 4 belts transmission
  • Free wheel device

STANDARD EQUIPMENT (in summary):

  • Hammer flails
  • Adjustable lay rear roller
  • Adjustable skids
  • Cardan shaft


 ATTENTION!


Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Cutting tools: hammer flails

Nr. Of hammer flails on standard equipment: 32

Flails are fixed by means of a sturdy 16 mm diameter 90 mm long bolt made of hardened steel.

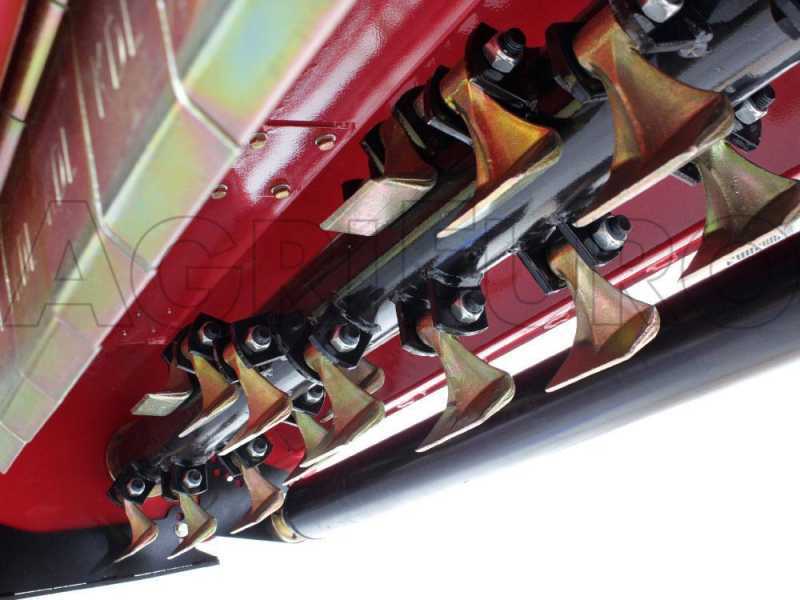

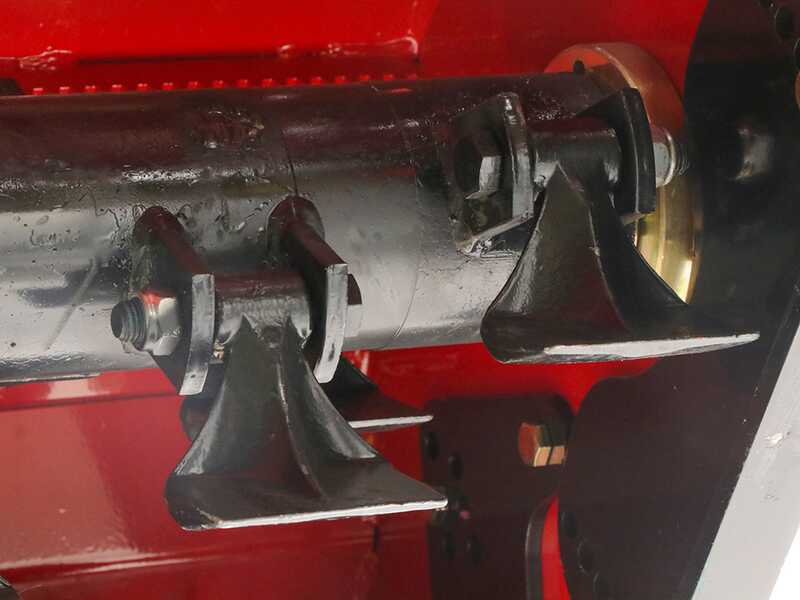

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

Focus on the double counter-blades bar under the shell.

Figurative image of the double-spiral rotor.

Cutting rotor diameter: 108 mm

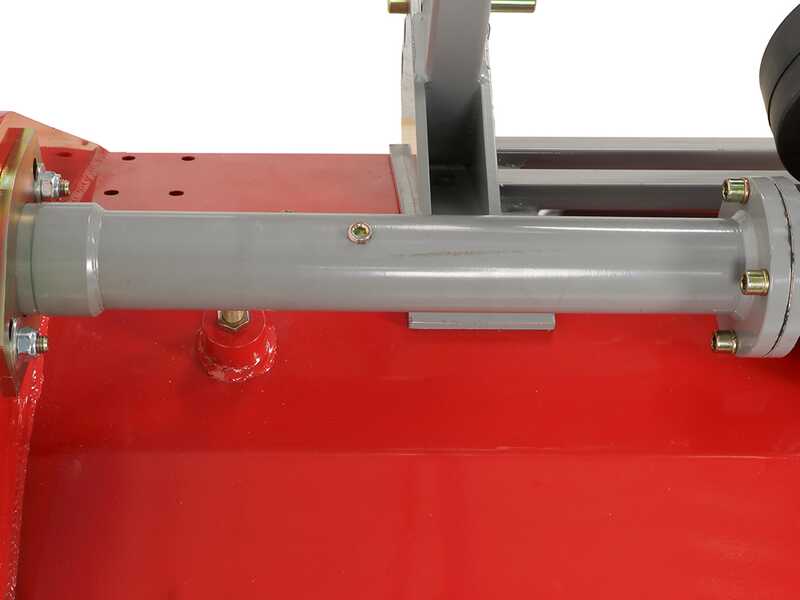

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

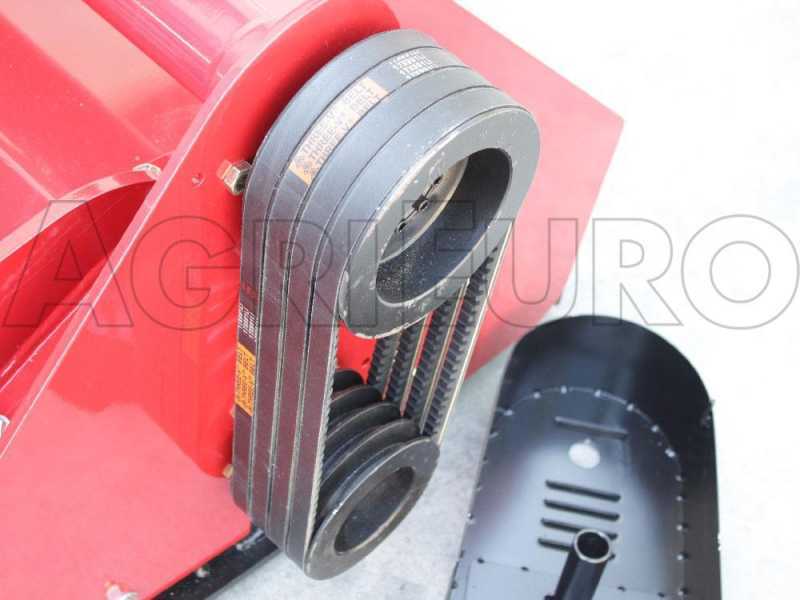

4 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 3 belts transmission)

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

After the assembly, check for bolts loosening and fasten.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Rotor, side bearings and 3 point hitch

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

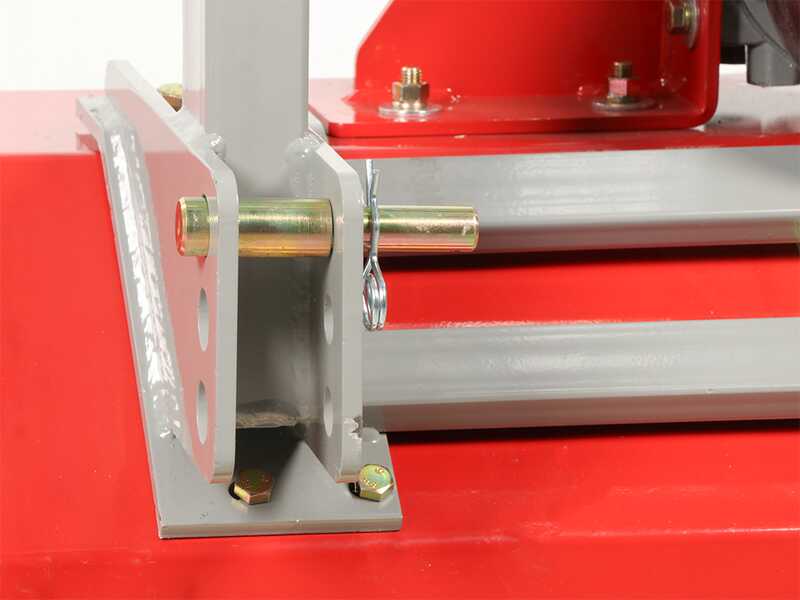

Focus on the sturdy 3 points hitch.

Stabilizing accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

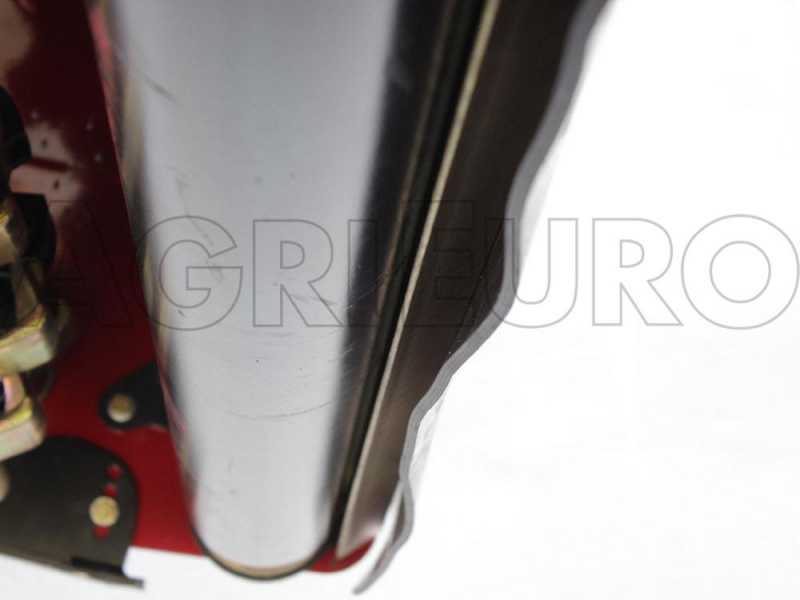

Roller scraper detail


Bearing at the roller fixing particular

Roller side supporting plate particular, with holes for the height adjustment. It is 6 positions adjustable.

Side adjustable supporting skids, supplied with standard equipment.

Sturdy protective front flaps made of steel.

Lay foot .

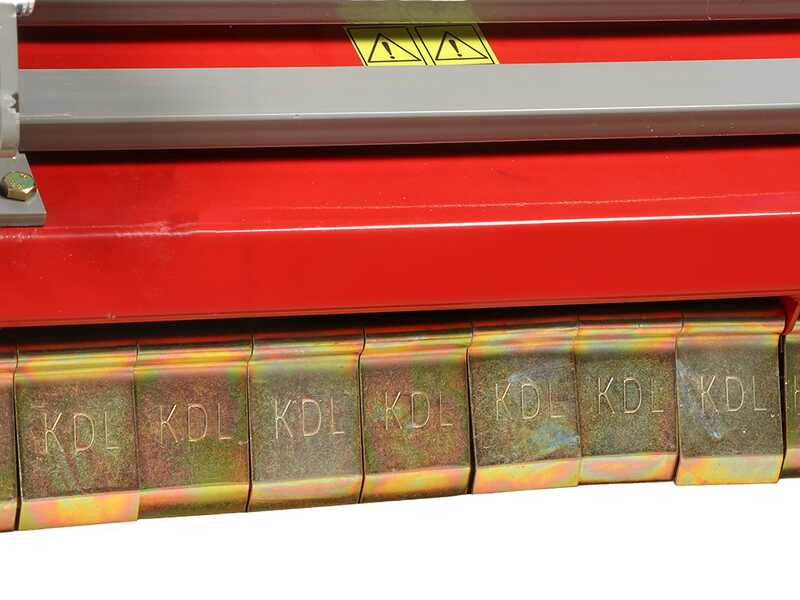

The flail mower is equipped with rubber stones protection.

Free items & Standard equipment

Free gifts & Standard equipment

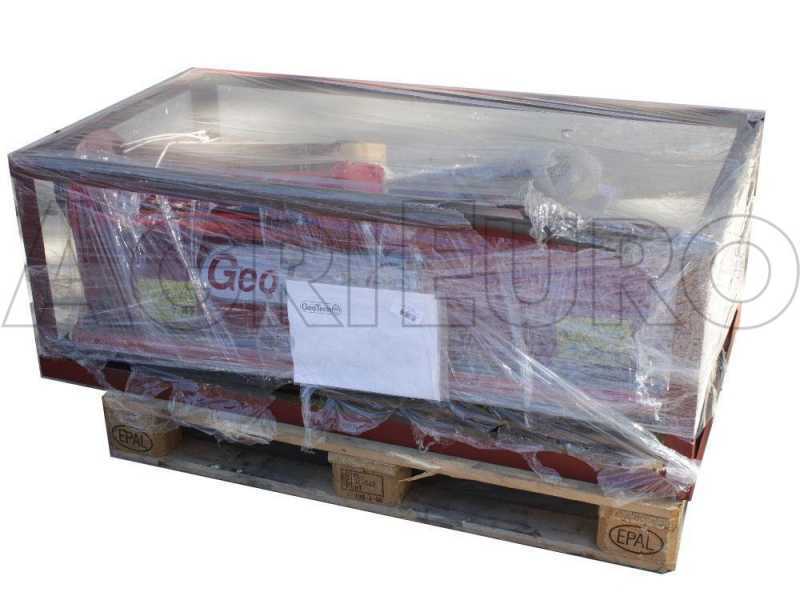

The flail mower is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
