Description

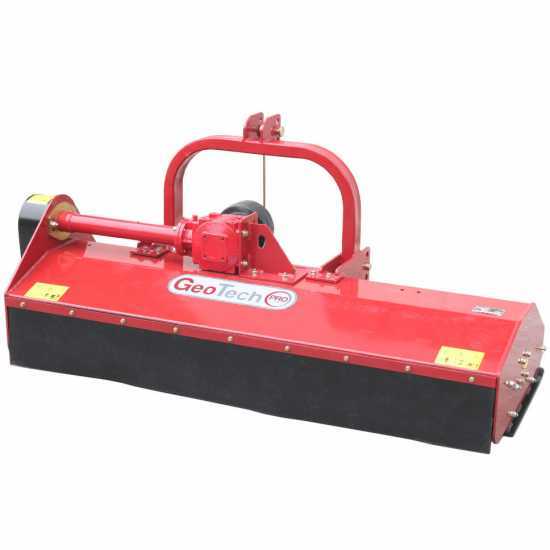

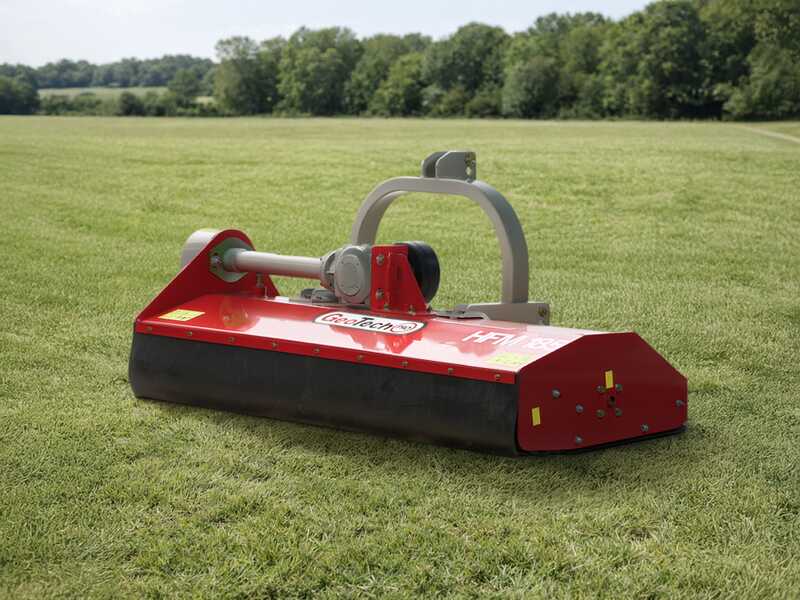

GeoTech HFM 185-H tractor flail mower

The horizontal drum flail mower for tractor of HFM-H series has a medium-heavy structure.

Ideal for the light runners cruching, grass and small bushes of lawns, woods, orchards and uncultivated soils.

Suggested for semi-professional purposes.

Hydraulic side shift, 4 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

Real working width: 182 cm
Real width occupied (with side skids assembled): 199 cm
Weight: 427 kg
Hydraulic side shift
1° category 3 point linkage
4 belts transmission
Free wheel device

STANDARD EQUIPMENT (in summary):

Hammer flails
Adjustable lay rear roller
Adjustable skids
Cardan shaft

ATTENTION!

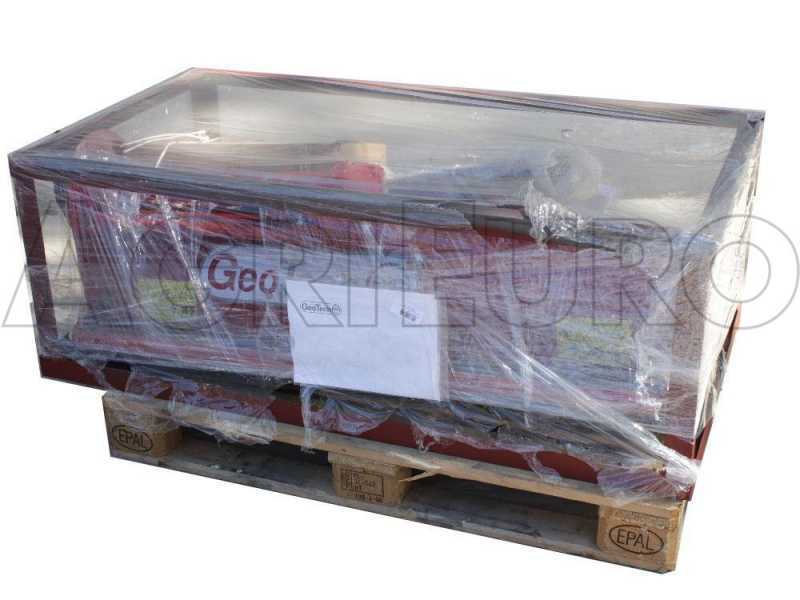

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

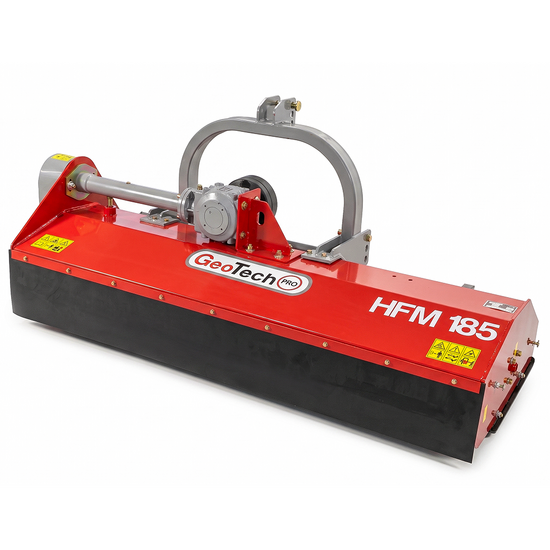

GeoTech Pro HFM 185 - Tractor-mounted Flail Mower - Medium-heavy series

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 32

Flails are fixed by means of a sturdy 16 mm diameter 90 mm long bolt made of hardened steel.

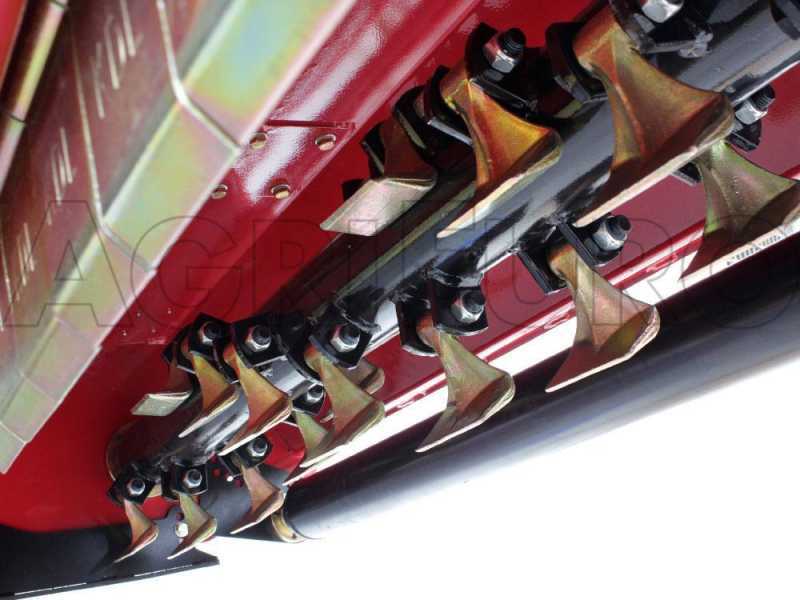

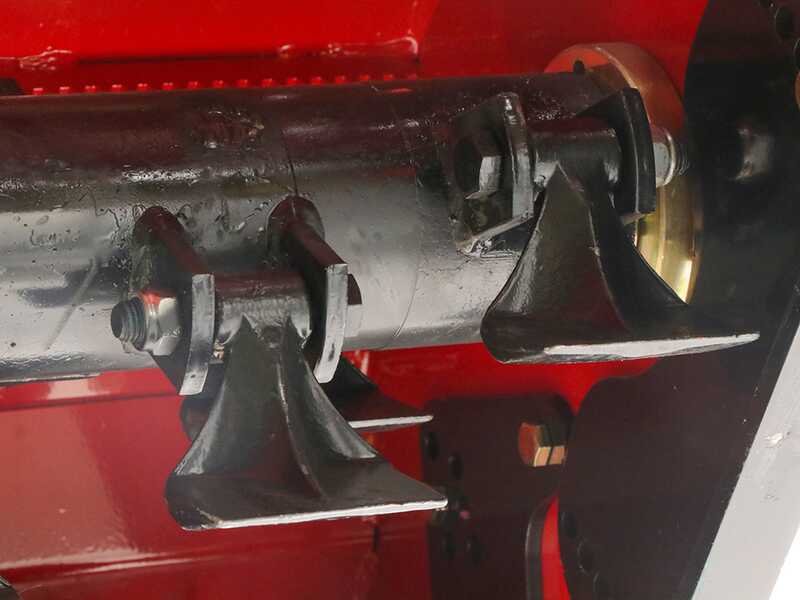

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

Focus on the double counter-blades bar under the shell.

Figurative image of the double-spiral rotor.

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.

Free wheel device (or overrunning clutch) integrated with the gearbox; this assures long life to all the machine's moving parts, avoiding recoil that would happen when going from 540 rpm to 0 rpm by allowing the rotor to freely turn until it naturally stops.

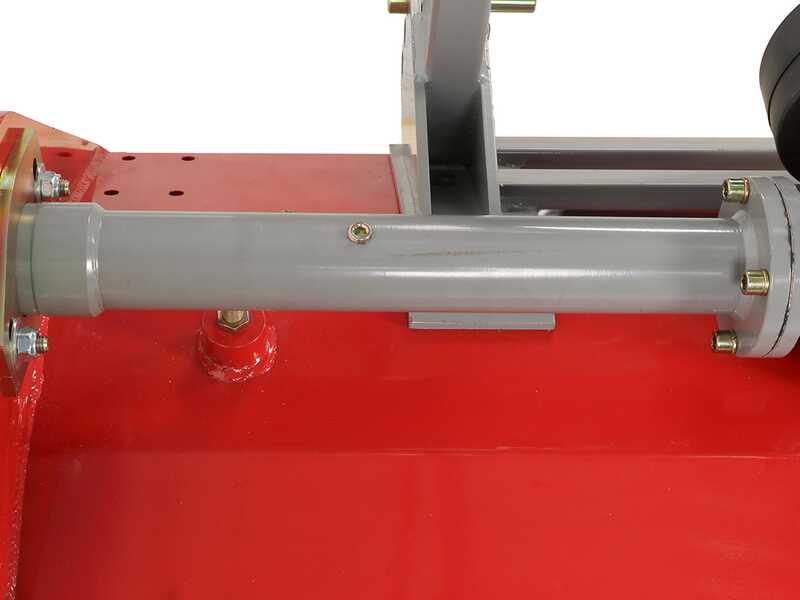

Focus on the lubrcated extension.

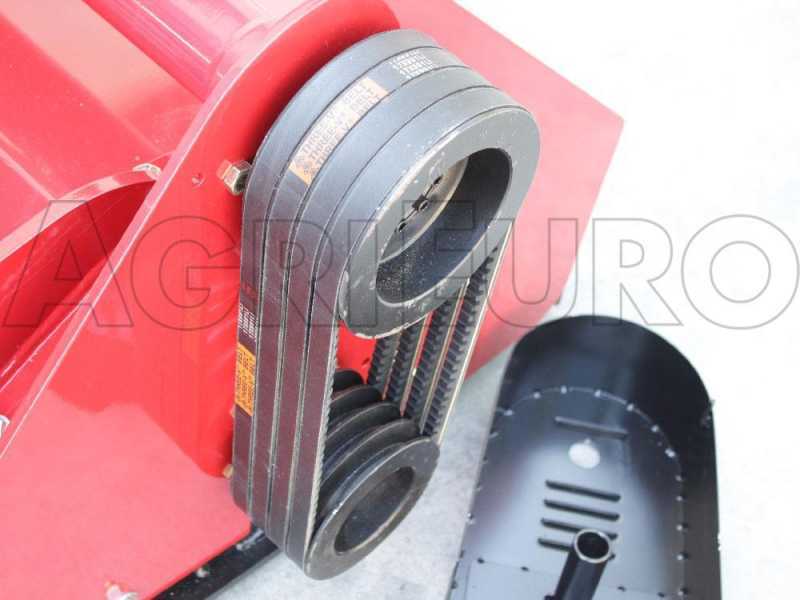

4 belts side transmission (the most part of the tractor flail mowers of this weight category are equipped with normal 3 belts transmission)

Focus on the belt protection sideshield.

Focus on the side greaser located on the same transmission's side, easy to reach by means of the proper window.

After the assembly, check for bolts loosening and fasten.

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

Rotor, side bearings and 3 points hitch

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

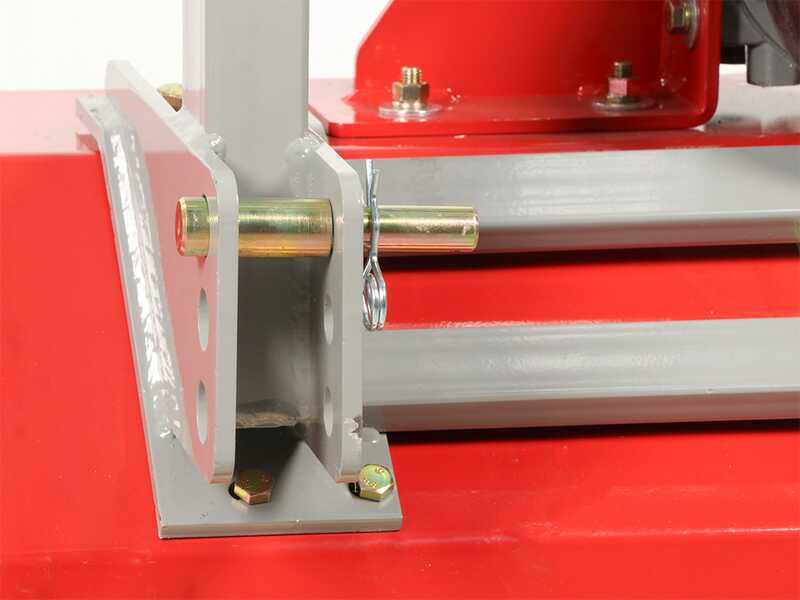

Focus on the sturdy 3 points hitch.
