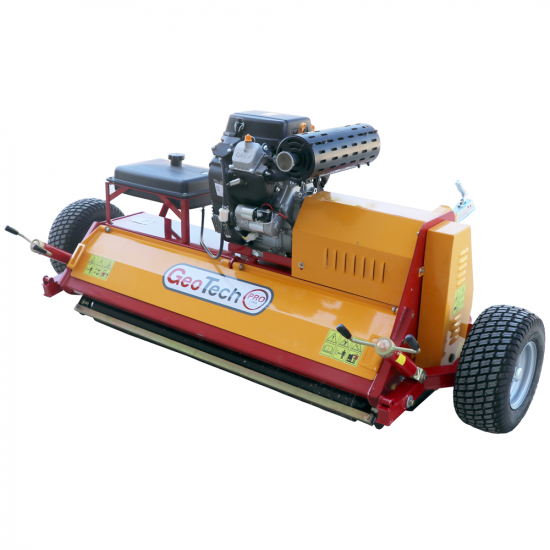

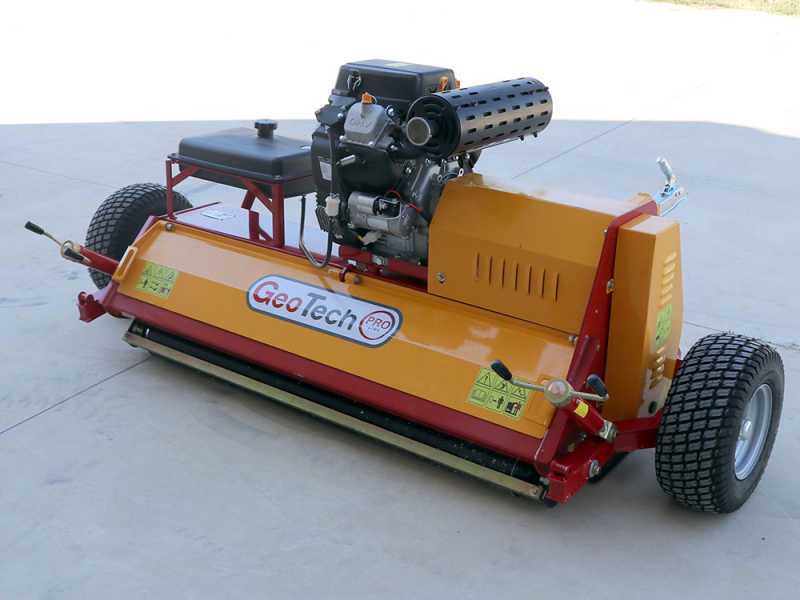

GeoTech Pro GTRB145 - ATV-mounted Trailed Rough Cut Mower - Loncin LC2V80FD

The GTRB145 flail mower for quad is a powerful and versatile petrol engine. Tow-behind design for quads or tractor mowers.

The powerful twin-cylinder engine centrally mounted ensures to the machine an unparalleled power and a unique working stability.

The wheels can assume several positions to always have the right shape for the transport and the machine operation.

In fact, they can go beyond and can "hide" behind the machine shape so as to take up small size.

The rear small door is openable to ease the cleaning of the machine and the maintenance/replacement of the cutting tools.

These machine are the perfect solution for those who do not own a tractor and require a powerful and reliable crusher mower.

This flail mower is very sturdy and it can be used to crush small shoots, grass and small shrubs.

Equipped with a side tow hook so you can connect it both to quads and to ride on mowers.

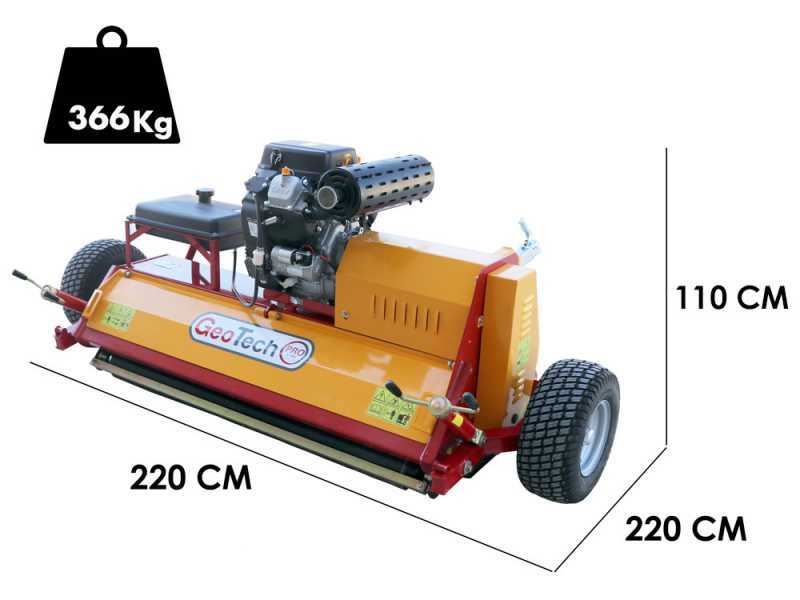

TECHNICAL DATA (in short):

• Net working width: 140 cm
• Net machine width: 220 cm
• Weight: 366 kg
• Loncin engine; 678 cc; electric start
• Suitable for quads and ride on mowers
• Angular hitch for tow hook
• Belt drive

STANDARD-SUPPLIED EQUIPMENT (in short):

• flail cutting action
• adjustable rear roller
• pneumatic wheels: 16x7.50-8

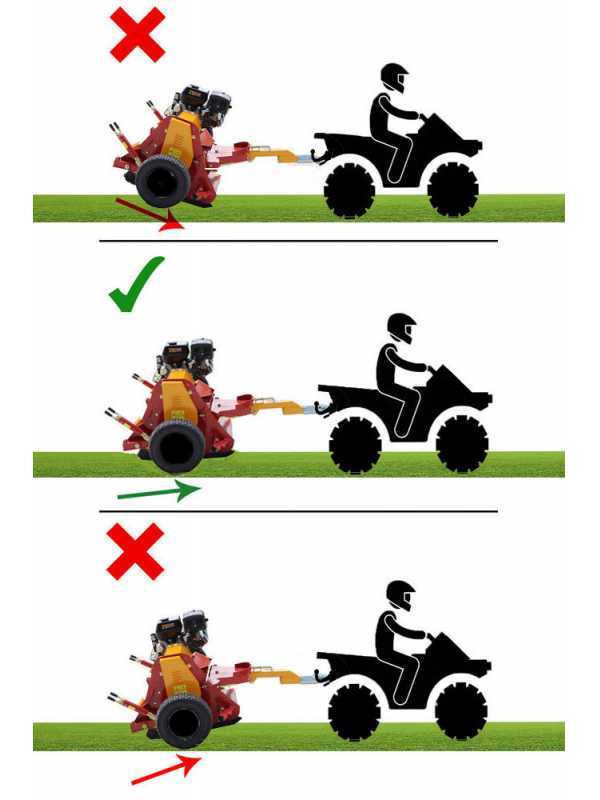

RIGHT REGULATION OF THE WORKING HEIGHT (7 - 8 cm high)

There are several heights of the rear towing hook of quad. Therefore, the quad has to be located at a sufficiently from the ground lifted position so as to absolutely avoid that hammers touch the ground.

The excat working height of the hammers is minimum 7-8 cm.

WARNING: in case of frequent impact of the hammers on the ground, this can cause the excessive wear of the side transmission belts or even their overheating or combustion with damages to the belts and the product itself.

We suggest to pay attention to this circumstances of "excessive effort on behalf of the product" since the noise of the excessive load produced by the machine could sometimes not be acknowledged by the operator seated on the quad due to the high noise produced by the quad itself.

FORWARD SPEED:

A common mistake made by the operators is the speed during use, since the quad can indeed induce this mistake given its possibility to proceed with high speed.

The petrol flail mower for quad has to be used at the same speed as the flail mowers for tractors or the smaller petrol ones activated manually by the operator.

Speed: from 1 km/h up to max 4 km/h

In case of especially tall grass we highly recommend not to exceed 1 / 1.5 km/h.

In case of low and frequently cut grass, you can also reach 4 km/h.

WARNING: in case of working at higher speed, this can case an excessive wear of the side transmission belts or even the overheating or combustion causing damages to the belts and the product itself.

We suggest to pay attention to this circumstances of "excessive effort on behalf of the product" since the noise of the excessive load produced by the machine could sometimes not be acknowledged by the operator seated on the quad due to the high noise produced by the quad itself.

26 standard-supplied hammer flails

The flails are mounted on sturdy 12 mm diameter hardended steel bolts.

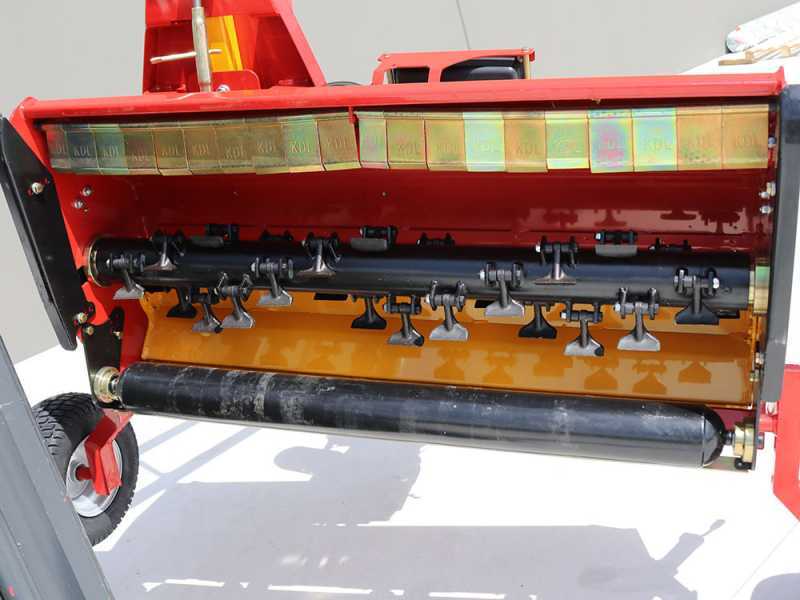

Focus on the flails mounted on the rotating roller.

This flail mower crushes weeds and shoots into small pieces and rolls out your grass. The high engine rpm rate and the large number of hammers or flails reduces the grass wave effect and crushes the weeds effectively.

Focus on the side supporting bracket. The support features a fixing bearing for the flail rotor.

The flail hammers ensure great results in gardens, on lawns and in urban areas. This flail mower is to be connected to a vehicle by means of its built-in hitch.

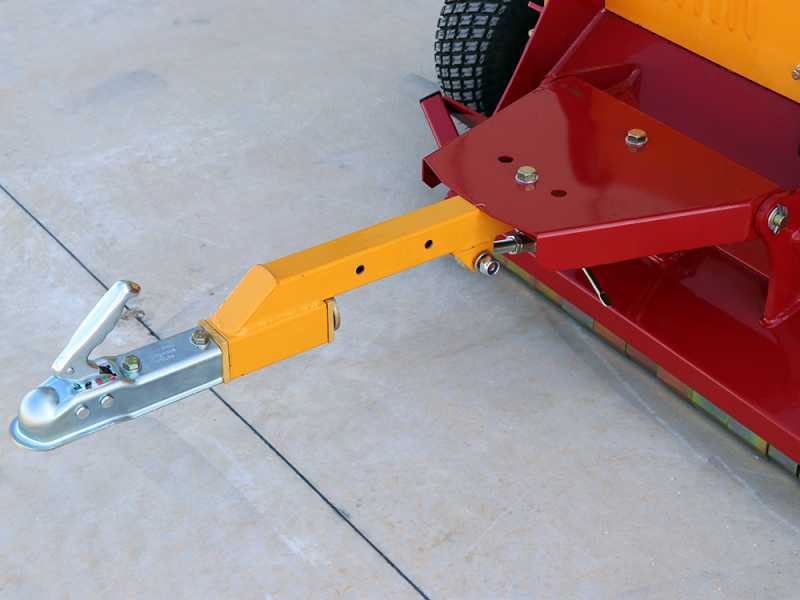

Focus on the towing hitch

Side belt drive:

Focus on the side belt cover and side transmission lubricator. The lubricating device is easy to access through its small opening.

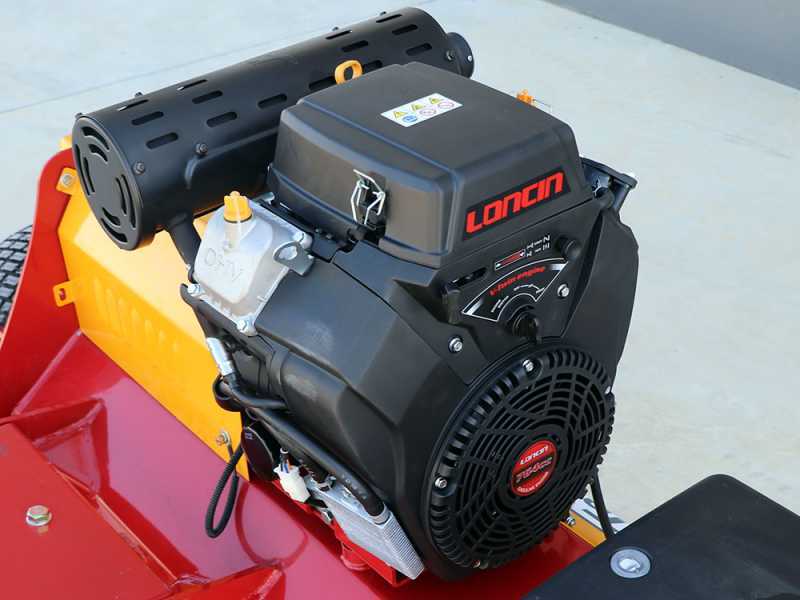

Powerful Loncin LC2V78F-2 twin-cylinder engine. One of the most performing and powerful on market.

Specifications:

The electric start system allows switching the machine on very easily.

Moreover, the central-positioned motor balances the machine weight and offers more stability during the use of the machine.

WARNING!

The engine DOES NOT CONTAIN OIL WHEN DELIVERED.
Read the instructions manual carefully before using it.

Standard-supplied adjustable rear roller

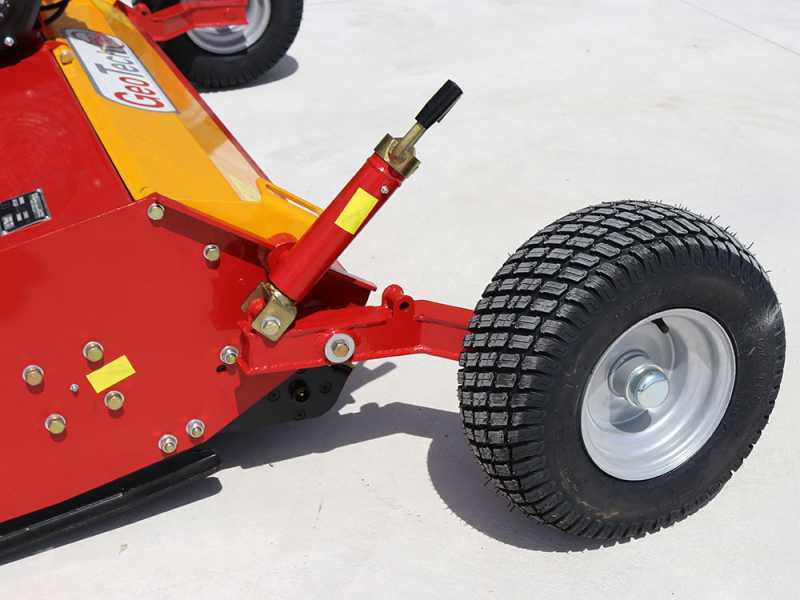

To adjust the cutting height, use the special handles which lift and lower the wheels. Thus the flail mower will also rise or lower.

Focus on the roller fixing bearing

Focus on the roller supporting bracket. The holes on the bracket allow adjusting the height setting. The roller can be set in 6 different positions.

Standard-supplied adjustable side skids. The skids are adjustable as well.

Sturdy front flaps. The protection flaps are made of steel.

The large pneumatic wheels allow moving the flail mower around very easily on all kinds of surfaces.

Focus on the towing hitch setting.

The wheels can be set in 3 different positions depending on the necessities (i.e. widen or tighten the roadway).

Openable rear door for cleaning operations and to ease the maintenance/replacement operations of the cutting tools.

Throttle lever on the engine.
