GeoTech Pro GFM 860 L-E - Professional Hammer Rough Cut Mower - Loncin G420FD

Questions & Answers (32)
ID: K602994

EAN: 8054141540958

MPN: GFM 860 L-E

8,9/10
After-sales assistance & Spare parts
GeoTech Pro GFM 860 L-E - Professional Hammer Rough Cut Mower -  Loncin G420FD
+700 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Prompt Delivery
55 items in stock
Free Shipping
Estimated delivery: 02/12/2026 - 04/12/2026
Suggested price:
€ 4.578,86
€ 3.434,14
Vat included
Technical data
Maximum surface
13000 s.q. m.
Cutting width
86 cm
Cutting adjustment
1 hand crank
Type
With flails
Assisted steering
Yes
Motor type
4-stroke
Electric start
Yes
Motor brand
Loncin
Motor Model
G420 FD
Cubic capacity
420 cm³
Nominal power
15 HP
Gears
3+1
Transmission type
Belt and gears
Motor/blade drive
Intermediate belt drive
Forward motion
Tracks
Wheel Type
Front swivelling
Operator platform
yes
Product Features
Model
GFM 860 L-E
Forward motion
Tracks
Type
With flails
Cut with rear discharge
Standard equipment
Maximum surface
13000 s.q. m.
Electric start
Yes
Starting mode
Electric
Side skids
Yes
Manufacturing country
China
Motor data
Motor brand
Loncin
Motor Model
G420 FD
Motor type
4-stroke
Cubic capacity
420 cm³
No. of cylinders
Single-cylinder
Nominal power
15 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
6.5 L
Outer oil filter
No
Motor/blade drive
Intermediate belt drive
Manufacturing country
China
Transmission data
Transmission type
Belt and gears
Gearbox
In oil bath
No. of forward speeds
3
No. of reverse speeds
1
Gears
3+1
Operating mode
Lever on the handlebar
Cutting data
Body material
Steel
Cutting width
86 cm
Blade type
Hammer flails
N° of chopper blades
46
Blade engagement
Lever on the handle
Safety blade brake
Yes
Cutting adjustment
1 hand crank
Max. cutting height
150 mm
Min. cutting height
20 mm
No. of cutting positions
Screw adjustment
Cutting width
86 cm
Adjustable cutting height
Yes - centralised
Equipment
Line head accessory
No
Operator platform
yes
Assisted steering
Yes
Recoil start system (with rope)
Yes
Rear wheels size
cingoli 16 cm
Wheel Type
Front swivelling
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Rubber-coated soft grip
Yes
Free gifts/extra features
Engine oil bottle for free
Yes
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions
Product dimensions in cm (L x W x H)
96x120x190 cm
Net weight
291 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
168x109x104 cm
Weight including packaging
327 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
15 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

GeoTech-Pro GFM 860 L-E Rough Cut Mower

The GeoTech-Pro GFM 860 L-E rough cut mower is a machine designed specifically for mowing very tall and uncultivated grass on agricultural fields.

Thanks to the track, it will be possible to push it on difficult terrain.

With a cutting width of 86 cm, equipped with 46 Y-shaped hammers, it allows you to shred anything you find on your path.

Equipped with a powerful Loncin 15HP engine, which gives the machine the right amount of power to work optimally.

The mower is self-propelled. Also, both the handle and the working height are adjustable, to satisfy even the most demanding users.

Besides grass, it can also cut brushwood and brambles (up to 2.5 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not too steep).

Most of the time, this product is used to cut weeds in orchards, vineyards, olive groves (especially for grassing process), or by nurserymen, green operators and public authorities, who use it to clean uncultivated areas.

To make a comparison, we can affirm that this machine offers, without effort, an hourly yield equal to an average of 10 times a normal brush cutter, leaving a much cleaner and smoother result, as well as more finely chopped grass.

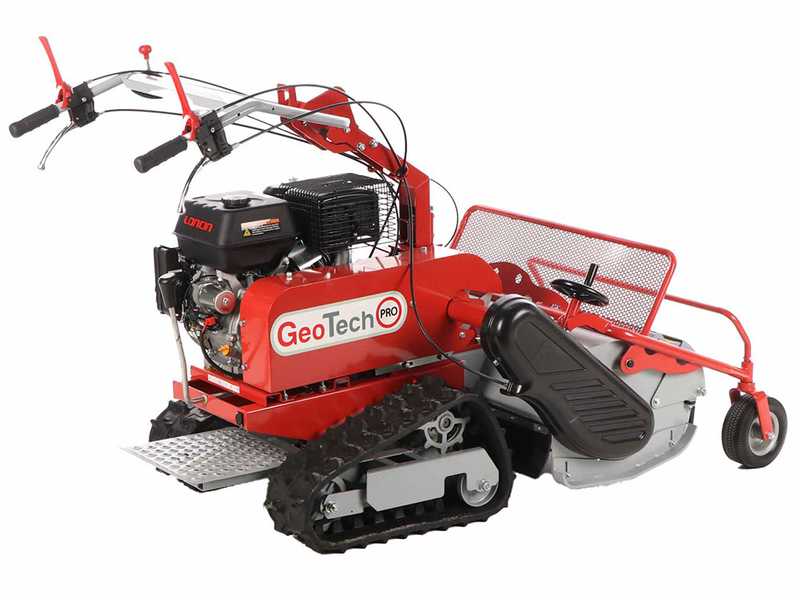

Tracks and Structure

Track structure: robust and oversized. Higher quality than those on the average rough cut mowers on the market of the same size. The perfect balance ensures load distribution and perfect adherence to the ground.


Tracks: very high quality tracks are used. Thanks to their tread width and profile, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with high grip, they are able to cope with all kinds of surfaces.

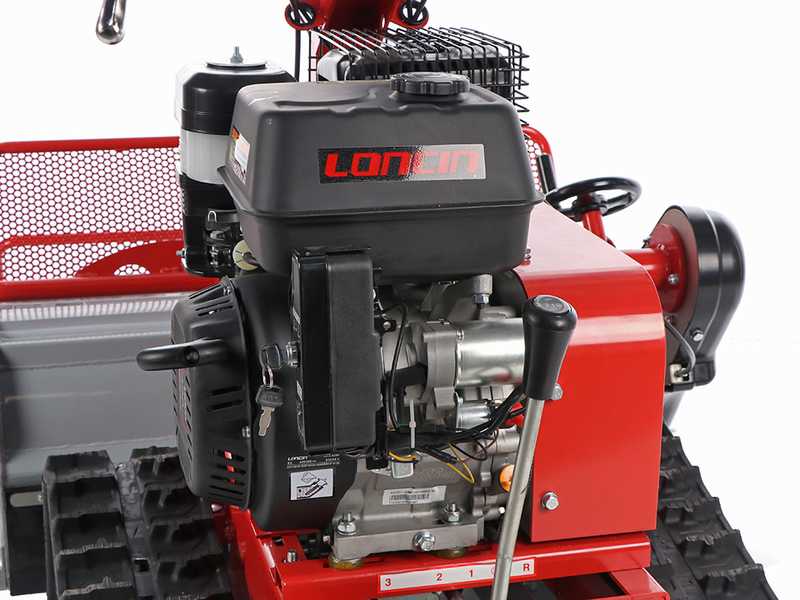

15 HP Loncin G420 FD Engine

Main features:

  • Model and brand of the engine: Loncin G 420 FD
  • Engine type: Single-cylinder 4-stroke - OHV
  • Cylinder type: Aluminium
  • Displacement: 420 cm³
  • Power: 15 Hp
  • Ignition Type: Electric with key

Focus on the electric starting with key.

Focus on the battery compartment

Focus on air filter

Nominal Power: 15 HP
The correct term would be "Commercial” Power, meaning the classic definition standard of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is higher than the actual power.

Effective power: 12.5 Hp
It corresponds to the real power expressed by the motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Gear and Transmission

4-Speed oil-bath gearbox: 3 forward gears with reverse gear.

Two-belt transmission.

Final drive to the flail mower rotor via belt drive protected by asturdy casing.

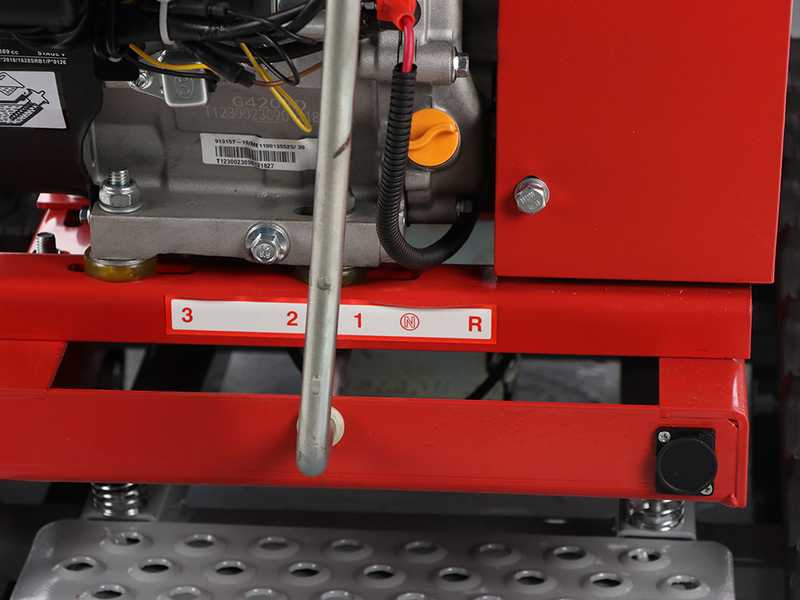

Focus on the dashboard with gear selector.

Cutting Deck

Rough cut mower made of steel sheet.

Sturdy rotor made of tempered steel, with 46 Y-shaped blades. They give this machine unparalleled effectiveness for any type of work (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 86 cm

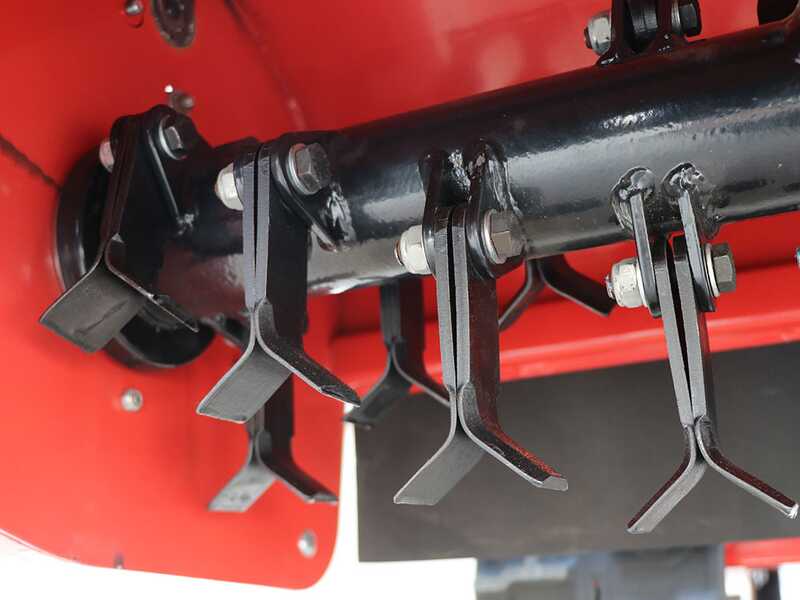

Focus on the blades and their supports.

Cutting height adjustment through handwheel

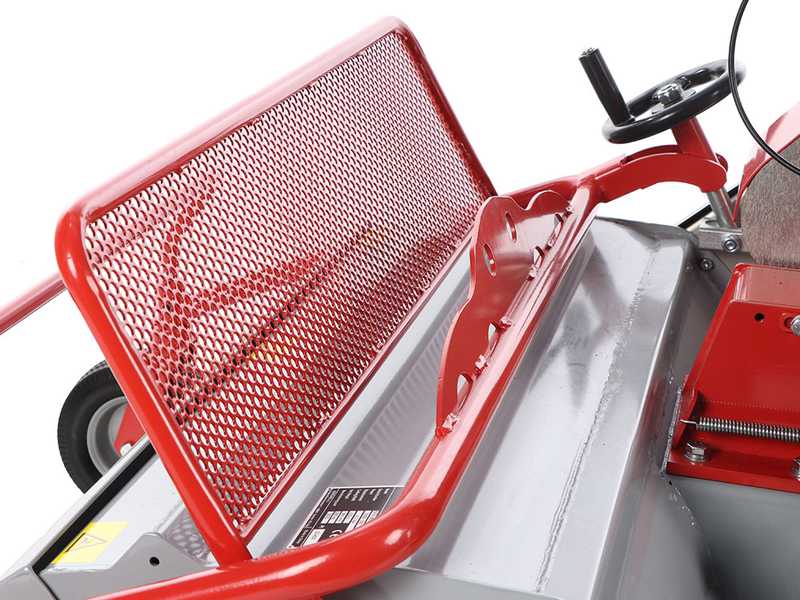

Focus on the sturdy front stone guards, mounted on an 89 cm swinging bar.

The mower deck is also equipped with an additional protection grid for the user mounted on the top of it. This grid ensures maximum safety of use.

The inner distance of the knife supports is 12mm while the outer distance is 24mm.

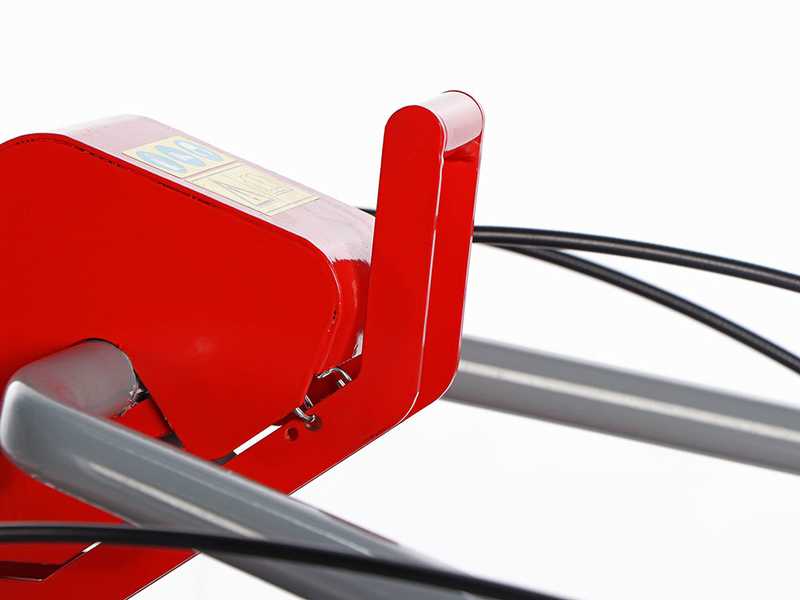

Controls and Settings

Left lever: activates and deactivates the operation, whatever the speed selected on the automatic transmission (forward or reverse). By releasing this lever, the machine stops instantly, for safety reasons.

Right lever: activates and deactivates the blade rotor (i.e. the grinding function) and is connected to the safety disc brake which quickly blocks the rotor when released.

Gear selector

Throttle lever

Cutting height adjustment: rotate the lever to raise or lower the cutting deck.

Handlebar height adjustment

Possibility of rotating the handlebar, raising and lowering the pivot

Lever to turn left and lever to turn right

Further Features

Front tilting steel casing. It tends to lift up automatically should the machine be confronted with large masses of particularly tall and dense grass, to facilitate its entry under the cutter deck for efficient and instantaneous shredding.

Tilting front wheels.

Tracked wheels.

Stone guard protecting the mower deck

Adjustable operator platform.

Recommendations for Use - Self-propelled Rough Cut Mowers

To ensure correct use of the self-propelled rough cut mower and to maintain its efficiency over time, it is important to use the machine exclusively for its intended applications and under suitable operating conditions.

Before starting work, inspect the area thoroughly, removing stones, tree stumps, metal objects, plastic and other foreign objects.

The flail mower is primarily intended for surface shredding of grass, wild vegetation, scrub and plant debris compatible with the features of the specific model.

It must not be used to level the ground, push materials or work on objects that could damage the cutting tools and mechanical components of the machine.

While working, ensure the cutting height is set correctly to prevent the cutting tools from coming into direct contact with the ground.

Holes, ruts, depressions, protruding stones and other irregularities can cause impacts and abnormal stress on the rotor, the transmission and the cutting elements.

On slopes, proceed with particular caution, maintaining a controlled speed and avoiding sudden manoeuvres or abrupt changes of direction.

On uneven, loose or slippery surfaces, it is advisable to reduce the forward speed further.

The speed must also be adjusted to the quantity and consistency of the vegetation.

With tall or particularly dense grass, it is preferable to proceed more slowly so as not to overload the cutting unit.

A noticeable drop in rotor speed, abnormal vibrations or difficulty in moving forward indicate the need to reduce the workload or increase the cutting height.

Do not operate the machine on very wet vegetation or particularly muddy ground, as moisture can cause material to build up in the cutting mechanism and reduce the discharge capacity.

During prolonged use, it is therefore advisable to periodically check for grass, fibres or debris around the rotor and the transmission components.

For models with internal combustion engines, it is important to use suitable, properly stored fuel, avoiding fuel that has deteriorated or become contaminated, and using only containers suitable for fuel storage.

Before carrying out any cleaning, inspection or removal of accumulated material, the machine must be completely switched off and secured.

Regular checks of the cutting tools, protective guards and transmission enable any faults to be identified promptly.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The petrol rough cut mower is shipped on pallet in its original packaging.

The packaging includes detailed use and maintenance instructions, as well as general rules for the proper functioning of the product.
