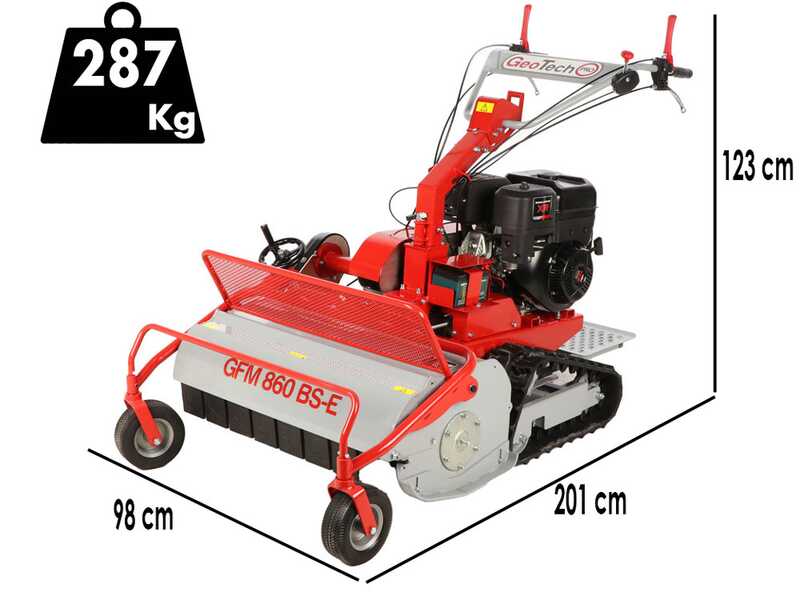

GeoTech-Pro GFM 860 BS-E - Professional Hammer Rough Cut Mower - B&S XR2100

The GeoTech-Pro GFM 860 BS-E rough cut mower is a machine designed specifically for mowing very tall and uncultivated grass on agricultural fields.

Thanks to the track it will be possible to use it on difficult terrain.

The mower is self-propelled. Also, both the handle and the working height are adjustable, to satisfy even the most demanding users.

Besides grass, it can also cut brushwood and brambles (up to 2.5 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not too steep).

Most of the time, this product is used to cut weeds in orchards, vineyards, olive groves (especially for grassing process), or by nurserymen, green operators and public authorities, who use it to clean uncultivated areas.

To make a comparison, we can affirm that this machine offers, without effort, an hourly yield equal to an average of 10 times a normal brush cutter, leaving a much cleaner and smoother result, as well as more finely chopped grass.

NOTICE:
The colour of the cutting plate, the one of the handlebars and of other small details may differ from the colour shown in the picture.
The different colouring is purely aesthetic and does not alter any technical characteristics of the machine.

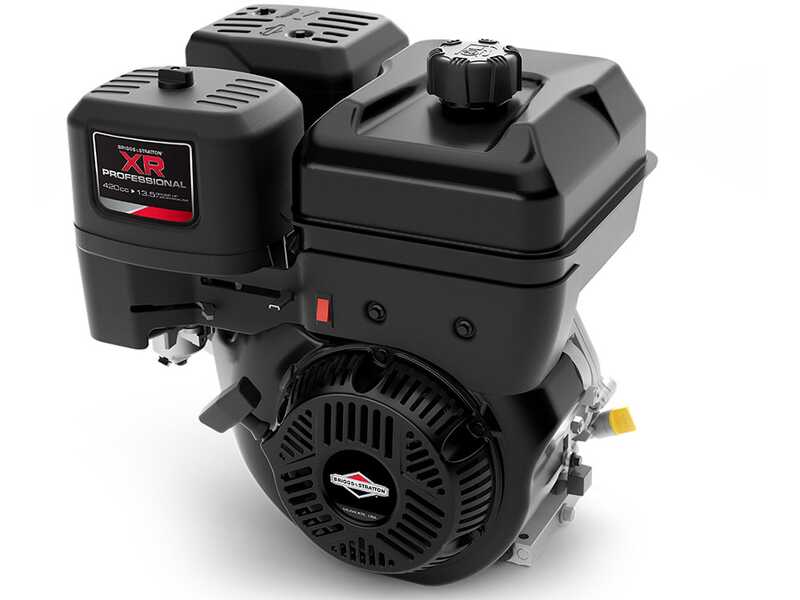

The rough cut mower mounts a powerful Briggs & Stratton XR2100 4-stroke air-cooled 420 cc engine, with overhead valve and aluminium cylinder.

Features:

• Engine type: 4-Stroke
• Cylinder type: Aluminium
• Engine cool-down: air-cooled
• Displacement: 420 cm³
• Power supply: Petrol
• Activation: Electric with key
• Tank capacity: 6 L

Nominal Power: 13.5 HP
The correct term would be "Commercial” Power, meaning the classic definition standard of power officially used until a few years ago by all leading engine manufacturers.

* This information is extremely popular and advertised in the leading commercial channels, although it is higher than the actual power.

Real power: 12.06 Hp
It corresponds to the real power expressed by the motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Before starting, please read the instruction manual.

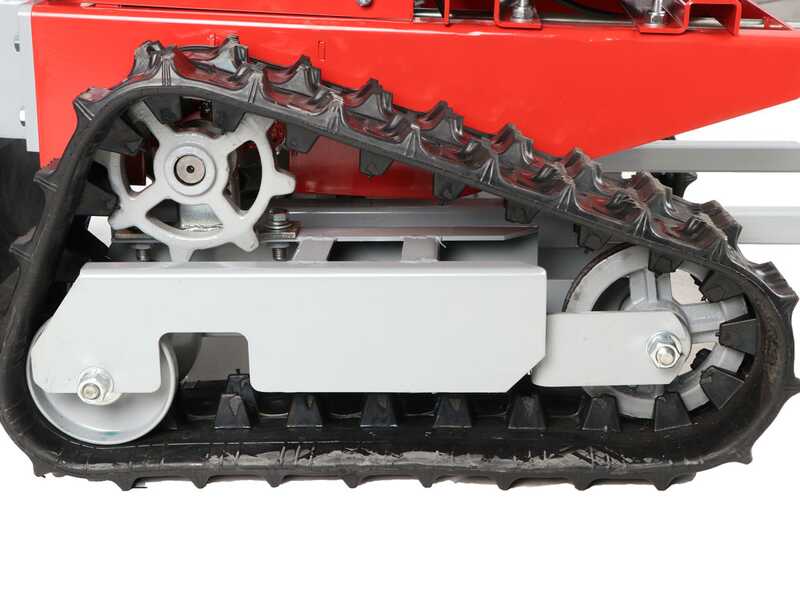

Track structure: robust and oversized. Higher quality than those on the average rough cut mowers on the market of the same size. The perfect balance ensures load distribution and perfect adherence to the ground.

Tracks: very high quality tracks are used. Thanks to their tread width and profile, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with high grip, they are able to cope with all kinds of surfaces.

4-Speed oil-bath gearbox: 3 forward gears with reverse gear.

Two-belt transmission.

Final drive to the flail mower rotor via belt drive protected by asturdy casing.

Focus on the dashboard with gear selector.

Rough cut mower made of steel sheet.

Sturdy rotor made of tempered steel, with 46 Y-shaped blades. They give this machine unparalleled effectiveness for any type of work (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 86 cm

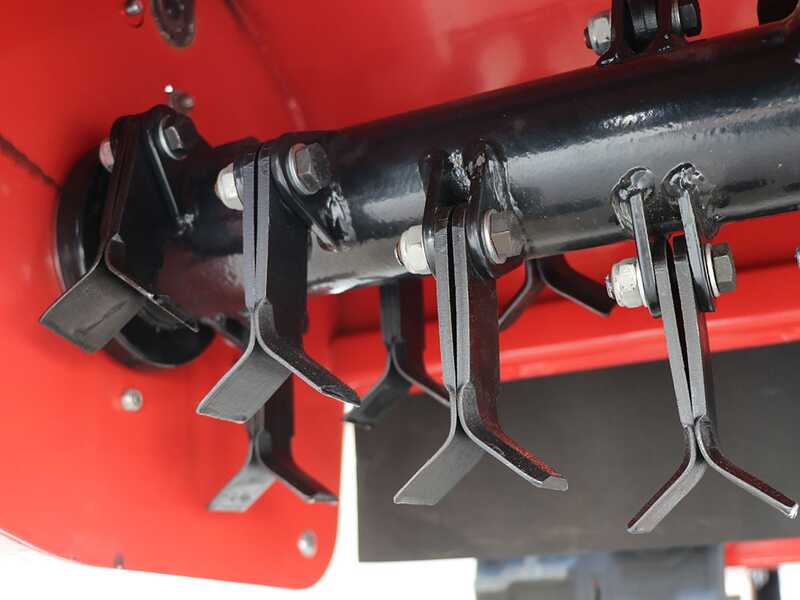

Focus on the blades and their supports.

Cutting height adjustment through handwheel

Focus on the sturdy front stone guards, mounted on an 89 cm swinging bar.

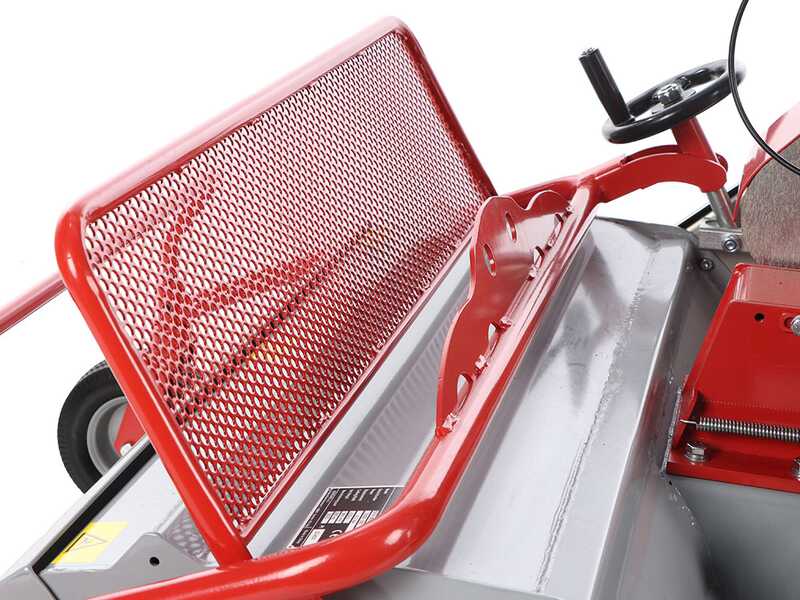

The mower deck is also equipped with an additional protection grid for the user mounted on the top of it. This grid ensures maximum safety of use.

The inner distance of the knife supports is 12mm while the outer distance is 24mm.

Left lever: activates and deactivates the operation, whatever the speed selected on the automatic transmission (forward or reverse). By releasing this lever, the machine stops instantly, for safety reasons.

Right lever: activates and deactivates the blade rotor (i.e. the grinding function) and is connected to the safety disc brake which quickly blocks the rotor when released.

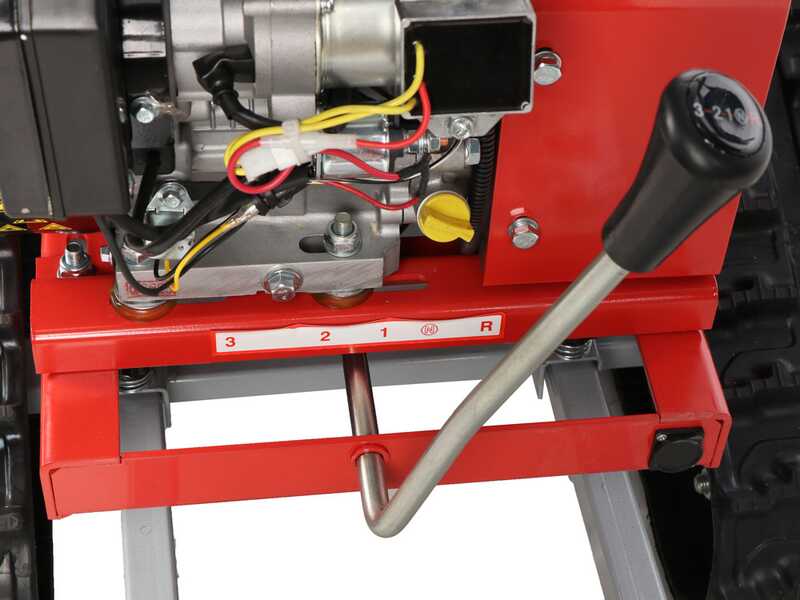

Gear selector

Throttle lever

Cutting height adjustment: rotate the lever to raise or lower the cutting deck.

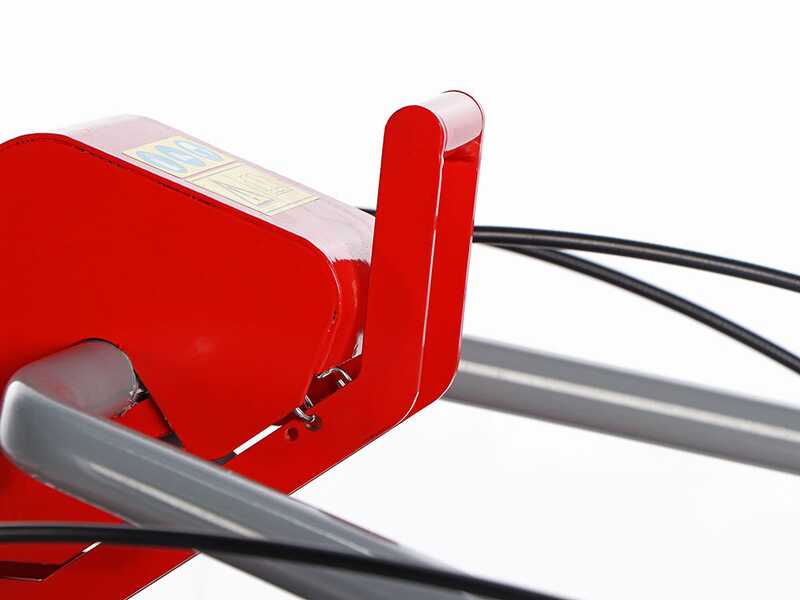

Handlebar height adjustment

Possibility of rotating the handlebar, raising and lowering the pivot

Lever to turn left and lever to turn right

Front tilting steel casing. It tends to lift up automatically should the machine be confronted with large masses of particularly tall and dense grass, to facilitate its entry under the cutter deck for efficient and instantaneous shredding.

Tilting front wheels.

Tracked wheels.

Stone guard protecting the mower deck

Adjustable operator platform.
