GeoTech LS7 HE EVO Horizontal Log Splitter with Electric Motor - 7 T Splitting Force

Questions & Answers (11)
ID: 103216

EAN: 8054141547124

8,9/10
After-sales assistance & Spare parts
GeoTech LS7 HE EVO Horizontal Log Splitter with Electric Motor - 7 T Splitting Force
Special offer
+1000 sold
Technical data
Max. trunk diameter
25 cm
Piston stroke
52 cm
Max. pressure
240 bar
Operating mode
Single-phase 230 V
Nominal power
2.7 HP
Engine
Induction
Nominal power (W)
2000 W
Nominal splitting force
7 t
Product Features
Model
LS7 HEL EVO
Type
Horizontal
Double speed
No
Operating mode
Single-phase 230 V
Nominal splitting force
7 t
Piston stroke
52 cm
Worktop log cutting
No
Ground splitting system
No
Manufacturing country
China
Motor data
Motor type
Electric single-phase
Engine
Induction
Nominal power
2.7 HP
Nominal power (W)
2000 W
Power supply
220 V electric
Manufacturing country
China
Pump data
Pump type
Hydraulic
Max. pressure
240 bar
Oil tank
Yes
Piston diameter
30 mm
Manufacturing country
China
Cutting data
Max. trunk length
52 cm
Max. trunk diameter
25 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
No
Retaining side arms
No
Retaining side supports
Yes
Trunk lifting system
No
Retractable piston for transport
No
Tractor three-point hitch
No
Replaceable wedge guides
No
Cartridge oil filter
No
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Rear wheels size
20 cm
Free gifts/extra features
4-way wedge
No
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
120x60x104
Net weight
60 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
96x33x48 cm
Weight including packaging
65 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
60 minutes
Prompt Delivery
81 items in stock
Free Shipping
Estimated delivery: 22/09/2025 - 24/09/2025
Lowest price:
€ 408,48
-8 %
€ 375,80
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

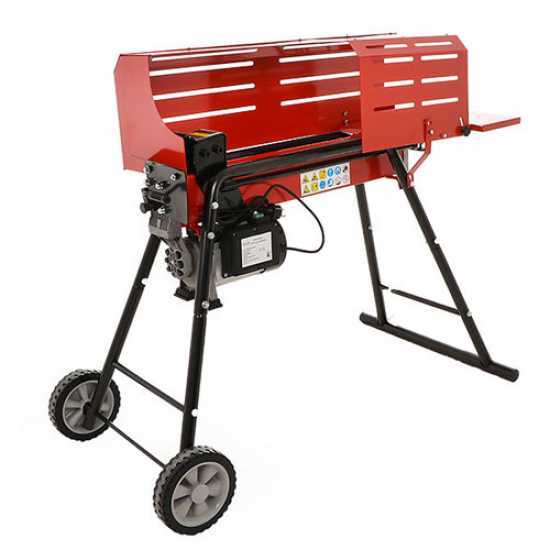

GeoTech LS7 HEL EVO log splitter

The GeoTech LS7 HEL EVO is a small-sized electric log splitter powered by a 230V single-phase motor that can develop a splitting force of 7 tons, intended for a hobby, domestic use.

This machine allows you to split logs efficiently, effortlessly and safely.

It is powered by a powerful 2.7 Hp single-phase electric motor (2000 Kw)

Splitting force: 7 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 20 to 52 cm

The log splitter is equipped with trolley stand for easy transport and comfortable use.

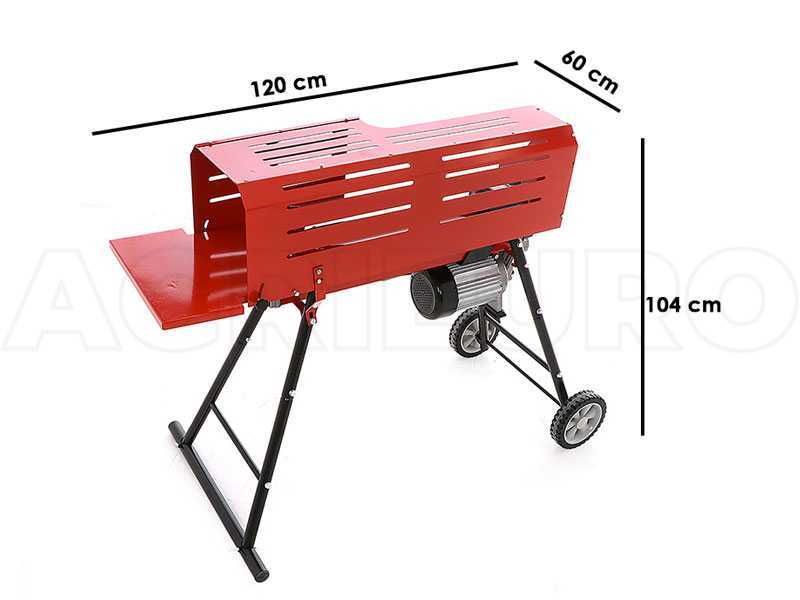

Overall dimensions: 120 x 60 x 104 cm

Weight: 60 kg

It complies with CE safety standards


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

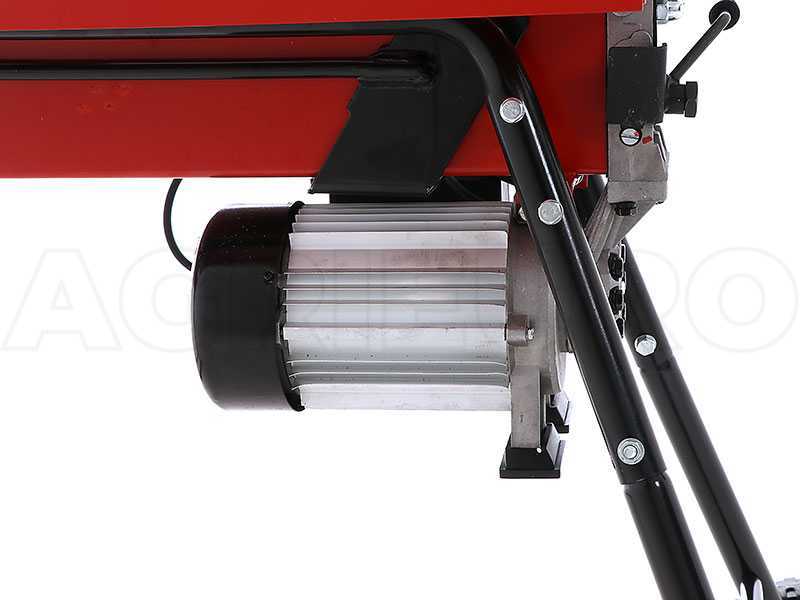

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2000 W

Power: 2.7 Hp

Power supply: 230 V 50 Hz

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 3.5 L

Piston forward stroke: 8 sec (for splitting the log)

Piston return stroke: 6 sec

Piston head made of cast aluminium

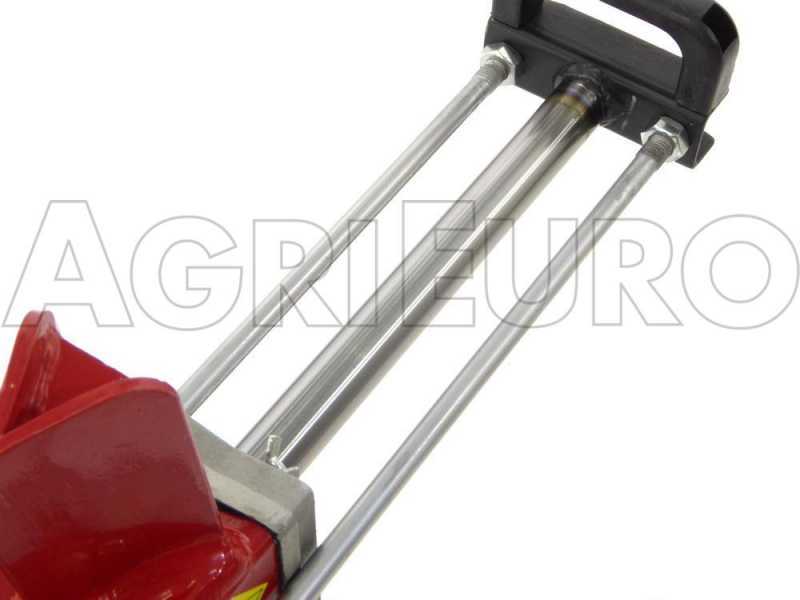

Focus on the push plate

Focus on the sturdy wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

Easy to transport thanks to the 20 cm diameter wheels.

Focus on the guards.

Free items & Standard equipment

Standard equipment

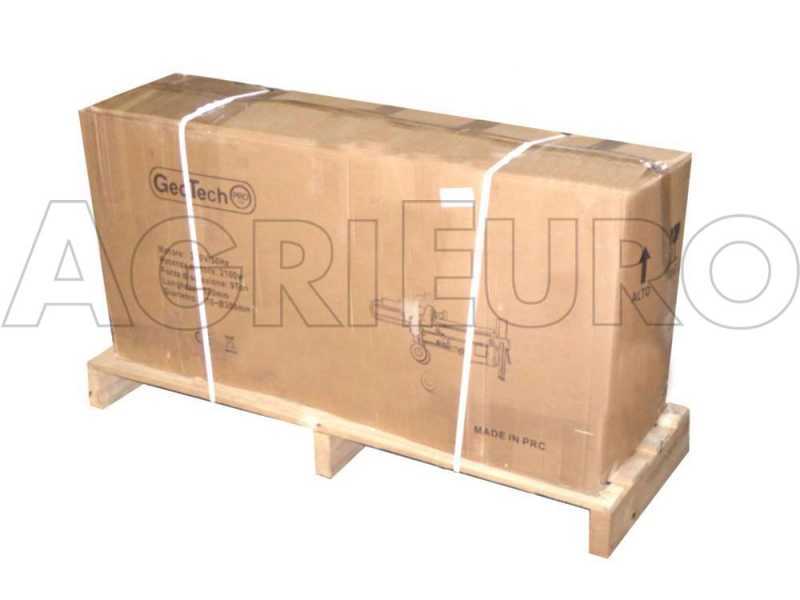

The machine is shipped in its original packaging on pallet, with the oil already at level and ready for use.

You’ll only have to assemble the wheels, the stand and the guards.

The maintenance and instructions manual is included in the package.
