Composed by:
- 1 Central sustaining frame with 3 nozzles (membrane no drip)
- 2 Side closable arms with 3 nozzles each (membrane no drip)
- Arms locking by means of a spring lock device

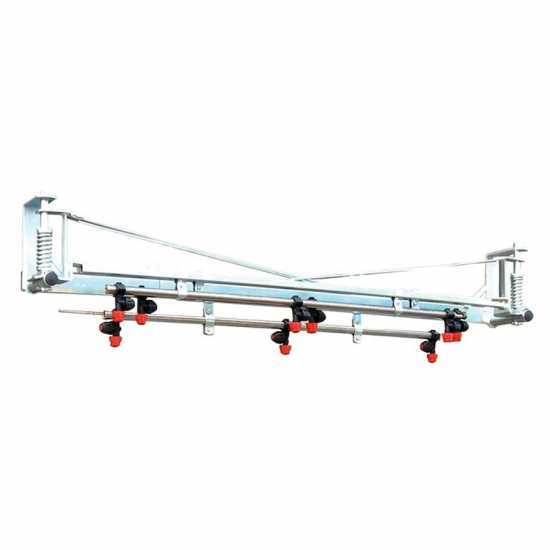

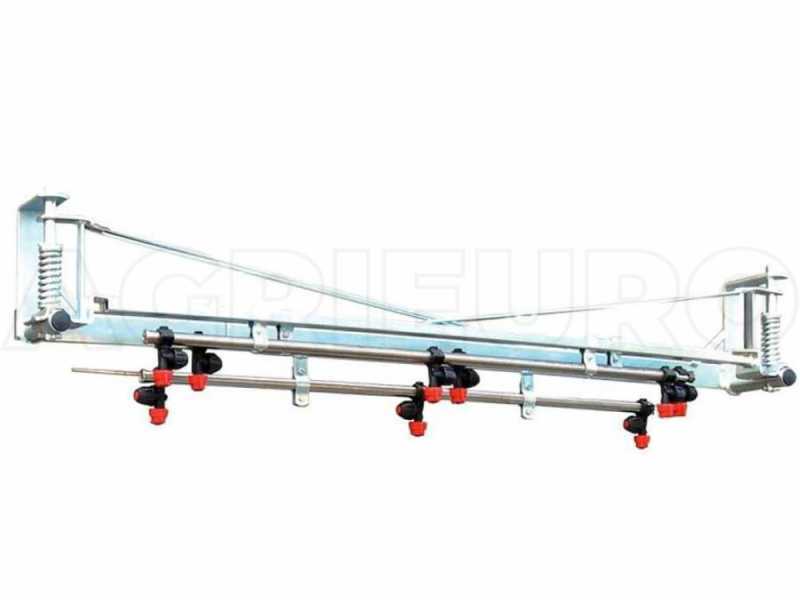

On the image, 4,5 mt wide opened boom
GENERAL FEATURES:
- Nr. 9 professional nozzles with no drip membrane
- frame made of galvanised steel
- STAINLESS STEEL tubes
- weight kg 11
Characteristics and components of jets:
- Nozzle holder with bayonet quick coupling
- Membrane anti-drip filter
- Standard fan nozzle type SF 110° in Delrin with high chemical stability, for herbicide, fungicide and insecticide treatments
Technical characteristics:
- Spray angle: 110°
- Working pressure: 1/5/7 bar
- Max pressure: 15 bar
ON STANDARD KIT (included on price):
- Pair of brackets for the assembly to the sprayer's frame
(in some cases the assembly may need to do two additional holes on the sprayers frame where it must be assembled)
- 6 metres high pressure hose Ø 10x17 for the boom linkage to the sprayer's 3 pressure adjustment group's outputs
