FIMAR TC32RS Electric Meat Mincer - Body and Grinding Unit in Stainless Steel - Three-phase - 400 V / 3 hp

Add a question
ID: K602957

EAN: 9999991093874

MPN: TR32RSQ0I405T

FIMAR TC32RS Electric Meat Mincer - Body and Grinding Unit in Stainless Steel - Three-phase - 400 V / 3 hp
FREE
CUtting board with AgriEuro logoCUtting board with AgriEuro logo
Tarpaulin cover and storageTarpaulin cover and storage
Motor type
Induction
Speed reverser
Yes
Operating mode
Three-phase 400 V
Rated power
3 Hp
Certifications
CE professional
Attachment dimensions
No.32
Accessory material
Stainless steel
Hourly output
500 Kg/h
Transmission type
Gears in oil-bath
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
TC32RS inox
Machine body material:
Stainless steel
Certifications:
CE professional
Power output:
2200 W
Operating mode:
Three-phase 400 V
Hourly output:
500 Kg/h
Die plate material:
acciao inox
Speed reverser:
Yes
Engine cover:
Stainless steel fairing
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
3 Hp
Power supply:
400 V electric
Motor protection:
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears in oil-bath
Gear unit type :
With gears
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.32
No.32 Accessory:
Funnel material:
Stainless steel
Blade material:
stainless steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

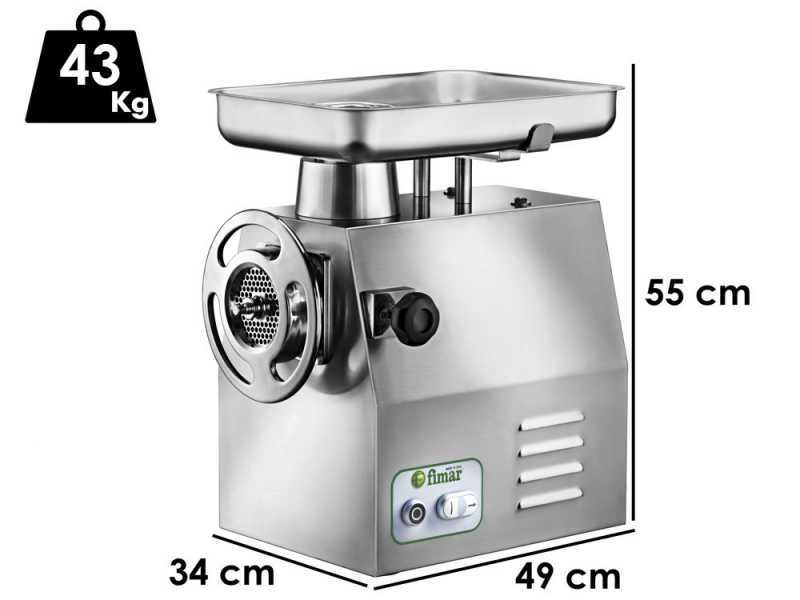

Product dimensions in cm (L x W x H):
49x34x53 cm
Net weight:
43 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
57x42x68 cm
Gross weight (packaging included) :
49 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 23/05/2024 - 27/05/2024
€ 1.534,17
VAT Included
You're viewing:
Customers also viewed:
Description

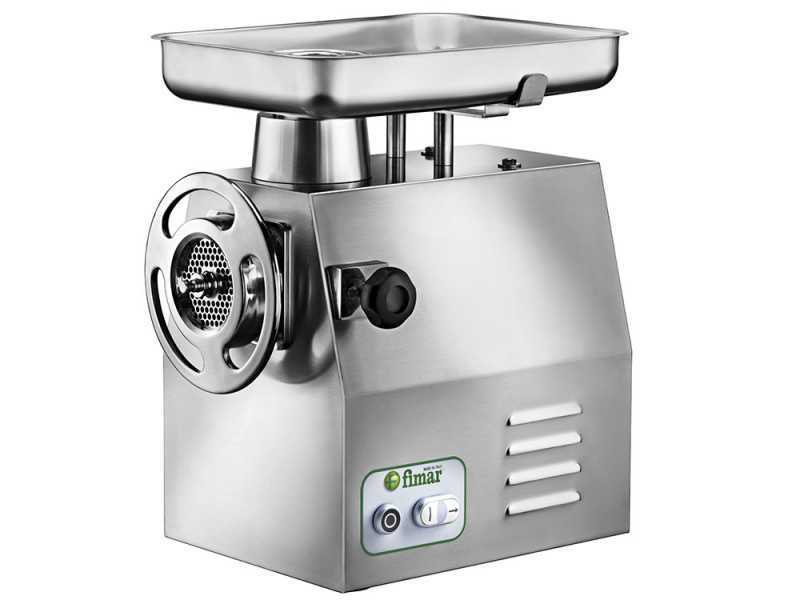

FIMAR TC32RS Electric Meat Mincer

The FIMAR TC32RS meat mincer is an industrial grade machine, designed for supermarkets, restaurants, hotels and butchers, even large ones, with a large hourly demand for ground meat.

These features guarantees an hourly output of ~500 kg/h.

Stainless steel removable grinding unit, this characteristic makes the machine cleaning operations extremely easy and quick.

This meat mincer is designed for a counter top use.

The hopper plate, the removable grinding unit and the food processing components are entirely built in AISI 304 stainless steel.

Equipped with an 2200 W asynchronous three-phase induction electric motor powered at 400V.

Simple and functional design This makes the machine pleasing to the eye and extremely easy to clean.

The machine body is entirely made of stainless steel, this ensures high protection against external elements and a much higher ease of cleaning.

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

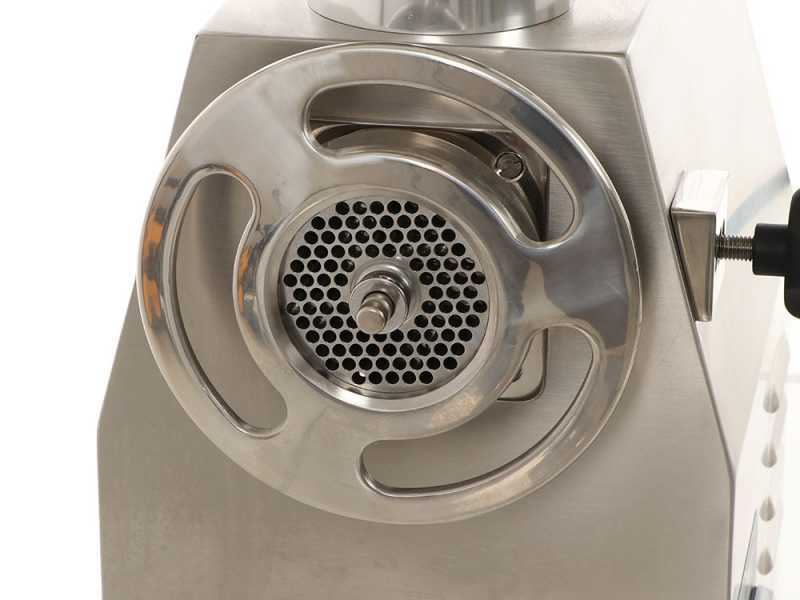

Removable grinding unit in stainless steel

This machine features a fully removable grinding unit.

Just unscrew the knob and take out the whole grinding unit.

This feature allows for a quick and fast cleaning of the machine.

The grinding unit is in stainless steel and it’s dishwasher safe.

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

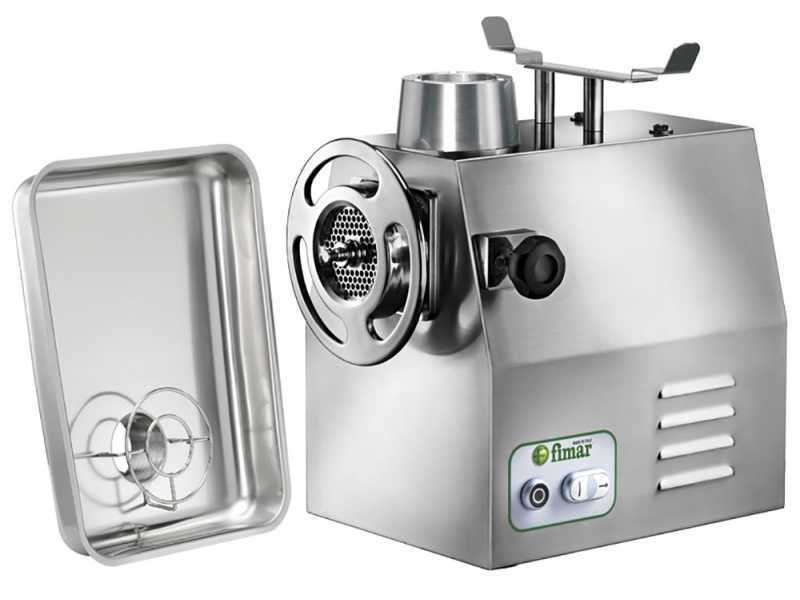

Heavy-duty Meat Mincer with CE certification

CE Professional meat grinders are designed to be used according to the needs of professional operators.

All CE professional-branded meat slicers are:

  • easy to wash and safe to work with.
  • Guaranteed by international patents and manufactured according to current CE standards.

All of our meat mincers with CE professional certification are recommended for restaurants, grocery shops with meat department, butcher shops and hotels.

The meat mincers with CE professional certification, compared to a meat grinder with a CE mark for domestic use, offer a more precise setting, greater safety for disassembly and superior handling.

Motor and transmission - Machine body

This machine is equipped with a 2200 W asynchronous induction three-phase electric motor powered at 400 V.

The engine is completely protected by a stainless steel body.

The meat mincer is equipped with Mirco safety switches placed on the hopper plate to work in total safety.

In addition, it can be connected through grounding.

The machine is equipped with reverse function. This allows to quickly release the grinding unit in case it jams

Gear transmission in oil bath, for maximum efficiency and resistance while working.

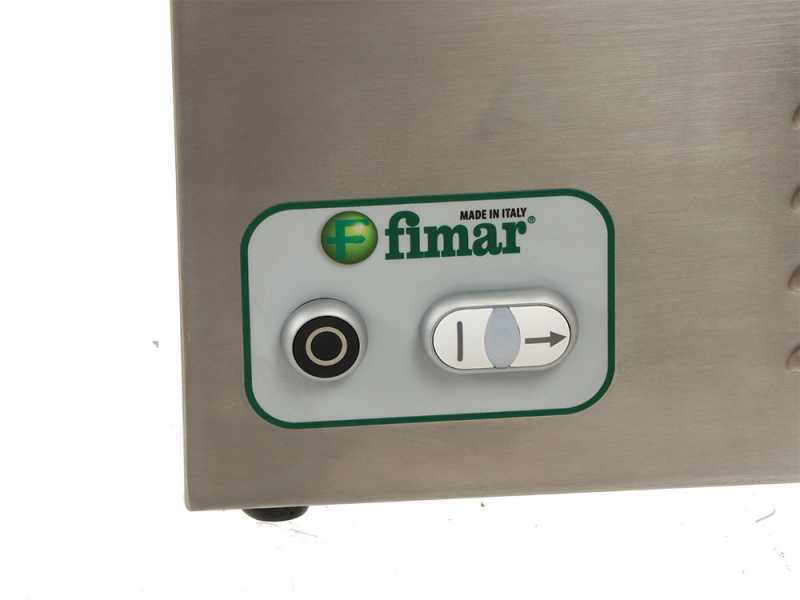

Operation is easy, safe and user-friendly thanks to the low voltage controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

Meat mincer

The FIMAR TC32RS meat mincer casing is entirely made of stainless steel.

The removable grinding unit, together with the hopper plate, the cutting plate with Ø 6mm holes and the self-sharpening knife are entirely made in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 76 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

Free items & Standard equipment

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

COMPLIMENTARY: 25x15x1.5 Chopping Board

Complimentary: a practical sturdy chopping board made of solid beech wood, customised with the laser engraved AgriEuro logo.

Ideal for cutting any type of food and easy to clean.

Dimensions: 25x15x1.5 cm

Weight: 390 g

Free items included

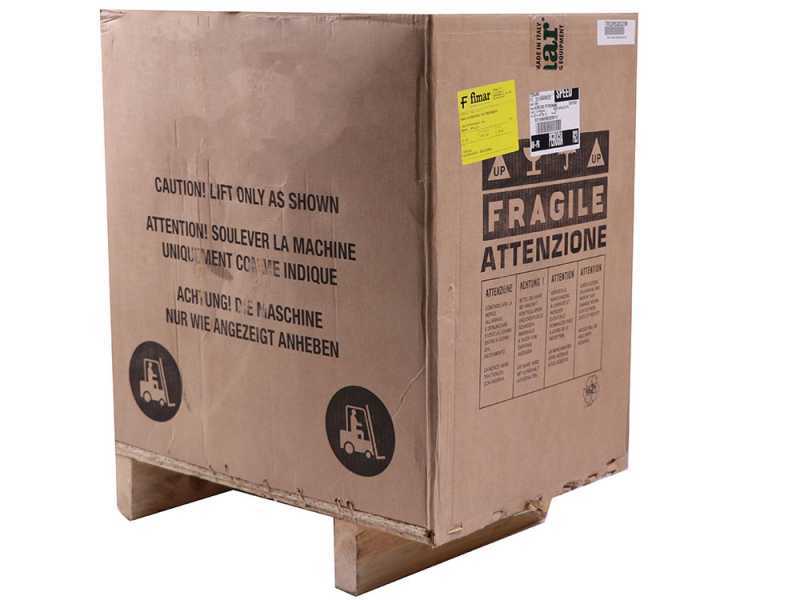

The machine is shipped in its original packaging

Included are:

Stainless steel hopper plate

CE socket for three-phase current

pestle in pvc

Instructions for use
