FIMAR 50SN - Spiral mixer - Three-phase - 50Kg

Add a question
ID: K606179

EAN: 9999991098817

MPN: IM50SN405T

8,1/10
After-sales assistance & Spare parts
FIMAR 50SN - Spiral mixer - Three-phase - 50Kg
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Dough Capacity
50 Kg
Tank capacity
62 L
Speed levels
1
Bowl type
Stainless steel fixed bowl
hydration max
65 %
Medium doughs
Hard doughs
Operating mode
Three-phase 400 V
Nominal power
3 HP
Motor type
Induction
Nominal Power (W)
2200 W
Motor speed levels
1
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Product Features
Model:
50SN 400V
Body material:
Enamelled steel
Typology :
Benchtop
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
50 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
62 L
Bowl type:
Stainless steel fixed bowl
Bowl diameter:
50 cm
Bowl height:
31 cm
Operating mode:
Three-phase 400 V
Hourly output:
150 kg/h
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
160 rpm
Speed reverser:
No
Dough mixing time:
Standard
Manufacturing country:
China
Motor data
Motor type:
Induction
Motor speed levels:
1
Nominal power:
3 HP
Nominal Power (W):
2200 W
Nominal power (W):
2200 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
92x53x92 cm
Net weight:
170 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x60x109 cm
Weight including packaging:
193 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Out of stock
Free Shipping
€ 2.579,34
Vat included
You're viewing:
Customers also viewed:
Description

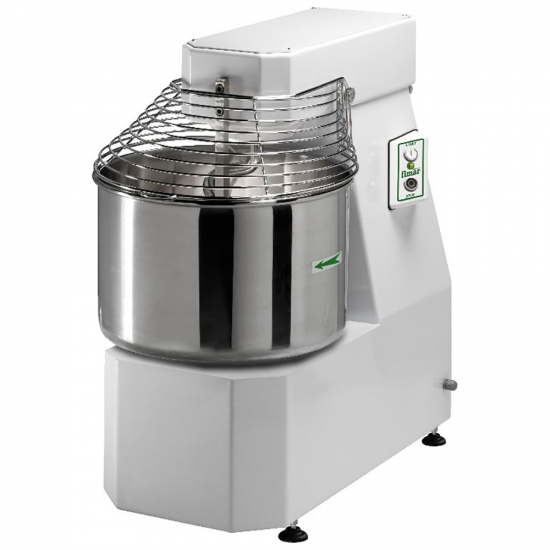

FIMAR 50SN Spiral Mixer

The FIMAR 50SN Spiral Kneader is a top-quality machine built with excellent materials designed to guarantee reliability over time.

Perfect for a medium/large workshop that needs a mixer with an excellent hourly output, it can process large quantities of dough at a time, as much as 50 kg!

Its main feature is the spiral, which allows the ingredients to be kneaded evenly, guaranteeing perfect hydration and greater elasticity of the dough.

The machine is designed to prepare different types of dough, but stands out particularly for its effectiveness in making dough for bread, fresh pasta, pizza and other baked goods.

All elements in contact with the dough are made of stainless steel, including the breaker bar.

Stainless steel represents the best material for this type of application, being hygienic, easy to clean and durable over time.

Equipped with a safety microswitch on the lid, it guarantees safe working in any situation.

Structure coated with non-toxic, scratch-resistant white paint.

The FIMAR 50SN spiral mixer is equipped with:

  • Clear protection grid
  • Stainless steel breaker bar
  • Optimum spiral speed
  • Very high hourly production
  • Three-phase power supply

Suitable for high-end doughs, thanks to its extreme simplicity and the 62 L bowl, the mixer is suitable for both domestic and professional use, in kitchens but also in small bakeries and food laboratories.

Main Features

A machine more suitable for making soft doughs with good hydration.

Powerful 3 hp motor, enabling it to process any dough.

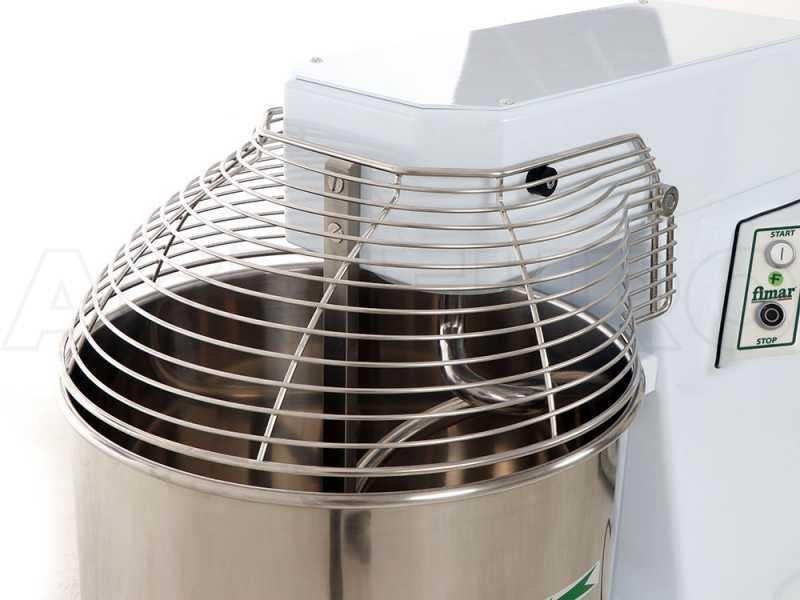

Safety microswitch mounted on stainless steel grid

Scratch-proof and non-toxic paint

Food-contact components made of stainless steel

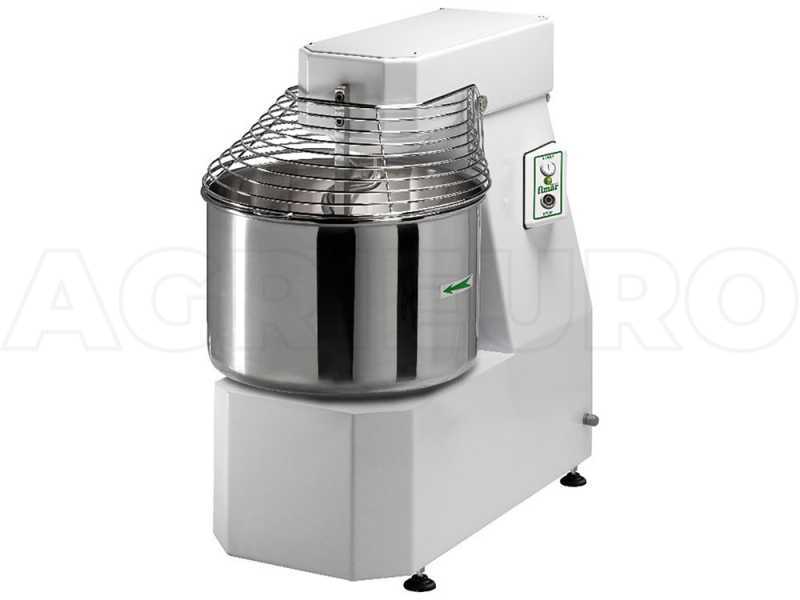

Technical Specifications

Listed below are some of the main features of the machine:

  • 3.7 HP motor
  • 62 L Bowl (Ø 500xh310 mm)
  • Spiral speed: 80 - 160 rpm
  • Hourly production 150 Kg/h
  • Dough per cycle 50 kg

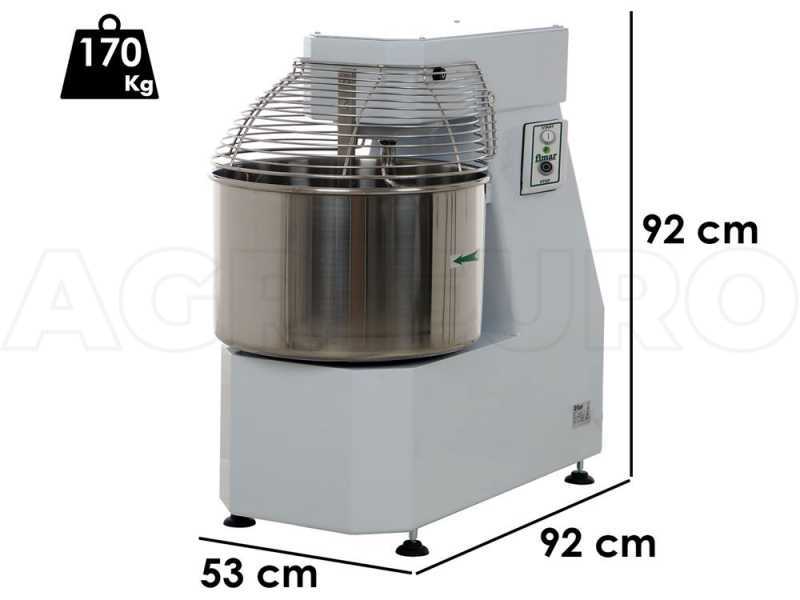

  • Size: 92x53x92 cm
  • Cable with CEE 400 V plug

The machine is equipped with a 400V CEE socket

Polymer rollers to ensure smooth running of the bowl.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard equipment

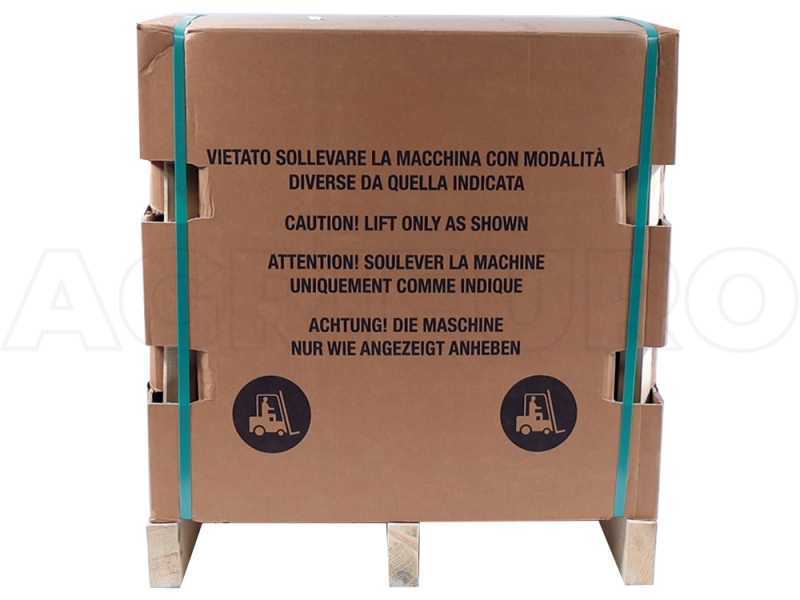

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket
