Fimar 38SR - Spiral mixer with tilting head - Three-phase - 2 speeds

Add a question
ID: K609420

EAN: 8055385431163

MPN: IM38SRN0V405T

8,1/10
After-sales assistance & Spare parts
Fimar 38SR - Spiral mixer with tilting head - Three-phase - 2 speeds
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 20/01/2026 - 23/01/2026
€ 1.862,52
Vat included
Technical data
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
38 Kg
Tank capacity
42 L
Speed levels
2
Bowl type
Stainless steel removable bowl
hydration max
75 %
Medium doughs
yes
Hard doughs
yes
Minimum dough
8 Kg
Operating mode
Three-phase 400 V
Nominal power
2 HP
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model
38SR - 400V - 2V
Body material
Enamelled steel
Typology
Tilting head
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
38 Kg
hydration max
75 %
Speed levels
2
Tank capacity
42 L
Bowl type
Stainless steel removable bowl
Bowl diameter
45 cm
Bowl height
26 cm
Operating mode
Three-phase 400 V
Flour quantity
26 Kg
Water quantity
12 L
Hourly output
114 kg/h
Minimum dough
8 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
180 rpm
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
2 HP
Nominal power (W)
1500 W
Power supply
400 V electric
Transmission data
Transmission type
Chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
80x47,4x86,6/114,8 cm
Net weight
108 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
85x55x106 cm
Weight including packaging
118 Kg
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

FIMAR 38SR kneader with tilting head

The Fimar 38SR spiral mixer is a professional machine ideal for making soft doughs such as bread, pizza and focaccia.

This model is equipped with a liftable head and removable tank, which provide practicality and ease during loading and unloading of the dough. Thanks to the capacity of the 42-litre bowl and the ability to process up to 38 kg of dough per cycle, this kneader is perfect for bakeries, pizzerias and pastry shops.

The structure of the machine is solid and durable, with a scratch-resistant coating that ensures long life even in intensive environments. All parts in contact with foodstuffs, such as the bowl, spiral and dough-splitting rod, are made of stainless steel to ensure maximum hygiene and resistance to corrosion is made of smoked polycarbonate, a safe and durable material that protects the operator during operation.

The Fimar 38SR is powered by three-phase 380-415V/50Hz voltage and is equipped with a powerful 1.5/1.1 kW (2/1.5 HP) two-speed motor. The ability to work at two speeds, ranging from 90 to 180 revolutions per minute, allows for homogenous and well-oxygenated doughs, adapting to different recipes and processing needs.

This kneader guarantees an hourly production of 114 kg of dough, making it an ideal solution for those who need high performance in a short time.

It is also equipped with a safety microswitch that automatically stops operation when the lid is lifted, ensuring maximum protection for the operator.

Key features of the Fimar 38SR:

  • Tank capacity: 42 L
  • Dough per cycle: 38 kg
  • Hourly production: 114 kg/h
  • Engine power: 1,5/1,1 kW (2/1,5 HP)
  • Power supply: 380-415V/3N/50Hz
  • Speed: 90–180 rpm

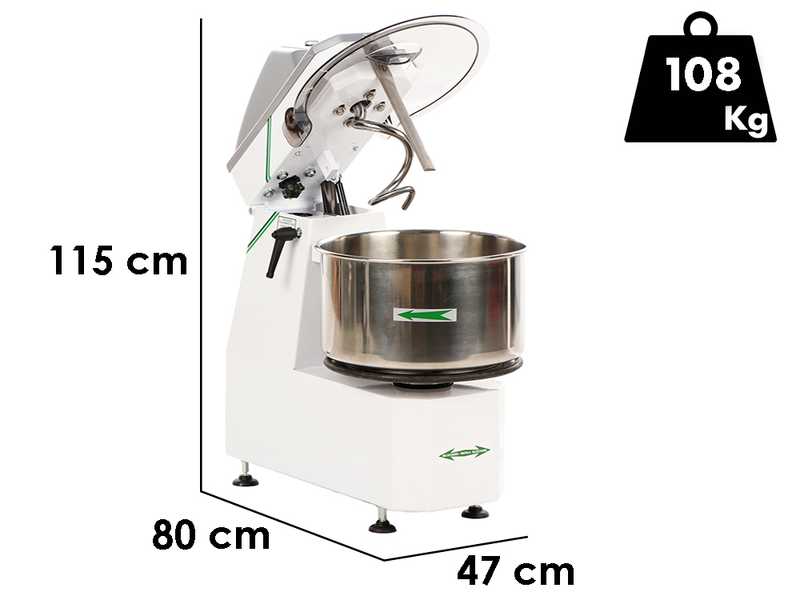

  • Dimensions: 800 x 474 x 866/1148 mm
  • Net weight: 108 kg

This spiral mixer is a safe investment for those who need a reliable, robust and easy-to-use machine. The Fimar 38SR stands out for its versatility and ability to process large quantities of dough quickly, while maintaining high standards of quality and safety.

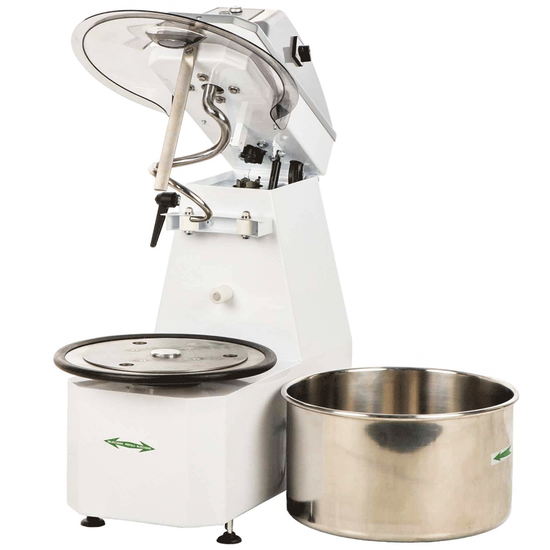

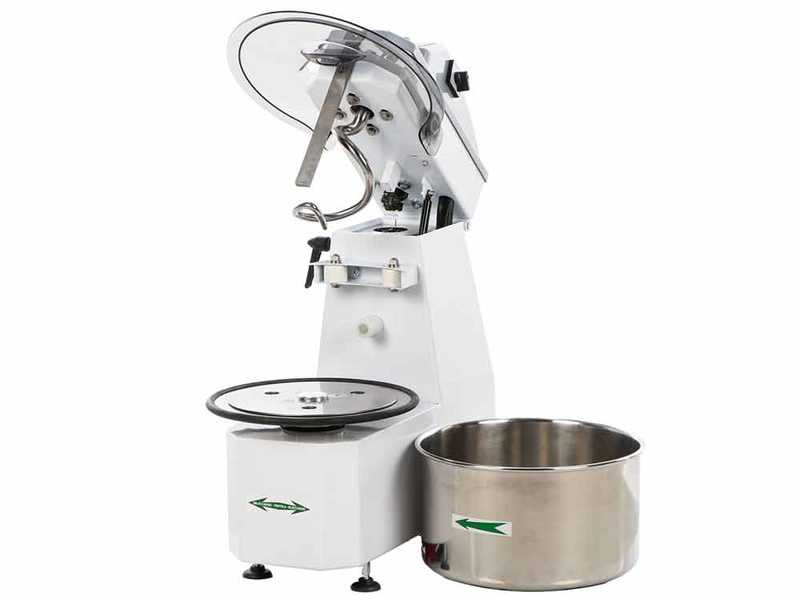

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

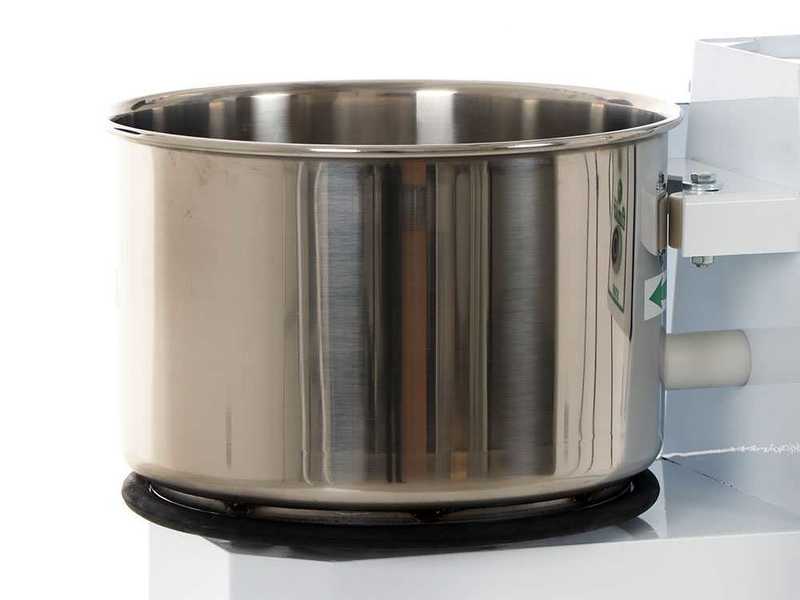

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

Main Features

The Fimar 38SR mixer is especially suitable for making soft doughs with good hydration.

Its powerful motor allows it to tackle any dough.

Motor power

  • Speed one: 1.5hp - 90 rpm
  • speed two: 2hp - 180 rpm

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • Spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

Listed below are some of the main features of the machine:

  • 2HP motor (1500W)
  • 42L tank (Ø 450xh260 mm)
  • Spiral speed: 90–180 rpm
  • Hourly production: 114 Kg/h
  • Dough per cycle: 38 Kg
  • Dimensions: 80x47,4x86,6/114.8 cm
  • Net weight: 108 Kg
  • Power supply: 380-415V ~ 50 Hz

The machine is equipped with a 5-pin CEE plug for three-phase current.

Speed selector.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

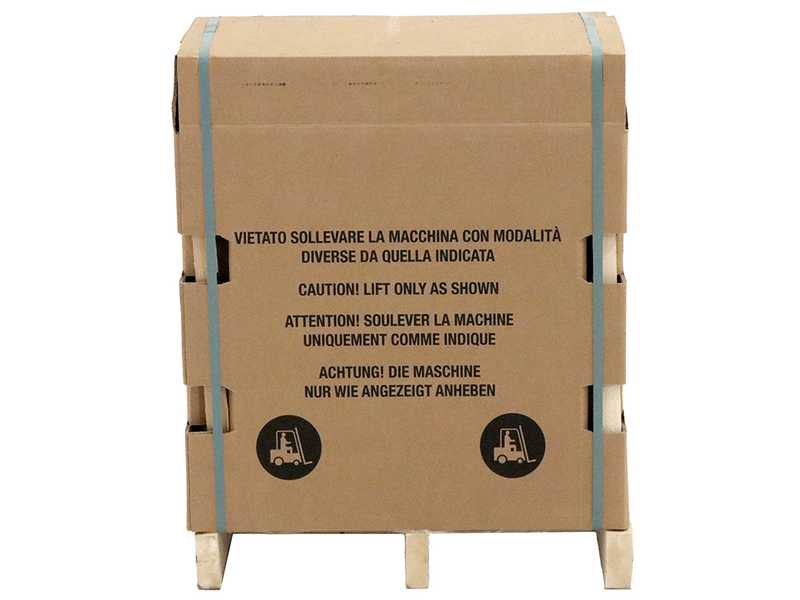

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket for three-phase current
