Fimar 38SR - Spiral mixer with tilting head

Add a question
ID: K609427

EAN: 8050247564324

MPN: IM38SRN0235M

8,1/10
After-sales assistance & Spare parts
Fimar 38SR - Spiral mixer with tilting head
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
15 - 20 days from purchase
Free Shipping
€ 1.772,98
Vat included
Technical data
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
38 Kg
Tank capacity
42 L
Speed levels
1
Bowl type
Stainless steel removable bowl
hydration max
65 %
Medium doughs
yes
Hard doughs
yes
Minimum dough
8 Kg
Operating mode
Single-phase 230 V
Nominal power
2 HP
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model
38SR monofase
Body material
Enamelled steel
Typology
Tilting head
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
38 Kg
hydration max
65 %
Speed levels
1
Tank capacity
42 L
Bowl type
Stainless steel removable bowl
Bowl diameter
45 cm
Bowl height
26 cm
Operating mode
Single-phase 230 V
Flour quantity
26 Kg
Water quantity
12 L
Hourly output
114 kg/h
Minimum dough
8 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
90 rpm
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
2 HP
Nominal power (W)
1500 W
Power supply
220 V electric
Transmission data
Transmission type
Chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
80x47,4x86,6/114,8 cm
Net weight
108 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
85x55x106 cm
Weight including packaging
118 Kg
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

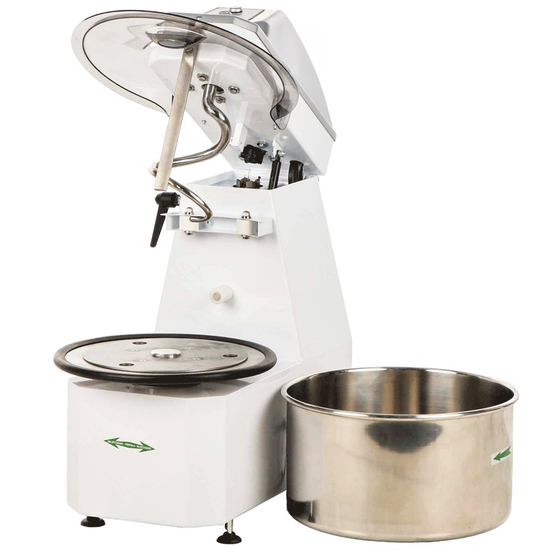

FIMAR 38SR mixer with tilting head

The Fimar 38SR spiral mixer is a professional machine designed for processing soft doughs such as bread, pizza and piadina.

With its removable 42-litre bowl and liftable head, this mixer offers practicality and versatility for both bakeries and artisan pizzerias. The structure is coated with wear-resistant scratch-resistant paint and equipped with stainless steel components, including bowl, spiral and dough splitter rod, ensuring maximum hygiene in contact with food.

The power of the 1.5 kW (2 HP) motor ensures high performance, while the rotation speed of 90 rpm enables uniform dough processing. This Fimar kneading machine is capable of producing up to 114 kg/h of dough and handles dough from up to 38 kg per cycle.

The compact size and net weight of 108 kg ensure stability during operation, making it ideal for professional laboratories with limited space.

The machine is equipped with a safety microswitch on the tank cover, ensuring an automatic stop in the event of opening. The cover is made from smoked polycarbonate as standard, ensuring visibility during processing and protection from splashes.

Main features of the Fimar 38SR kneading machine:

  • Engine power: 1.5 kW (2 HP)
  • Hourly production: 114 kg/h
  • Tank capacity: 42 L
  • Dough per cycle: 38 kg
  • Rotation speed: 90 rpm
  • Power supply: 220-240V/1N/50Hz

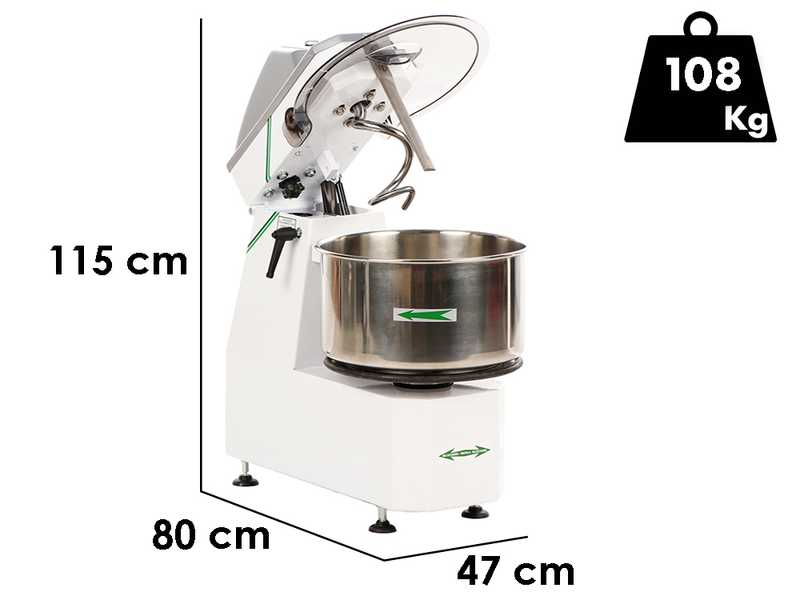

  • Machine dimensions: 800 x 474 x 866÷1148 mm.
  • Net weight: 108 kg
  • Material: Stainless steel for parts in contact with foodstuffs

The Fimar 38SR spiral mixer is a reliable choice for those looking for a high-performance, robust machine designed for maximum efficiency and durability. With its removable bowl, liftable head and safety cover, this kneading machine guarantees practicality and safety during every stage of processing.

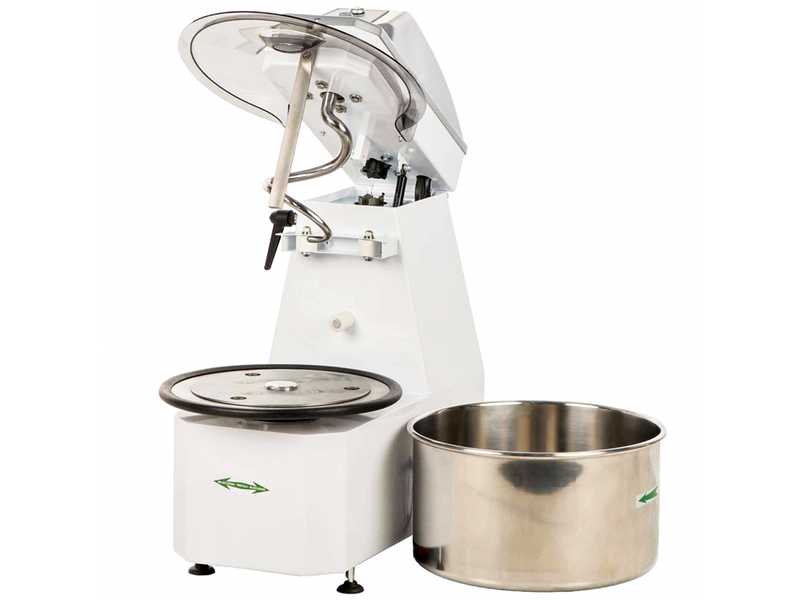

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

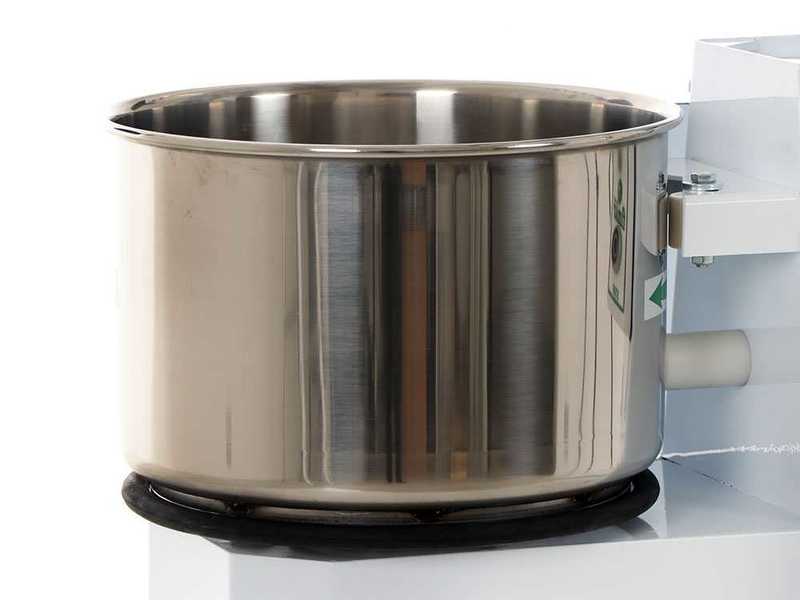

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

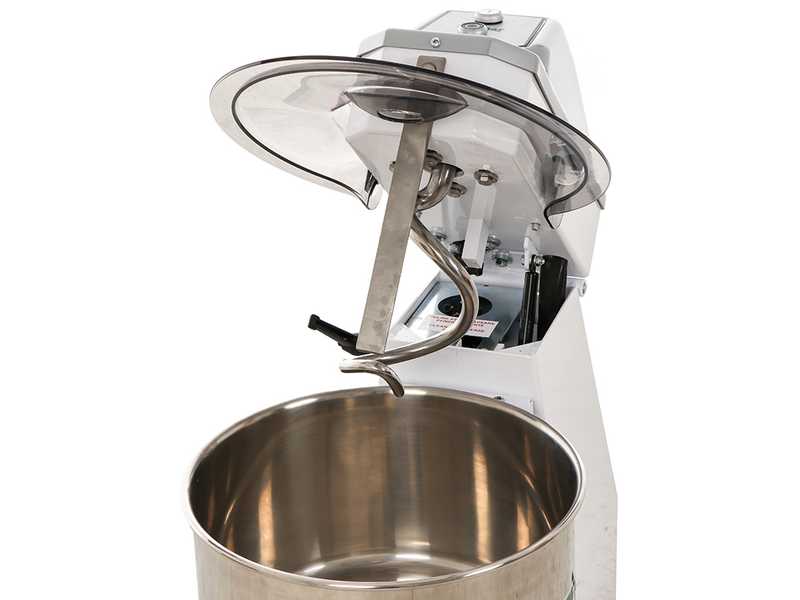

Main Features

The Fimar 38SR mixer is especially suitable for making soft doughs with good hydration.

The powerful 2 HP motor allows it to tackle any dough.

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • Spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

List of some of the machine's main features:

  • 2HP motor (1500W)
  • 42L tank (Ø 450xh260 mm)
  • Spiral speed: 90 rpm
  • Hourly production: 114 Kg/h
  • Dough per cycle: 38 Kg
  • Dimensions: 80x47,4x86,6/114.8 cm
  • Net weight: 108 Kg
  • Power supply: 220-240 V ~ 50 Hz

The machine is equipped with a Shuko socket for single-phase current.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

The spiral mixer is shipped in its original packaging along with the instructions manual.

Schuko socket for single-phase current
