Fimar 30LN - Spiral Mixer - Three-Phase - 25 Kg - 2 Speeds

Add a question
ID: K609349

EAN: 8050247562474

MPN: IM30LNV405T

8,1/10
After-sales assistance & Spare parts
Fimar 30LN - Spiral Mixer - Three-Phase - 25 Kg - 2 Speeds
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Dough Capacity
25 Kg
Tank capacity
30 L
Speed levels
2
Bowl type
Stainless steel fixed bowl
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
6 Kg
Operating mode
Three-phase 400 V
Nominal power
1 HP
Motor type
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model:
30LN Trifase 2V
Body material:
Enamelled steel
Typology :
Standard
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
25 Kg
hydration max:
75 %
Speed levels:
2
Tank capacity:
30 L
Bowl type:
Stainless steel fixed bowl
Bowl diameter:
40 cm
Bowl height:
26 cm
Operating mode:
Three-phase 400 V
Flour quantity:
17 Kg
Water quantity:
8 L
Hourly output:
75 kg/h
Minimum dough:
6 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
180 rpm
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Yes
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
76,3x41,5x75,3-112,3 cm
Net weight:
88 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x55x106 cm
Weight including packaging:
98 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 13/06/2025 - 17/06/2025
€ 1.229,16
Vat included
You're viewing:
Customers also viewed:
Description

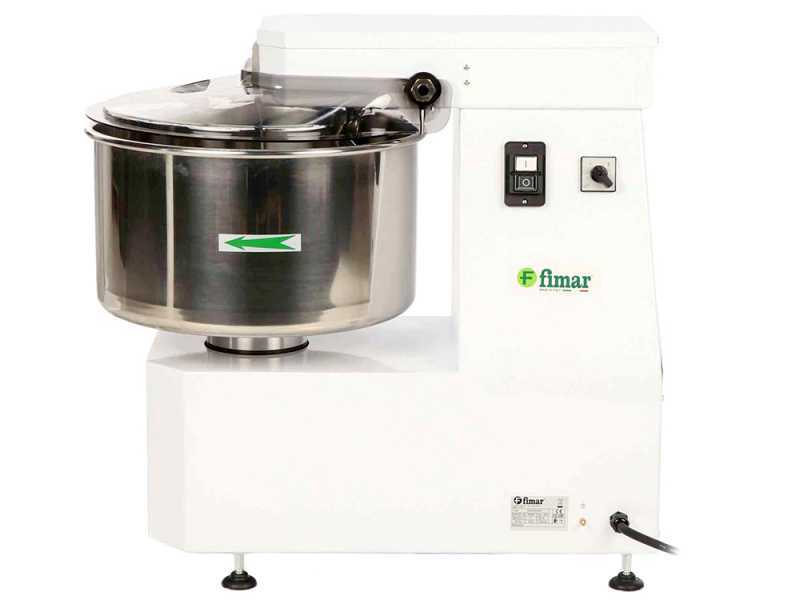

FIMAR 30LN Spiral Mixer

The Fimar 30LN spiral mixer is designed to make perfect doughs, with a focus on soft doughs such as bread and pizza.

This model guarantees high performance thanks to its robustness and the quality of the materials used. The structure is coated with scratch-resistant paint for greater resistance over time, while the parts in contact with food, such as the tank and the spiral, are made of AISI 304 stainless steel, which ensures hygiene and durability.

The tank has a capacity of 30 litres and dimensions of 400 x 260 mm, ideal for processing up to 25 kg of dough per cycle, guaranteeing an hourly production of about 75 kg/h.

The speed is adjustable between 90 and 180 rpm, with a second speed for greater versatility. The kneader has a power of 0.75/0.55 kW (1/0.75 HP) depending on the selected speed, to suit different production requirements.

The smoked polycarbonate lid ensures visual control during processing, and is equipped with a safety microswitch. The machine has compact dimensions and a net weight of 88 kg, making it suitable for artisan laboratories and small businesses.

Key features:

  • Premium materials : AISI 304 stainless steel tank and spiral.
  • Versatility: Adjustable speed in two speeds.
  • Large capacity: 25 kg of dough per cycle, with an hourly output of 75 kg/h.
  • Safety: Lid with microswitch and scratch-proof construction.
  • Compactness: Functional design with small dimensions.

The Fimar 30LN kneader is an indispensable tool for those looking for reliability, high performance and build quality in the artisan bakery and pizzeria industry.

Main Features

The Fimar 30LN mixer is especially suitable for making soft doughs with good hydration.

Its powerful motor allows it to tackle any dough.

Motor power

  • Speed one0.55hp - 90 rpm
  • speed two: 0.75hp - 180 rpm

Safety microswitch fitted on transparent lid.

Scratch-proof and non-toxic paint.

Food-contact parts made of stainless steel.

Technical Specifications

Listed below are some of the main features of the machine:

  • 1HP motor (750W)

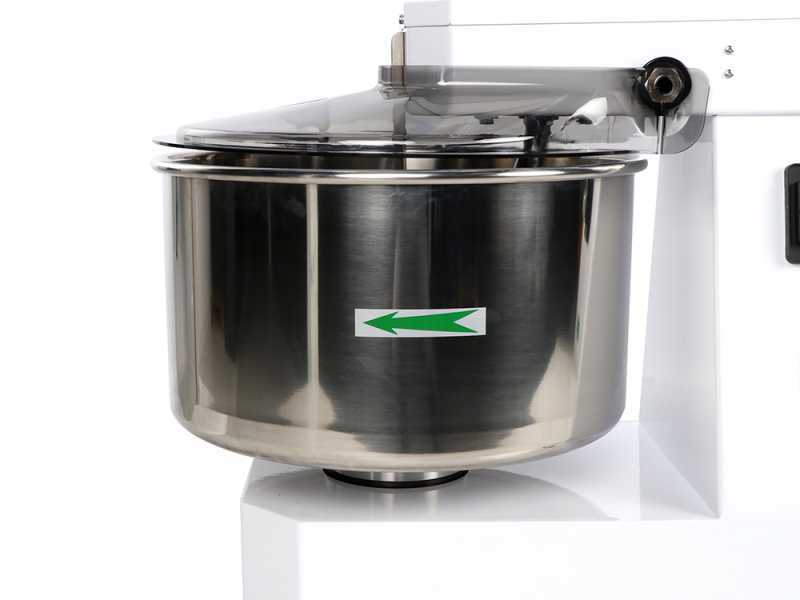

  • 30L tank (Ø 400xh260 mm)
  • Spiral speed: 90–180 rpm
  • Hourly production: 75 Kg/h
  • Dough per cycle: 25 Kg

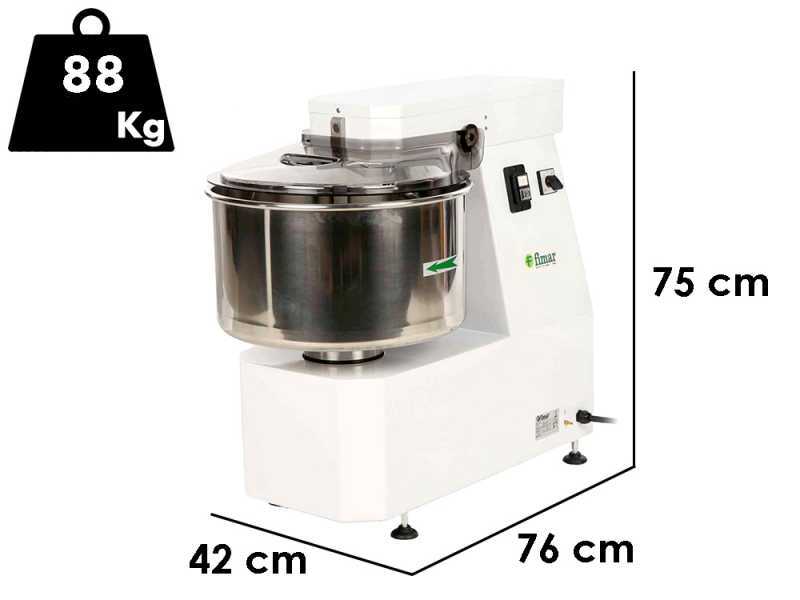

  • Dimensions: 76,3x41,5x75,3/112.3 cm
  • Net weight: 88 Kg
  • Power supply: 380-415V ~ 50 Hz

The machine is equipped with a 5-pin EEC plug for three-phase current.

Speed selector.

Detail of the chain drive.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

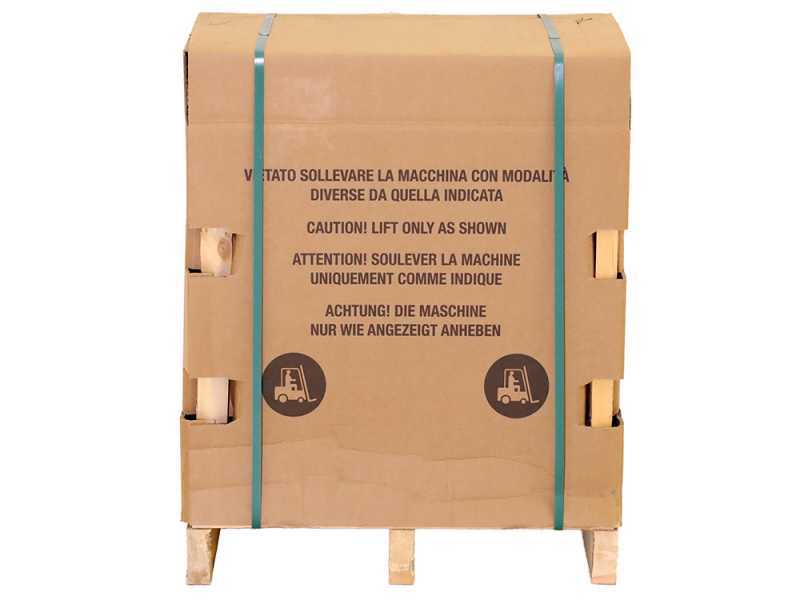

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket for three-phase current
