Fimar 12SR - Spiral mixer with tilting head

Add a question
ID: K609183

EAN: 8050247108771

MPN: IM12SRN0235M

8,1/10
After-sales assistance & Spare parts
Fimar 12SR - Spiral mixer with tilting head
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
15 - 20 days from purchase
Free Shipping
€ 1.272,71
Vat included
Technical data
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
12 Kg
Tank capacity
16 L
Speed levels
1
Bowl type
Stainless steel removable bowl
hydration max
65 %
Medium doughs
yes
Hard doughs
yes
Minimum dough
3 Kg
Operating mode
Single-phase 230 V
Nominal power
1 HP
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model
12SR monofase
Body material
Enamelled steel
Typology
Tilting head
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
12 Kg
hydration max
65 %
Speed levels
1
Tank capacity
16 L
Bowl type
Stainless steel removable bowl
Bowl diameter
32 cm
Bowl height
21 cm
Operating mode
Single-phase 230 V
Flour quantity
8 Kg
Water quantity
4 L
Hourly output
36 kg/h
Minimum dough
3 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
90 rpm
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
1 HP
Nominal power (W)
750 W
Power supply
220 V electric
Transmission data
Transmission type
Chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
63,2x32x75/93,2 cm
Net weight
61 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
70x46x89 cm
Weight including packaging
66 Kg
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Fimar 12SR Spiral mixer with tilting head

The Fimar 12SR spiral mixer is designed for soft dough and suitable for bread, pizza and piadina preparation.

This model is equipped with a tilting head and a removable 16-litre tank, features that simplify both dough loading and cleaning operations. With a power output of 0.75 kW (1 HP) and a single-phase 230V power supply, it delivers high, reliable performance for heavy-duty use.

The structure of the kneader is made of robust materials and finished with scratch-resistant paint, ensuring strength and durability even in intense working environments. The food-contact components, including the bowl, spiral and dough-splitting rod, are made of stainless steel, a corrosion-resistant material that retains its hygienic and mechanical qualities. In addition, the smoked polycarbonate lid, equipped with a safety microswitch, protects the operator and prevents spillage during operation.

This Fimar 12SR kneading machine is set to work at a speed of 90 rpm, which is optimal for ensuring an even and homogenous mix. With a dough capacity per cycle of 12 kg and a maximum hourly output of 36 kg, it is versatile and functional for medium-sized bakeries and pastry shops.

Main features of the Fimar 12SR kneading machine:

  • Power: 0.75 kW (1 HP)
  • Hourly production: 36 kg
  • Dough capacity per cycle: 12 kg
  • Removable 16 litre stainless steel tank
  • Fixed speed : 90 rpm
  • Size: 632 x 320 x 750-932 mm
  • Weight: 61 kg
  • Safety: polycarbonate lid with safety microswitch

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

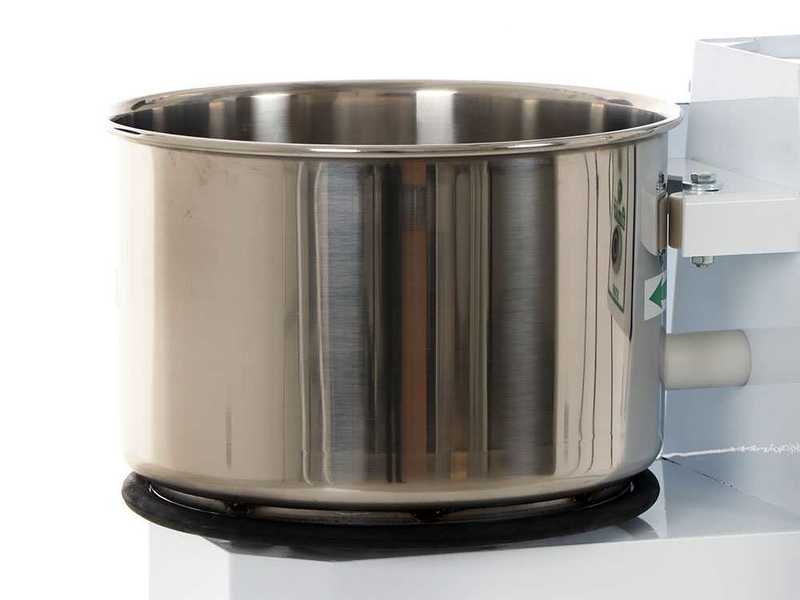

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

Main Features

The Fimar 12SR mixer is especially suitable for making soft doughs with good hydration.

The powerful 1 HP motor allows it to tackle any dough.

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • Spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

List of some of the machine's main features:

  • 1HP motor (750W)
  • 16 L tank (Ø 320xh210 mm)
  • Spiral speed: 90 rpm
  • Hourly production: 36 Kg/h
  • Dough per cycle: 12 Kg
  • Dimensions: 63.2x32x75/93.2 cm
  • Net weight: 61 Kg
  • Power supply: 220-240 V ~ 50/60 Hz

The machine is equipped with a Shuko socket for single-phase current.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

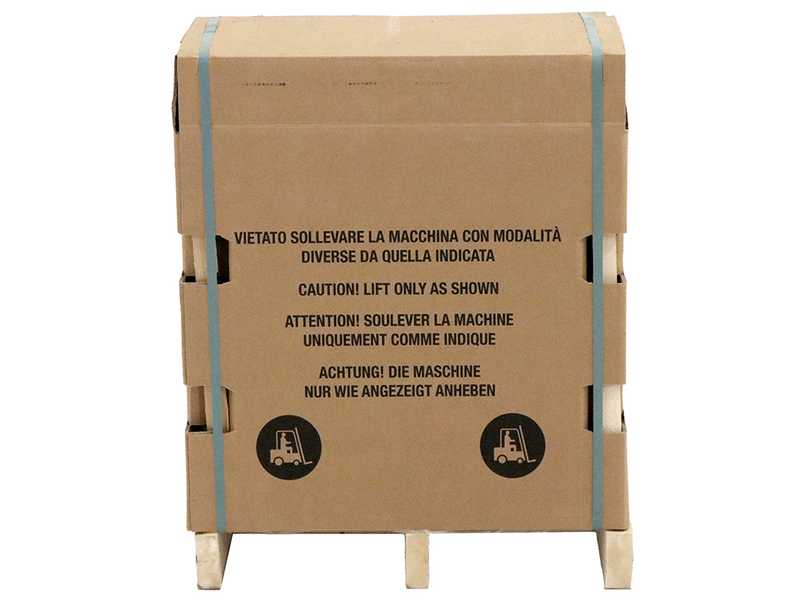

The spiral mixer is shipped in its original packaging along with the instructions manual.

Schuko socket for single-phase current
