FIAC Silent AB90/360M - Single-phase electric belt-driven air compressor - 3 HP motor - 90 lt.

Questions & Answers (2)
ID: K502874

EAN: 8020119144084

MPN: 1121340900

7,1/10
After-sales assistance & Spare parts
FIAC Silent AB90/360M - Single-phase electric belt-driven air compressor - 3 HP motor - 90 lt.
Free gifts from AgriEuro
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Extension hoseExtension hose
Universal adaptors kitUniversal adaptors kit
Technical data
Air compressor tank
90 L
Max. operating pressure
10 bar
Air intake flow
350 L/min
Cylinder head rpm
1500 RPM
Lubrication
Oil
Pump type
Single-stage
Silenced
Yes
Motor type
Induction
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model
Silent AB90/360M
Air compressor type 2
Belt-driven
Air compressor type
Horizontal
Operating mode
Single-phase 230 V
Max. operating pressure
10 bar
Number of tanks
1
Air compressor tank
90 L
Noise level
70 dBA
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
3 HP
Silenced
Yes
Air compressors engine speed
1500
Power supply
220 V electric
Pump data
Pump brand
FIAC
Air intake flow
350 L/min
Pump type
Single-stage
Lubrication
Oil
No. of cylinders
2
Cooling manifold
No
Manufacturing country
Italy
Transmission data
Belt-driven
Transmission type
Belt
Cylinder head rpm
1500 RPM
Equipment
No. of outlet couplings
1
Front handle
Yes
Lifting handle
Yes
Free gifts/extra features
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
113x52x110 cm
Net weight
95 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
111x53x113 cm
Weight including packaging
120 Kg
Assembly time
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 08/09/2025 - 10/09/2025
Suggested price:
€ 1.963,53
€ 1.820,98
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

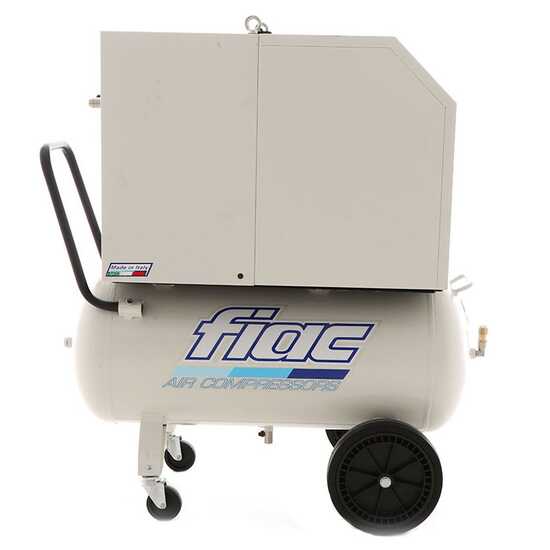

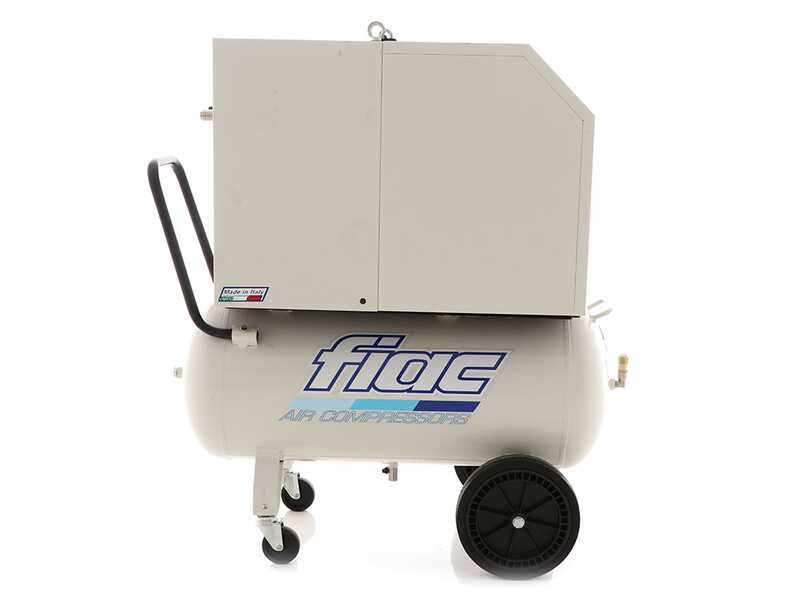

FIAC Silent AB90/360M Silenced Electric Air Compressor

The Fiac Silent AB90/ 360M is a heavy-duty air compressor, suitable for industrial work, equipped with single-phase power supply.

The AB90/ 360M delivers outstanding performance, while offering excellent levels of silence and an almost non-existent amount of vibrations.

Soundproofing is provided by the metal housing, which makes this air compressor suitable for working in enclosed spaces.

However, it is suitable for outdoor use; in fact, AB90/ 360M can be easily transported and lifted, thanks to its 2 large rear wheels and the 2 front pivoting wheels with ergonomic handle and lifting hooks.

It is fitted with a 230 V electric motor capable of delivering up to 3 Hp (2.2kW) of power.

It features a compressed air suction capacity of 350 L/min.
Its 90 L tank can hold air at a pressure of 10 bar (145 psi).
The metal housing greatly reduces the vibrations produced by the motor, as well as absorbing its noise thanks to the built-in soundproof level.

High-quality product Made in Italy.

Technical features

Air intake flow: 350 L/min

Pump Type: belt-driven

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 90 L


Overall dimensions:
- Width: 110 cm
- Height: 113 cm
- Depth (or thickness): 52 cm

Weight: 95 kg

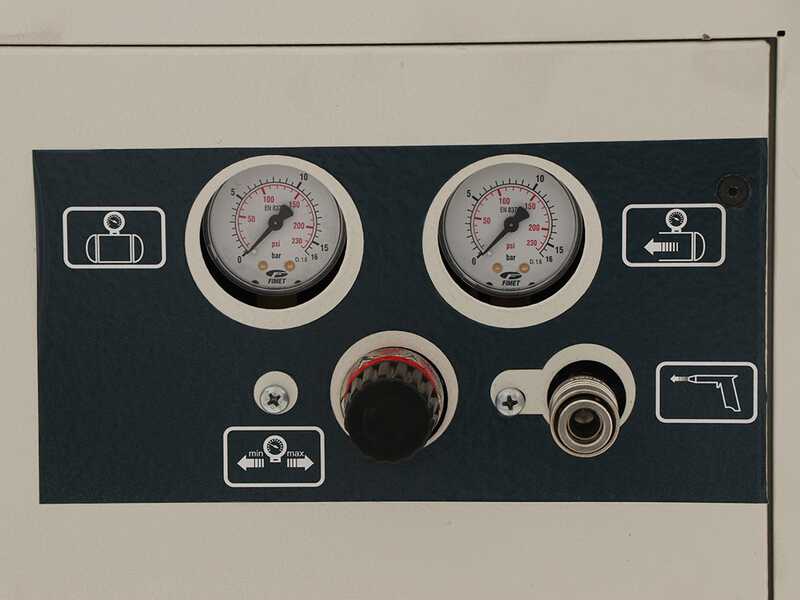

Controls

The SILENT AB90/360M air compressor features easy and user-friendly controls with standard features to adapt to various types of common accessories:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Other features

230 V Schuko plug

Ergonomic handle for easy transportation

Large sturdy plastic wheels

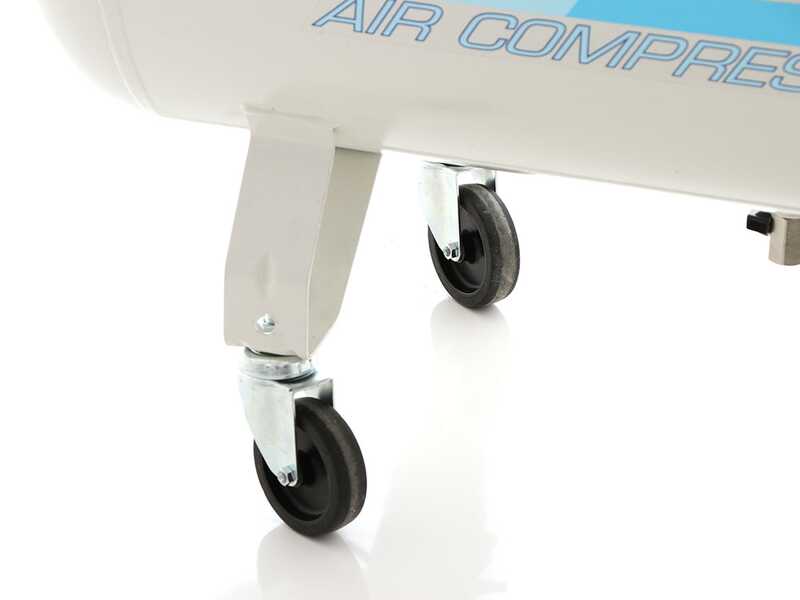

Pivoting wheels

Condensate drain valve

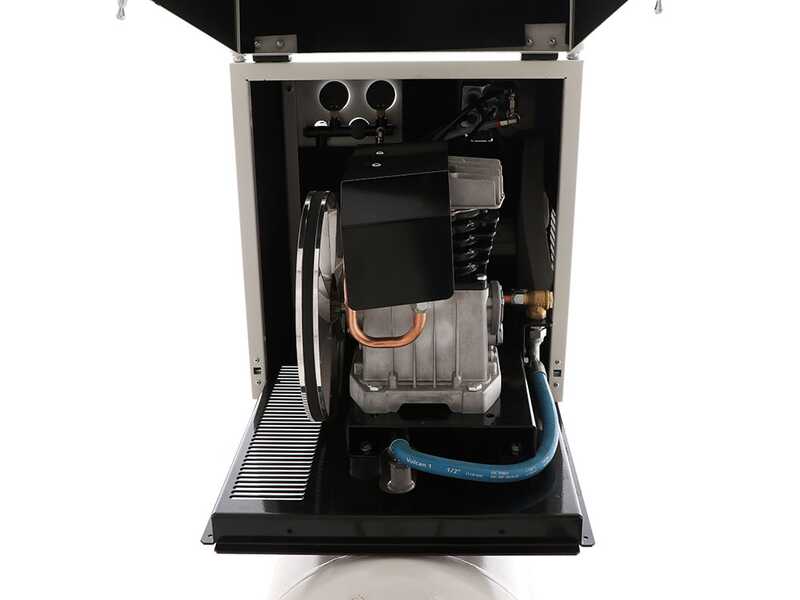

Openable motor housing for maintenance operations with cooling openings

Free items & Standard equipment

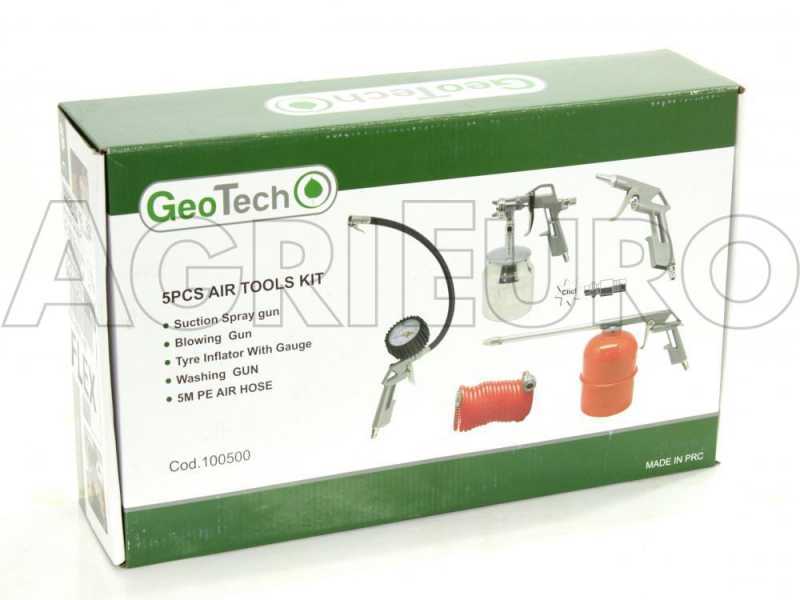

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

Standard equipment

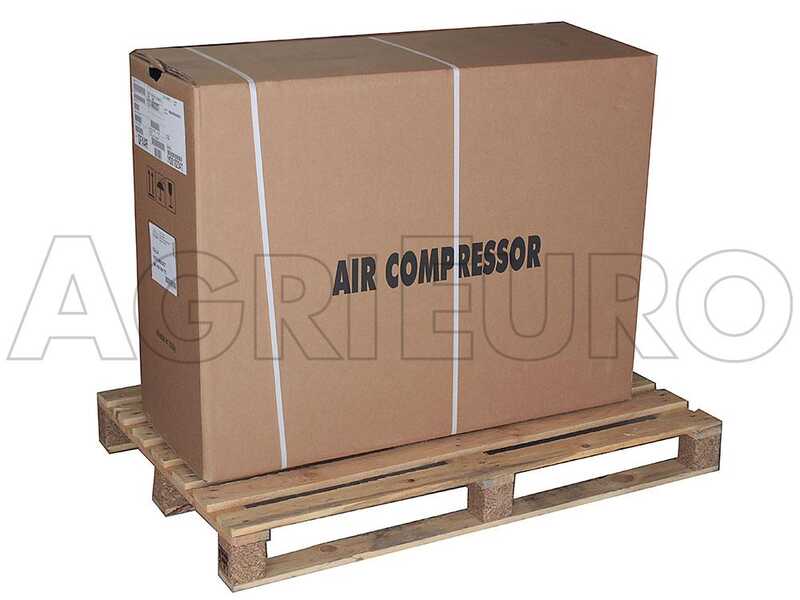

The air compressor is shipped in its original packaging on a pallet.

Instructions manual included.
