Fiac Leonardo - Portable coaxial electric air compressor - 1 HP Motor

Questions & Answers (1)
ID: K603660

EAN: 8024900721300

MPN: 4116000654

7,1/10
After-sales assistance & Spare parts
Fiac Leonardo - Portable coaxial electric air compressor - 1 HP Motor
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
6 L
Max. operating pressure
8 bar
Air intake flow
105 L/min
Cylinder head rpm
1450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Induction
Nominal power
1 HP
Operating mode
Single-phase 230 V
Manufacturing country
Italy
Product Features
Model:
Leonardo
Air compressor type 2:
Direct
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
2
Tank capacity:
6 L
Air compressor tank:
6 L
Noise level:
85 LwA
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Silenced:
Yes
Air compressors engine speed:
1450
Power supply:
220 V electric
Pump data
Pump brand:
FIAC
Model:
F 114
Air intake flow:
105 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
Italy
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1450 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Pressure regulator with condensate filter:
Yes
Double tank:
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x22x44 cm
Net weight:
18.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48x24x49 cm
Weight including packaging:
20.5 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 14/05/2025 - 16/05/2025
€ 390,53
Vat included

You're viewing:
Customers also viewed:
Description

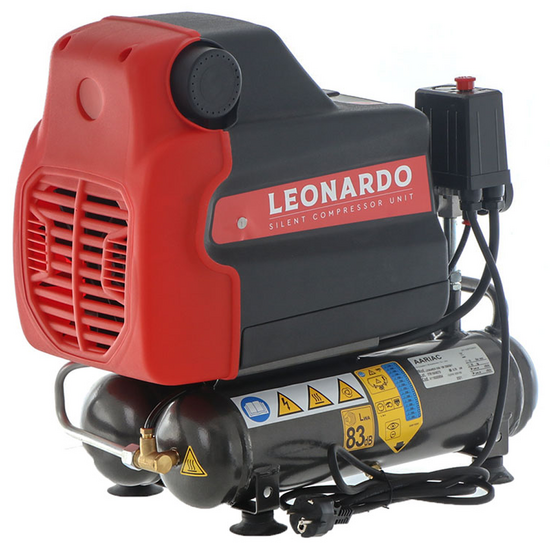

FIAC Leonardo Electric Air Compressor

Leonardo air compressor is manufactured by Fiac, a multinational company born in Italy with production sites all over the world, market leader in the production of compressors. It has a compressed air suction capacity 105 L per minute and an air pressure of 8 bar.

Equipped with an electric induction motor with a power of 1 HP. It has two tanks of 3 L each, allowing a good air cooling.

Its low rpm rate,1450 rpm, allows it to last twice as long as the average compressors (2800 r / min. ).

Ideal for use with portable compressed air tools. Compact size for transport by car or any other means, particularly suitable for craftsmen and workers who must always carry the compressor with them.

In addition, being equipped with an oilless motor (with no need of oil) it greatly decreases the maintenance operations and excludes the possibility of liquid leakage also when the compressor is positioned horizontally.

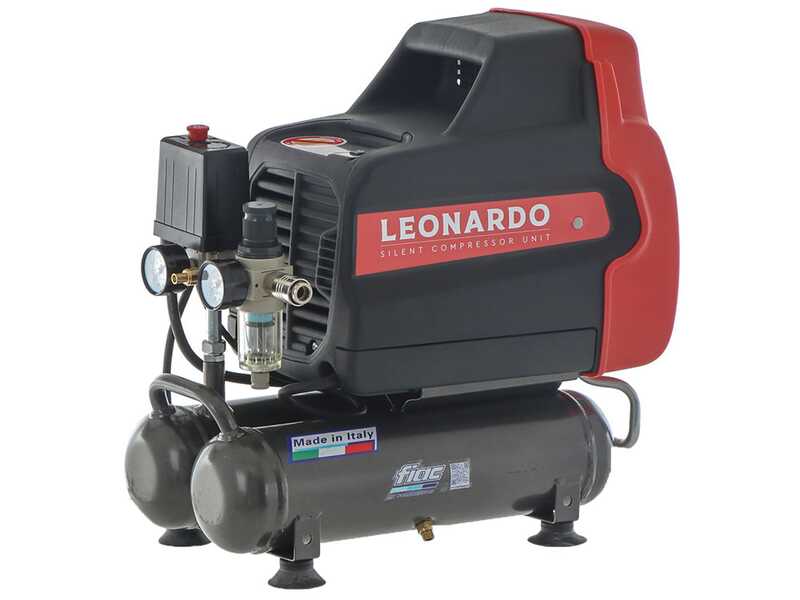

Technical features

The moving parts have innovative constructive solutions, with low friction coefficient and high wear resistance materials. For this reason, the do not require any lubrication during use, and this not only guarantees high reliability, but also a completely oil-free compressed air.


Air intake flow: 105 lt/min.

Pump type: coaxial oil-free
- no lubrication
- No maintenance

Air displacement: 105 L/min

Pressure: 8 bar

Electric motor power: 1 HP

Tank: 6 lt

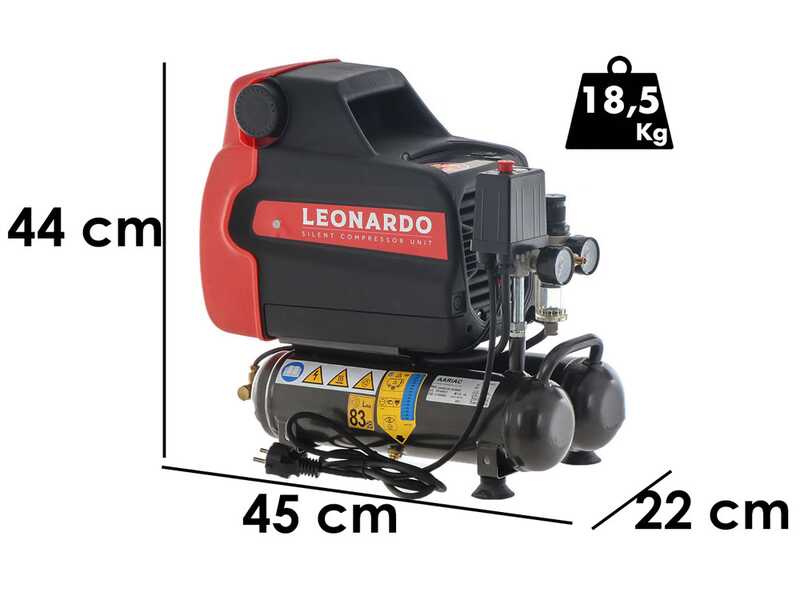

Dimensions:
- Length: 450 mm
- Height: 440 mm
- Width: 220 mm

Weight: 18.5 kg

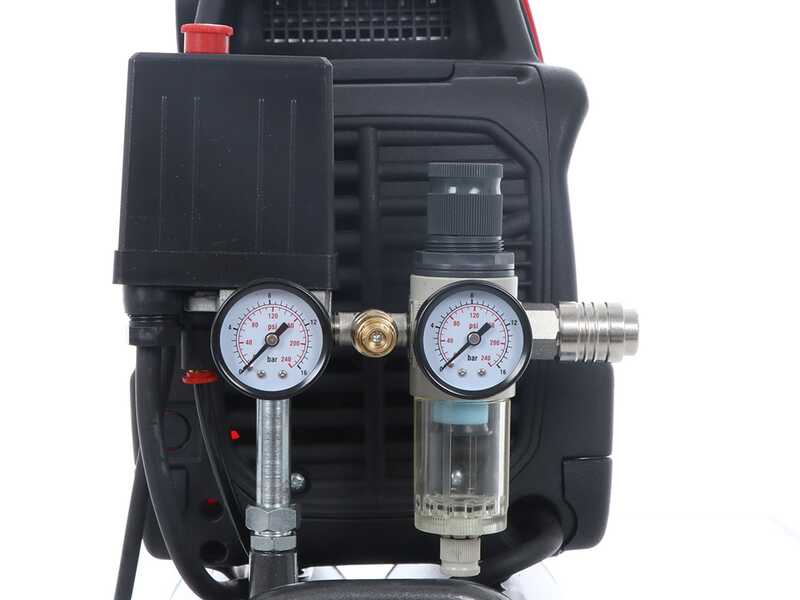

Controls

The FIAC Leonardo air compressor is equipped with easy and user-friendly controls, which are divided into:


Output air pressure gauge

Tank air pressure gauge.

Power switch

Female outlet fitting

Pressure adjusting knob

Lower lifting handle

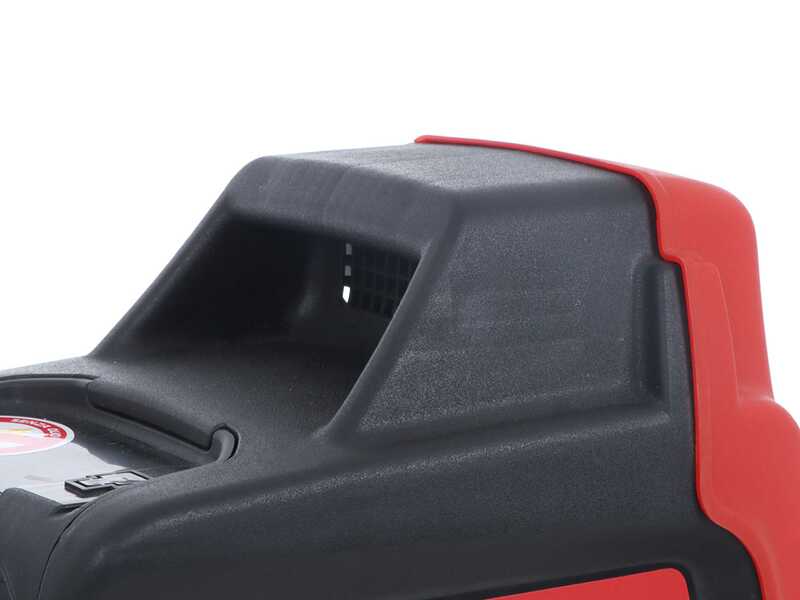

Other features

Schuko socket.

Upper lifting handle

Lower lifting handle

Anti-vibration rubber pads for greater stability

Condensate drain valve



Free items & Standard equipment

GeoTech accessories kit for air compressor - 5 tools

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blowing gun

- Air brushing gun

- Coiled air hose

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Extra features

The air compressor is shipped in its original packaging

Instructions manual included.
