Fiac AB 100/3 MC R3000 FC - Electric Belt Driven Air Compressor - 3 HP Motor- 100 lt

Questions & Answers (5)
ID: K607877

EAN: 6975532450217

MPN: 1129741196

7,1/10
After-sales assistance & Spare parts
Fiac AB 100/3 MC R3000 FC - Electric Belt Driven Air Compressor - 3 HP  Motor- 100 lt
Special offer
+100 sold
FREE
FIAC compressor maintenance kitFIAC compressor maintenance kit
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
10 bar
Air intake flow
300 L/min
Cylinder head rpm
1300 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Induction
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
AB 100/3 MC R3000 FC
Type:
Belt
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
100 L
Noise level:
95 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
3 HP
Silenced:
No
Air compressors engine speed:
1300
Power supply:
220 V electric
Pump data
Pump brand:
Fiac
Air intake flow:
300 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
No
Cylinders material:
Cast iron
Nominal power:
2200 W
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1300 RPM
Pulleys material:
Aluminium
Transmission protective cover:
Metal net
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Pressure regulator with condensate filter:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

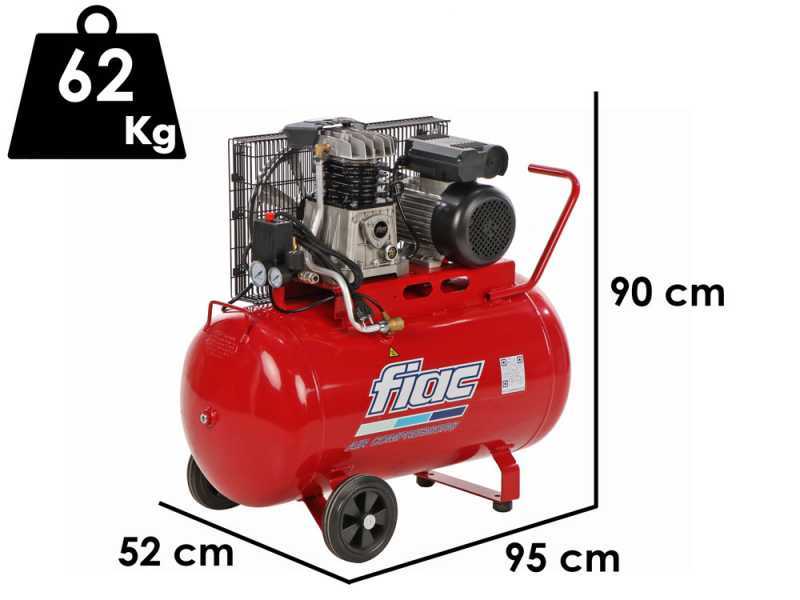

Product dimensions in cm (L x W x H):
95x52x90 cm
Net weight:
62 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
105x41x63 cm
Weight including packaging:
60.7 Kg
Assembly time:
5 minutes
Prompt Delivery
91 items in stock
Free Shipping
Estimated delivery: 16/05/2025 - 20/05/2025
Lowest price:
€ 551,88
-4 %
€ 529,80
Vat included
You're viewing:
Customers also viewed:
Description

Fiac AB 100/3 MC R3000 FC - Electric Belt Driven Air Compressor - 3 HP Motor - 100 lt

The Fiac AB 100/3 MC R3000 FC emerges as a competitive solution in the industrial electric compressor market, ensuring a perfect synergy between high performance, energy sustainability and durability.

Equipped with a 3 HP electric motor, it stands out for its superior belt drive, designed to operate at lower speeds.

This feature significantly extends the life of the compressor, minimising friction and wear.

It also helps to significantly reduce operating temperature and noise levels, thus improving the working environment for operators.

With a 100-litre tank and a delivery capacity of 300 litres of air per minute at a maximum pressure of 10 bar (145 psi), the Fiac AB 100/3 MC R3000 FC stands out in its class by offering a constant, high-quality flow of compressed air.

This property makes it extremely suitable for a wide variety of industrial applications, including machine shops and production lines, where a reliable source of compressed air is essential.

Despite its outstanding performance, the compressor boasts a low noise level at 95 dB(LWA), reflecting FIAC's focus on creating solutions that balance efficiency and comfort in the workplace.

For companies looking for a robust, reliable and durable solution to their air compression needs, the Fiac AB 100/3 MC R3000 FC is the ideal option.

Providing a significant increase in operational efficiency and productivity, this model also reduces maintenance and operational costs, making it an astute investment in optimising industrial operations.

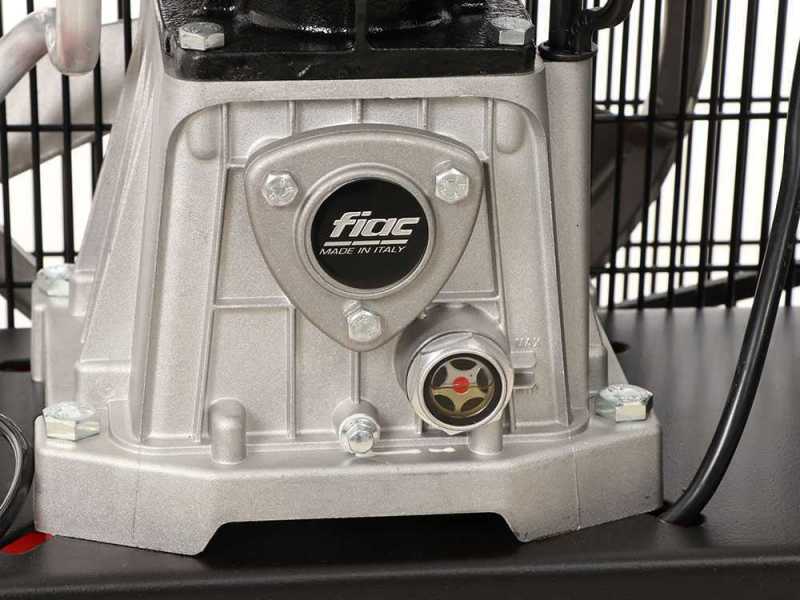

Technical Specifications

Pumping unit type: belt-driven

Litres of air sucked in: 300 L/ min

Pressure: 10 bar

Electric engine power: 3 HP

Tank: 100 litres

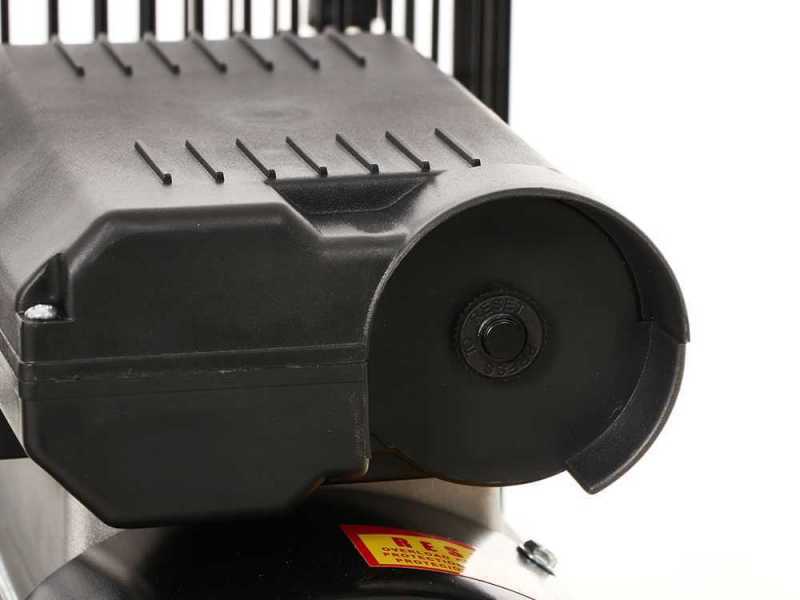

3 Hp Electric Induction Motor

Power supply: 230V

Power: 3 HP

The engine stands out for its very long service life and low need for maintenance.

This motor is in fact brushless, that is, the main component subject to wear in electric motors. It is exactly the absence of this component that gives the engine its proverbial durability.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

Pumping unit: Fiac AB 100/3 MC R3000 FC

Air displacement: 300 L/min
Head type:twin-cylinder with cast iron cylinders
Suction type:single stage
Lubrication:oil
Speed: 1300 rpm


The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter applied to the engine and cylinder head respectively.

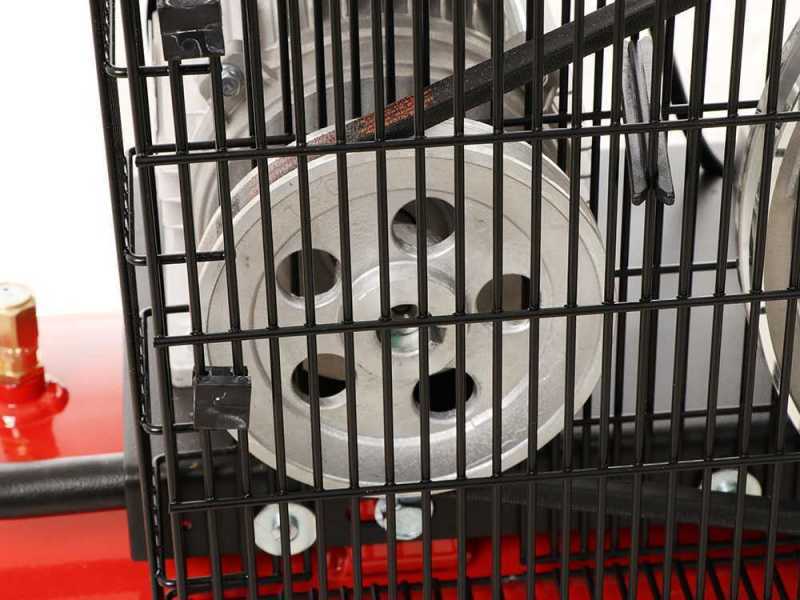

Belt Drive

The belt drive is an element that characterizes these FIAC compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

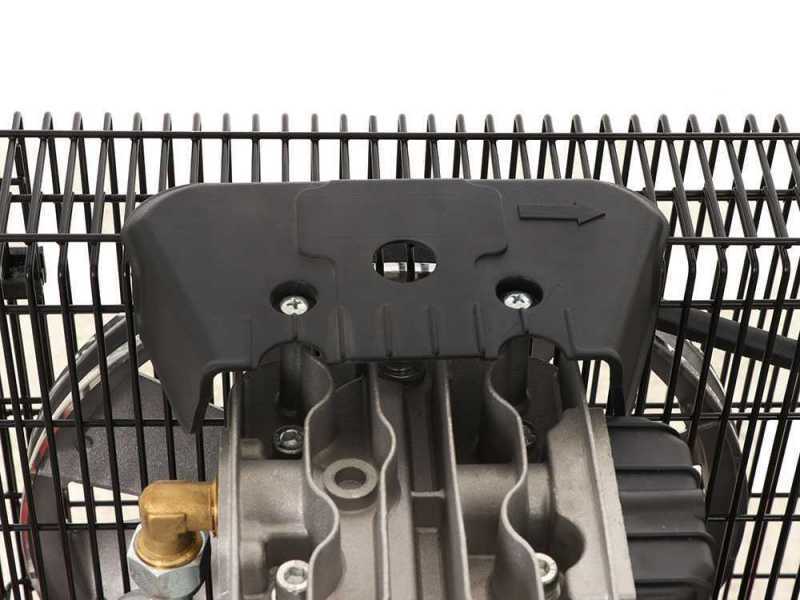

The grid protection is used to protect the belt and drive from any external objects that could damage it during operation by bumping into it. It also allows the status of the belt to be monitored at all times.

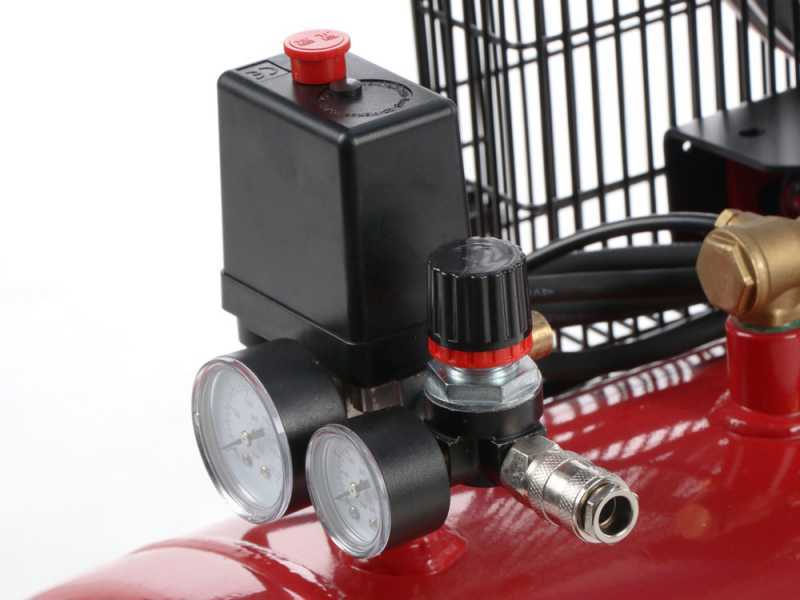

Tank and Controls

100 L large tank.

Maximum pressure: 10 bar

The air compressor is equipped with a pressure adjusting knob of the output air pressure which can be checked through a pressure gauge placed just below it, combined with an outlet.

The pressure switch, placed next to it, automatically reactivates the air compressor as soon as the pressure drops below a certain threshold.

It includes a single on/off button, a safety valve, that activates in case of excessive pressure in the tank, and the internal tank pressure gauge.

Equipped with two pressure gauges:
- tank pressure
- output pressure adjustable by regulator

Equipped with female quick release coupling as standard

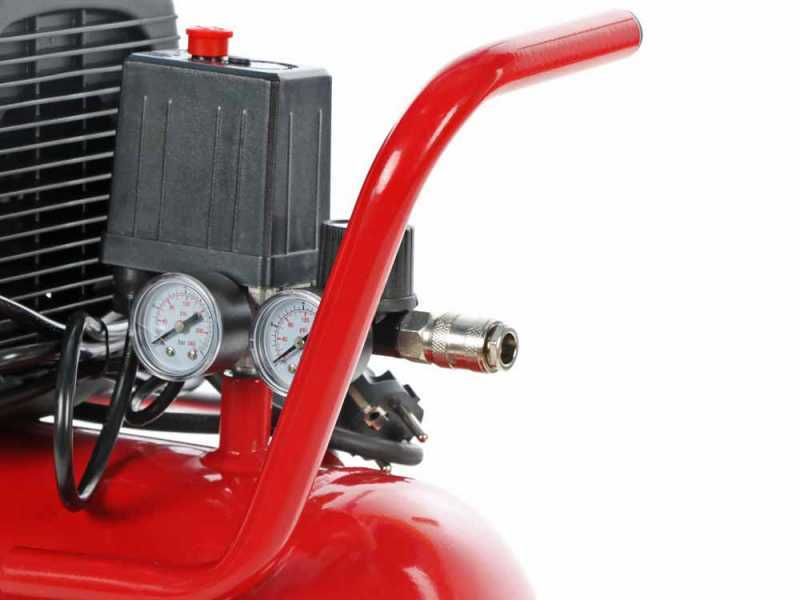

Other Features

Weight: 62 kg

Equipped with sturdy front handle for easy grip.

Sturdy wheels.

Rubber feet which help stabilise the product.

Tank cap.

Free items & Standard equipment

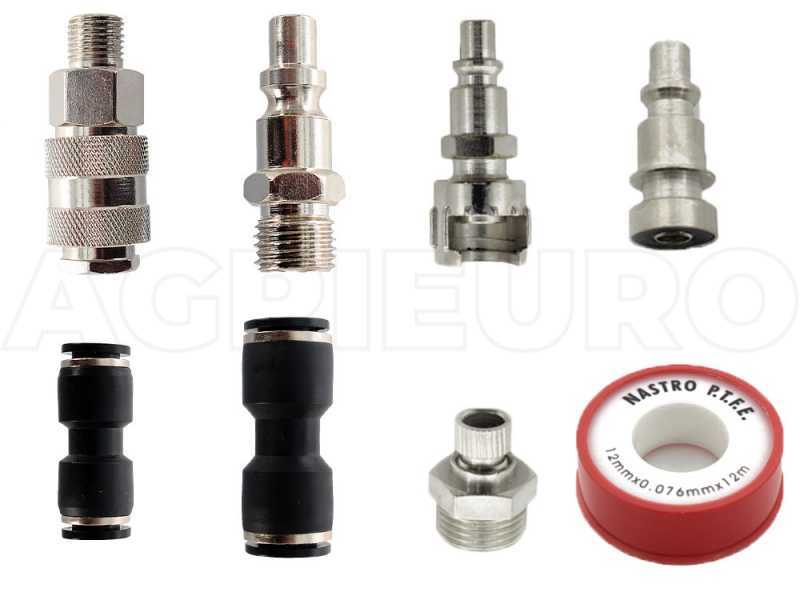

1° GIFT: FIAC / Michelin Air Compressor Maintenance Kit

The FIAC/ Michelin air compressor maintenance kit includes:

  • Replacement air filter for the head
  • Replacement belt
  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower discharge valve
  • Teflon roll, ideal for the main maintenance operations

Standard Equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
