Famag IM 50/400 1 Speed - Spiral Mixer 50 kg three-phase

Questions & Answers (2)
ID: K500472

EAN: 8051764071135

MPN: IM50/400

10,0/10
After-sales assistance & Spare parts
Famag IM 50/400 1 Speed - Spiral Mixer 50 kg three-phase
+40 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Dough Capacity
50 Kg
Tank capacity
53 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
3 Kg
Operating mode
Three-phase 400 V
Nominal power
3 HP
Motor type
Induction
Electronic timer
Yes
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 50 / 400 three phase
Body material:
Enamelled steel
Typology :
Wheeled
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
50 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
53 L
Bowl diameter:
50 cm
Bowl height:
30 cm
Operating mode:
Three-phase 400 V
Flour quantity:
33 Kg
Water quantity:
17 L
Hourly output:
150 kg/h
Minimum dough:
3 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
90 rpm
Bowl - rpm (min):
11 rpm
Bowl - rpm (max):
11 rpm
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Power supply:
400 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Oversized double chain
Cutting data
Recommended for::
Pizza
Recommended for::
Bread
Recommended for::
Focaccia bread
Recommended for::
Breadsticks
Recommended for::
Piadina
Recommended for::
Taralli
Recommended for::
Biscuits
Recommended for::
Egg mixtures
Recommended for::
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
Yes
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel (increased diameter: 25 mm)
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
85x53x87 cm
Net weight:
120 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
125 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
Suggested price:
€ 2.113,74
€ 2.050,65
VAT Included
You're viewing:
Customers also viewed:
Description

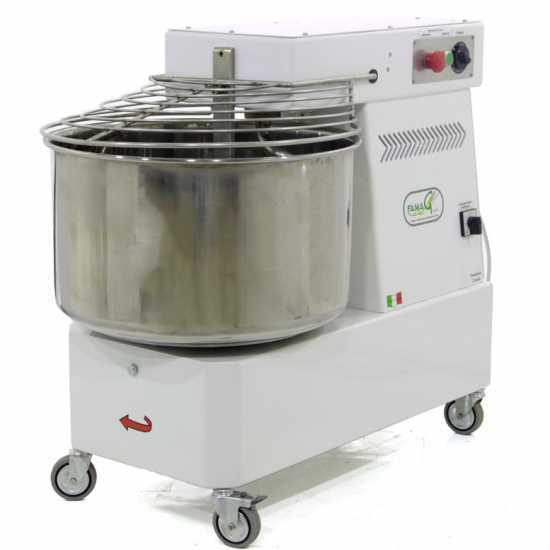

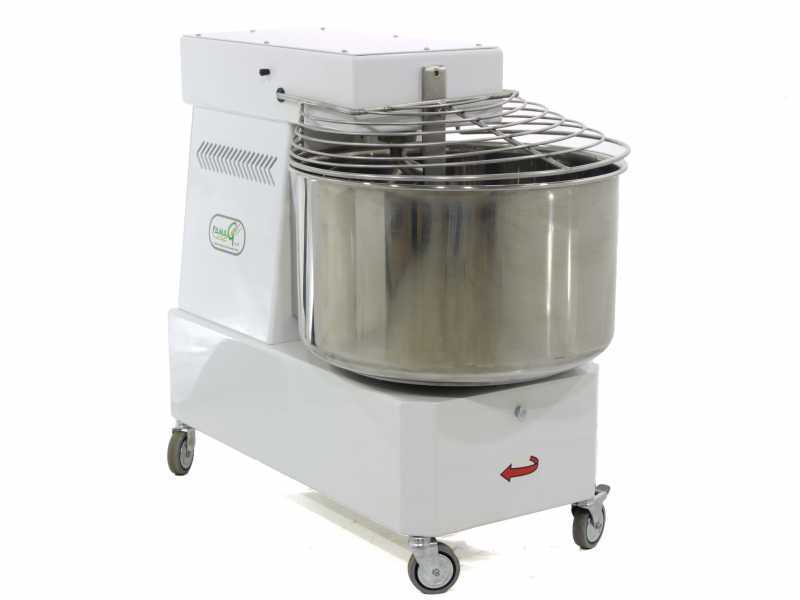

FAMAG mod. IM 5 professional three-phase spiral mixer (50 kg)

The FAMAG IM 50 electric three-phase dough mixer is used to make different types of dough, like bread, pizza, bakery, etc...

This is equipped with timer and transport wheels with brake.

The components in contact with dough are made of stainless steel.

The painting is made with epoxy powder for food.

Maximum dough capacity: 50 kg

It is a highly professional end product suitable to large professional activities.

The dough mixer works with 2 combined rotations of the bowl and the hook:

1. the bowl rotates on itself with regular motion;

2. the spiral hook, immersed into the dough, rotates on its own axis;

These combined motions transmit strength to the dough and make the Famag spiral mixer ideal for hard dough like pizza or bread.

Main features

  • dough capacity: 50 kg
  • flour: 33 kg
  • water: 17 L
  • hourly output: 150 kg/h
  • minimum guaranteed dough: 1 kg
  • 25 mm increased stainless steel hook

Large dimensions, big sturdiness and product weight: 120 kg

Engine power: 3 HP

Equipped with TIMER

All components in contact with dough are made of stainless steel:

  • bowl
  • spiral
  • central piston
  • protection grid

New enhanced model:

- Optimized spiral
- Sturdier dough cutter
- Larger bowl 500 x 300
- Reinforced frame
- More advanced mechanics
- Less heating
- Increased silence

Additional features

The dough mixer is equipped with 4 rotating wheels, the front ones are provided with brake.

Internal transmission with double oversized chain (highly resistant, very reliable and long-lasting).

This machine is suitable to work uninterruptedly, every day.

The frame is made of thick steel to eliminate vibrations during processing.

Enameling with 100% epoxy powders for food.

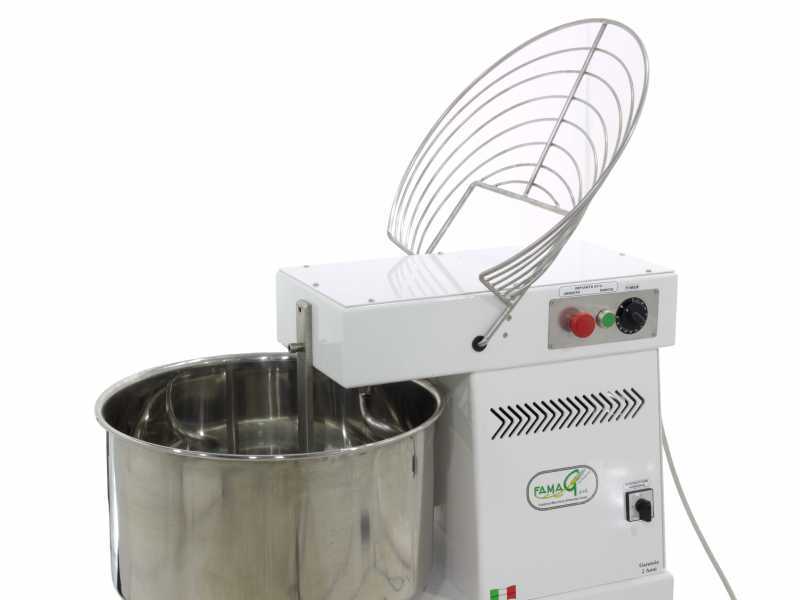

LIFTABLE stainless steel protection grid.

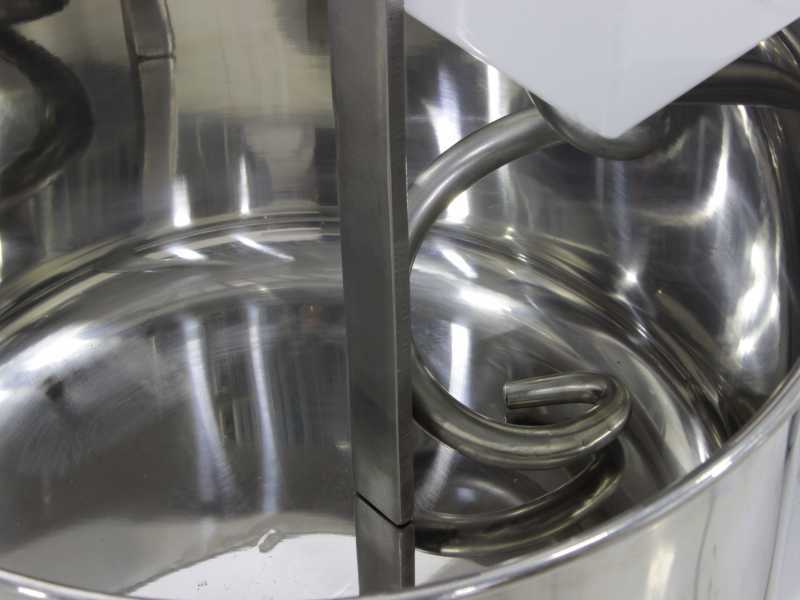

The special shape of the spiral enables to minimize processing times without overheating the dough.

  • CE safety microswitch
  • TIMER knob
  • general switch
  • 24 V internal electrical system (low voltage)

Focus on the general starting switch

  • CE compliant accident prevention system
  • Power supply: 400 V (50/60 Hz)
  • CE certified
  • Weight: kg 120
  • Size: 85 x 53 x 87 cm

Focus on the standard supplied professional three-phase socket

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

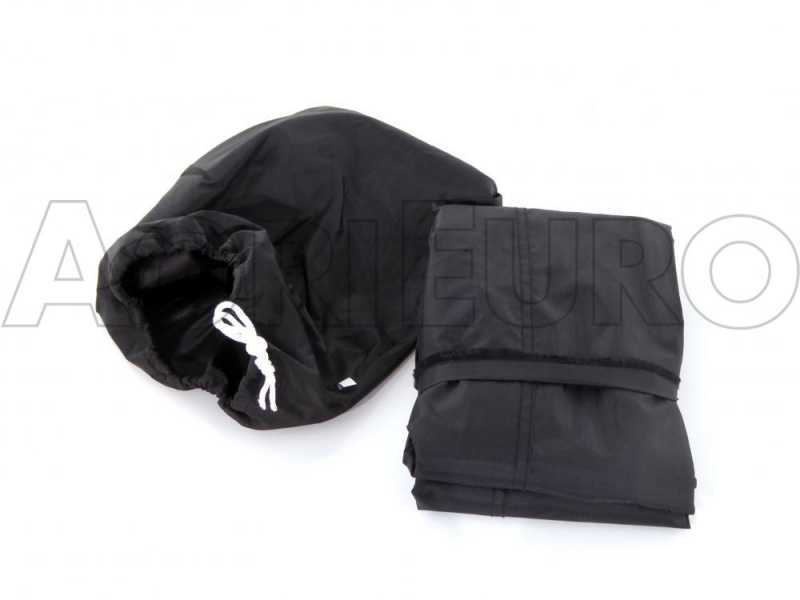

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.

Gifts and extra features

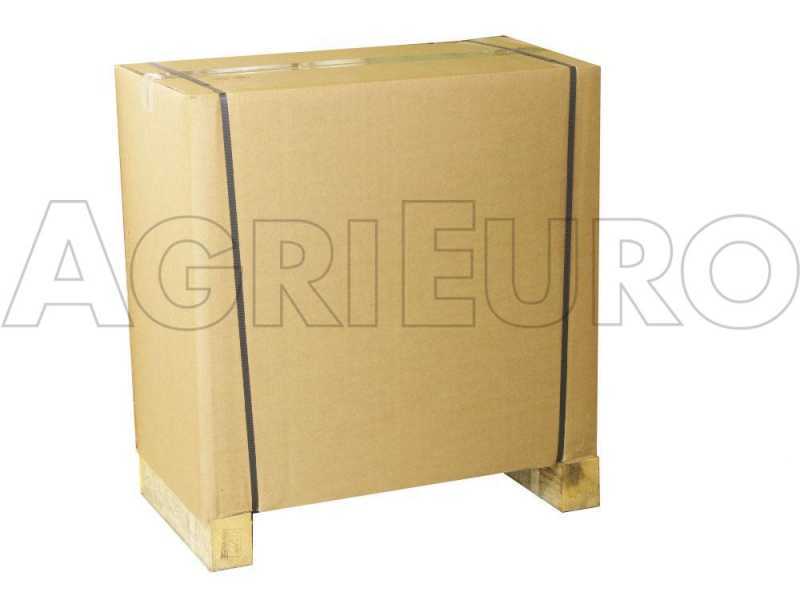

The spiral mixer will be shipped in its original packaging, along with the instructions manual.
