Famag IM 50/230 1 Speed - Spiral Mixer 50 Kg

Questions & Answers (2)
ID: K502867

EAN: 8051764070817

MPN: IM50/230

10,0/10
After-sales assistance & Spare parts

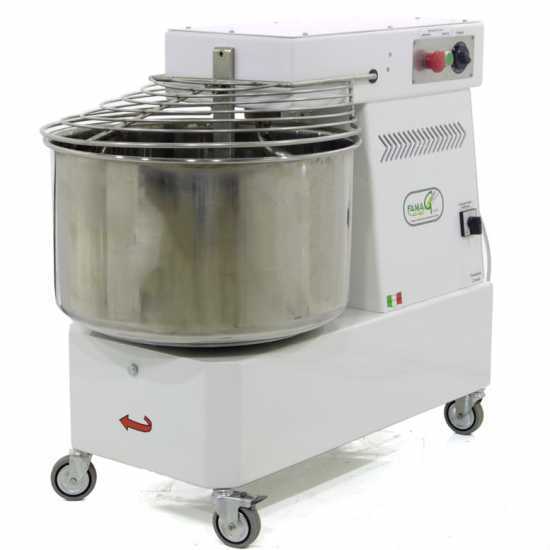

Famag IM 50/230 1 Speed - Spiral Mixer 50 Kg
+60 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Technical data
Dough Capacity
50 Kg
Tank capacity
53 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
3 Kg
Operating mode
Single-phase 230 V
Nominal power
3 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 50 - 230V single-phase
Body material
Enamelled steel
Typology
Wheeled
Medium doughs
Hard doughs
Mixing head type
Fixed
Dough Capacity
50 Kg
hydration max
65 %
Speed levels
1
Tank capacity
53 L
Bowl diameter
50 cm
Bowl height
30 cm
Operating mode
Single-phase 230 V
Flour quantity
33 Kg
Water quantity
17 L
Hourly output
150 kg/h
Minimum dough
3 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
90 rpm
Bowl - rpm (min)
11 rpm
Bowl - rpm (max)
11 rpm
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
3 HP
Nominal power (W)
2200 W
Power supply
220 V electric
Manufacturing country
Italy
Transmission data
Transmission type
Oversized double chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Electronic timer
Yes
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
85x53x87 cm
Net weight
120 Kg
Packaging
Original packaging
Weight including packaging
125 Kg
Assembly time
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/09/2025 - 12/09/2025
Suggested price:
€ 2.345,96
€ 2.111,37
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

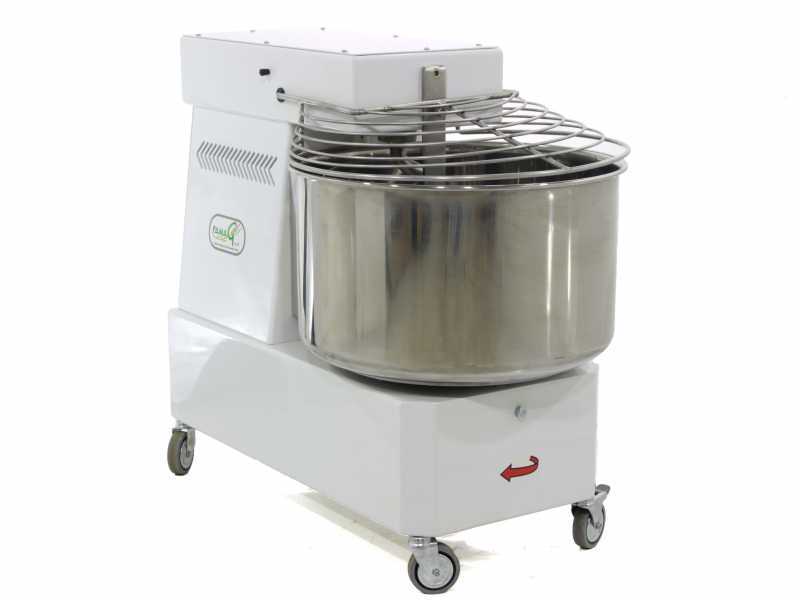

FAMAG IM 50 heavy-duty single-phase dough mixer (50 kg)

The FAMAG IM 50 single-phase dough mixer is a machine suitable to make several types of dough, especially soft doughs like bread, pizza, piadinas, etc.

The components in contact with food are all made of stainless steel.

It is provided with timer and transport wheels with brake.

Painting is made with food-grade electrostatic epoxy powder.

Dough capacity: up to 50 kg

Heavy-duty machine, the ideal tool for professional businesses such as bakeries, pastry labs and so on.

This mixer combines 2 different rotations (hook and bowl):

1. the bowl rotates on itself with a regulare motion;

2. the spiral hook, which mixes the dough, rotates on its own axle

The combination of these two motions exercise a great power onthe dough, making the Famag spiral dough mixer suitable also for thicker doughs, such as pizza or bread.

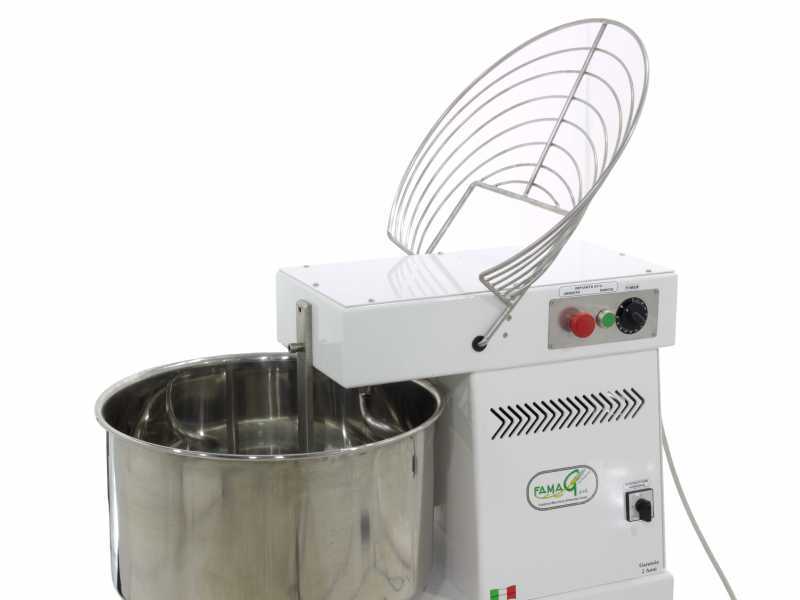

Main features

  • Dough capacity: 50 kg
  • Flour: 33 kg
  • Water: 17 lt
  • Dough output: 150 kg/h
  • Minimum dough guaranteed: 1.0 kg
  • Stainless steel spiral hook with increased diameter: 25 mm

Large size, high sturdiness and heavy weight:

Rated output: 3 HP

The spiral mixer includes a timer as standard equipment.

All dough-processing components are made of stainless steel:

  • bowl
  • spiral mixing hook
  • protection grid
  • central breaker bar

New, improved model:

  • Improved spiral hook
  • Sturdier breaker bar
  • Larger bowl: 500 x 300
  • Reinforced frame
  • Advanced mechanisms
  • Reduced heating
  • Reduced noise levels

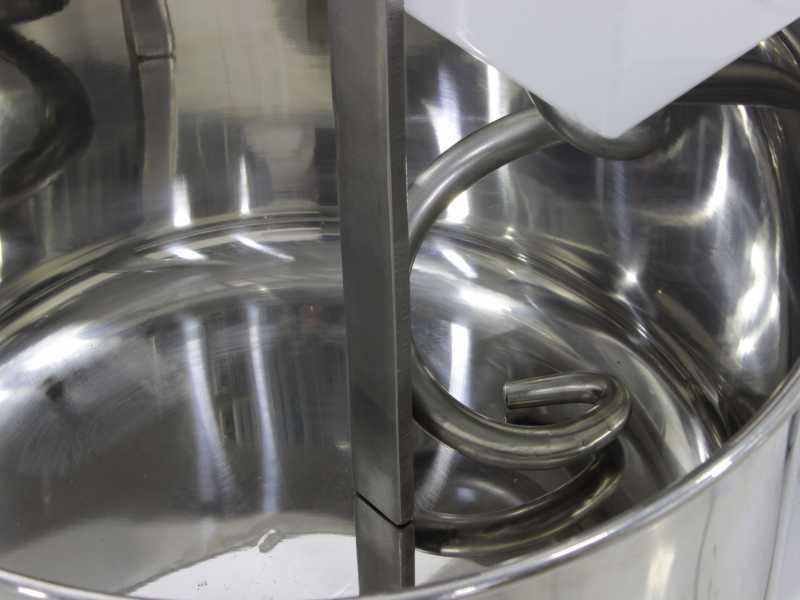

Further features

This dough mixer is equipped with four 360° swiveling wheels (front wheels equipped with brake).

The oversize double chain transmission is highly resistant and long-lasting.

This havy-duty machine can work non-stop 24/7.

The frame is made of very thick steel, in order to eliminate any vibration while the machine is operating.

Coating with non-toxic food-grade epoxy powders.

The protection grid CAN BE LIFTED.

The spiral shape of the hook allows to reduce mixing time to a minimum, without over-heating the dough.

  • CE safety microswitch
  • timer knob
  • main power switch
  • low-voltage electric system 24V

Main power switch detail

  • CE-compliant safety system
  • Power supply: 230 V - 50/60 Hz
  • CE certification
  • Weight: 120 kg
  • Dimensions: 85 x 53 x 87 cm (LxWxH)

Professional Schuko plug detail (standard)

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

COMPLIMENTARY: Professional protection and storage cover XL

Ideal to protect your product when not in use.

This protection cover is fast and easy to apply; in just a few seconds your machine is protected from dust and humidity.

Easy to fold and store in its box, it takes up minimal space.

Free gifts and standard equipment

The spiral mixer will be shipped in its original packaging, along with the instructions manual and original Famag apron.
