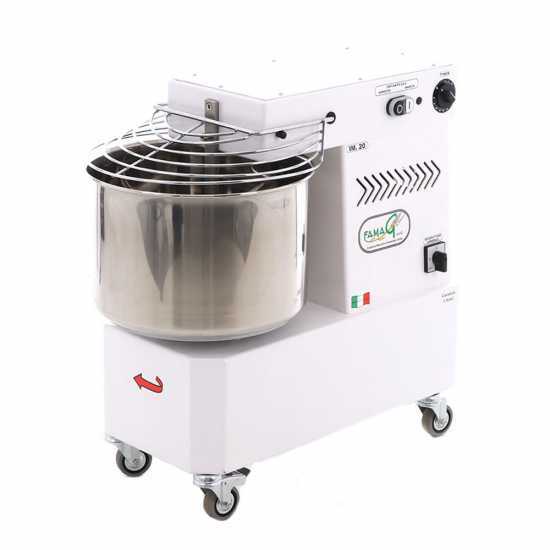

Famag IM 20/230 New 1 Speed - Spiral Mixer 18 Kg

Questions & Answers (1)
ID: K600403

EAN: 8051764071197

MPN: IM20/230

10,0/10
After-sales assistance & Spare parts
Famag IM 20/230 New 1 Speed - Spiral Mixer 18 Kg
+80 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 21/04/2026 - 23/04/2026
Suggested price:
€ 1.378,22
€ 1.240,40
Vat included
Technical data
Spiral hook
yes
Dough Capacity
18 Kg
Tank capacity
21 L
Speed levels
1
hydration max
65 %
Medium doughs
yes
Hard doughs
yes
Minimum dough
1 Kg
Operating mode
Single-phase 230 V
Nominal power
1.0 HP
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 20/230 New 1 Velocità
Body material
Enamelled steel
Typology
Wheeled
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Fixed
Dough Capacity
18 Kg
hydration max
65 %
Speed levels
1
Tank capacity
21 L
Bowl diameter
36 cm
Bowl height
24 cm
Operating mode
Single-phase 230 V
Flour quantity
12 Kg
Water quantity
6 L
Hourly output
54 kg/h
Minimum dough
1 Kg
Spiral - rpm (min)
80 rpm
Spiral - rpm (max)
80 rpm
Bowl - rpm (min)
10 rpm
Bowl - rpm (max)
10 rpm
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
1.0 HP
Nominal power (W)
750 W
Power supply
220 V electric
Manufacturing country
Italy
Transmission data
Transmission type
Oversized double chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Electronic timer
Yes
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
66x38x70 cm
Net weight
65 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
66x40x71 cm
Weight including packaging
70 Kg
Assembly time
Assembled

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Famag IM20 - 230V Heavy-duty Spiral Mixer

FAMAG IM 20 electric single-phase spiral mixer represents the ideal equipment for processing different types of dough, especially intended for processing soft dough like bread, pizza, pastry, piadas, and so on.

This spiral mixer is particularly intended for professional catering businesses, rotisseries, pizzerias and for those who need to process large amounts of dough at a time.

Despite its compact size it features a great power and efficiency with low power consumption and low noise. Provided with a fixed head, this spiral mixer is designed for companies that require sturdy and reliable unit thanks to the internal transmission consisting of high-resistant double chain.

This machine is equipped with standard-supplied timer and pivoting wheels, which ensure easy carrying and transport.

The dough mixer allows processing 12 Kg of dry flour and 6 litres of water.

This spiral mixer is equipped with automatic stop device that stops its running whether the stainless steel grid is raised during use.

The components in contact with the dough are made of stainless steel and the coating is carried out with food-grade epoxy powder.

Max kneading capacity: 18 Kg

Highly professional range

Product entirely realized in Italy, resulting in guarantee of reliability and high-quality materials and structure.

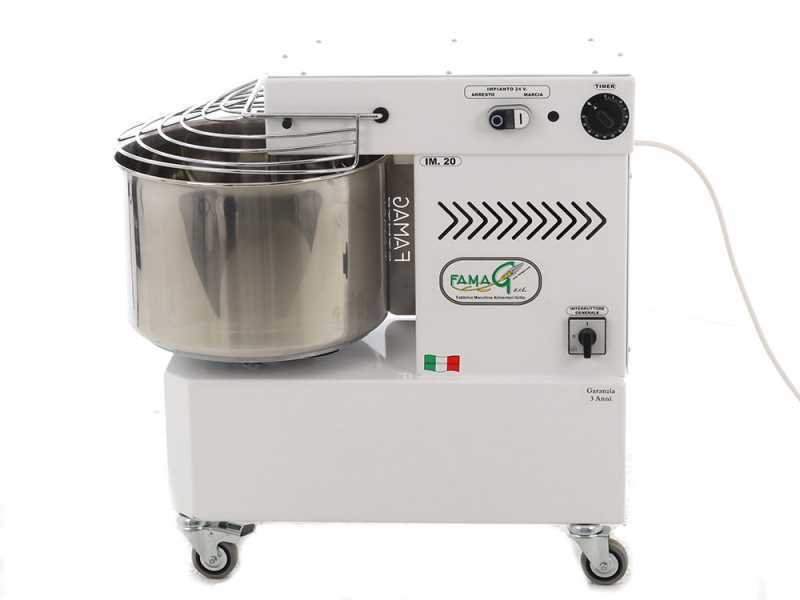

Main specifications

The spiral mixer frame is made of high-thickness steel, specifically intended to prevent any possible vibration during the operation. The transmission consists of double chain and it stands out for the high sturdiness and long durability over time.

This brand-new model of Famag Grilletta professional spiral mixer has been upgraded with central dough breaker, which is fully realized in stainless steel.

Raising protection grid made of stainless steel

The particular spiral shape allows minimizing the processing time required without overheating the dough

All the components that are in contact with dough are made of stainless steel:

  • Bowl
  • Spiral
  • Protection grid
  • Central dough breaker shaft

Equipped with no. 4 360° castor wheels: two of them, the front wheels are provided with brake.

Food-grade epoxy powder finishing

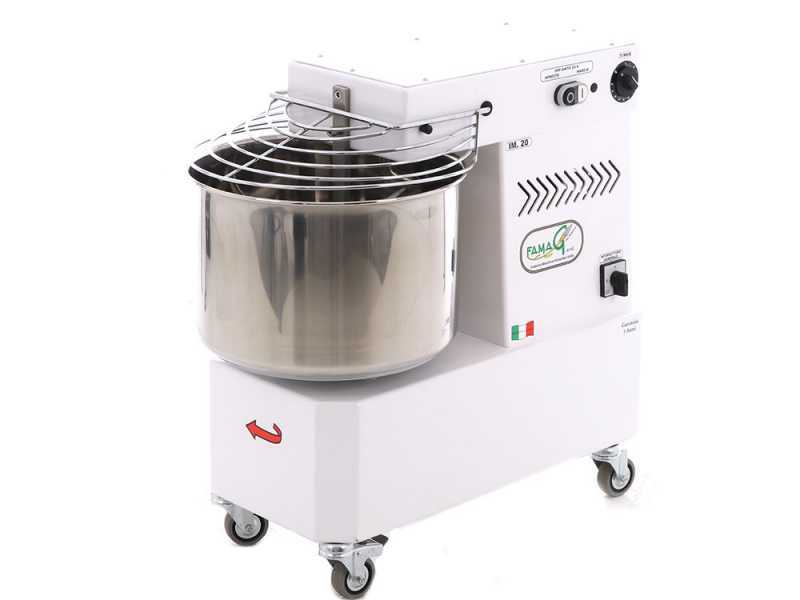

Technical specifications

Heavy-duty spiral mixer: ideal for processing any type of dough; soft, elastic (bread, buns, pizza, pasta, cookies, Christmas cakes) and dough with special flours such as gluten, bran, durum wheat, stone ground flour, and so on.

  • Dough capacity: 18 Kg
  • Flour: 12 Kg
  • Water: 6 L
  • Hourly production: 36 Kg/h
  • Minimum guaranteed dough: 1 kg
  • Low-voltage electric system 24 V
  • Accident-prevention system "CE”-compliant
  • “CE” Safety micro-switch
  • Transmission: 3/8 double chain + belt
  • Frame: MM3 reinforced
  • Bowl overall size: 360 x 240 H
  • Power supply: 230 V - 50 Hz
  • CE Declaration
  • Weight: 65 kg
  • Size: 66X38x70 cm
  • Bowl size: 360 x 240 mm (23 L)
  • Schuko socket

The spiral mixer is equipped with pivoting wheels with brake.

This spiral mixer is particularly intended for professional catering businesses, rotisseries, pizzerias and for those who need to process large quantity of dough at a time.

This spiral mixer model allows kneading 18 Kg of dough at a time.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Complimentary: Heavy-duty Protective Cover Cloth

Essential for protecting your machine when not in use.



This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Free items / Extra features

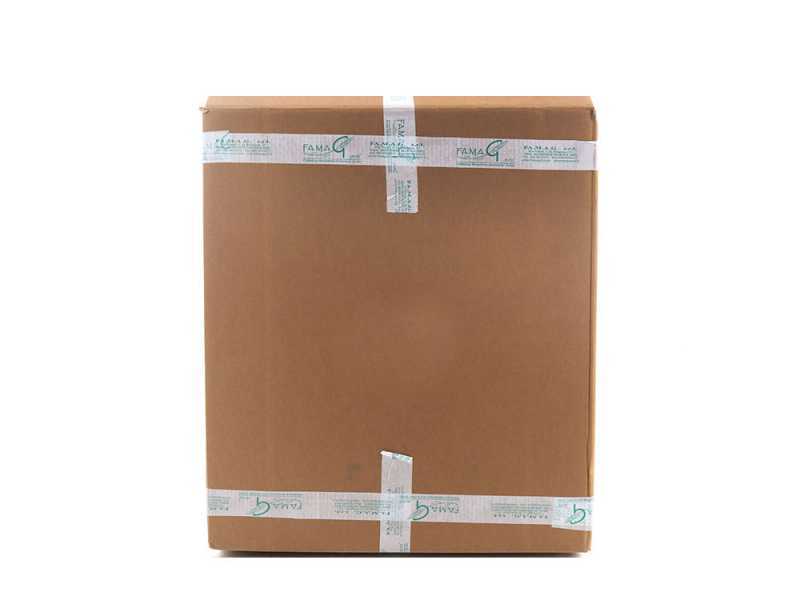

The spiral mixer is shipped in its original packaging along with the Instructions Manual.
