Famag IM 20/230 10 Speed HH - 20 Kg High Hydration Spiral Mixer

Questions & Answers (7)
ID: K610462

EAN: 8051764071432

MPN: IM20/230/10V/HH

10,0/10
After-sales assistance & Spare parts
Famag IM 20/230 10 Speed HH - 20 Kg High Hydration Spiral Mixer
+100 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Prompt Delivery
22 items in stock
Free Shipping
Estimated delivery: 16/04/2026 - 20/04/2026
€ 1.453,95
Vat included
Technical data
Spiral hook
yes
High-hydration
yes
Dough Capacity
18 Kg
Tank capacity
20 L
Speed levels
10
Bowl type
Stainless steel fixed bowl
hydration max
95 %
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Minimum dough
1 Kg
Operating mode
Single-phase 230 V
Nominal power
1 HP
Induction
Speed reverser
Yes
Electronic timer
Yes
Bowl led light
Yes
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 20/230 10 Velocità HH
Body material
Enamelled steel
Typology
Wheeled
High-hydration
yes
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Fixed
Dough Capacity
18 Kg
hydration max
95 %
Speed levels
10
Tank capacity
20 L
Bowl type
Stainless steel fixed bowl
Bowl diameter
36 cm
Bowl height
21.5 cm
Operating mode
Single-phase 230 V
Hourly output
60 kg/h
Minimum dough
1 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
248 rpm
Bowl - rpm (min)
5 rpm
Bowl - rpm (max)
25 rpm
Speed reverser
Yes
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
1 HP
Nominal power (W)
750 W
Power supply
220 V electric
Transmission data
Transmission type
Chain + Belts
Cutting data
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Electronic timer
Yes
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Lifting safety grid
Stainless steel
Bowl led light
Yes
Bowl led light
yes
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
68x40x69 cm
Net weight
60 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
72x40x72 cm
Weight including packaging
65 Kg
Assembly time
Assembled

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Famag IM 20/230 10 V HH Spiral Mixer

The Famag IM 20/230 10 Speed HH spiral mixer is a robust and highly efficient machine, ideal for preparing high hydration doughs.

With a 20-litre bowl capacity and a minimum dough capacity of 1 kg, it is designed to meet the needs of both professional and home users.

Its compact structure and functional design make it one of the smallest and most versatile spiral mixers available on the market, maintaining a nominal power of 1 HP.

Characterised by a double chain and high-resistance belt transmission, the mixer offers exceptional durability over time, without requiring maintenance.

The asynchronous motor and vector inverter technology allow precise control of the spiral speed, which can vary from 90 to 248 RPM. An additional advantage is the presence of reverse gear, useful for preparing Biga and ensuring excellent mixing of ingredients.

The Famag IM 20/230 10 Speed HH is also equipped with a practical timer and a LED light integrated into the bowl, for optimal illumination during work.

Thanks to the non-toxic epoxy powder coating and stainless steel bowl, spiral, and grid, the machine is durable and easy to clean. The wheels allow easy movement, making the mixer convenient and versatile in any work environment.

Distinctive features:

  • Bowl capacity 20L: Excellent for doughs up to 20 kg, ideal for domestic and professional use.

  • 1HP Asynchronous motor: Powerful and reliable, ensures excellent performance with reduced consumption.

  • Reverse gear: Useful function for preparing complex doughs like Biga.

  • 10 adjustable speeds: Allows precise and versatile management of the dough processing speed.

  • Vector inverter technology: Ensures precise speed control and quiet operation.

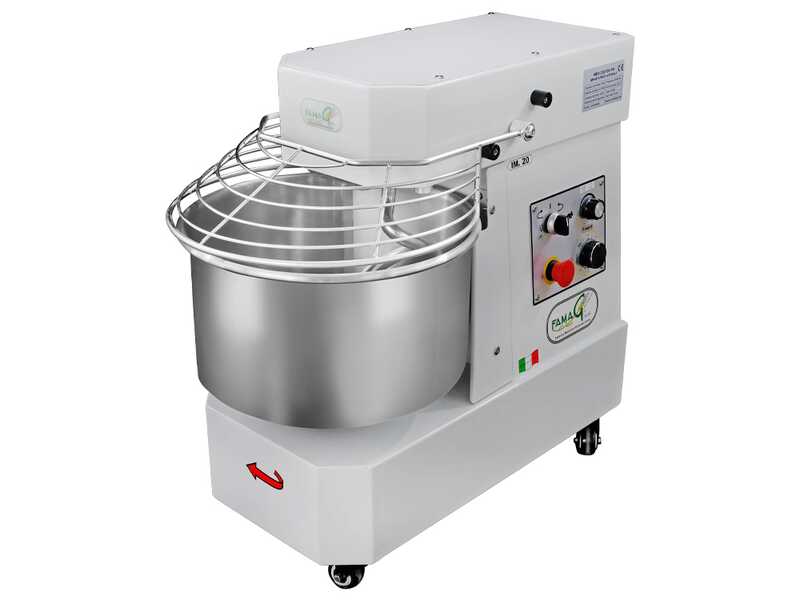

Main features

The spiral mixer Famag is made of high-thickness steel, which primarily functions to eliminate vibrations during processing. The transmission is made with a double chain and high-resistance belt.

The parts that come into contact with the dough are made of stainless steel:

  • Bowl
  • Grid
  • Spiral

The protective grid is liftable.

The safety system allows automatic motor stop as soon as the grid is lifted.

The particular shape of the spiral allows for minimal processing times without overheating the dough.

Dough breaker bar with notch.

The mixer is equipped with 10 speeds that allow the bowl and spiral to rotate, in both clockwise and counterclockwise directions.

The bowl and spiral rotate simultaneously. Through the switch, it is possible to choose the rotation direction between clockwise and counterclockwise.

The mixer is equipped with a timer from 0 to 60 minutes, allowing you to manage processing times.

Red stop button.

The LED light illuminates the bowl during operation.

Swivel wheels with brake (on the front wheels).

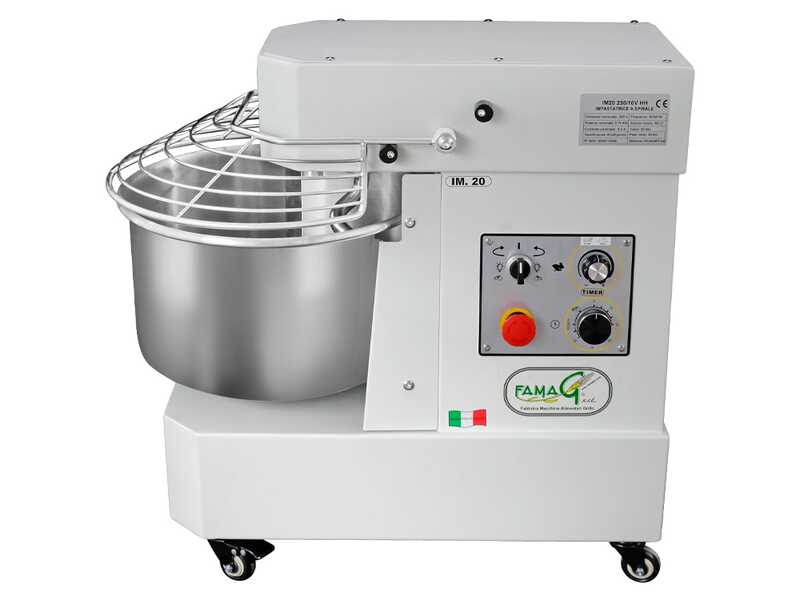

Technical specifications

Famag IM 20/230 10V HH, has the following features:

  • 10 speeds;
  • Reverse gear;
  • Vector inverter technology;
  • Minimum dough: 1 Kg;
  • Fixed head;
  • Non-toxic epoxy powder coating;
  • Stainless steel grid, bowl, and spiral;
  • Dough breaker bar with notch;
  • 230V single-phase voltage;
  • 1 HP / 0.75 KW nominal power;

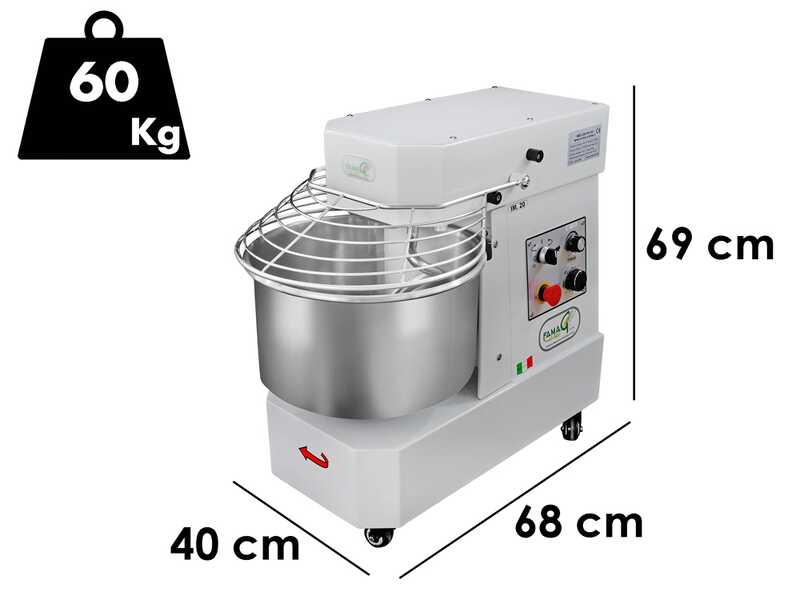

  • Dimensions: 68x40x69 cm;
  • Weight: 60 Kg;
  • Spiral speed: 90-248 RPM;
  • Max bowl speed: 25 RPM;
  • Bowl capacity: 20 L
  • Bowl dimensions: 360 x 215 mm ;
  • EU Schuko cable;
  • Asynchronous motor;
  • Double chain and high-resistance belt transmission

The machine is equipped with the latest generation Brushless (asynchronous) motor that ensures reduced consumption and very high thermal efficiency

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Complimentary: Heavy-duty Protective Cover Cloth

Essential for protecting your machine when not in use.



This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Free items included

The mixer is shipped in its original packaging, complete with user instructions.

Included as a gift in the package is a handy Famag branded apron.
