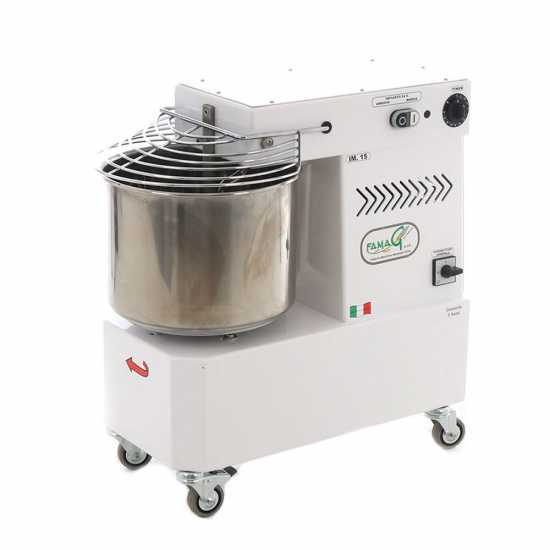

Famag IM 15/230 1 Speed - Spiral Mixer 12 Kg

Questions & Answers (1)
ID: K600400

EAN: 8051764071159

MPN: IM15/230

10,0/10
After-sales assistance & Spare parts
Famag IM 15/230 1 Speed - Spiral Mixer 12 Kg
Special offer
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Dough Capacity
12 Kg
Tank capacity
16 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
1 Kg
Operating mode
Single-phase 230 V
Nominal power
1 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 15/230 1 Velocità
Body material:
Enamelled steel
Typology :
Wheeled
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
12 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
16 L
Bowl diameter:
32 cm
Bowl height:
24 cm
Operating mode:
Single-phase 230 V
Flour quantity:
8 Kg
Water quantity:
4 L
Hourly output:
36 kg/h
Minimum dough:
1 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
80 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
10 rpm
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Oversized double chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
Yes
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
64x34x70 cm
Net weight:
60 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
64x40x72 cm
Weight including packaging:
65 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 20/06/2025 - 24/06/2025
Lowest price:
€ 1.127,42
-10 %
€ 1.014,38
Vat included

You're viewing:
Customers also viewed:
Description

FAMAG IM 15 - 230 V heavy-duty dough mixer

The FAMAG IM 15 electric spiral mixer is a machine suitable to make several types of dough, above all, the soft one like bread, pizza, piadas, etc.

The components in contact with food are all made of stainless steel.

It is provided with timer and transport wheels with brake.

Painting is made with epoxy powder for food.

Supplied timer and wheels.

Dough capacity: 12 kg

Highly professional level.

This product was made entirely in Italy, which translates to high-quality materials and components.

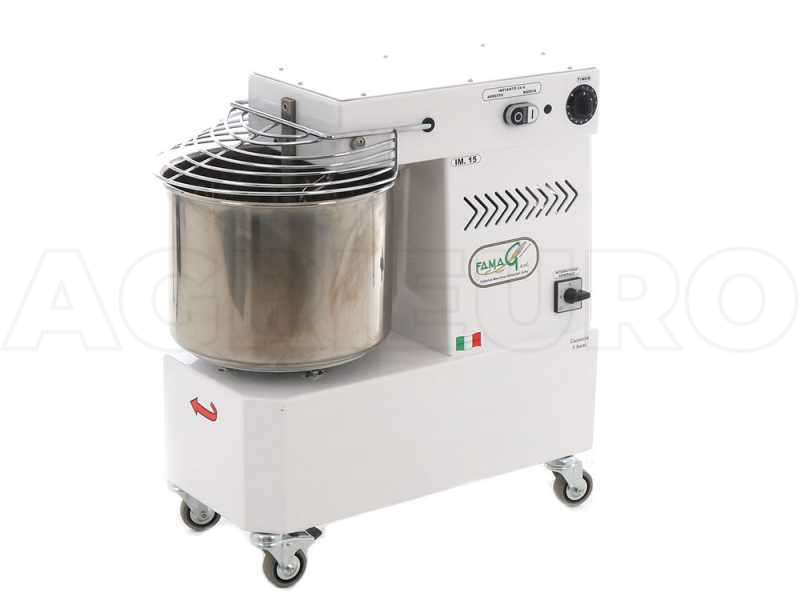

Main features

The spiral mixer frame is made of painted steel and it's coated with non-toxic food-safe paint to protect it against corrosion, chemicals, oil and grease.

The double chain transmission 3/8 with belts is highly resistant and long-lasting.

Liftable stainless steel protection grid.

The special spiral arm shape allows speeding up the job and prevents the dough from overheating.

All the dough processing components are made of stainless steel:

  • bowl
  • spiral mixing arm
  • protection grid
  • central dough-anchoring shaft

Equipped with 360° rotatable wheels, the front ones are provided with brake.

Coated with non-toxic food-safe paint.

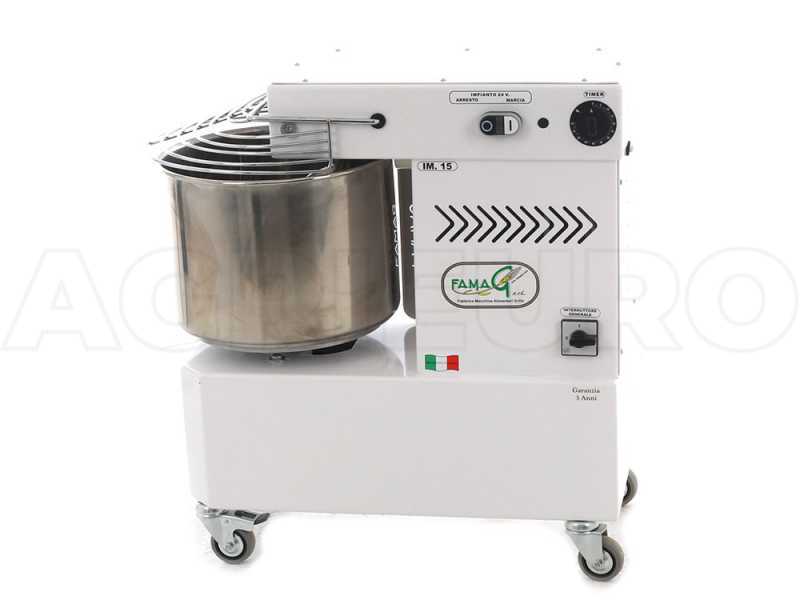

Technical specifications

Professional spiral mixer: ideal for any type of hard, soft, elastic dough (bread, flat bread, pizza, pasta, biscuits, panettone) and for dough of special flours such as gluten, re-milled semolina, durum wheat, stone-ground flour etc.

  • dough capacity: 12 kg
  • flour: 8 kg
  • water: 4 l
  • dough output: 36 kg/h
  • minimum dough guaranteed: 1.0 KG
  • spiral diameter: 20 mm
  • low voltage electric system 24V
  • CE compliant safety system
  • frame: reinforced MM3
  • CE safety microswitch
  • power supply: 230 V - 50 Hz
  • CE certification
  • weight: 60 kg
  • bowl size: 320 x 240 H

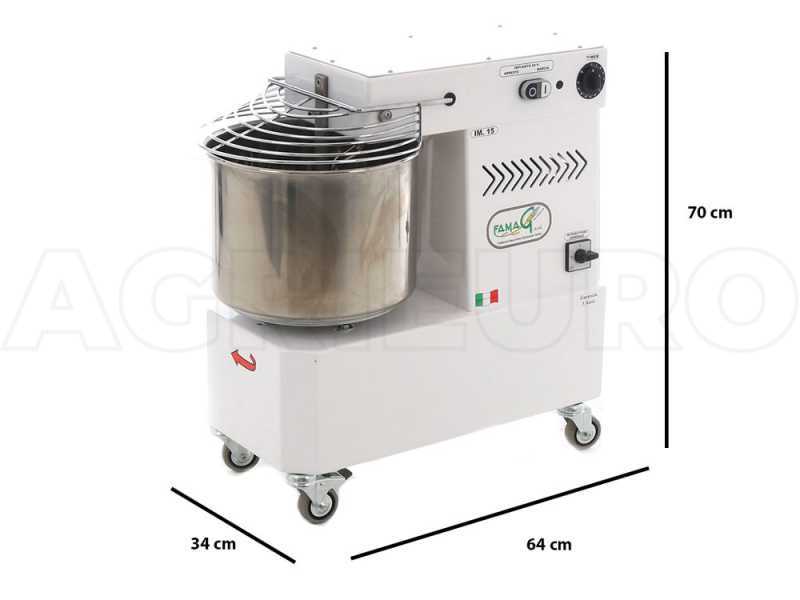

  • size: 64x34x70 cm
  • Schuko socket

The spiral mixer is equipped with swiveling wheels with brake.

This model was designed to be used in professional kitchens, delis, pizzerias and in any company that needs to produce fairly good quantities of dough.

This spiral mixer enables to mix 12 kg of dough at a time.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Complimentary: Heavy-duty Protective Cover Cloth

Essential for protecting your machine when not in use.



This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Gifts and extra features

The spiral mixer is shipped in its original package with instructions manual included.
