Famag IM 10/230 10 Speed Black - Spiral Mixer 10 Kg

Questions & Answers (1)
ID: K500832

EAN: 8051764070176

MPN: IM10/230/10V NERO

10,0/10
After-sales assistance & Spare parts
Famag IM 10/230 10 Speed Black - Spiral Mixer 10 Kg
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Available versions
Technical data
Dough Capacity
10 Kg
Tank capacity
13 L
Speed levels
10
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
0.5 Kg
Operating mode
Single-phase 230 V
Nominal power
0.75 HP
Induction
Offset breaker bar
Yes
Compact for countertop use
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 10/230 10 Velocità Nero
Body material
Enamelled steel
Typology
Benchtop
Medium doughs
Hard doughs
Mixing head type
Fixed
Dough Capacity
10 Kg
hydration max
75 %
Speed levels
10
Tank capacity
13 L
Bowl diameter
28 cm
Bowl height
22 cm
Operating mode
Single-phase 230 V
Flour quantity
7 Kg
Water quantity
3.5 L
Hourly output
31.5 kg/h
Minimum dough
0.5 Kg
Spiral - rpm (min)
80 rpm
Spiral - rpm (max)
240 rpm
Bowl - rpm (min)
10 rpm
Bowl - rpm (max)
30 rpm
Offset breaker bar
Yes
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
0.75 HP
Nominal power (W)
550 W
Manufacturing country
Italy
Transmission data
Transmission type
Chain + Belts
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Electronic timer
No
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
54x29x43 cm
Net weight
37 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
55x30x45 cm
Weight including packaging
39 Kg
Assembly time
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 23/09/2025 - 25/09/2025
€ 1.055,39
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

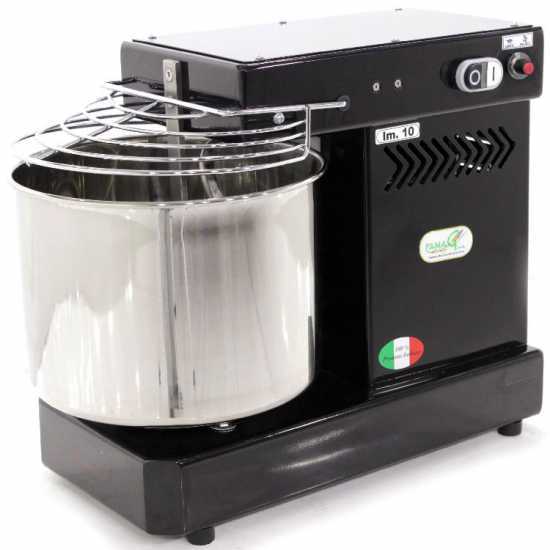

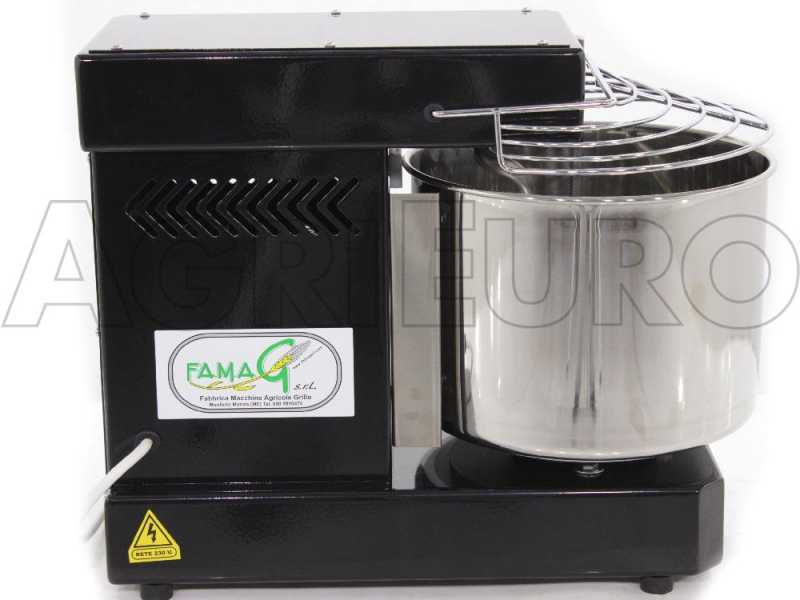

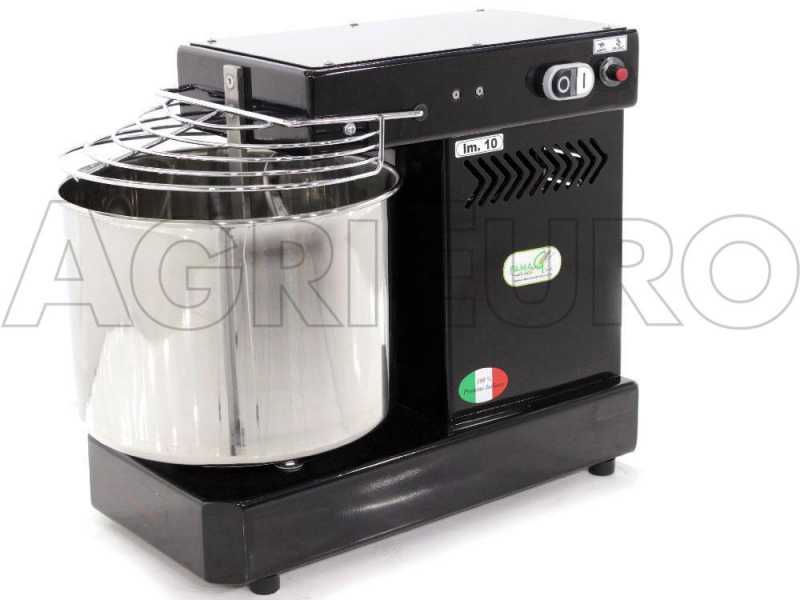

Famag IM10 10V Black professional 10-speed dough mixer

The Fa.M.A.G. IM10 10V Black 10-speed dough mixer is one of the smallest bench top machines you can find on the market.

This model is entirely coated with black paint, the only exceptions being the stainless steel dough-processing components.

Despite its size, it is very powerful and effective and has low consumption and noise levels. This spiral mixer features a fixed dough-kneading head. Designed for family use as well as small dough production in cafés, delis and pizzerias.

This spiral mixer is unique on the market because, although it only takes up little space, it can contain up to 7 kg of flour mixed with 3,5 litres of water.

Perfect for hard, soft and elastic dough (for bread, focaccia or flat bread, pizza, pasta, cookies, cakes) and for special flour dough such as gluten, double-milled durum wheat, durum wheat, stone-ground flour and so on.

The speed control system allows choosing from 10 rotation speed levels for easy professional dough production.

The lower speed is similar to that of the standard single-speed models. The variable speed variator makes it possible to accelerate the rotation of the spiral and bowl to higher speeds, which can be used for not too hard doughs.

Entirely made in Italy, which translates to reliable and high-quality materials and manufacturing.

This model is perfect for home kitchen work, but it is also suitable for business productions.


NOTE:

This mixer is provided with specifically curved-shaped New central shaft, which also allows processing smaller quantities of dough (improving the results in terms of kneading processing). The curvature of the shaft varies depending on the size of the mixer; the larger the bowl, the more pronounced the curve will be.

Main features

The IM10 10V dough mixer features a fixed kneading head and 10 speed levels. Selecting the desired speed is easy thanks to the potentiometer on the side of the machine.

Low speed is useful for gathering up the flour inside the dough mixer and helps develop the gluten network. High speed dries the dough and speeds up the job.

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of a chain and two highly resistant, durable and effective Polyurethane belts.

This new professional dough kneader by Famag features a stainless steel central dough-anchoring rod.

All of the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protection grid
  • the central rod

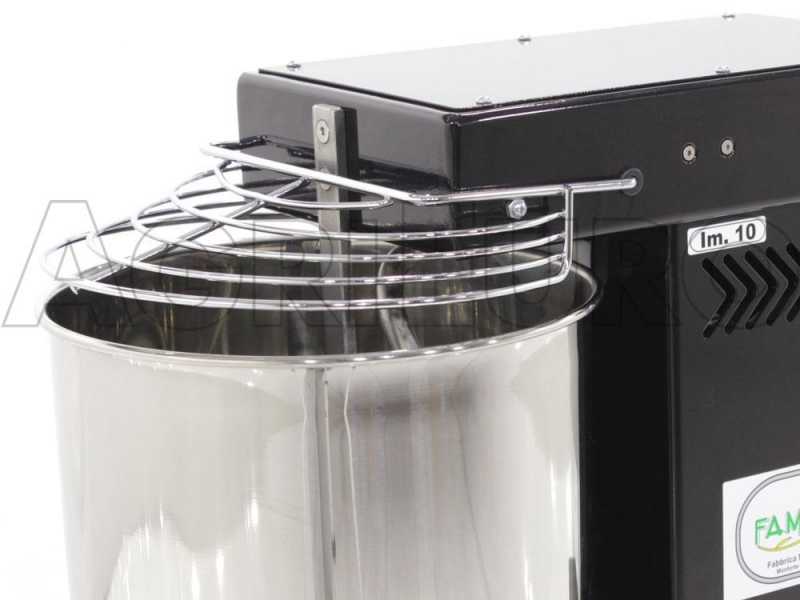

Stainless steel protection grid that can be lifted.

The special spiral arm shape allows speeding up the job and prevents the dough from overheating

Coated with food-safe epoxy powder paint

Technical features

  • Dough capacity: 10 Kg
  • Speed levels: 10
  • Flour: 7 kg
  • Water: 3.5 L
  • Bowl: 280 x 210 mm
  • Dough quantity per hour: 31.5 kg/h
  • Minimum dough guaranteed: 0.5 kg
  • Motor power: 0.75 hp
  • Consumption: 350 Watt
  • Revolutions per minute (low speed): 90 RPM
  • Revolutions per minute (high speed): 200 RPM
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety microswitch
  • Power supply: 230 V - 50 Hz
  • CE compliant
  • Weight: 37 kg
  • Bowl size: 280 x 220 mm (13 L)
  • Schuko plug
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

Gifts and extra features

The spiral dough kneader will be shipped in its original packaging along with the instructions manual and recipe book.

The package includes a free Famag-branded apron.
