Famag Grilletta IM 8/230 10 Speeds HH - 8 kg high hydration spiral mixer

Questions & Answers (4)
ID: K603834

EAN: 8051764071364

MPN: IM8/230/10V/HH

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 8/230 10 Speeds HH - 8 kg high hydration spiral mixer
+700 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Technical data
Spiral hook
yes
High-hydration
yes
Dough Capacity
8 Kg
Tank capacity
11.5 L
Speed levels
10
hydration max
95 %
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Minimum dough
0.5 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Brushless
Speed reverser
Yes
Offset breaker bar
Yes
Compact for countertop use
yes
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 8/230 10 Velocità HH
Body material
Enamelled steel
Typology
Benchtop
High-hydration
yes
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Fixed
Dough Capacity
8 Kg
hydration max
95 %
Speed levels
10
Tank capacity
11.5 L
Bowl diameter
26 cm
Bowl height
22 cm
Operating mode
Single-phase 230 V
Hourly output
24 kg/h
Minimum dough
0.5 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
320 rpm
Bowl - rpm (min)
9 rpm
Bowl - rpm (max)
30 rpm
Speed reverser
Yes
Offset breaker bar
Yes
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Brushless
Nominal power
0.5 HP
Nominal power (W)
350 W
Transmission data
Transmission type
Chain + Belts
Cutting data
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Lifting safety grid
Stainless steel
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes

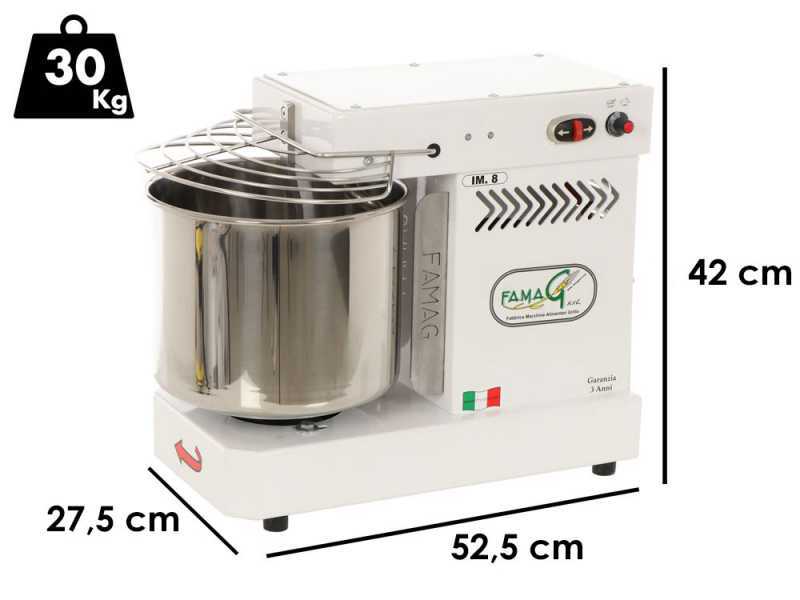

Dimensions and logistics
Product dimensions in cm (L x W x H)
52,5x27,5x42 cm
Net weight
30 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
55x29x44,5 cm
Weight including packaging
32.6 Kg
Assembly time
Assembled
Prompt Delivery
54 items in stock
Free Shipping
Estimated delivery: 28/10/2025 - 30/10/2025
Suggested price:
€ 1.044,73
€ 940,26
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Famag Spiral Mixer

The Famag spiral mixer is one of the smallest worktop machines available on the market.

Famag IM8 10V with high hydration (from 65% to 100%), is a compact product, yet it combines power and efficiency with low consumption and low noise. The IM 8 10V HH model introduces 10 speeds to set your dough as you prefer.

The Famag mixer is ideal for making different types of dough, especially soft doughs such as bread, pizza, pastries, piadina, etc.

The IM8 10V HH is mainly used in the kitchen, but is also suitable for small professional doughs.

The machine is supplied with a specially curved central column , which allows even smaller doughs to be processed, improving its capacity.

The brushless permanent magnet motor offers IE3 energy efficiency, ensuring high power and up to 30% lower consumption compared to traditional solutions. Electronic power management ensures constant torque at any speed, maintaining optimal performance even at high speeds. This configuration allows excellent results to be achieved with all types of dough and hydration.


ATTENTION:

The machine will be supplied with the new specially curved central shaft that allows even smaller doughs to be processed (thus improving the dough capacity). The curvature of the shaft varies depending on the size of the mixer; the larger the bowl, the more pronounced the curve will be.

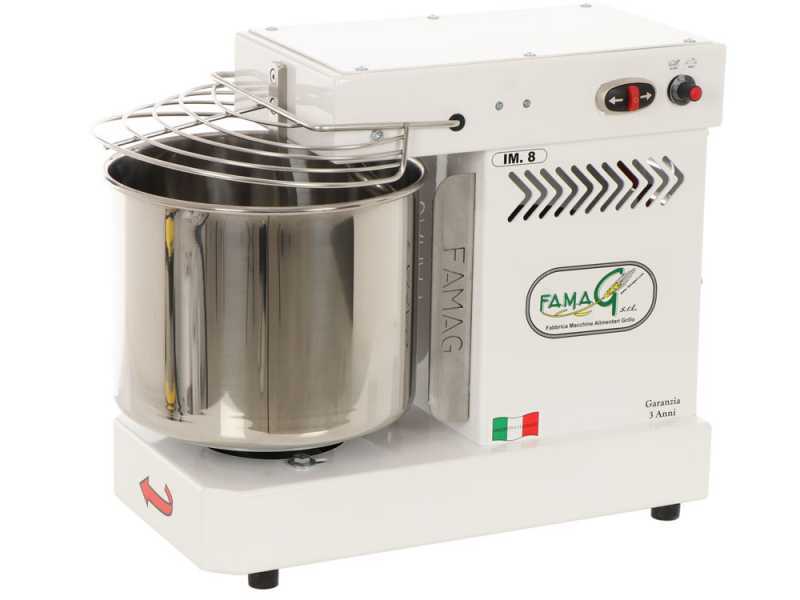

Main features

The Famag spiral mixer is made of thick steel, which has the main function of eliminating vibrations during processing. The transmission is chain-driven, offering excellent strength and durability.

The Famag IM8 10V HH features a curved central dough stop column.

All parts in contact with the dough are made of stainless steel:

  • The tank;
  • Protective grid;
  • Spiral;

Stainless steel protective grid can be lifted.

The special shape of the spiral minimises processing time without overheating the dough.

The kneading machine has 10 speeds, which can be selected using the special crank handle on the side.

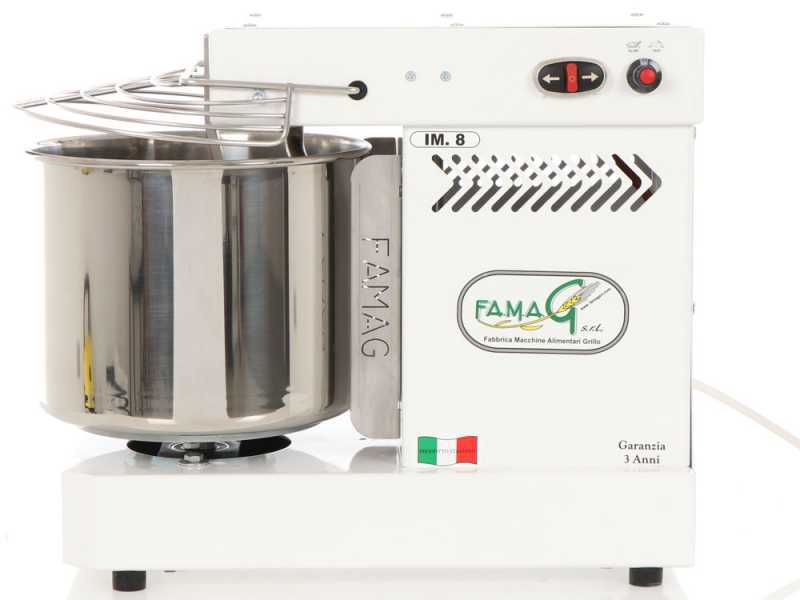

Technical specifications

Famag IM8 10V HH has the following features:

  • 10 speeds
  • Reverse
  • Suitable for medium-high hydration (65 to 100%);
  • Specially curved central shaft;
  • Dough capacity from 0.5 to 8 kg;
  • Stainless steel grid, bowl and spiral;
  • 220V voltage;
  • 0.5 hp;
  • Dimensions: 52.2x27.5x42 cm;
  • Weight: 30 kg;
  • Spiral revolutions: 90 to 320 rpm;
  • Tank dimensions 260 x 220 mm (11 L);
  • Schucko cable (total length 135 cm);
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

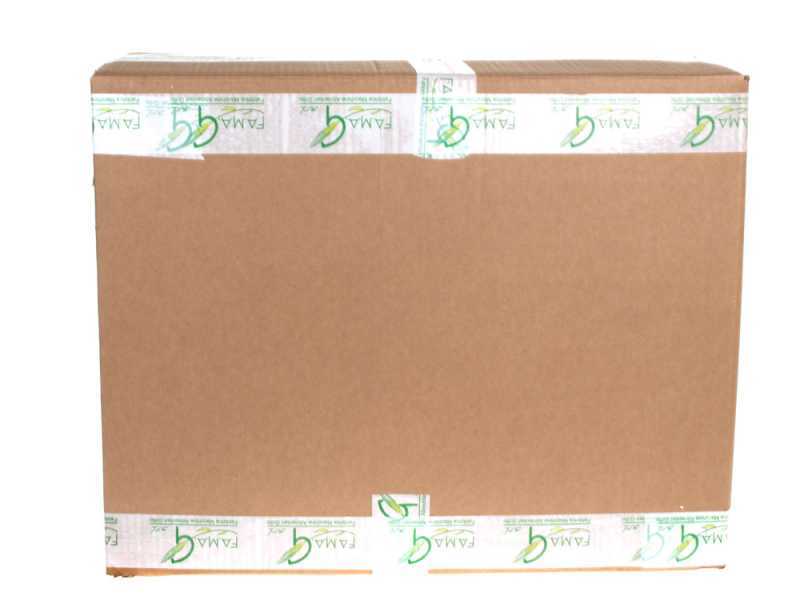

Free items included

The mixer is shipped in its original packaging, accompanied by instructions for use.

A handy Famag-branded apron is included free of charge in the package.
