Famag Grilletta IM 5S/230 10 Speeds - 5 kg spiral mixer with lifting head

Questions & Answers (37)
ID: K501433

EAN: 8051764070503

MPN: IM5/S/10V BIANCA

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 5S/230 10 Speeds - 5 kg spiral mixer with lifting head
+2000 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Mixing head type
Tilting
Dough Capacity
5 Kg
Tank capacity
7 L
Speed levels
10
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
0.3 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Motor type
Induction
Offset breaker bar
Yes
Compact for countertop use
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 5S/230 10 Velocità
Body material:
Enamelled steel
Typology :
Tilting head
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
5 Kg
hydration max:
75 %
Speed levels:
10
Tank capacity:
7 L
Bowl diameter:
24 cm
Bowl height:
19 cm
Operating mode:
Single-phase 230 V
Flour quantity:
3 Kg
Water quantity:
2 L
Hourly output:
18 kg/h
Minimum dough:
0.3 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
240 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
30 rpm
Offset breaker bar:
Yes
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Nominal power (W):
370 W
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain + Belts
Cutting data
Recommended for::
Pizza
Recommended for::
Bread
Recommended for::
Focaccia bread
Recommended for::
Breadsticks
Recommended for::
Piadina
Recommended for::
Taralli
Recommended for::
Biscuits
Recommended for::
Egg mixtures
Recommended for::
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
49x25x38 cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
28x56x44 cm
Gross weight (packaging included) :
27 Kg
Assembly time:
Assembled
Prompt Delivery
183 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
Suggested price:
€ 1.114,71
€ 1.003,23
VAT Included

You're viewing:
Customers also viewed:
Description

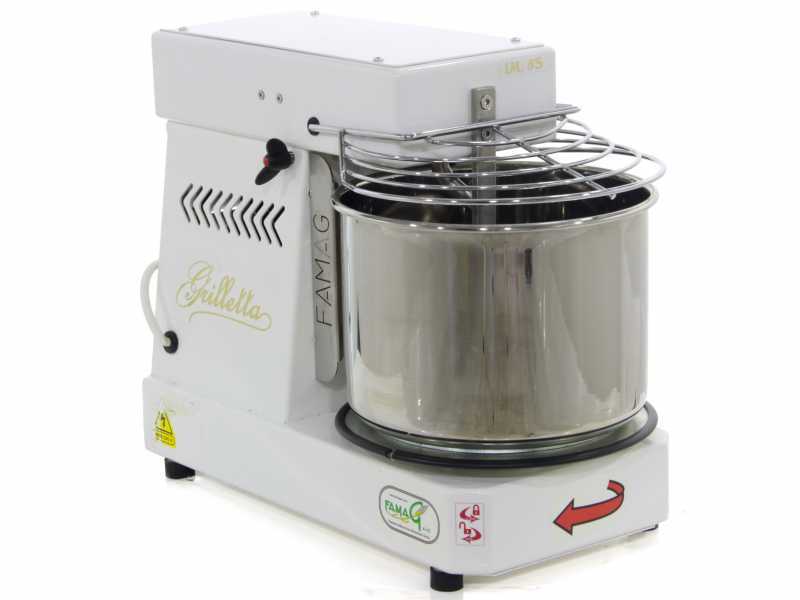

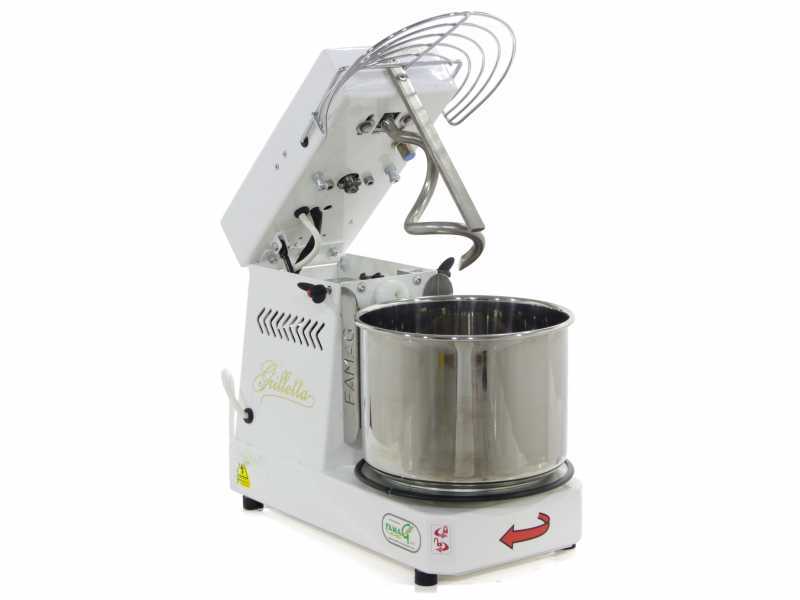

Famag Grilletta high quality lifting-head dough mixer - 10 speeds

Famag Grilletta IM 5 ten-speed lifting-head dough mixer is one of the top-quality machine of the world market, particularly appreciated among cooking enthusiasts. The name Famag is associated with the strength and reliability of its dough mixer models and it gained a leading position on the spiral dough mixer online market.

Famag producer has been able to further improve these dough mixers high quality by introducing important innovations such as the lifting head and removable bowl.

The speed control system allows choosing from 10 rotation speed levels for easy professional dough production.

The lower speed is similar to that of the standard single-speed models. The variable speed gauge makes it possible to accelerate the rotation of the spiral and bowl to higher speeds, which can be used for not too hard doughs.

All these spiral dough mixer characteristics together with its sturdiness make the machine the best choice among this dough mixer price range.

Despite its size, it is very powerful and effective and has low consumption and noise levels. Perfect for several different types of dough, especially soft ones, for bread, pizza, cakes, flat bread (piada) and so on.

This model is perfect for home kitchen work, but it is also suitable for small business productions.

The lifting-head spiral dough mixer works with two combined rotations, the one of the bowl and the one of the hook:

  1. Bowl: it rotates on itself with regular motion.
  2. Spiral dough hook in the dough: it rotates around its own axis.

These combined motions give force to the dough and make the Famag spiral dough mixer ideal for hard dough (pizza, bread, etc.).


NOTE:

This mixer is provided with specifically curved-shaped New central shaft, which also allows processing smaller quantities of dough.

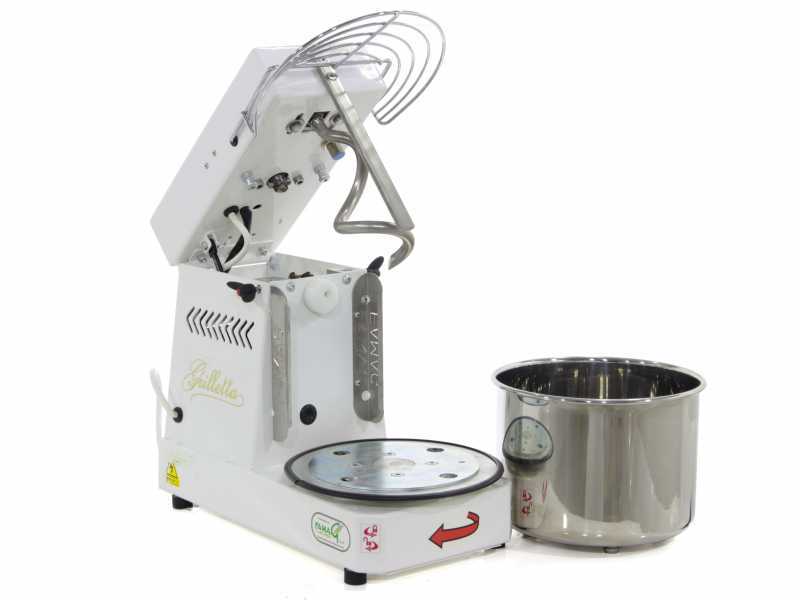

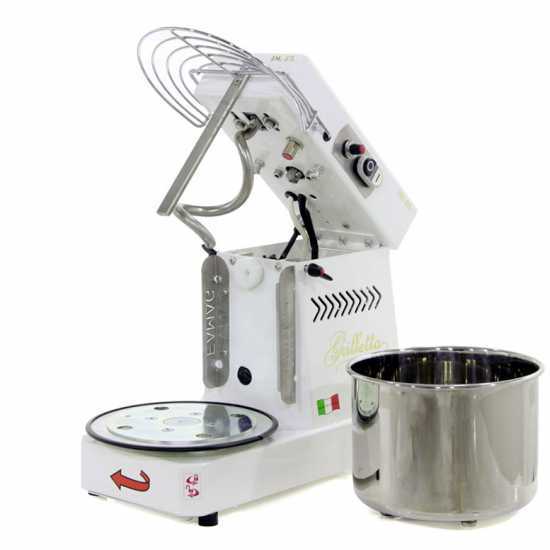

Lifting head and removable bowl

FAMAG spiral dough mixers are equipped with raising heads and removable bowls.

These special features make it very easy to clean the mixer and process the dough.

All you have to do to release the mixing head is use the levers on the sides of the spiral mixer.

The mixing head features a gas lifting piston and a safety micro switch, which prevents the kneader from activating accidentally when the mixing head is raised.

The bowl can be easily removed by releasing the bowl base. This option allows carrying the dough inside the bowl and simplifies cleaning operations.

To release the bowl, simply unscrew the bowl base until it detaches.

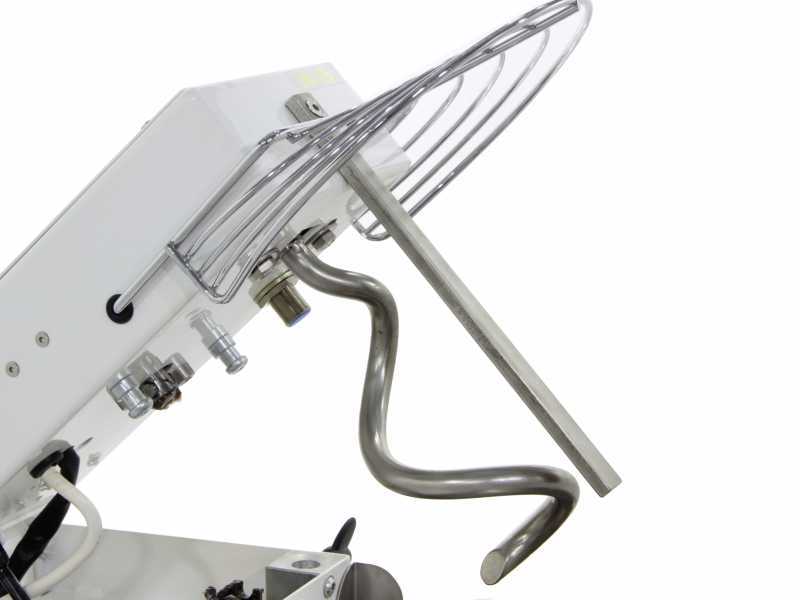

Main features

The IM5/S10V dough mixer features a raising kneading head and 10 speed levels. Selecting the desired speed is easy thanks to the potentiometer on the side of the machine.

Low speed is useful for gathering up the flour inside the dough mixer and helps develop the gluten network. High speed dries the dough and speeds up the job.

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of and it is renowned for the high sturdiness and durability.

This new professional dough kneader by Famag with raising kneading head features a stainless steel central dough-anchoring rod.

All of the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protection grid
  • the central rod

Stainless steel protection grid that can be lifted.

The special spiral arm shape allows speeding up the job and prevents the dough from overheating

Coated with food-safe epoxy powder paint

Technical specifications

Here below, some of the dough mixer main features:

  • Raising head
  • Removable bowl
  • Speed: 10
  • Dough capacity: 5 Kg
  • Flour: 3 kg
  • Water: 2 L
  • Dough quantity per hour: 18 kg/h
  • Minimum dough guaranteed: 0.3 kg
  • Motor power: 0.5 hp
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety microswitch
  • Power supply: 230 V - 50 Hz
  • CE compliant
  • Weight: 23 kg
  • Dimensions: 25 x 49 x 38 cm
  • Bowl size: 240 x 190 mm
  • Schuko cable
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

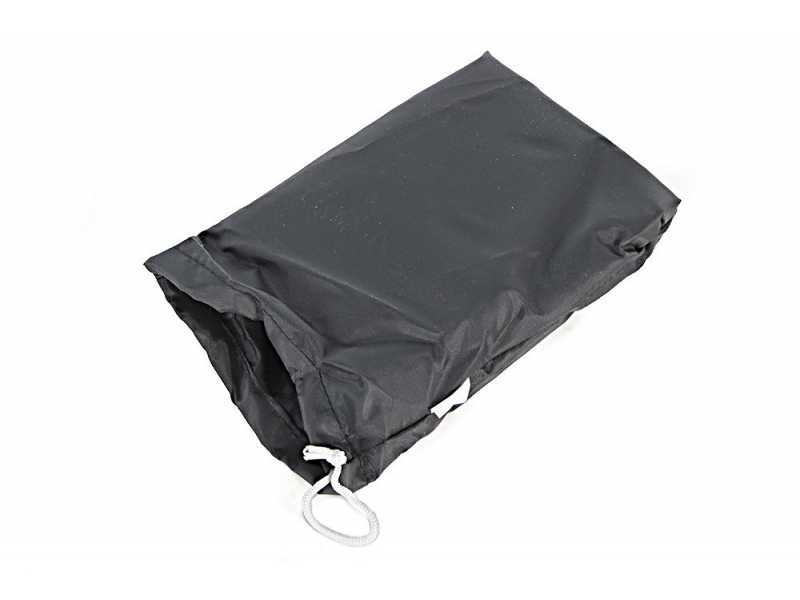

COMPLIMENTARY: Heavy-duty cover cloth for storage

Perfect for protecting your equipment when stored.


This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is suitable for small-sized machinery.

Easy to fold and store inside its packaging as it takes up very little space!

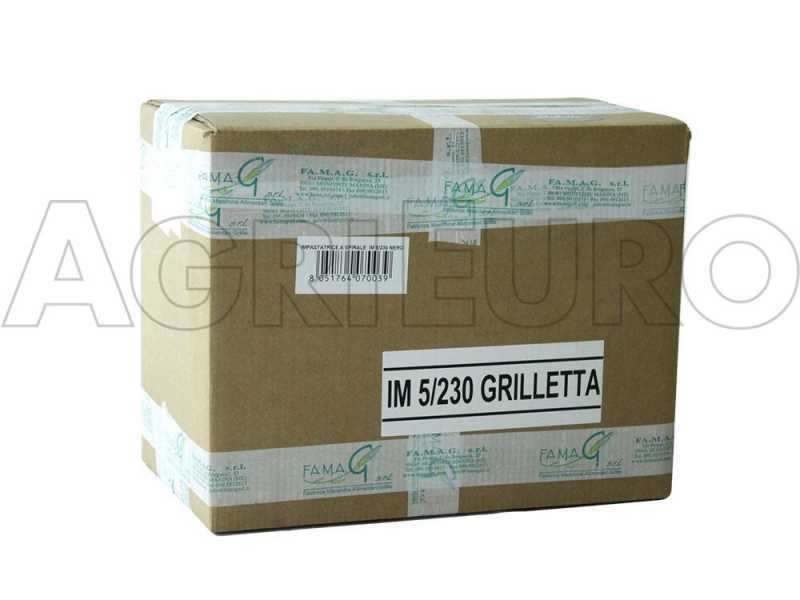

Free items / Extra features

The product is shipped in its original packaging along with the instructions manual.

The package includes a free Famag apron.
