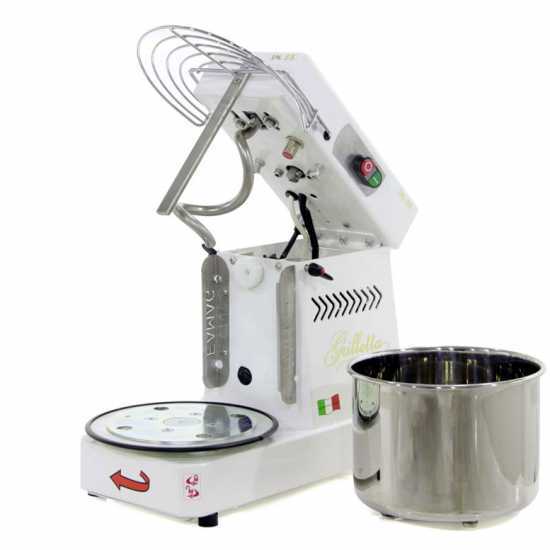

Famag Grilletta IM 5S/230 1 Speed - 5 kg spiral mixer with lifting head

Questions & Answers (17)
ID: K501432

EAN: 8051764070206

MPN: IM5/S BIANCA

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 5S/230 1 Speed - 5 kg spiral mixer with lifting head
+1000 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Mixing head type
Tilting
Dough Capacity
5 Kg
Tank capacity
7 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
0.3 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Motor type
Induction
Offset breaker bar
Yes
Compact for countertop use
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 5S/230 1 Velocità
Body material:
Enamelled steel
Typology :
Tilting head
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
5 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
7 L
Bowl diameter:
24 cm
Bowl height:
19 cm
Operating mode:
Single-phase 230 V
Flour quantity:
3 Kg
Water quantity:
2 L
Hourly output:
18 kg/h
Minimum dough:
0.3 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
80 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
10 rpm
Offset breaker bar:
Yes
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Nominal power (W):
370 W
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain + Belts
Cutting data
Recommended for::
Pizza
Recommended for::
Bread
Recommended for::
Focaccia bread
Recommended for::
Breadsticks
Recommended for::
Piadina
Recommended for::
Taralli
Recommended for::
Biscuits
Recommended for::
Egg mixtures
Recommended for::
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
49x25x38 cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
28x56x44 cm
Gross weight (packaging included) :
27 Kg
Assembly time:
Assembled
Prompt Delivery
91 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
Suggested price:
€ 943,77
€ 849,39
VAT Included

You're viewing:
Customers also viewed:
Description

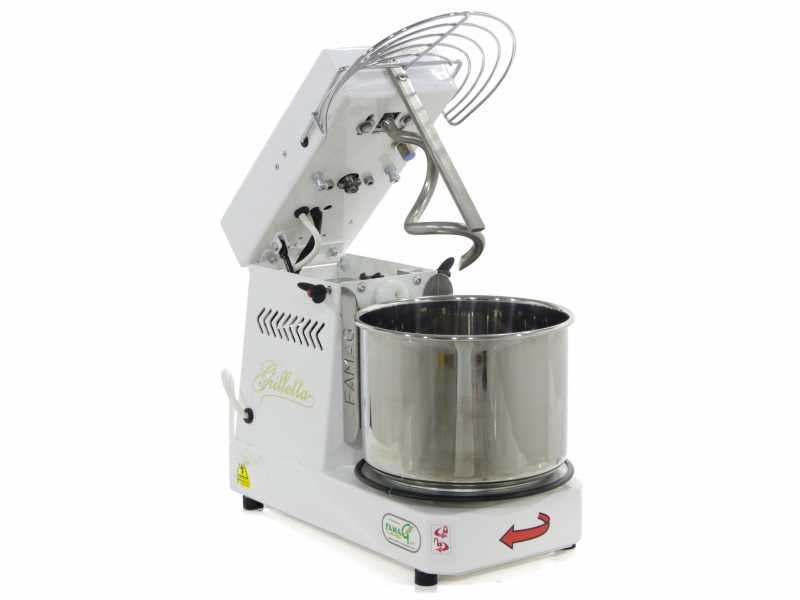

Famag Grilletta high quality lifting-head dough mixer

Famag Grilletta IM 5 ten-speed lifting-head dough mixer is one of the top-quality machine of the world market, particularly appreciated among cooking enthusiasts. The name Famag is associated with the strength and reliability of its dough mixer models and it gained a leading position on the spiral dough mixer online market.

Famag producer has been able to further improve these dough mixers high quality by introducing important innovations such as the lifting head and removable bowl.

All these spiral dough mixer characteristics together with its sturdiness make the machine the best choice among this dough mixer price range.

Despite its size, it is very powerful and effective and has low consumption and noise levels. Perfect for several different types of dough, especially soft ones, for bread, pizza, cakes, flat bread (piada) and so on.

This model is perfect for home kitchen work, but it is also suitable for small business productions.

The lifting-head spiral dough mixer works with two combined rotations, the one of the bowl and the one of the hook:

  1. Bowl: it rotates on itself with regular motion.
  2. Spiral dough hook in the dough: it rotates around its own axis.

These combined motions give force to the dough and make the Famag spiral dough mixer ideal for hard dough (pizza, bread, etc.).

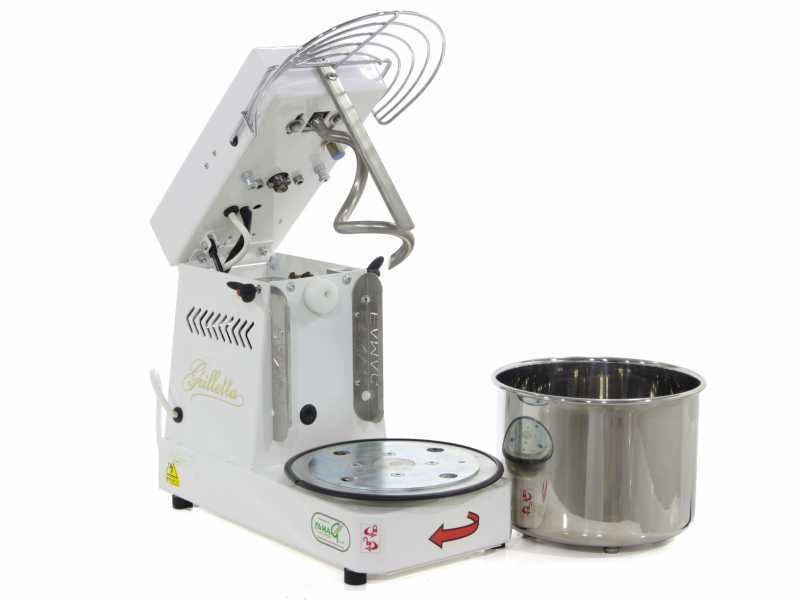

Raising head and removable bowl

FAMAG spiral dough mixers are equipped with raising heads and removable bowls.

These special features make it very easy to clean the mixer and process the dough.

All you have to do to release the mixing head is use the levers on the sides of the spiral mixer.

The mixing head features a gas lifting piston and a safety micro switch, which prevents the kneader from activating accidentally when the mixing head is raised.

The bowl can be easily removed by releasing the bowl base. This option allows carrying the dough inside the bowl and simplifies cleaning operations.

To release the bowl, simply unscrew the bowl base until it detaches.

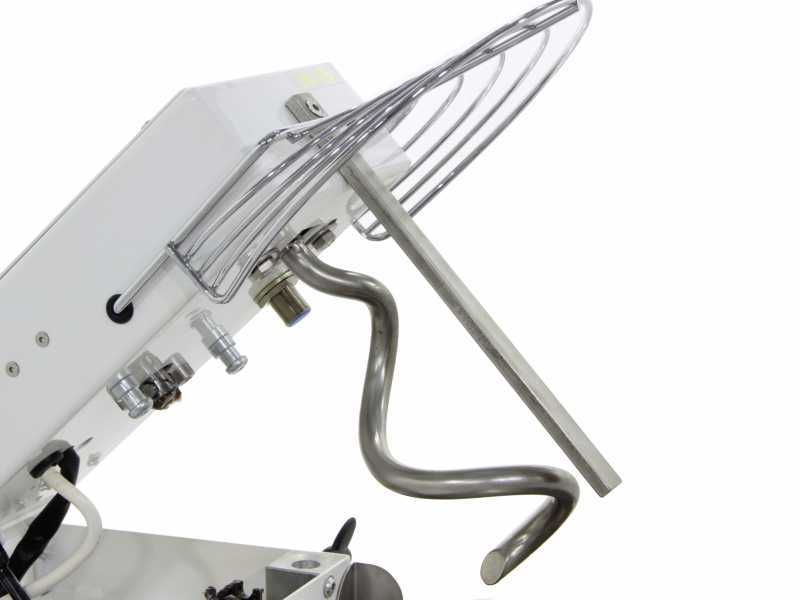

Main features

The frame on this spiral mixer is made of high-thickness stainless steel to cancel vibration during operation. The chain drive system is highly resistant and durable.

This new professional Famag Grilletta dough kneader with lifting head features a stainless steel central dough-anchoring pin.

All the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protection grid
  • the central pin

Stainless steel grid that can be lifted.

The special spiral arm shape allows speeding up the work and prevents the dough from overheating.

Epoxy food safe powder painting.

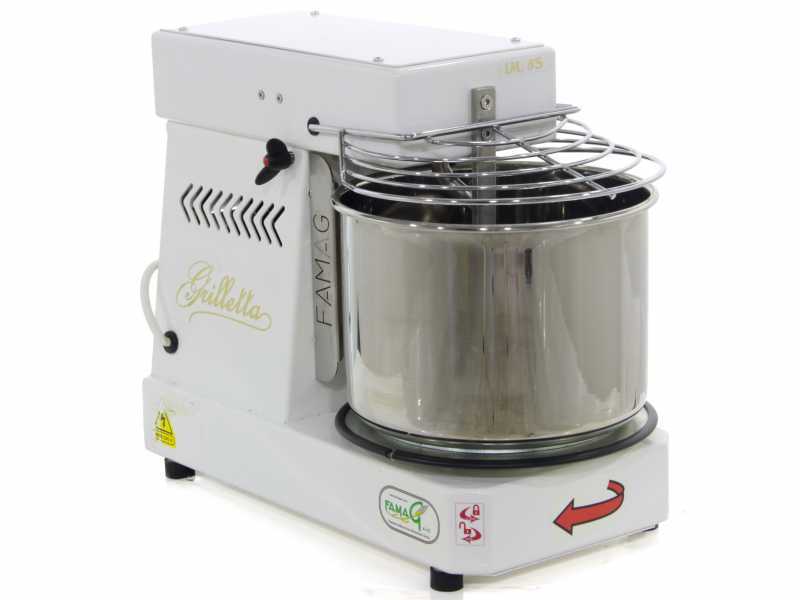

Technical specifications

Here below, some of the dough mixer main features:

  • Raising head
  • Removable bowl
  • Dough capacity: 5 Kg
  • Flour: 3 kg
  • Water: 2 L
  • Dough quantity per hour: 18 kg/h
  • Minimum dough guaranteed: 0.3 kg
  • Motor power: 0.5 hp
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety microswitch
  • Power supply: 230 V - 50 Hz
  • CE compliant
  • Weight: 23 kg
  • Dimensions: 25 x 49 x 38 cm
  • Bowl size: 240 x 190 mm
  • Schuko cable
Free items & Standard equipment

FREE:Heavy-duty cover for covering and storage

Fundamental to protect your generator when is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

It has been specifically designed to perfectly fit with small machines
Easy to bend and put away thanks to its small overall size!

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free items / Extra features

The product is shipped in its original packaging along with the instructions manual.

The package includes a free Famag apron.
