Famag Grilletta IM 5S/230 1 Speed - 5 Kg spiral mixer with liftable head

Questions & Answers (17)
ID: K501432

EAN: 8051764070206

MPN: IM5/S BIANCA

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 5S/230 1 Speed - 5 Kg spiral mixer with liftable head
+1000 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Technical data
Mixing head type
Tilting
Dough Capacity
5 Kg
Tank capacity
7 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
0.3 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Induction
Offset breaker bar
Yes
Compact for countertop use
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 5S/230 1 Velocità
Body material
Enamelled steel
Typology
Tilting head
Medium doughs
Hard doughs
Mixing head type
Tilting
Dough Capacity
5 Kg
hydration max
65 %
Speed levels
1
Tank capacity
7 L
Bowl diameter
24 cm
Bowl height
19 cm
Operating mode
Single-phase 230 V
Flour quantity
3 Kg
Water quantity
2 L
Hourly output
18 kg/h
Minimum dough
0.3 Kg
Spiral - rpm (min)
80 rpm
Spiral - rpm (max)
80 rpm
Bowl - rpm (min)
10 rpm
Bowl - rpm (max)
10 rpm
Offset breaker bar
Yes
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
0.5 HP
Nominal power (W)
370 W
Manufacturing country
Italy
Transmission data
Transmission type
Chain + Belts
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Electronic timer
No
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
49x25x38 cm
Net weight
25 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
28x56x44 cm
Weight including packaging
27 Kg
Assembly time
Assembled
Prompt Delivery
58 items in stock
Free Shipping
Estimated delivery: 23/09/2025 - 25/09/2025
Suggested price:
€ 942,24
€ 848,02
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Famag Grilletta high quality lifting-head dough mixer

The Famag Grilletta IM 5 spiral mixer with tilting head is one of the best-selling and most popular machines among DIY cooking and baking enthusiasts. Over the years, Famag has built a leading position in the spiral mixer market, thanks above all to the great robustness and functionality of its machines.

Famag has succeeded in the difficult task of improving an already highly appreciated product by introducing an important new feature: the liftable head and removable bowl.

These features, combined with the proverbial robustness of Trigger spiral mixers, make them the best possible choice in this price range.

Despite its compact size, it combines power and efficiency with low energy consumption and low noise levels. Ideal for making different types of dough, it is particularly suitable for soft doughs such as bread, pizza, pastries, etc.

It is mainly used in the kitchen, but is also suitable for small professional doughs.

The trigger spiral mixer with tilting head works with the combined rotation of the bowl and the hook:

  1. the bowl rotates on itself with a regular motion;
  2. the spiral hook, immersed in the dough, rotates on its axis;

These combined movements exert force on the dough, making the Famag Grilletta spiral mixer ideal for tough doughs such as pizza or bread dough.


ATTENTION:

The machine will be supplied with the new specially curved central shaft, which allows even smaller doughs to be processed (thus improving the dough capacity). The curvature of the shaft varies depending on the size of the mixer; the larger the bowl, the more pronounced the curve will be.

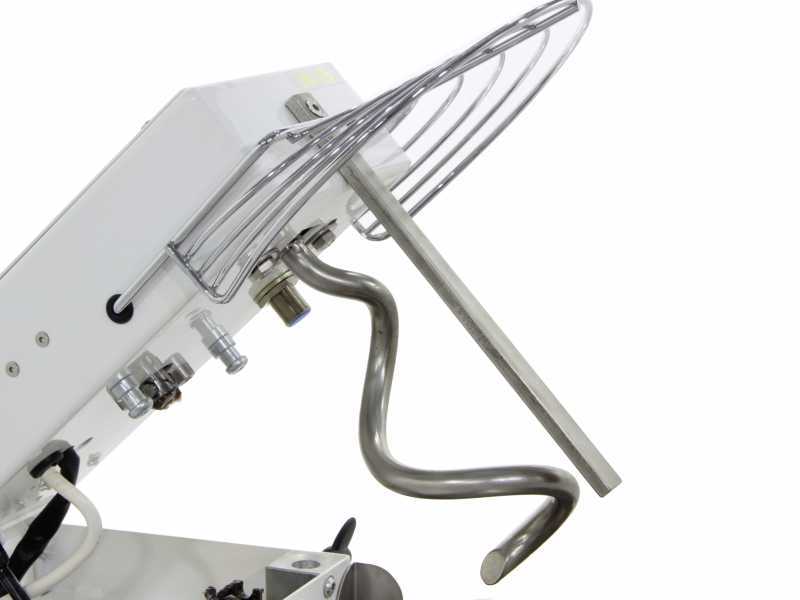

Raising head and removable bowl

FAMAG spiral dough mixers are equipped with raising heads and removable bowls.

These special features make it very easy to clean the mixer and process the dough.

All you have to do to release the mixing head is use the levers on the sides of the spiral mixer.

The mixing head features a gas lifting piston and a safety micro switch, which prevents the kneader from activating accidentally when the mixing head is raised.

The bowl can be easily removed by releasing the bowl base. This option allows carrying the dough inside the bowl and simplifies cleaning operations.

To release the bowl, simply unscrew the bowl base until it detaches.

Main features

The frame of the spiral mixer is made of thick steel to eliminate vibrations during processing, while the transmission is chain-driven and is highly resistant and durable.

This new model of the Famag Grilletta professional spiral mixer with tilting head features a central dough stopper made entirely of stainless steel.

All parts in contact with the dough are made of stainless steel:

  • the bowl
  • the spiral
  • the protective grid
  • central dough holder

Stainless steel protective grid Liftable

The special shape of the spiral minimises processing time without overheating the dough.

Coating made with food-grade epoxy powders

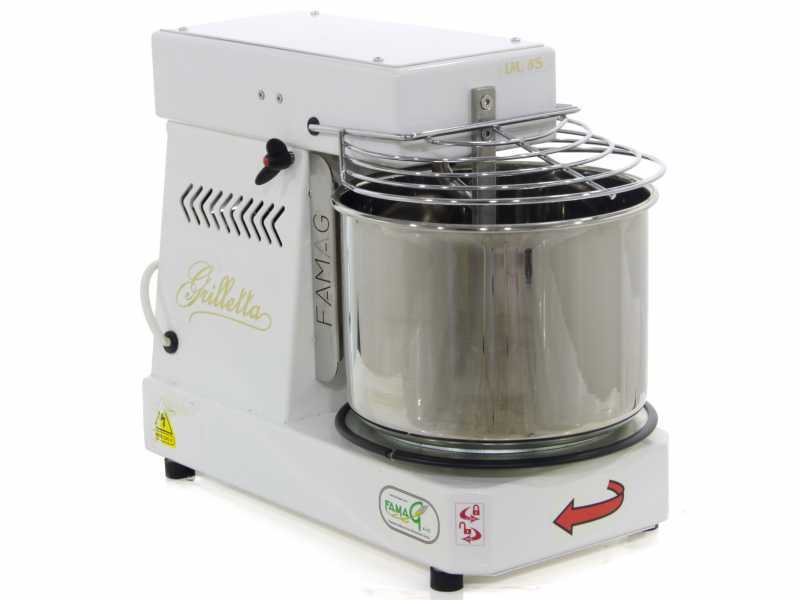

Technical specifications

In summary, the main features of the mixer are:

  • Tilting head
  • Removable bowl
  • dough capacity: 5 kg
  • flour: 3 kg
  • water: 2 litres
  • hourly dough production: 18 Kg/h
  • minimum guaranteed dough: 0.3 kg
  • motor power: 0.5 hp
  • 24 V low voltage electrical system
  • Safety system compliant with "CE" standards
  • cE safety microswitch
  • Power supply: 230 V - 50 Hz
  • CE certified
  • Weight: 23 kg
  • Dimensions: 25 x 49 x 38 cm
  • Tank dimensions: 240 x 190 mm
  • Schuko cable
Free items & Standard equipment

FREE:Heavy-duty cover for covering and storage

Fundamental to protect your generator when is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

It has been specifically designed to perfectly fit with small machines
Easy to bend and put away thanks to its small overall size!

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

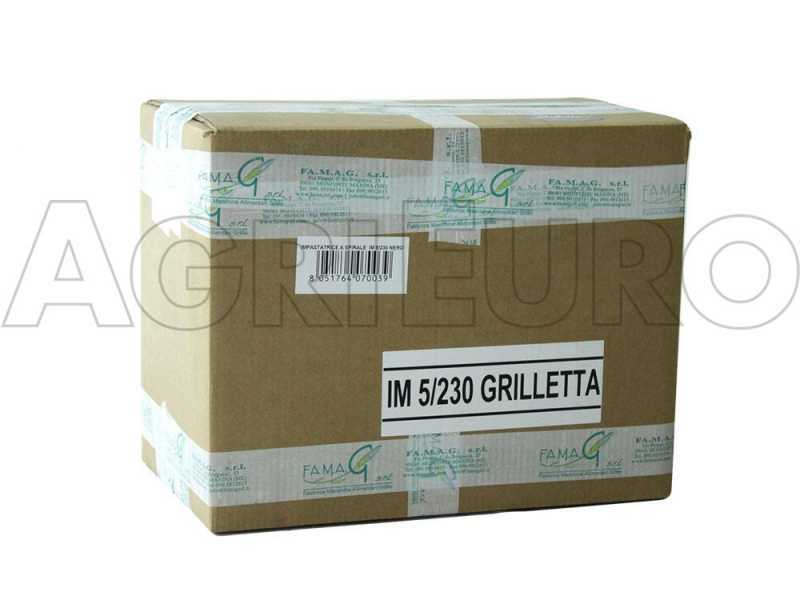

Free items included

The mixer is shipped in its original packaging, accompanied by instructions for use.

A Famag branded apron is included in the package as a gift
