Famag Grilletta IM 10S/230 10 Speeds HH - 10 kg high hydration spiral mixer with liftable head

Questions & Answers (9)
ID: K603865

EAN: 8051764071395

MPN: IM10/S/10V/HH

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 10S/230 10 Speeds HH - 10 kg high hydration spiral mixer with liftable head
+1000 sold
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 11/06/2026 - 15/06/2026
Suggested price:
€ 1.413,31
€ 1.271,97
Vat included
Technical data
Spiral hook
yes
High-hydration
yes
Mixing head type
Tilting
Dough Capacity
10 Kg
Tank capacity
13.5 L
Speed levels
10
hydration max
95 %
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Minimum dough
0.5 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Brushless
Speed reverser
Yes
Offset breaker bar
Yes
Compact for countertop use
yes
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model
IM 10S/230 10 Velocità HH
Body material
Enamelled steel
Typology
Tilting head
High-hydration
yes
Soft doughs
yes
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Tilting
Dough Capacity
10 Kg
hydration max
95 %
Speed levels
10
Tank capacity
13.5 L
Bowl diameter
28 cm
Bowl height
22 cm
Operating mode
Single-phase 230 V
Hourly output
30 kg/h
Minimum dough
0.5 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
320 rpm
Bowl - rpm (min)
9 rpm
Bowl - rpm (max)
30 rpm
Speed reverser
Yes
Offset breaker bar
Yes
Warranty
3 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Brushless
Nominal power
0.5 HP
Nominal power (W)
370 W
Transmission data
Transmission type
Chain + Belts
Cutting data
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Electronic timer
No
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Lifting safety grid
Stainless steel
Free gifts/extra features
Apron
Yes
Wooden pallet (safe shipping)
Yes
Instructions manual
Yes
Dimensions and logistics

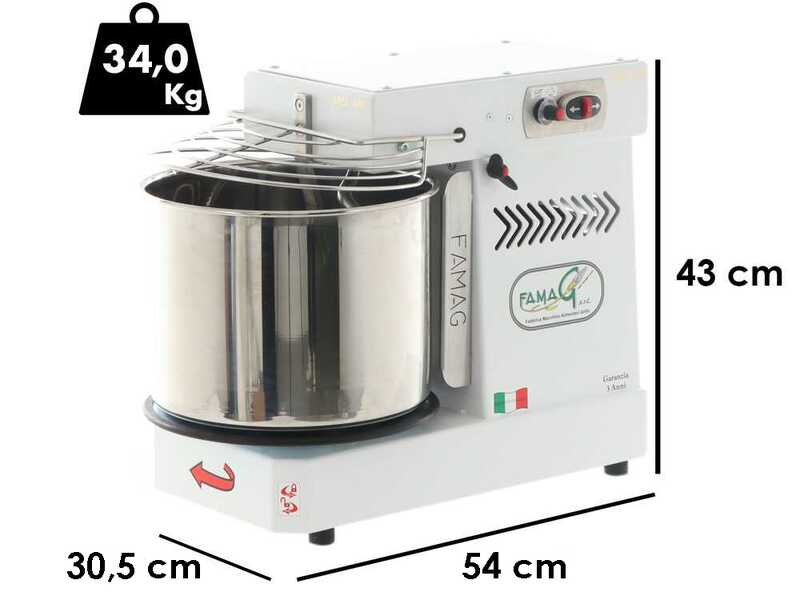

Product dimensions in cm (L x W x H)
54x30,5x43 cm
Net weight
34 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
56x29x44.5 cm
Weight including packaging
37.2 Kg
Assembly time
Assembled

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

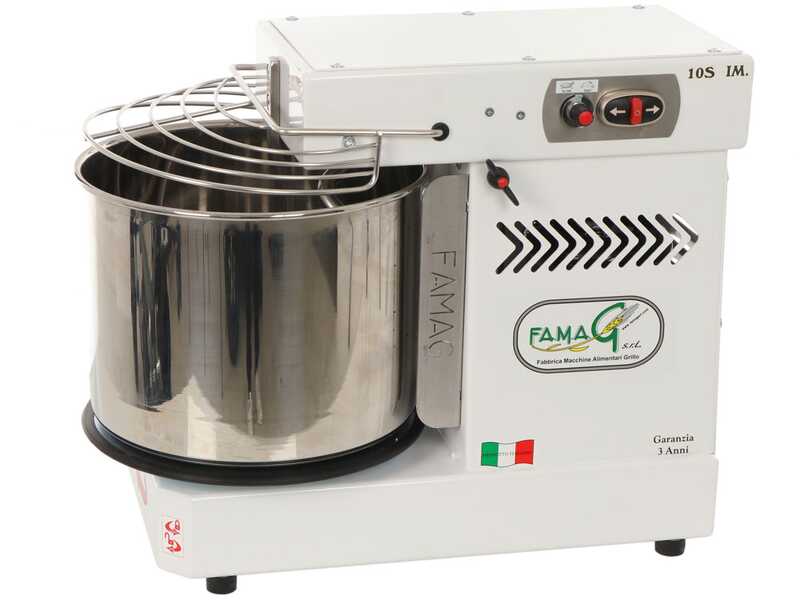

Famag Spiral Mixer

The Famag spiral mixer is one of the smallest bench-top machines available on the market.

The Famag IM10 S 10V HH with high hydration (from 65% to 100%) is a compact product that nevertheless offers power and efficiency, while maintaining low consumption and low noise levels. The IM 10 S 10V HH model offers 10 speeds to set your dough as you prefer.

The Famag mixer is ideal for making different types of dough, especially soft dough such as bread, pizza, pastries, etc.

The IM10 S 10V HH is mainly used in the kitchen, but is also suitable for small professional doughs.

The machine is supplied with a specially curved central column, which allows even smaller doughs to be processed, improving its capacity.

The brushless permanent magnet motor offers IE3 energy efficiency, ensuring high power and up to 30% lower consumption compared to traditional solutions. Electronic power management ensures constant torque at any speed, maintaining optimal performance even at high speeds. This configuration allows for excellent results with all types of dough and hydration.


ATTENTION:

The machine will be supplied with the new specially curved central shaft, which allows even smaller doughs to be processed (thus improving the dough capacity). The curvature of the shaft varies depending on the size of the mixer; the larger the bowl, the more pronounced the curve will be.

Main features

The Famag spiral mixer is made of thick steel, which has the main function of eliminating vibrations during processing. The transmission is chain-driven, offering excellent strength and durability.

The Famag IM 10 S 10V HH features a curved central dough stopper.

All parts in contact with the dough are made of stainless steel:

  • The tank;
  • Protective grid;
  • Spiral;

Stainless steel protective grid can be lifted.

The special shape of the spiral minimises processing time without overheating the dough.

The kneading machine has 10 speeds that allow the bowl and spiral to rotate in both anti-clockwise and clockwise directions.

Technical specifications

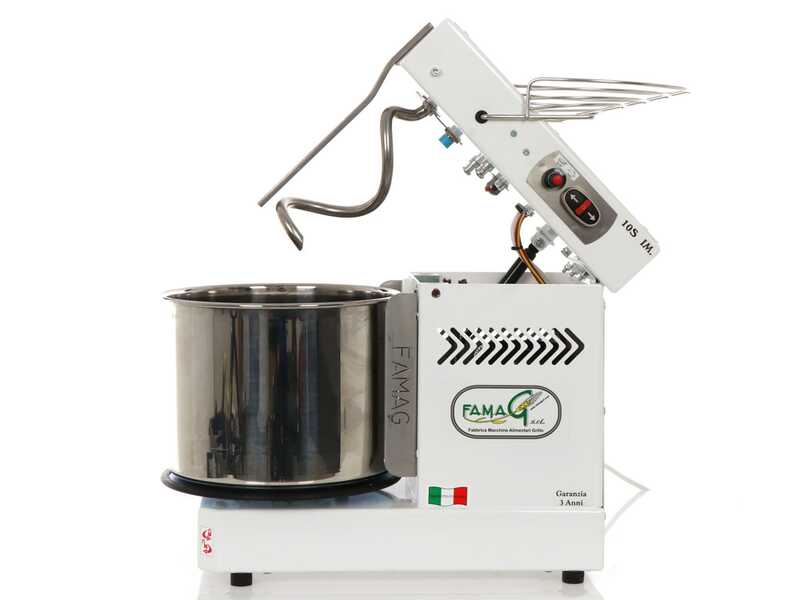

One of the most important new features of the Famag IM10 S 10V HH is the tilting head, which allows the stainless steel bowl to be easily removed using a simple locking system. This makes it convenient to remove the food cooked in the bowl and even easier to clean it.

In addition, the Famag IM 10 S 10V HH has the following features:

  • Tilting;
  • Removable bowl;
  • 10 speeds;
  • Suitable for medium-high hydration levels, from 65 to 100%;
  • Specially curved central column;
  • Dough capacity from 0.5 to 10 kg;
  • Stainless steel bowl grid and spiral;
  • 220V single-phase voltage;
  • 0.5 HP power;
  • Dimensions: 54x30,5x43 cm;
  • Weight: 34 kg;
  • Spiral revolutions: 90 to 320 rpm;
  • Tank dimensions: 280 x 220 mm (13L);
  • Electronic reverse rotation;
  • Schucko cable (total length 135 cm);

Equipped with latest generation brushless motor!

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free items included

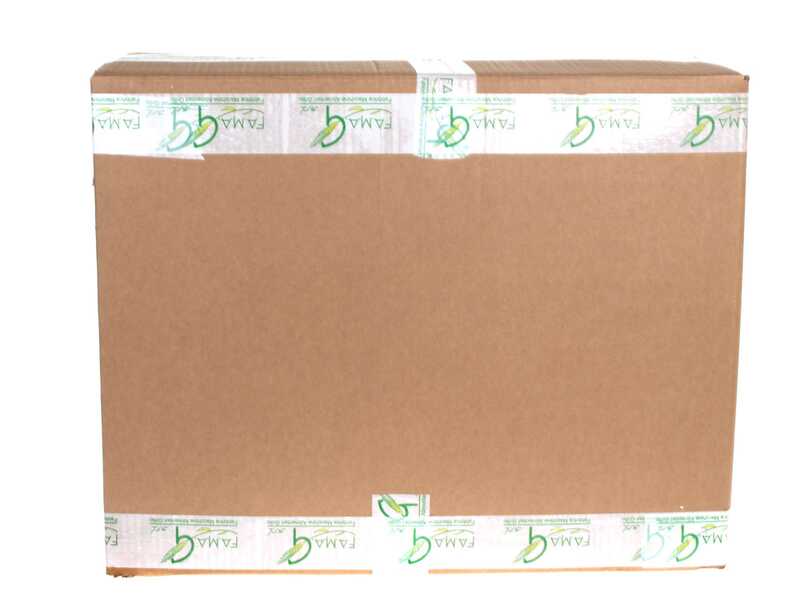

The mixer is shipped in its original packaging, accompanied by instructions for use.

The package also includes a complimentary Famag-branded apron and a recipe book.
