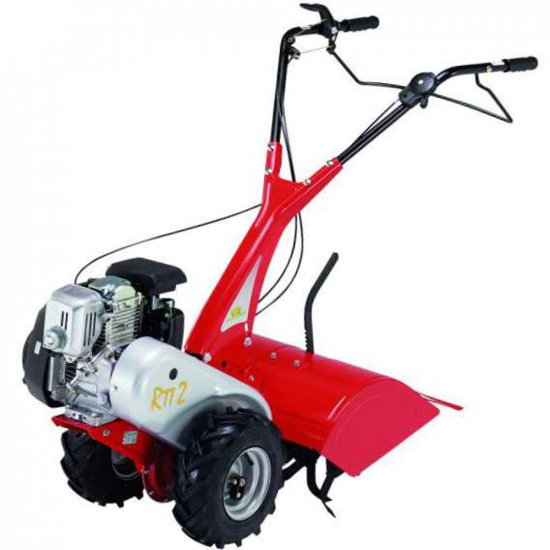

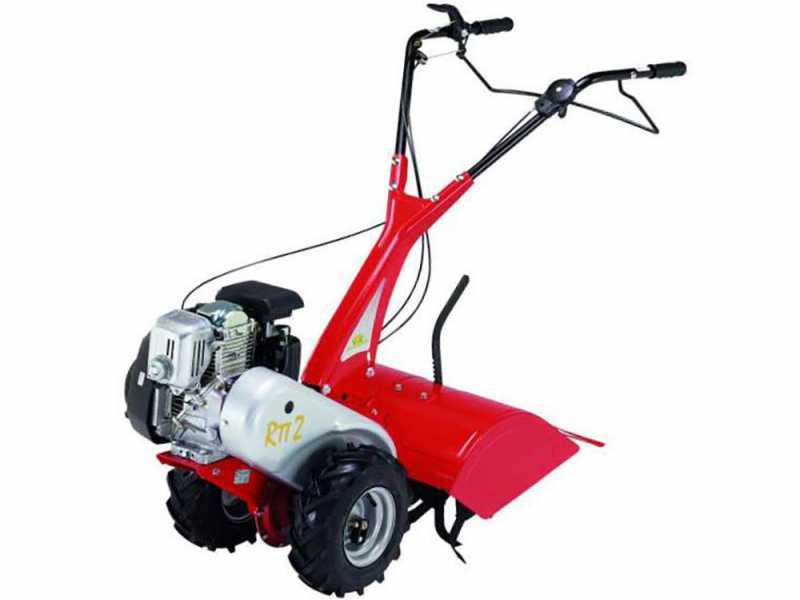

Petrol-driven two-wheel tractor for convenient, fast and safe soil cultivation. Designed to meet the needs of all horticulturists and offer an ideal tool in everyday work. The great manoeuvrability allows the seedbed to be prepared efficiently and with a high level of safety. Comfort is excellent thanks to the good weight and power distribution. All controls within easy reach support the effort without the need for tiring pushes. Tilling the soil with this petrol-powered walking tractor with wheels is therefore a pleasure and a satisfaction, and the work will be rewarded in reaping the right rewards.
The motor cultivator has traction on sculpted pneumatic wheels, which guarantee good traction on level, non-stony, softly textured and preferably already tilled surfaces. The limited overall width ensures good manoeuvrability even in tight spaces, while the safety precautions together with the automatic parking brake guarantee maximum safety.
The petrol engine applied to this self-propelled walking tractor is a latest-generation 4-stroke from the company GGP-Loncin. It is characterized by good operating power and torque.
All in all, this wheeled motor cultivator is an easy-to-use tool, suitable for all users, including those who are not very familiar with equipment fitted with a petrol engine (we do however recommend that you read the instruction manual carefully).
Remember, however, that all wheeled cultivators are intended for working soft, non-stony soils. They have the great ability to grind the soil very finely, better than a tiller does, but they go in less deeply. This is why they are specific for working in vegetable gardens, whatever type of crop planted in them, or, in any case, on soft soils that have already been loosened and frequently tilled. If, on the other hand, the soil is hard, never tilled, with the presence of stones, or with sloping sections, we strongly advise against using this motor cultivator. In such cases, we recommend a rotary tiller, which is better suited to working in these conditions.
TECHNICAL CHARACTERISTICS:
Powerful GGP TM 60 series engine
displacement: 182 cc
Focus on the recoil start with recoil starter
Self-propulsion (traction) on the two sculptured pneumatic wheels.
2 SPEEDS:
- 1 forward gear (1.1 km/h)
- 1 reverse gear (1.1 km/h)
Internal transmission that drives the wheels by means of a chain in an oil bath.
Tiller working width: 50 cm
Outer casing made of sheet steel
Working depth: 10-15 cm (depending on surface texture and spur depth regulator setting)
The tiller is equipped with 4 elements, each with 4 hoes
Mounts a total of 16 hoes
Tiller diameter: 31 cm
Focus on the spur, equipped with various positions, which determines the working depth of the tiller
(remember that all wheeled cultivators on the market tend to break up the soil very finely, but by their very nature they carry out fairly superficial tilling, i.e. they have a more limited working penetration into the ground than motor hoes)
Chain final drive between tiller and motor cultivator, which is particularly robust and reliable.
However, we strongly advise against driving the machine into bumps or working on stony ground.
Pneumatic drive wheels with generous Tractor tread:
13 x 5.00 - 6
Provide excellent traction on all types of surfaces, even on gravel or soft ground
Equipped with a parking brake release system: by opening the two metal jumpers located for locking the wheels, they will be in the "NEUTRAL" condition. This function is very useful for easy transfer of the wheelbarrow with the engine off.
Lateral transmission between engine and belt drive body
Detail of the handlebars (handlebars), where all the main functions of the machine are located.
Single central lever in lower position: operates forward motion and tiller at the same time
Black side lever: operates the reverse drive (with the tiller stationary)
Detail of handlebar height adjustment
In summary:
RECORD-BREAKING SAFETY:
Accidents are impossible with this self-propelled wheeled cultivator. Simply let go of the controls and the tiller and machine motion stop instantly. It also remains locked thanks to the parking brake shown above.
WEIGHT: 60 kg
ACCESSORIES ON REQUEST:
- CUTTER KIT CM 32 with A PAIR OF IRON WHEELS mm 350x50
- ROLLER (furrower) with fixed wings with attachment
