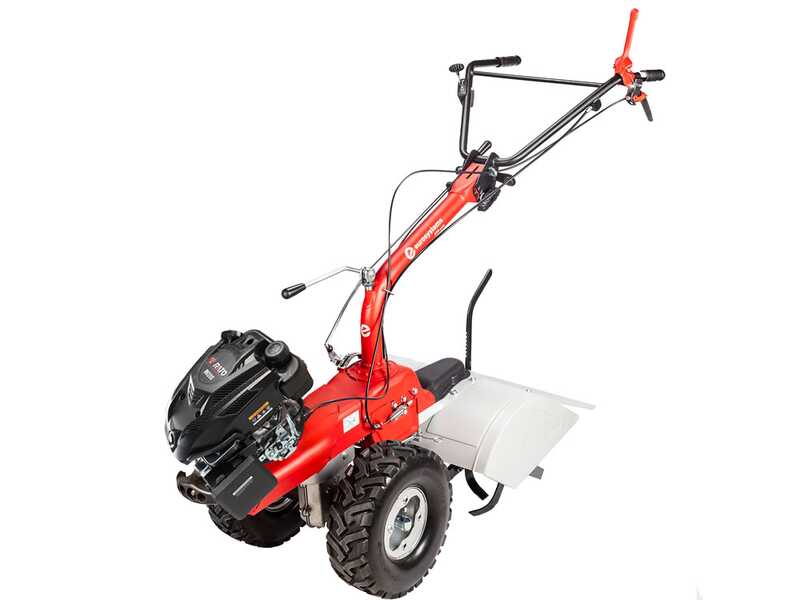

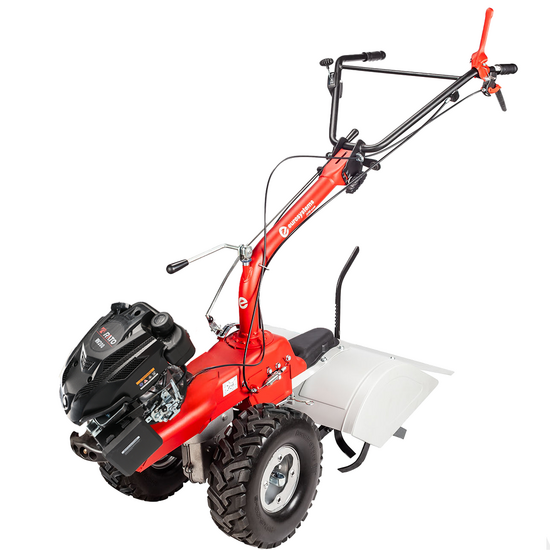

Eurosystems P70 EVO - Petrol Tiller - Rato RV200

The petrol tiller Eurosystems P70 EVO is a self-propelled machine designed for working soft and well-tilled soils, specific for advanced hobby or semi-professional use. Powered by a Rato RV200 200 cc petrol engine, this 4-stroke tiller ensures a stable power output of 3.5 kW, sufficient for working medium-sized gardens and plots. The 1-litre tank and recoil start complete its engine compartment, offering autonomy and ease of use.

The mechanical transmission system with oil-bath gears allows for smooth operation and longer durability compared to traditional chain systems. The large sculpted traction wheels ensure grip and stability on flat or slightly inclined surfaces. The 5-speed gearbox allows selecting 2 forward speeds and 1 reverse for use with the tiller, ensuring the right modulation in soil working. The remaining gears are intended for optional accessories, exploiting the multifunctional nature of the machine.

The supplied 55 cm tiller accessory consists of 4 elements with 4 blades each, for a total of 16 blades. This system allows for a very fine soil processing, more effective than a classic tiller. It is ideal for maintaining gardens, greenhouses, and small crops, in previously worked soils. It is not suitable for hard, stony, or never-tilled soils, situations where a tiller is preferable.

The design is essential and functional, with a robust painted steel structure, adjustable handlebars, and easy-to-use control levers.

Distinctive features of the Eurosystems P70 EVO petrol tiller:

• Rato RV200 4-stroke engine: offers reliability and consistent performance in prolonged use.

• 5-speed gearbox (2 forward + 1 reverse for tilling): ideal for specific use in light tilling work.

• Oil-bath transmission: ensures high mechanical resistance and low maintenance costs.

• 55 cm tiller with 16 blades: allows for fine and homogeneous soil processing.

• Multifunctional structure: compatible with optional accessories to expand the machine's use.

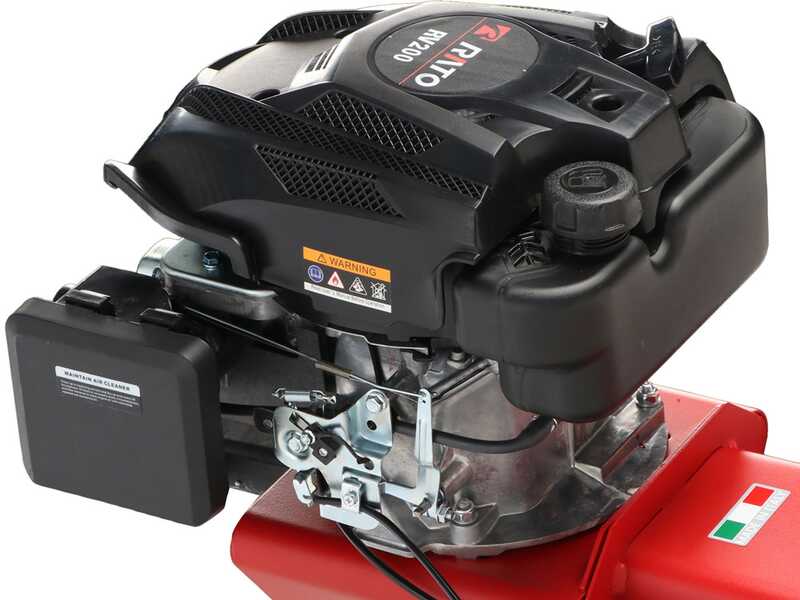

The Eurosystem P70 EVO tiller comes with a powerful Rato RV200 engine.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 200cc;
• Starting: Manual, recoil;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial" Power, we mean the classic power definition standard that was also officially used until a few years ago by all the most renowned engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Sweeper
for cleaning:
- courtyards
- green areas of all kinds
- roads
- squares

Snow blade
for clearing fallen snow in squares, small driveways, courtyards...

Tiller
for treating small plots of soft and non-stony soil

Sickle bar
with double-blade movement for cleaning plots of land from wild grass
or poorly maintained

Leaf vacuum
for quick collection of fallen dry leaves in squares, paths,
courtyards...

Snow blower
to clear roads, paths, squares from significant amounts of fallen snow
by depositing it to the sides thanks to the cannon it is equipped with.

The tiller is driven by a 5-speed gearbox, of which only 3 are usable for the machine's functions (2 forward + 1 reverse) and precisely the slower ones, therefore more suitable for specific use as a tiller for soil tilling.

They are selectable via the appropriate lever located under the handlebars.

Central transmission with aluminium housing and internal steel gears in oil bath. Extremely robust and reliable.

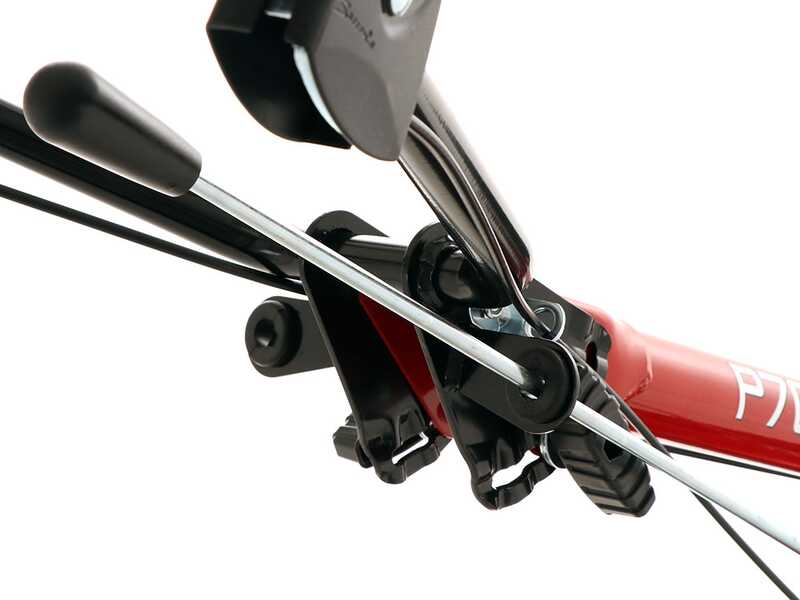

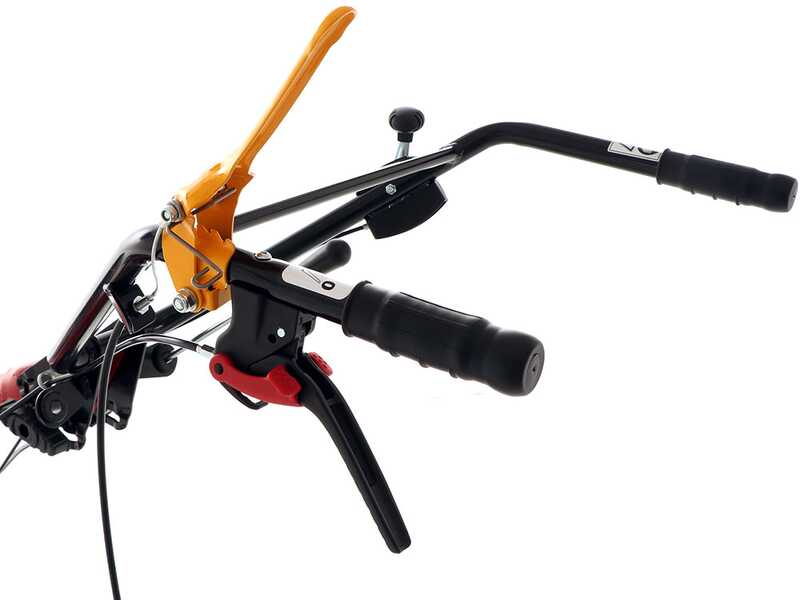

Detail of the handlebars, where all the main functions of the machine are gathered.

Lower lever with black knob: gear change lever.

Orange lever: Engage/Disengage tiller

Black lever: Engage/Disengage forward or reverse motion (i.e., whatever gear has been set).

Detail of the height adjustment of the handlebars.

Reversible or laterally adjustable guide handlebars.

Detail of the handlebar trunk fixing and rotation system through the appropriate lever.

Throttle control knob

Tiller working width: 55 cm

External hood made of steel sheet.

Tiller equipped with 4 elements, each with 4 blades

Tiller diameter: 32 cm

The spur is equipped with various positions, which determines the working depth of the tiller (we remind that all tillers on the market tend to grind the soil very finely but by their nature perform a fairly superficial work, i.e., they have a medium-low working depth in the soil).

Final belt transmission between tiller and machine body (protected by the black cover in the photo).

This allows preserving the tiller's durability. In fact, the belt performs a function similar to that of a clutch (it can slip in case of some impact by the tiller's blades, often preventing various components from being damaged).
However, we advise against taking impacts with the machine and working on stony soils.

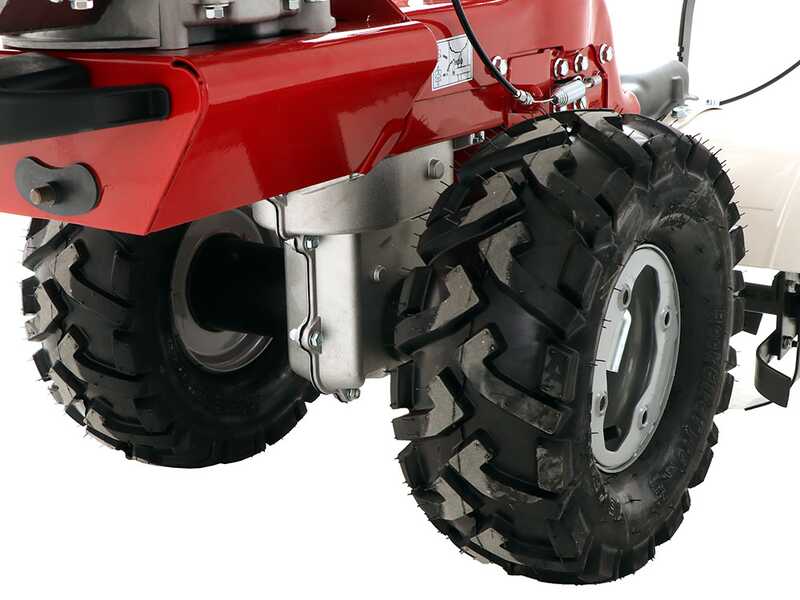

Professional large pneumatic sculpted drive wheels 15"x6.00-6

Equipped with a lock/unlock system that can be activated and deactivated by opening the fixing support. In this way, the wheels go into neutral or regain traction.
