Eurosystems P70 EVO Multi Tool Two-wheel Tractor with 55 cm Tiller - Loncin 224 OHV Engine

Questions & Answers (3)
ID: K602815

EAN: 8025004012363

MPN: 00986600600

Eurosystems P70 EVO Multi Tool Two-wheel Tractor with 55 cm Tiller - Loncin 224 OHV Engine
+40 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Standard milling cutter width
55 cm
Recommended operating area
500 s.q. m.
Motor type
4-stroke
Motor brand
Loncin
Motor Model
LC1P75F
Cubic capacity
224 cm³
Nominal power
7 HP
Transmission type
Belt and gears
Gears
3+2
Soil consistency
Soft
Conversion via other accessories
Yes
Manufacturing country
Italy
Product Features
Model:
P70 EVO - Loncin 224 OHV
Type:
With belt and gears in oil bath
Conversion via other accessories:
Yes
Operating mode:
Spark ignition
Recommended operating area:
500 s.q. m.
Soil consistency:
Soft
Soft soil:
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
LC1P75F
Motor type:
4-stroke
Cubic capacity:
224 cm³
No. of cylinders:
Single-cylinder
Nominal power:
7 HP
Rated power (HP):
5.38 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
1 L
Manufacturing country:
China
Transmission data
Transmission type:
Belt and gears
No. of forward speeds:
3
No. of reverse speeds:
2
Gears:
3+2
Forward speed:
1,1 km/h - 3,5 km/h
Reverse speed:
1,1 km/h - 2,1 km/h
Operating mode:
Lever on the handlebar
Cutting data
Standard milling cutter width:
55 cm
Milling cutter diameter:
32 cm
No. of blade holders:
4
No. of blades:
16
Blade engagement:
Lever on the handlebar
Equipment
Flail mower cutting deck:
On request
Milling cutter accessory:
Included as standard
Sickle bar accessory:
On request
Furrower accessory:
On request
Front brush accessory:
On request
Snow plough + snow chains accessory:
On request
Wheel barrow accessory:
On request
Snow blower accessory:
On request
Leaf blower - garden vacuum accessory:
On request
CE Accident prevention system:
Yes
Adjustable stake:
Yes
Clutch:
Belt tensioner
Recoil start system (with rope):
Yes
Rear wheels size:
15 x 6.00 - 6
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Reversible steering handles:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
174x56x138.5 cm
Net weight:
88 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
92 x 74 x 110 cm
Gross weight (packaging included) :
90 Kg
Assembly time:
60 minutes
Prompt Delivery
66 items in stock
Free Shipping
Estimated delivery: 11/04/2024 - 15/04/2024
€ 1.637,65
VAT Included

You're viewing:
Customers also viewed:
Description

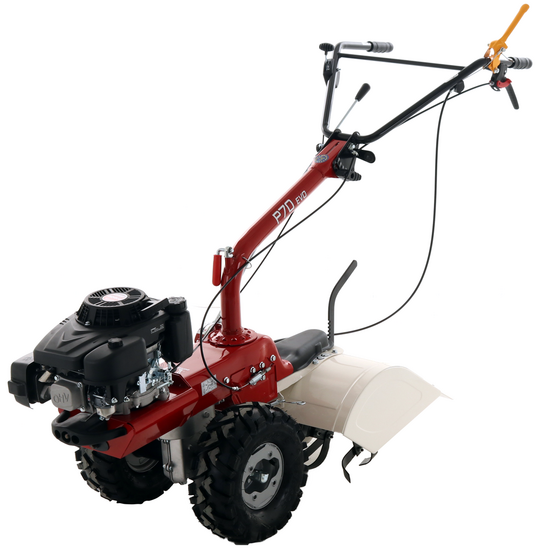

Eurosystems P70 EVO Petrol Two-wheel Tractor - Loncin Engine

Self-propelled two-wheel tractor powered by a 4-stroke engine and driven by large treaded tractor wheels. The wheels are attached to a gear transmission with gears in oil bath.

The 55 cm tiller attachment (supplied as standard) features 4 elements with 4 hoes each (16 hoes in total).

The two-wheel tractor is driven by a gearbox with 5 gears, of only 3 of which can be engaged to activate the functions of the machine (2 forward gears + 1 reverse gear), specifically the slower gears that are more suitable for specific use as a two-wheel tractor for tilling the soil.

The machine is multi tool. i.e. it provides for the possible application of other accessories on request, which allow to use all 5 gears of the two-wheel tractor.

This type of machines is designed for working on soft, non-stony ground. They do not dig very deep into the ground, but have the ability to break up the soil very finely, more than any garden tiller. For this reason, they are specifically designed for working in vegetable gardens in all types of crops, or, in any case, on soft soils that have already been ploughed and frequently tilled.

On the other hand, in case of particularly hard (or even never worked) or fairly stony ground, or with sloping terrain, we recommend to move towards a garden tiller, which is better suited to working in these soil conditions.

Loncin 224 OHV engine

The Eurosystems P70 EVO two-wheel tractor is fitted with a powerful Loncin 224 cc OHV engine.

Main features:

  • Engine type: 4-stroke, single cylinder
  • Cylinder type: Aluminium
  • Cubic capacity: 224 cc:
  • Compression ratio:: 8.5: 1
  • Starting: Manual, recoil start;
  • Fuel: Petrol

WARNING: The engine is provided without engine oil. Bring the oil to the right level before the first ignition.

Nominal power: 7 Hp

Rated power: 5.38 Hp

WARNING!

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

All accessories suitable for P 70 to be purchased separately

Power sweeper
to clean:
- courtyards
- any type of green space
- streets
- squares

Snow plough
suitable for removing snow in squares, small driveways, yards and so on.

Two-wheel tractor
for treating small plots of soft, non-stony soils.

Sickle bar with
dual-blade action which allows removing
overgrown grass and weeds.

Garden vacuum
for fast collection of dry fallen leaves in yards, driveways, courtyards, etc.

Snow blower for clearing roads, parkways, squares large quantities of fallen snow, disposing of it on the sides thanks to the discharge chute.

2-gear gearbox (2+1) and gear transmission in oil bath

The two-wheel tractor features a gearbox with 5 gears, of which only 3 can be engaged for tilling operations (2 forward gears + 1 reverse gear) and precisely those slower gears are more suitable for specific use as a two-wheel tractor for tilling the soil.

They can be selected by means of the proper lever placed under the steering handles.

Central transmission with aluminium housing and internal steel gears in oil bath. Very sturdy and reliable.

Steering handles and controls

Focus on the steering handles where all the main controls are located.

Lower lever with black knob: gear shifting lever.

Orange lever: tiller engagement/disengagement.

Black lever: forward and reverse gear engagement/disengagement (whatever the gear set by the operator).

Focus on the steering handles height adjustment.

The steering handles are reversible and side-adjustable.

Focus on the steering handles fixing and rotation system through the proper lever.

Throttle lever

55 cm tiller

Tiller working width: 55 cm

External hood made of sheet steel.

Tiller equipped with 4 elements, each with 4 hoes

Tiller diameter: 32 cm

The stake can be adjusted in various positions, thus determining the working depth of the tiller(remember that all the two-wheel tractors on the market tend to grind the soil very finely, but they carry out fairly superficial work, i.e. they feature a medium-low working depth in the soil).

Final belt drive between the tiller and the machine body (protected by the black housing in the photo).

This will ensure longer life to the machine. In fact, the belt performs a function similar to that of a clutch (it can slip in the event of some impact from tiller’s hoes, often preventing the various components from being damaged.
However, we do not recommend bumping the machine and working on stony ground.

Treaded drive wheels

Heavy-duty large-sized pneumatic treaded drive wheels 15 "x6.00-6

Equipped with a locking/unlocking system that can be activated and deactivated by opening the locking pin. In this way, the wheels go into neutral or regain traction.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

1° GIFT: SAFETY KIT

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Standard equipment

The machine is shipped in its original packaging

Instructions manual included


WARNING
the engine comes without oil. Bring the oil to the right level before the first ignition.
