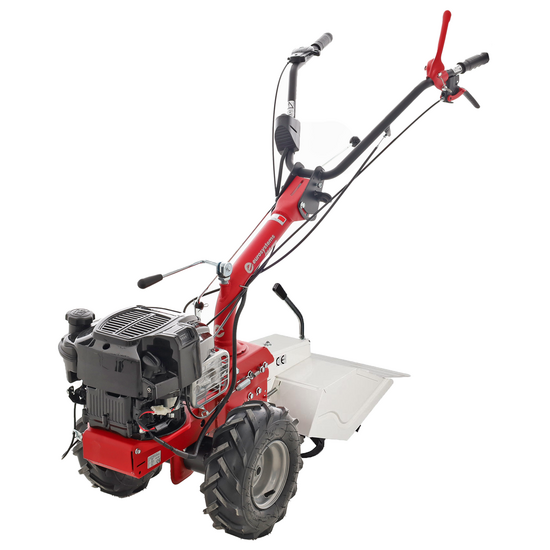

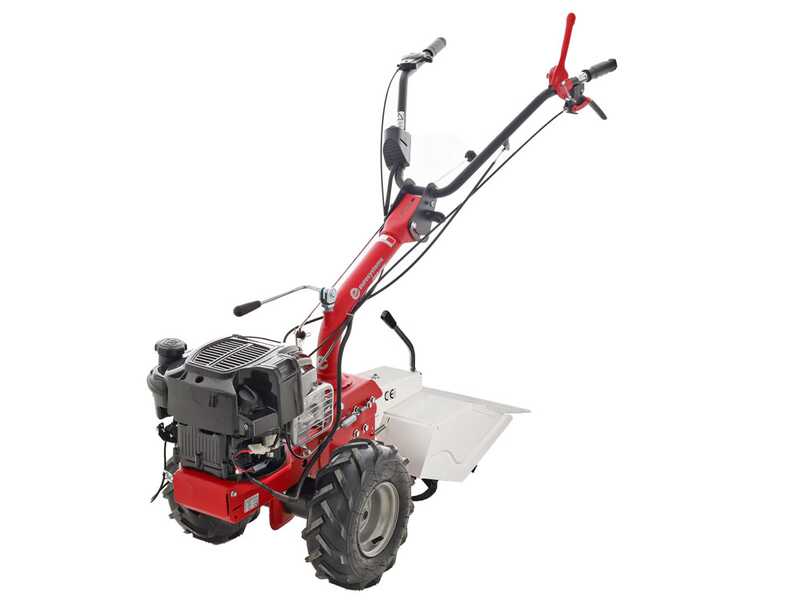

Eurosystems P55 EVO - Petrol Cultivator - B&S 675 iSi

The Eurosystems P55 EVO cultivator is a multifunctional agricultural machine ideal for soil cultivation, particularly suitable for preparing low-consistency surfaces for sowing. This Made in Italy cultivator offers a combination of power, manoeuvrability, and safety, making it suitable for various types of agricultural and gardening work.

The robust and functional design is characterized by a compact structure, with adjustable handlebars that allow precise control during use.

The cultivator features a two-speed mechanical transmission, with forward and reverse gears, facilitating movement and manoeuvring in tight spaces. The large diameter pneumatic driving wheels (13x5.00-6) ensure excellent traction even on uneven surfaces and are equipped with a locking device for greater stability.

The 50 cm rear tiller, equipped with an adjustable spur, allows for shallow but very fine soil work, promoting perfect preparation for sowing.

The multifunctionality of the Eurosystems P55 EVO cultivator is guaranteed by the quick coupling and the reversible handle, which allow for the mounting of various accessories, increasing the machine's versatility. All controls are ergonomically positioned on the handlebars, reducing operational effort and improving comfort during prolonged use.

Distinctive features:

• 2-speed transmission: facilitates manoeuvrability with forward and reverse gears.

• Pneumatic driving wheels 13x5.00-6: ensure optimal traction and stability even on uneven terrain.

• 50 cm rear tiller with adjustable spur: allows for fine and shallow tilling, ideal for seedbed preparation.

• Reversible handle and quick coupling: increase the machine's versatility, allowing the use of various accessories.

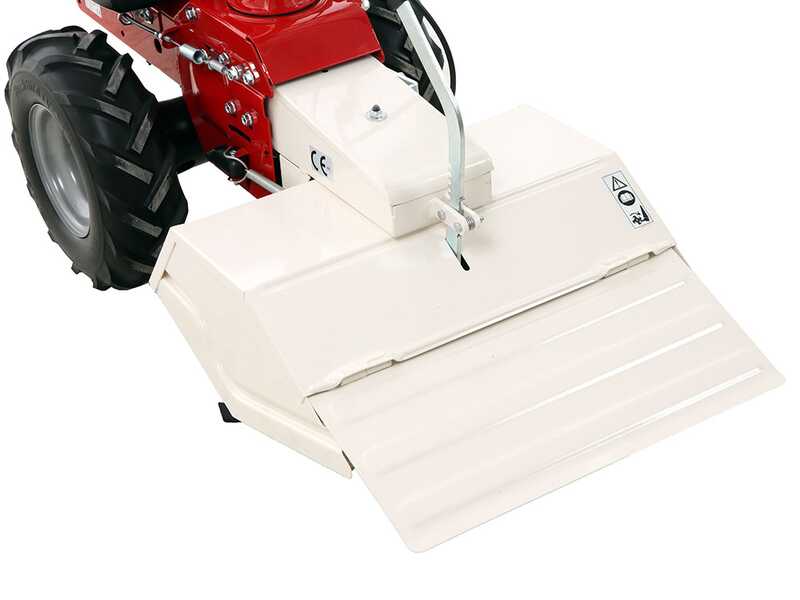

The tiller is equipped with a quick coupling that allows for the quick removal of the tool to replace it with another accessory or simply to speed up the storage of the machine.

Tiller: 50 cm with quick coupling (4 elements x 4 blades)

Transmission: Gear and worm drive in oil bath and belts.

Safety Devices:
- impossibility of engaging the tiller in reverse when the operator is working on the tiller side
- stop of movement when the handlebars are released in compliance with the machinery directive 2006/42/EC

WARNING:

THIS PRODUCT (like all cultivators on the market) IS SPECIFICALLY DESIGNED TO WORK ONLY AND EXCLUSIVELY ON SOFT AND ALREADY TILLED SOILS.

ITS MAIN FUNCTION IS TO GRIND THE SOIL VERY FINELY.

Difference between CULTIVATOR and TILLER:

THE SPECIFIC FUNCTION OF THE CULTIVATOR IS TO GRIND THE SOIL VERY FINELY MAINLY IN VEGETABLE GARDENS.

It refines the soil more than the tiller. BUT IT IS NOT SUITABLE FOR WORKING ON HARD AND COMPACT SOILS (where it is more appropriate to work with the tiller)

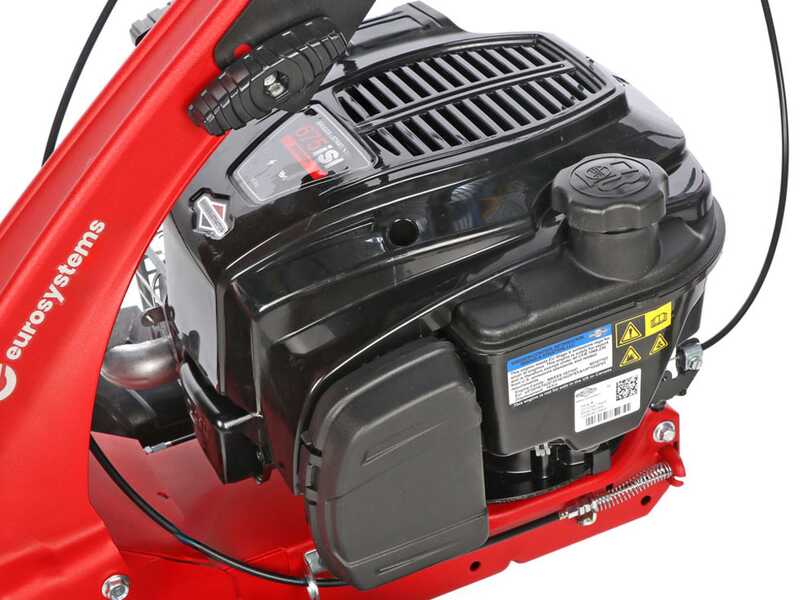

The B&S engine is a 4-stroke petrol engine OHV, air-cooled, with an aluminium cylinder.

It is an engine with a 163cc displacement and develops good power.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 163cc;
• Starting: Electric;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 5.5 HP

Effective Power: 3.67 HP

WARNING!

*Also known as "Commercial" Power, we mean the classic standard definition of power that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

The machine is equipped with a 2-speed gearbox divided into:
- 1 forward gear
- 1 reverse gear

They are selectable via the appropriate lever located under the handlebars.

Central gear transmission in steel oil bath. Extremely robust and reliable.

Engine start button located on the handlebar.

Lever with black knob: gear shift lever.

Red lever: Engage/Disengage deck

Black lever: Engage/Disengage forward or reverse motion (i.e., whatever gear has been set).

Detail of the height adjustment of the handlebar.

Reversible or laterally adjustable guide handlebars.

Detail of the handlebar trunk fastening and rotation system through the appropriate lever.

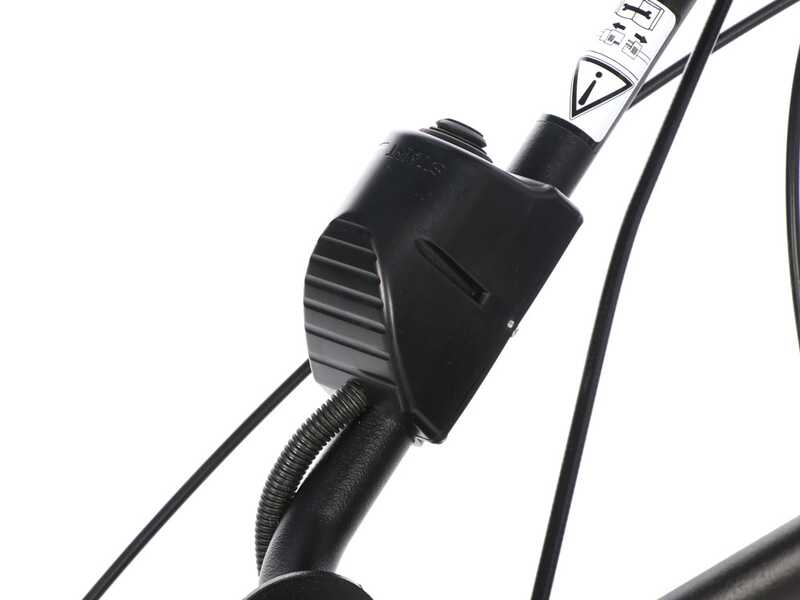

Throttle control

Rotary Scythe: transforms this machine into a highly efficient self-propelled rotary mower, for cutting all kinds of grass (tall or short), allowing it to be recovered even for livestock feed.

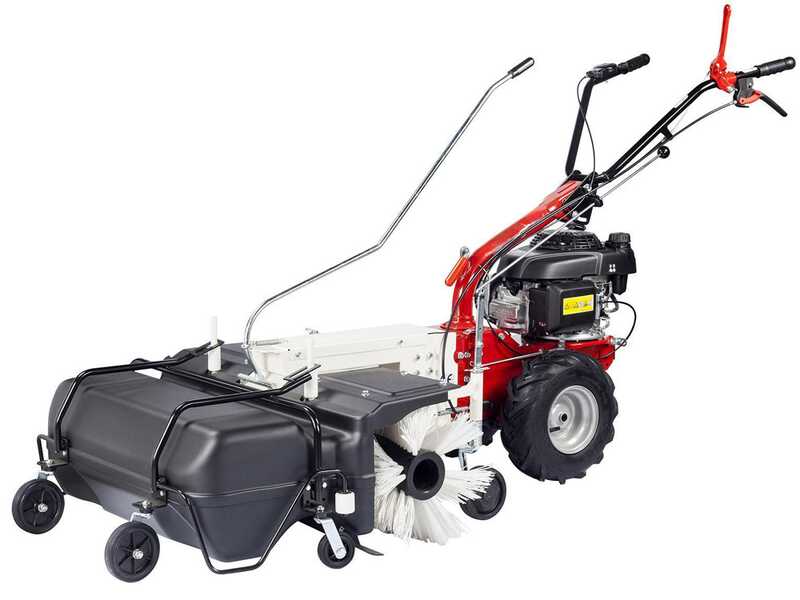

Collector Brush with Basket: allows this machine to be transformed into a functional self-propelled sweeper for cleaning courtyards, green areas of all kinds, roads, squares

Mower Bar with Two-Blade Movement for cleaning plots of land from wild or neglected grass

Snow Plough Blade for clearing fallen snow in squares, small driveways, courtyards... In combination with snow chains.

Fixed Wing Furrower: allows small furrows to be made on already tilled land

Spring Aerator: for removing old thatch from your lawn

Mulching Deck for cleaning plots of land from weeds or uncultivated grass.

Transport Tub with Wheels: allows loads up to 100 kg to be transported

50 cm Tiller: allows the soil to be finely crumbled

WARNING!

The photos are for illustrative purposes only and may differ from the main product.
