Docma VF900-4 Nippon - Honda GX50 Engine Forestry Winch - Complete Kit

Add a question
ID: K607193

EAN: 8053435096409

MPN: 98007+310201/210/012

8,0/10
After-sales assistance & Spare parts
Docma VF900-4 Nippon - Honda GX50 Engine Forestry Winch - Complete Kit
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
100 m of rope supplied100 m of rope supplied
Supplied ratchet for anchoringSupplied ratchet for anchoring
Power supply
Petrol
Motor brand
Honda
Motor Model
GX 50
Cubic capacity
47.9 cm³
Rated power
1.9 Hp
Single rope traction
865 Kg
Traction double rope
1730 Kg
Rope type
Polyester
Cable diameter
10 mm
Cable length
100 m
Winding speed
14 m/min
Weight
11 Kg
Manufacturing country
Italy
Product Features
Model:
VF900-4 Nippon
Sound pressure level:
92 Lpa av
Sound power level:
112 LWa av
Power supply:
Petrol
Operating mode:
Spark ignition
Rope type:
Polyester
Direct pulling capacity:
865 Kg/N
Double pulling capacity:
1730 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
14 m/min
Single rope traction:
865 Kg
Traction double rope:
1730 Kg
Cable diameter:
10 mm
Cable length:
100 m
Motor data
Motor brand:
Honda
Motor Model:
GX 50
Cubic capacity:
47.9 cm³
No. of cylinders:
Single-cylinder
Rated power:
1.9 Hp
Manufacturing country:
Japan
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

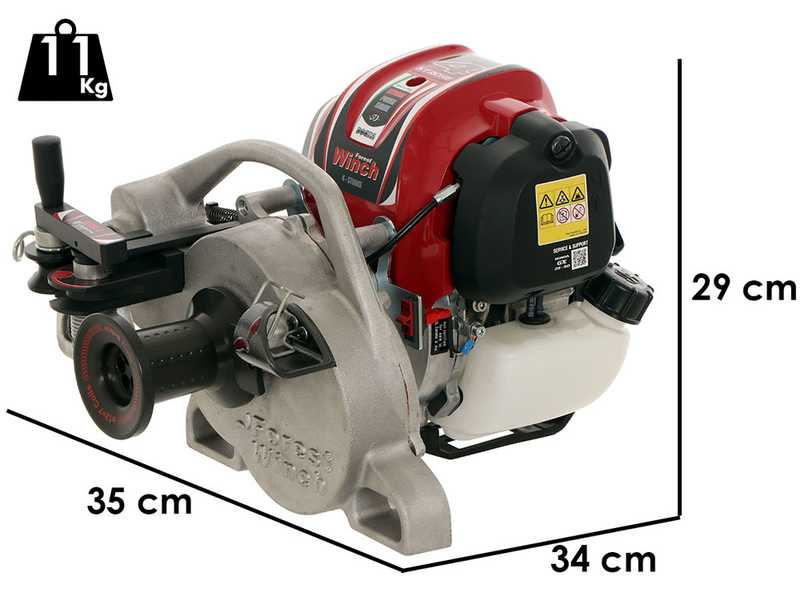

Product dimensions in cm (L x W x H):
35x34x29 cm
Net weight:
11 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
60x40x71
Gross weight (packaging included) :
22.7 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 1.853,95
VAT Included
You're viewing:
Customers also viewed:
Description

Docma VF900-4 Nippon Winch - Honda gx50 Engine

The VF900-4 Nippon is Docma's first winch equipped with a 4-stroke engine, a machine with attention to every detail.

Its special features are its low noise level and strong, constant force.

The high quality Made in Italy gearbox with helical gears, the HONDA 4-stroke GX50 engine with high performance and very low noise, the accelerator unit that can be modulated by the operator through a slight pull or release of the rope are just a few examples of the meticulous design and high quality, long-lasting components.

The winch was created with the aim of reducing the pulling effort required to drag weights.

Portable winches for forestry use are designed for the sole operation of dragging non-rotating objects, normally at angles of about 45 degrees from the horizontal plane.

The field of application of these winches ranges from the forestry sector (hauling wood, tractor winches) to the leisure sector (loading unloading boats, hunting, etc...).

The great power, versatility, compactness and weight mean that this product can be used in both the professional and DIY sectors.

This winch is equipped with a Honda 4T engine with state-of-the-art design features and in line with the latest European environmental regulations.

It has a maximum traction of 865 Kg and a winding speed of approximately 14 metres per minute.

Equipped with rope guide for automatic rope winding. Automatic braking system, as required by current European standards.

This solid and robust engine is the result of years of testing by engineers.

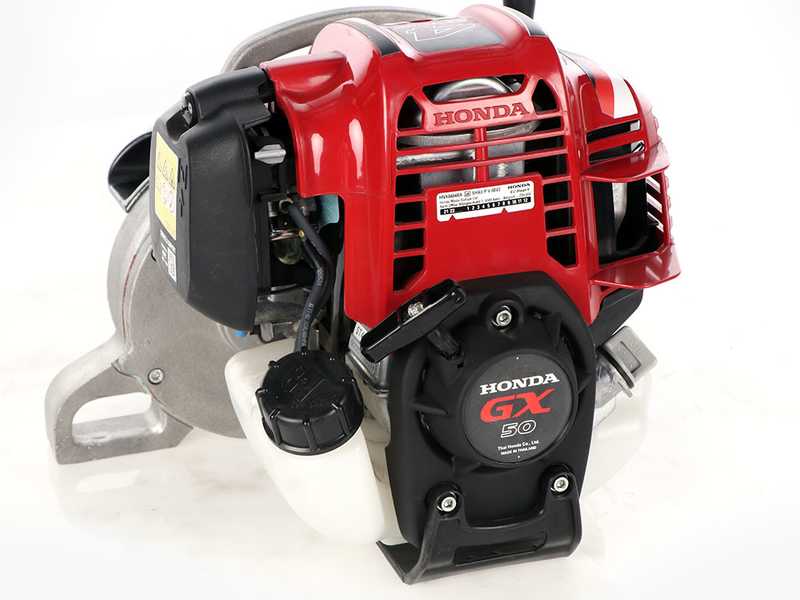

Honda GX50 4-stroke engine

Equipped with a powerful 4-stroke Honda GX50 petrol engine, it is provided with state-of-the-art features in line with the latest European regulations.

A 47.9 cc engine with easy starting, it can reach a power of 1.47 kW (1.9 Hp) at 7000 rpm.

Thanks to the power of this engine, the rope features a winding capacity of 14 m/min.

Automatic brake with rope guide.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 865 Kg
  • Double pull with a load capacity of 1730 Kg

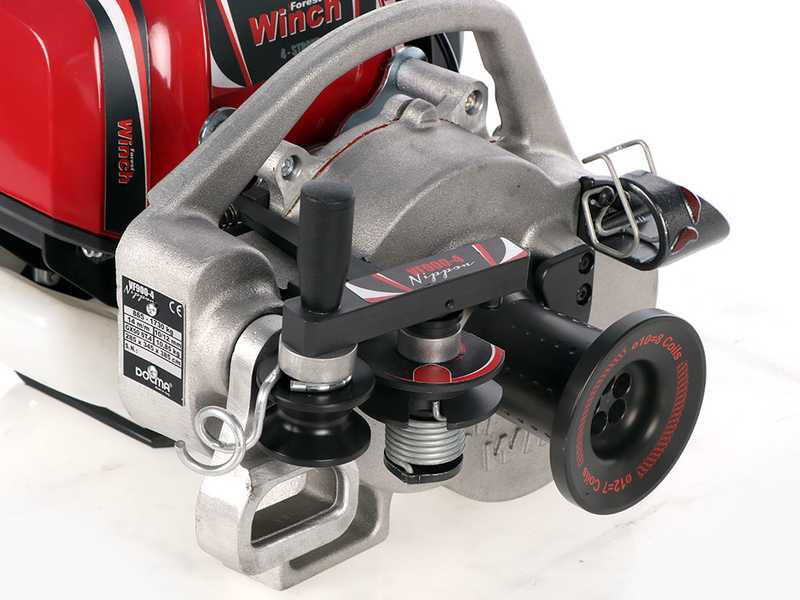

Features and details

Controls are via a throttle control knob, which is easy to use even for not expert users.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Support feet
  • Anchor shackle
  • Rope guide
  • Sliding pulleys
  • Reducer
  • Throttle cable

The recommended rope is already included with the purchase of the kit, equipped with a hook with a capacity of 1.6 tonnes.

A ratchet to anchor the machine is also supplied.

Free items & Standard equipment

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

Anchor ratchet

100 metres of 10 mm rope with end hook
