Docma VF80 BOLT - forestry Winch engine Solo HP50E-A - Complete Kit

Add a question
ID: K607526

EAN: 0793541995033

MPN: 98005+310201/210/012

8,0/10
After-sales assistance & Spare parts
Docma VF80 BOLT - forestry Winch engine Solo HP50E-A - Complete Kit
FREE
2 bottles of two-stroke oil2 bottles of two-stroke oil
100 m of rope supplied100 m of rope supplied
Supplied ratchet for anchoringSupplied ratchet for anchoring
Power supply
Fuel-oil mix
Motor Model
HP50E-A
Cubic capacity
50.8 cm³
Rated power
2.5 Hp
Single rope traction
865 Kg
Traction double rope
1730 Kg
Rope type
Polyester
Cable diameter
10 mm
Cable length
100 m
Winding speed
26 m/min
Weight
10.5 Kg
Manufacturing country
Italy
Product Features
Model:
VF80 BOLT
Sound pressure level:
94 Lpa av
Sound power level:
113 LWa av
Power supply:
Fuel-oil mix
Rope type:
Polyester
Direct pulling capacity:
815 Kg/N
Double pulling capacity:
1630 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
26 m/min
Single rope traction:
865 Kg
Traction double rope:
1730 Kg
Cable diameter:
10 mm
Cable length:
100 m
Motor data
Motor brand:
Solo
Motor Model:
HP50E-A
Cubic capacity:
50.8 cm³
No. of cylinders:
Single-cylinder
Rated power:
2.5 Hp
Manufacturing country:
Germany
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

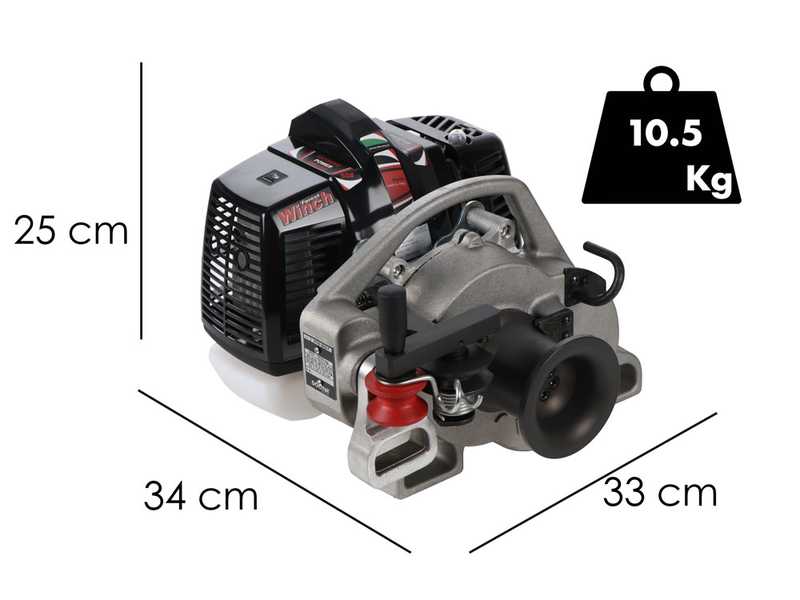

Product dimensions in cm (L x W x H):
33x34x25 cm
Net weight:
10.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
67X57X40
Gross weight (packaging included) :
26.9 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 1.631,25
VAT Included
You're viewing:
Customers also viewed:
Description

Docma VF80 BOLT Solo HP50E-A Winch

The Docma VF80 BOLT Solo HP50E-A Winch is an innovative machine equipped with a 2-stroke engine, designed to offer high-level performance with a particular attention to detail. Its distinctive features include low noise emission and a constant and powerful traction force.

Made with a high quality Made in Italy gearbox, it features worm gears and a Solo engine by AL-KO HP50E-A, known for its high performance and incredibly low noise.

The winch throttle is designed to be easily adjustable by the operator, allowing precise control through light traction or the release of the rope. Each component reflects a meticulous attention to design and a focus on durability and quality.

This winch has been designed to minimise the effort required in towing weights. It is ideal for forestry applications, such as timber towing or use with tractors, but it is also suitable for recreational activities such as loading and unloading boats or hunting.

Its power, versatility, compactness and light weight make it suitable for both professional and DIY use. The Solo 2-stroke engine is cutting-edge from a design point of view and complies with the latest European regulations on environmental impact.

The winch has a maximum pulling capacity of 815 kg and a winding speed of approximately 26 metres per minute It is also equipped with a rope guide to automate the winding of the rope and an automatic braking system, compliant with current European regulations.

Solo HP50E-A 2-stroke petrol engine

Equipped with a powerful Solo by AL-KO HP50E-A 2-stroke internal combustion engine, it has cutting edge features in line with the European regulations.

A 50.8 cc engine with easy starting, it can reach a power of 1.9 kW (2.58 Hp) at 9000 rpm.

Thanks to the power of this engine, the cable has a winding capacity of 26 Mt/ min

Automatic brake with rope guide.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 815 Kg
  • Double pull with a load capacity of 1630 Kg

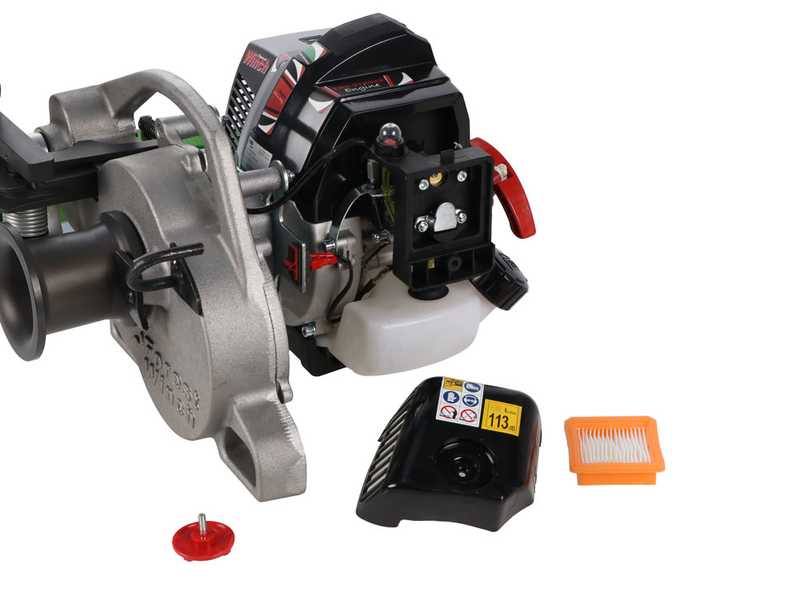

Detail of the 0.75l petrol tank

Focus on the air filter

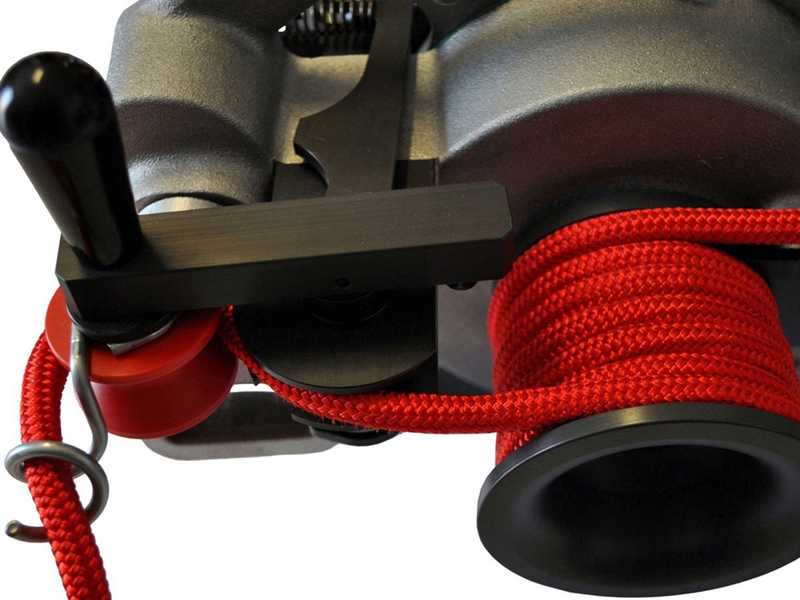

Features and details

Controls are via a throttle control knob, which is easy to use even for not expert users.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Detail of one of the two Support feet
  • Rope guide
  • Sliding pulleys
  • Reducer
  • Throttle cable

The recommended rope is already included with the purchase of the kit, equipped with a hook with a capacity of 1.6 tons

The ratchet for anchoring the machine is also supplied.

Free items & Standard equipment

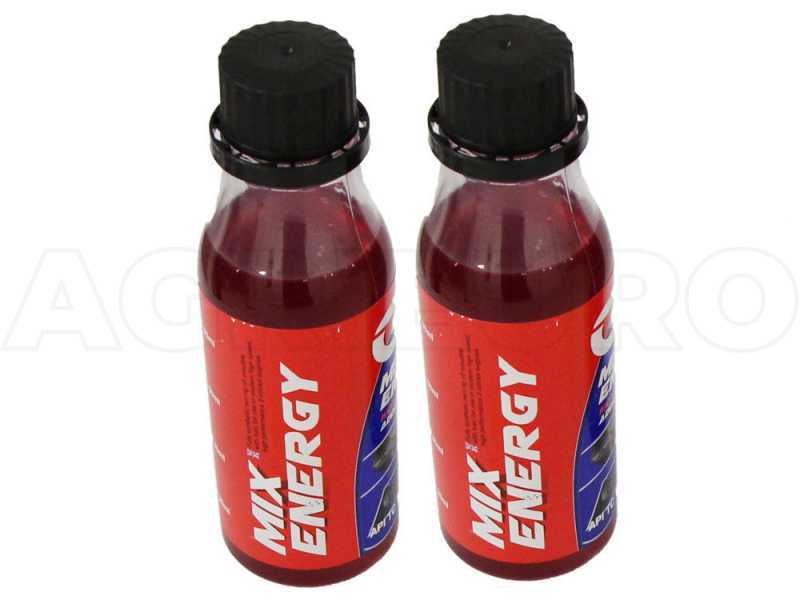

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

Anchoring ratchet

100 m of 10 mm rope with end hook
