Docma VF155 Automatic Ultralight - Forestry Winch - Solo HP50E-A engine - Ø 5mm da 80m dyneema rope

Add a question
ID: K607524

EAN: 0793541995071

MPN: 980004+310245+310002

Docma VF155 Automatic Ultralight - Forestry Winch - Solo HP50E-A engine - Ø 5mm da 80m dyneema rope
FREE
2 bottles of two-stroke oil2 bottles of two-stroke oil
Green Anchorage SlingGreen Anchorage Sling
Power supply
Fuel-oil mix
Motor Model
HP50E-A
Cubic capacity
50.8 cm³
Rated power
2.58 Hp
Single rope traction
1420 Kg
Traction double rope
2840 Kg
Rope type
dyneema
Cable diameter
5 mm
Cable length
80 m
Winding speed
20 m/min
Weight
25 Kg
Manufacturing country
Italy
Product Features
Model:
VF155 Automatic HP50E-A Ultralight
Sound pressure level:
94 Lpa av
Sound power level:
113 LWa av
Power supply:
Fuel-oil mix
Rope type:
dyneema
Direct pulling capacity:
1485 Kg/N
Double pulling capacity:
2970 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
20 m/min
Single rope traction:
1420 Kg
Traction double rope:
2840 Kg
Cable diameter:
5 mm
Cable length:
80 m
Motor data
Motor brand:
Solo
Motor Model:
HP50E-A
Cubic capacity:
50.8 cm³
No. of cylinders:
Single-cylinder
Rated power:
2.58 Hp
Manufacturing country:
Germany
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes

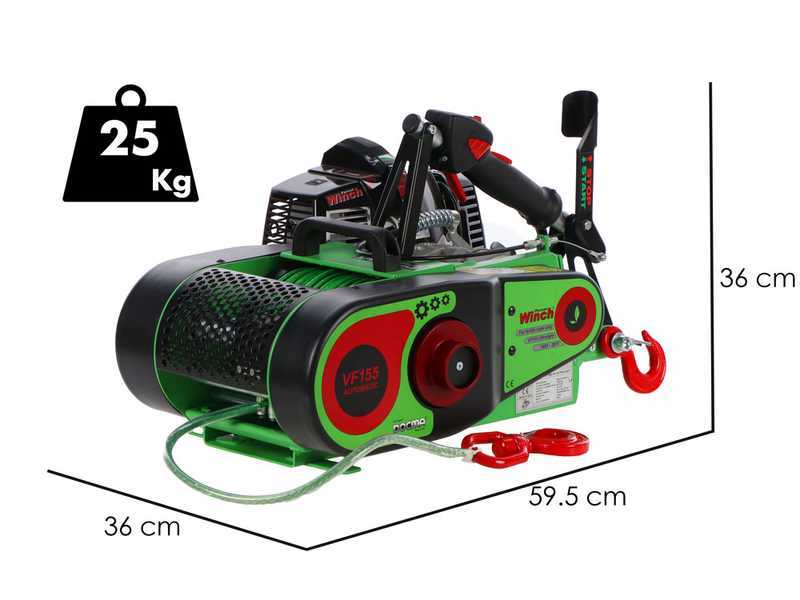

Dimensions and logistics
Product dimensions in cm (L x W x H):
59X36X36
Net weight:
25 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
64X44X39 cm
Gross weight (packaging included) :
32 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 2.448,26
VAT Included
You're viewing:
Customers also viewed:
Description

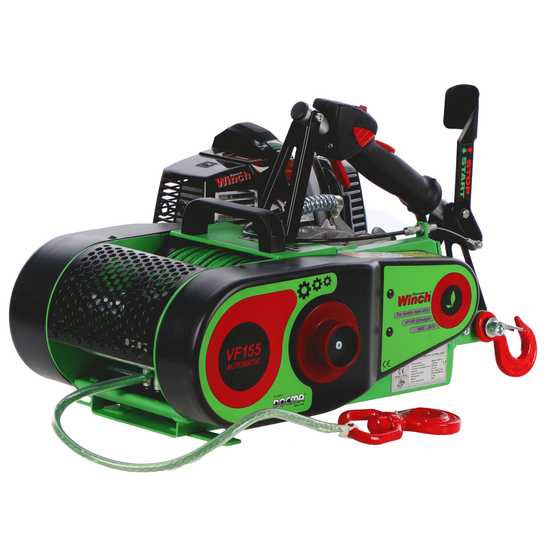

Docma VF155 Automatic Ultralight Petrol-powered Winch

The Docma VF155 Automatic Ultralight winch has been developed to facilitate and minimize efforts in towing loads. This device is distinguished by its sophisticated rope guiding mechanism, which ensures a systematic and accurate winding of the cable, preventing the formation of knots and overlaps.

Equipped with a Solo HP50E-A engine, the winch shows an attention to construction details and is characterized by its low noise and strong and durable traction, supported by helical gears.

Made with high quality and carefully selected materials, it ensures a long life. Portable winches like this, designed for forestry applications, are mainly used to drag stationary loads, generally positioned at an angle of about 45 degrees to the ground.

With an cutting edge gearbox, an optimised rope drive mechanism, a high-performance, low-noise Solo HP50E-A engine and a customisable acceleration system, the winch sets the benchmark in the design and choice of durable, quality components.

Its applications range from the forestry sector, such as the towing of timber and tractor cables, to the leisure sector, including boat handling and hunting activities.

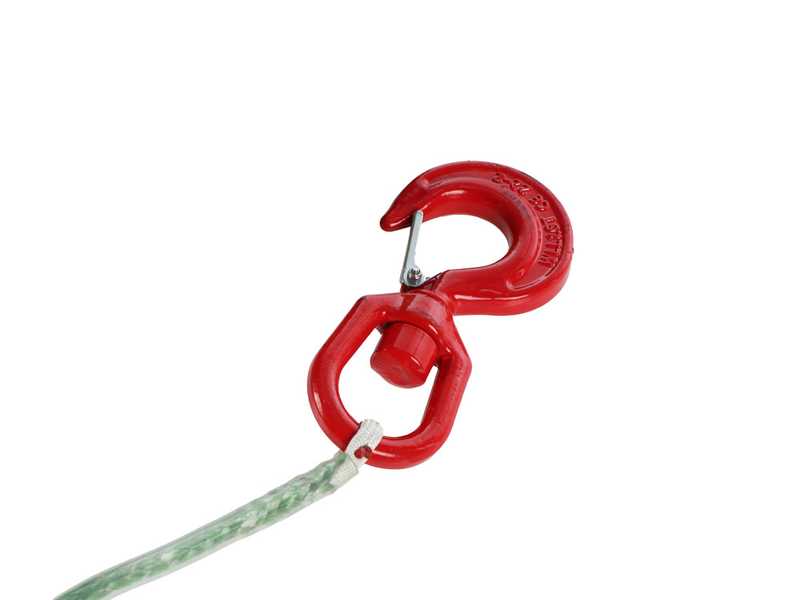

The device offers a pulling capacity of 1485 kg and a winding speed of 20 metres per minute It includes a 80m/5mm Dyneema rope, a rotating hook and a 2m long sling.

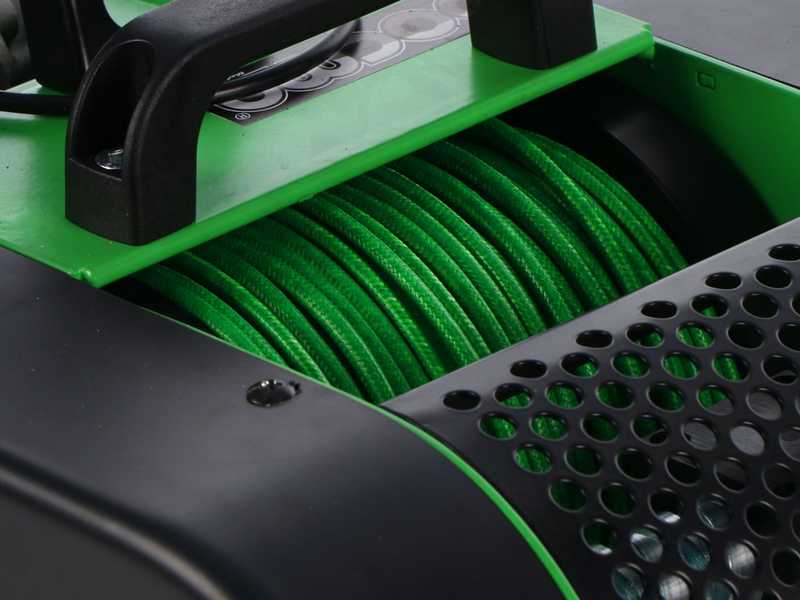

The rope is made of dyneema, a high-density polyethylene textile material, known to be one of the strongest in the world in terms of traction. A unique feature of this fibre is its lack of elasticity, which guarantees constant and maximum traction when used with the winch.

Solo HP50E-A 2-stroke engine

Equipped with a powerful Solo by AL-KO HP50E-A 2-stroke internal combustion engine, it has cutting edge features in line with the European regulations.

A 50.8 cc engine with easy starting, it can reach a power of 1.9 kW (2.58 Hp) at 9000 rpm.

The accelerator of the machine is manual and is managed through the appropriate handle, from which the clutch is also engaged.

Thanks to the power of this engine, the cable has a winding capacity of 20 m/ min

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 1485 Kg
  • Double pull with a load capacity of 2970 Kg

Detail of the 0.75l petrol tank

Details of the air filter

Features and details

The Docma Solo HP50E-A 2-Stroke Winch is simple and intuitive to use, suitable even for the less experienced.

Thanks to the two hooks on the back and the supplied sling, the winch can be attached to a solid handhold quickly and easily.

The throttle is positioned on the handle located in the centre of the machine,

Using the nearby lever, the clutch will be activated, which will transmit the motion of the engine to the drum with the steel cable

The main parts of the winch are:

  • Engine
  • Lifting handle
  • drum with 80m/5mm Dyneema cable
  • Rope guide trailer
  • Sliding pulleys
  • Drum lock/unlock
  • Throttle handle with clutch
  • Hooks for securing the machine
  • Tow hitch
Free items & Standard equipment

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

80m/5mm dyneema cable

Brace for anchoring the winch
