Docma VF150 Automatic - Forestry Winch Solo HP50E-A engine - 60m Ø 6mm cable

Add a question
ID: K607521

EAN: 0793541995064

MPN: 980008+310029+310002

8,0/10
After-sales assistance & Spare parts
Docma VF150 Automatic - Forestry Winch Solo HP50E-A engine - 60m Ø 6mm cable
FREE
2 bottles of two-stroke oil2 bottles of two-stroke oil
Green Anchorage SlingGreen Anchorage Sling
Power supply
Fuel-oil mix
Motor Model
HP50E-A
Cubic capacity
50.8 cm³
Rated power
2.58 Hp
Single rope traction
1420 Kg
Traction double rope
2840 Kg
Rope type
Galvanized steel
Cable diameter
6 mm
Cable length
60 m
Winding speed
20 m/min
Weight
27.5 Kg
Manufacturing country
Italy
Product Features
Model:
VF150 Automatic HP50E-A
Sound pressure level:
94 Lpa av
Sound power level:
113 LWa av
Power supply:
Fuel-oil mix
Rope type:
Galvanized steel
Direct pulling capacity:
1420 Kg/N
Double pulling capacity:
2840 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
20 m/min
Single rope traction:
1420 Kg
Traction double rope:
2840 Kg
Cable diameter:
6 mm
Cable length:
60 m
Motor data
Motor brand:
Solo
Motor Model:
HP50E-A
Cubic capacity:
50.8 cm³
No. of cylinders:
Single-cylinder
Rated power:
2.58 Hp
Manufacturing country:
Germany
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

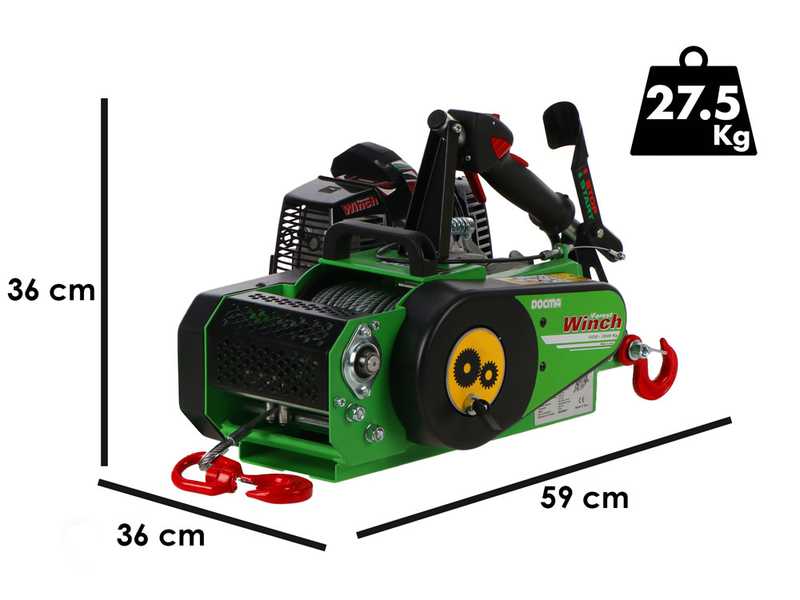

Product dimensions in cm (L x W x H):
59X36X36
Net weight:
27.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
64X44X39 cm
Gross weight (packaging included) :
32 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 05/08/2024 - 07/08/2024
€ 2.104,08
VAT Included
You're viewing:
Customers also viewed:
Description

Docma VF150 Automatic Petrol-powered Winch

The Docma VF150 Automatic is a high-efficiency and high-performance petrol winch, designed for towing and hauling loads in the forestry sector and for recreational activities.

This portable winch is powered by a Solo HP50E-A 2-stroke engine, known for its high performance and low noise emission.

A salient feature of the VF150 Automatic is its automatic rope guide mechanism, which ensures an orderly rewinding of the cable, preventing intertwining and overlapping.

Durability is further enhanced by the use of high-quality materials.

With a constant and powerful traction force, the Docma VF150 winch can handle loads of up to 1420 kg, with a winding speed of about 20 meters per minute.

It is equipped with a 60-metre long and 6 mm thick steel rope, a swivel hook, and a 4-metre gaiter.

This model is in line with the latest European regulations on environmental impact, demonstrating its commitment to sustainable design.

The high quality gearbox and an easily adjustable throttle for the operator make it an ideal winch for a variety of applications, from wood towing in forestry to loading and unloading boats for recreational use.

Solo HP50E-A 2-stroke petrol engine

Equipped with a powerful 2-stroke Honda HP50E-A petrol engine, it is provided with cutting edge features in line with the latest European regulations.

A 50.9 cc engine with easy starting, it can reach a power of 1.9 kW (2.58 Hp) at 9000 rpm.

The accelerator of the machine is manual and is managed through the appropriate handle, from which the clutch is also engaged.

Thanks to the power of this engine, the cable has a winding capacity of 19 m/ min

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 1420 Kg
  • Double pull with a load capacity of 2840 Kg

Detail of the 0.75l petrol tank

Focus on the air filter

Features and details

The Docma VF150 Automatic 2-strokes winch is simple and intuitive to use, suitable even for the less experienced.

Thanks to the two hooks on the back and the trouser provided, the winch can be fastened to a solid handle in a simple and fast way.

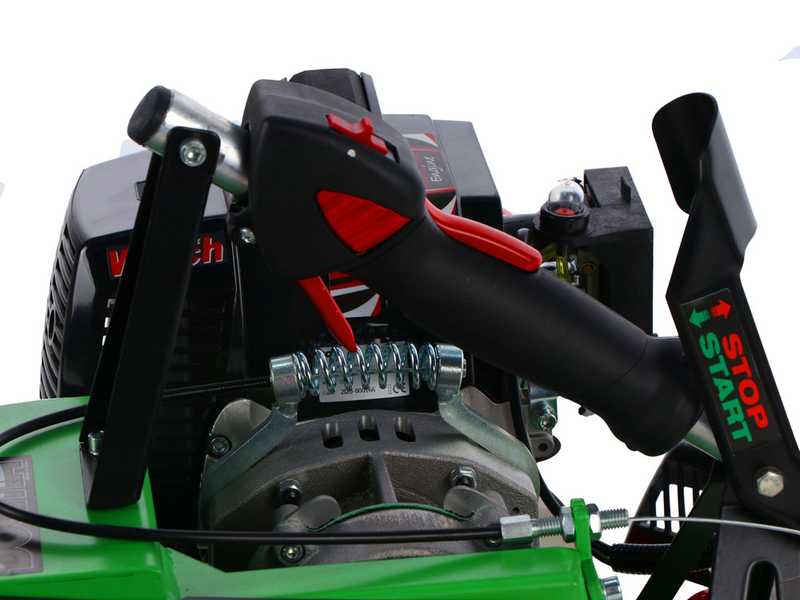

The throttle is positioned on the handle located in the centre of the machine,

Using the nearby lever, the clutch will be activated, which will transmit the motion of the engine to the drum with the steel cable

The main parts of the winch are:

  • Engine
  • Lifting handle

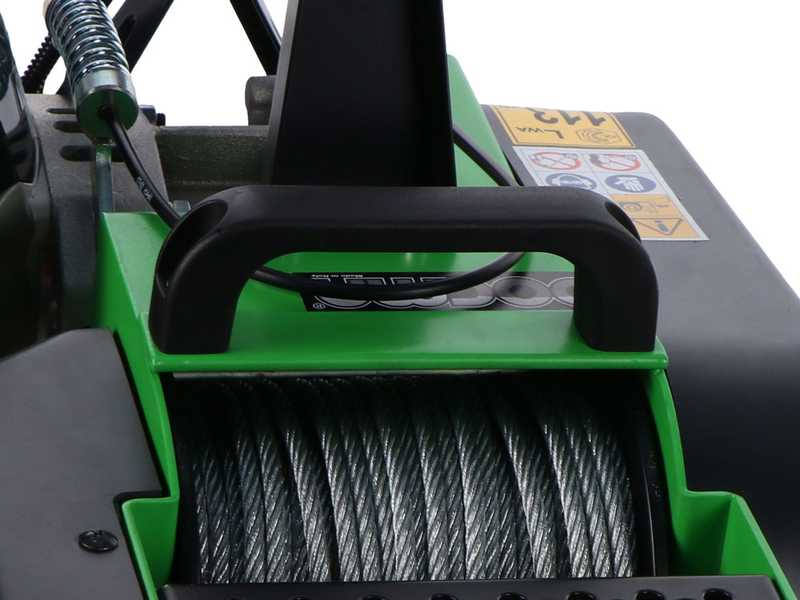

  • drum with 60m/6mm steel cable
  • Rope guide trailer
  • Sliding pulleys
  • Drum lock/unlock
  • Throttle handle with clutch
  • Hooks for securing the machine
  • Tow hitch
Free items & Standard equipment

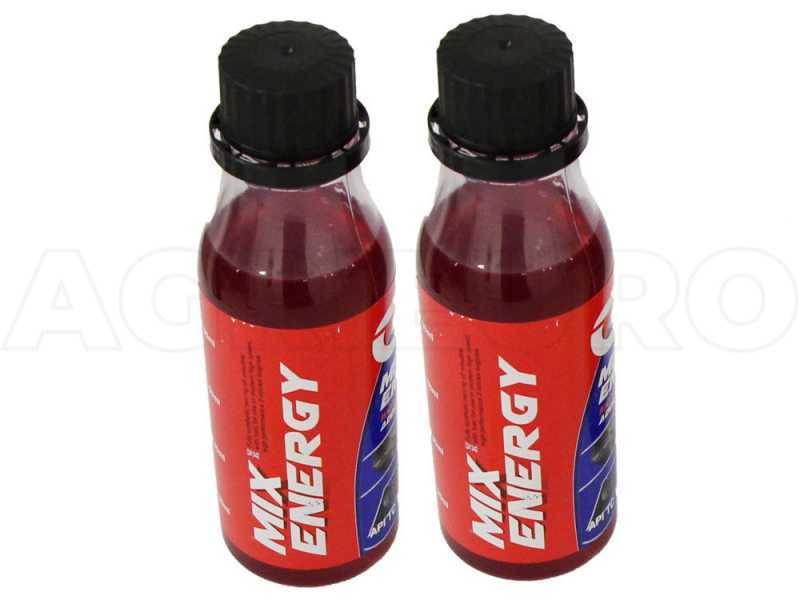

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

60M/6mm steel cable

Brace for anchoring the winch
